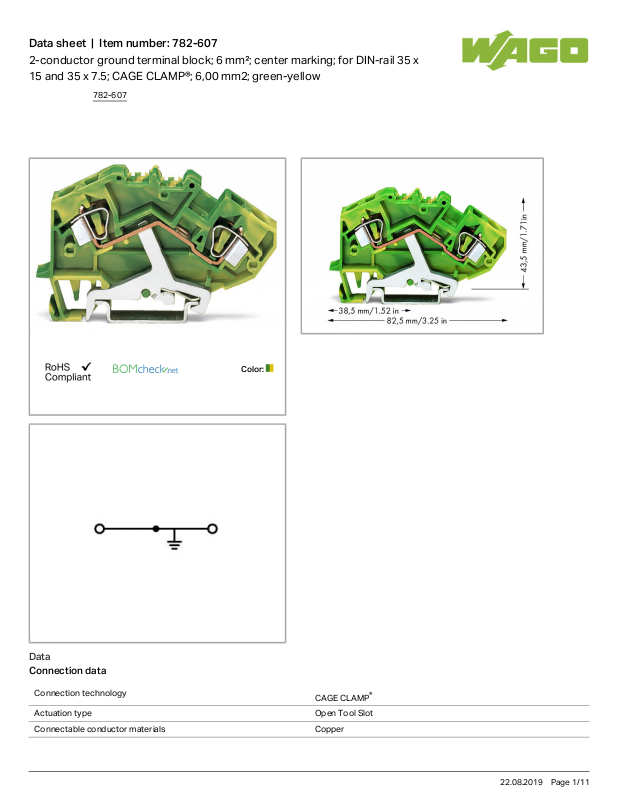

Wago 782-607 Data Sheet

Data sheet | Item number:782-607

2-conductor ground terminal block; 6 mm²; center marking; for DIN-rail 35 x
15 and 35 x 7.5; CAGE CLAMP®; 6,00 mm2; green-yellow

Color:

Data

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Open Tool Slot

Connectable conductor materials Copper

782-607

22.08.2019Page /1 11

Data sheet | Item number:782-607

Solid conductor 0.2 6mm²/ 24 10AWG

Fine-stranded conductor 0.2 6mm²/ 24 10AWG

Strip length 12 13mm/ 0.47 0.51inch

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 8mm/ 0.315inch

Height from upper-edge of DIN-35 rail 43.5mm/ 1.713inch

Depth 82.5mm/ 3.248inch

Mechanical data

Design angled

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color green-yellow

Insulating material Polyamide 66 (PA 66)

Weight 25.66g

Commercial data

Country of origin DE

GTIN 4045454084721

Customs Tariff No. 85369010000

Approvals / Certificates

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2195540.01

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7522

CSA

C22.2 No. 158 1833819

782-607

22.08.2019Page /2 11

Data sheet | Item number:782-607

DEKRA Certification B.V.

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0

BV

CCA

DEKRA Certification B.V.

EN 60947 2195540.01

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7522

CSA

DEKRA Certification B.V.

C22.2 No. 158 1833819

LR

Lloyds Register

EN 60947 91/20112

(E9)

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0

BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE0001V2

782-607

22.08.2019Page /3 11

Data sheet | Item number:782-607

LR

Lloyds Register

EN 60947 91/20112

(E9)

Other Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 20190731-

E45172

Compatible products

General accessories

Item no.: 249-105

Group marker carrier

249-105

End plate

Item no.: 782-317

End and intermediate plate; 1.5 mm thick; orange

782-317

check

Item no.: 209-170

Test plug adapter; 8.3 mm wide; for 4 mm Ø test plugs; suitable for 1.5 mm² - 10 mm² tbs; gray

209-170

Carrier rail

Item no.: 210-112

Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm

210-112

Item no.: 210-113

Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715

210-113
