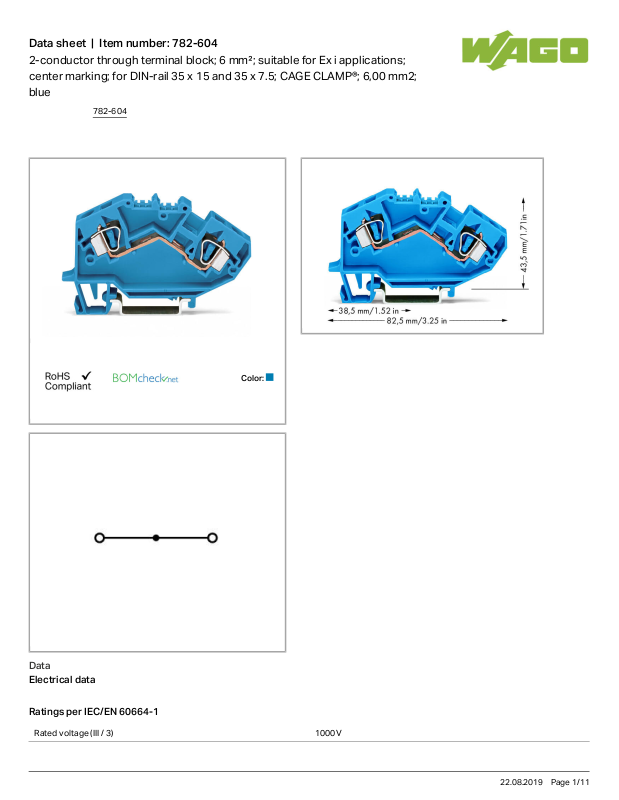

Wago 782-604 Data Sheet

Data sheet | Item number:782-604
2-conductor through terminal block; 6 mm²; suitable for Ex i applications; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 6,00 mm2; blue
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 1000 V
782-604
22.08.2019Page /1 11
Data sheet | Item number:782-604
Rated impulse voltage (III / 3) 8 kV
Rated current 41 A
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Open Tool Slot
Connectable conductor materials Copper
Solid conductor 0.2 6mm²/ 24 10AWG
Fine-stranded conductor 0.2 6mm²/ 24 10AWG
Strip length 12 13mm/ 0.47 0.51inch
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 8mm/ 0.315inch
Height from upper-edge of DIN-35 rail 43.5mm/ 1.713inch
Depth 82.5mm/ 3.248inch
Mechanical data
Design angled
Type of mounting DIN-35 rail
Marking level Center marking
Material Data
Color blue
Insulating material Polyamide 66 (PA 66)
Fire load 0.306 MJ
Weight 16.972g
Commercial data
Country of origin DE
GTIN 4044918583343
Customs Tariff No. 85369010000
Approvals / Certificates
Radio-Approvals
Certificate
782-604
22.08.2019Page /2 11
Data sheet | Item number:782-604
Logo Approval Additional Approval Text name
CCA
DEKRA Certification B.V.
EN 60947 2195540.01
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7522
CSA
DEKRA Certification B.V.
C22.2 No. 158 1833819
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
BV
Bureau Veritas S.A.
EN 60947 07436/E0
BV
CCA
DEKRA Certification B.V.
EN 60947 2195540.01
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7522
CSA
DEKRA Certification B.V.
C22.2 No. 158 1833819
LR
Lloyds Register
EN 60947 91/20112
(E9)
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
782-604
22.08.2019Page /3 11
Data sheet | Item number:782-604
BV
Bureau Veritas S.A.
EN 60947 07436/E0
BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE0001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
Other Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 E45172
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 20190731-
E45172

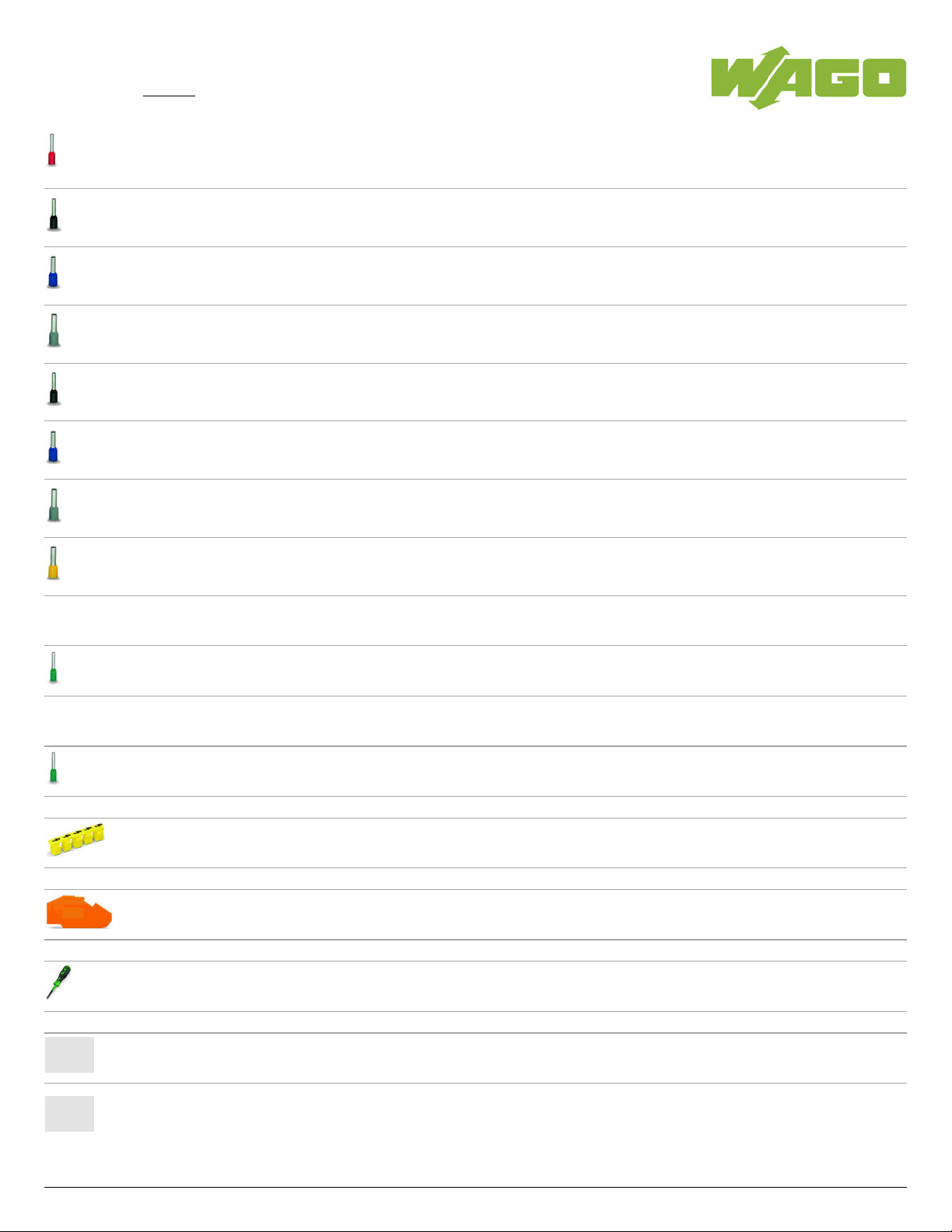

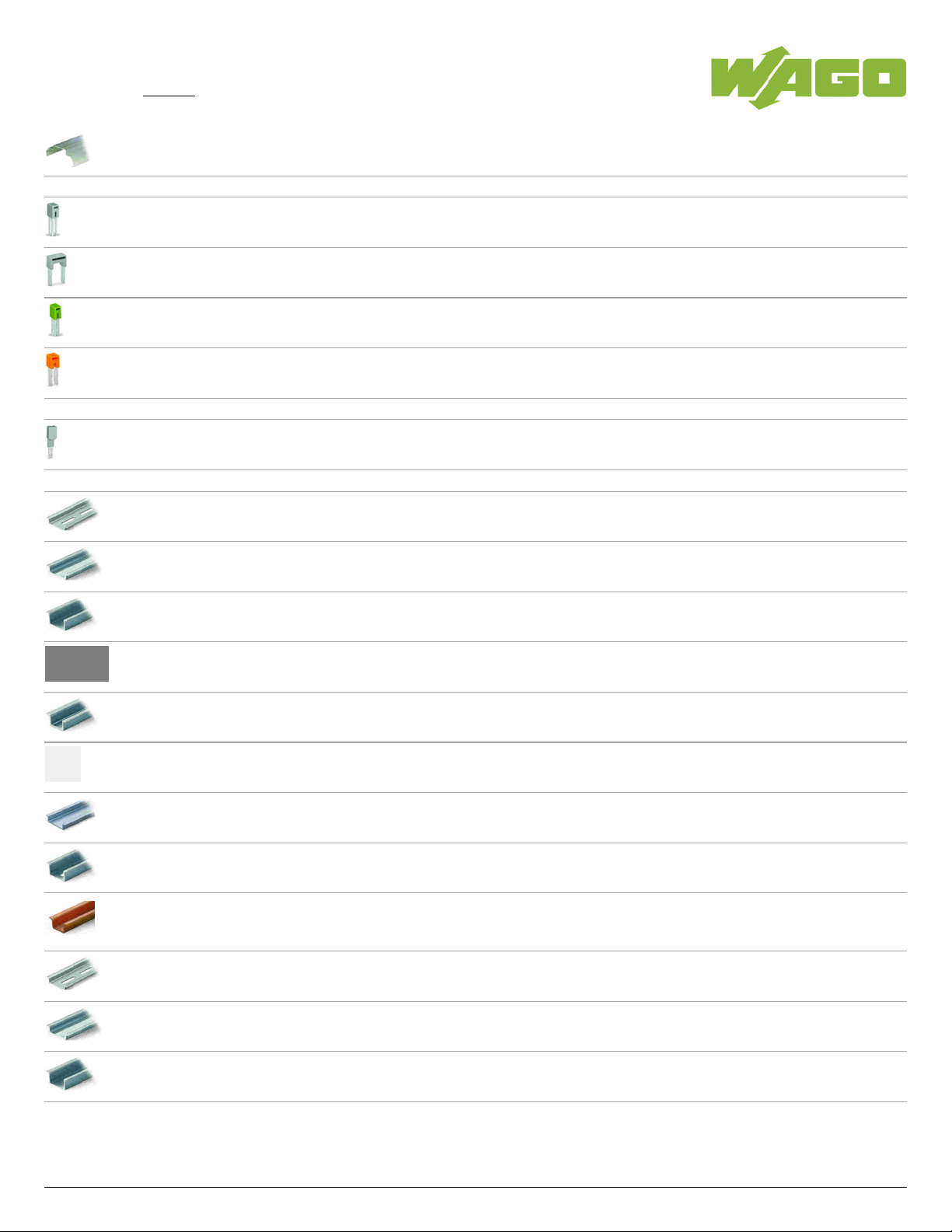

Compatible products
assembling
Item no.: 209-106
Mounting carrier; for isolated mounting on DIN 35 rails; gray
209-106
782-604
22.08.2019Page /4 11
