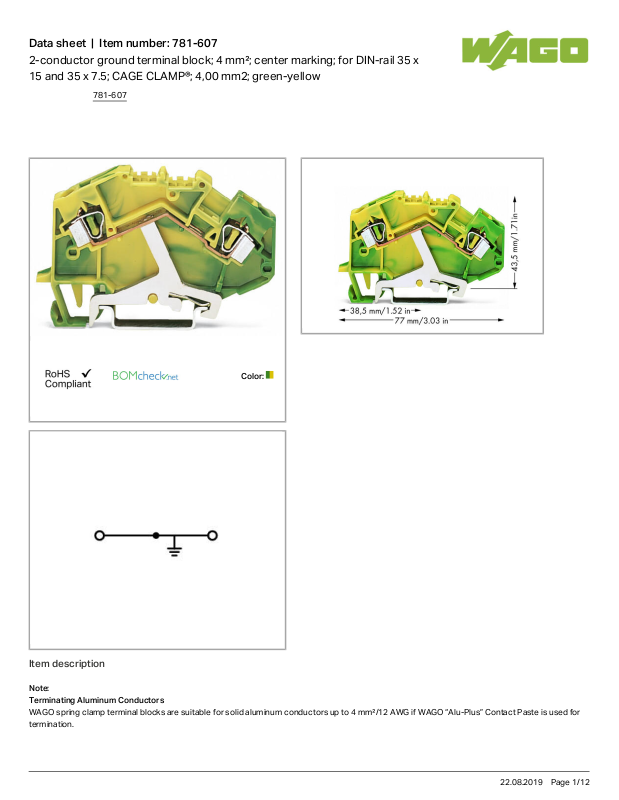

Wago 781-607 Data Sheet

Data sheet | Item number:781-607
2-conductor ground terminal block; 4 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 4,00 mm2; green-yellow
Color:
Item description
Note: Terminating Aluminum Conductors
WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4mm²/12AWG if WAGO “Alu-Plus” Contact Paste is used for termination.
781-607
22.08.2019Page /1 12
Data sheet | Item number:781-607
“Alu-Plus” Contact Paste Advantages:
Automatically destroys the oxide film during clamping.
Prevents fresh oxidation at the clamping point.
Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
Provides long-term protection against corrosion.
Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, and aluminum conductors must first be cleaned with a blade then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.
It is also possible to apply WAGO “Alu-Plus” on the whole surface of the aluminum conductor before termination.additionally
Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:
2.5mm² (14 AWG) = 16 A 4mm² (12 AWG) = 22 A
Data
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Open Tool Slot
Connectable conductor materials Copper
Aluminum
Solid conductor 0.08 4mm²/ 28 12AWG
Fine-stranded conductor 0.08 4mm²/ 28 12AWG
Strip length 9 10mm/ 0.35 0.39inch
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 6mm/ 0.236inch
Height from upper-edge of DIN-35 rail 43.5mm/ 1.713inch
Depth 77mm/ 3.031inch
Mechanical data
Design angled
Type of mounting DIN-35 rail
Marking level Center marking
781-607
22.08.2019Page /2 12
Data sheet | Item number:781-607
Material Data
Color green-yellow
Insulating material Polyamide 66 (PA 66)
Weight 16.65g
Commercial data
Country of origin DE
GTIN 4045454084691
Customs Tariff No. 85369010000
Approvals / Certificates
Radio-Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7454/A1
CSA
DEKRA Certification B.V.
C22.2 No. 158 1536075
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
- 14­HG1293677­PDA
BV
Bureau Veritas S.A.
EN 60947 07436/E0
BV
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7454/A1
CSA
DEKRA Certification B.V.
C22.2 No. 158 1833819
LR
Lloyds Register
EN 60947 91/20112
(E9)
781-607
22.08.2019Page /3 12
Data sheet | Item number:781-607
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
- 14-
HG1293677­PDA
BV
Bureau Veritas S.A.
EN 60947 07436/E0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
Other Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 E45172
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 20190731-
E45172
