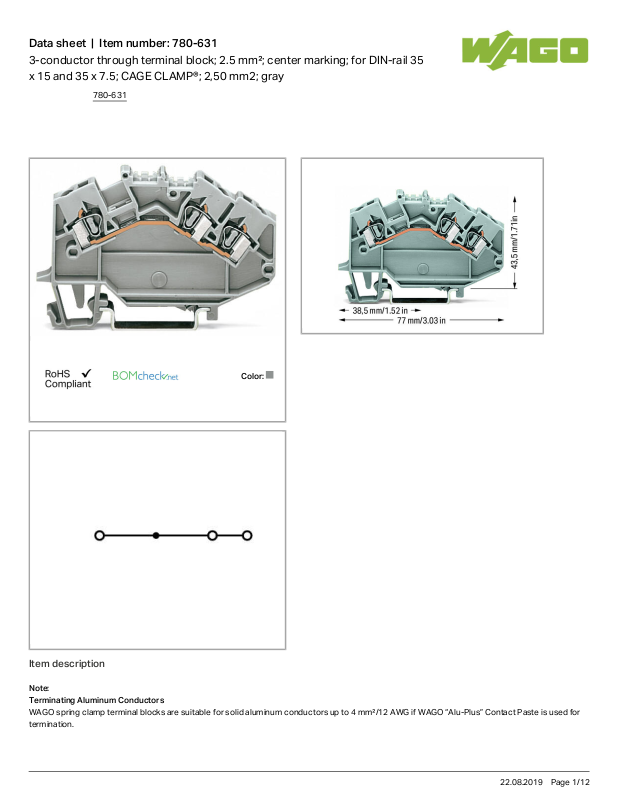

Wago 780-631 Data Sheet

Data sheet | Item number:780-631

3-conductor through terminal block; 2.5 mm²; center marking; for DIN-rail 35
x 15 and 35 x 7.5; CAGE CLAMP®; 2,50 mm2; gray

Color:

Item description

Note:
Terminating Aluminum Conductors

WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4mm²/12AWG if WAGO “Alu-Plus” Contact Paste is used for
termination.

780-631

22.08.2019Page /1 12

Data sheet | Item number:780-631

“Alu-Plus” Contact Paste Advantages:

Automatically destroys the oxide film during clamping.

Prevents fresh oxidation at the clamping point.

Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).

Provides long-term protection against corrosion.

Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, and aluminum conductors must first be cleaned with a blade
then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.

It is also possible to apply WAGO “Alu-Plus” on the whole surface of the aluminum conductor before termination.additionally

Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:

2.5mm² (14 AWG) = 16 A
4mm² (12 AWG) = 22 A

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 1000 V

Rated impulse voltage (III / 3) 8 kV

Rated current 24 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Open Tool Slot

Connectable conductor materials Copper

Aluminum

Solid conductor 0.08 2.5mm²/ 28 12AWG

Fine-stranded conductor 0.08 2.5mm²/ 28 12AWG

Strip length 8 9mm/ 0.31 0.35inch

Note (conductor cross-section) 12 AWG: THHN, THWN

Total number of connection points 3

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch

Height from upper-edge of DIN-35 rail 43.5mm/ 1.713inch

780-631

22.08.2019Page /2 12

Data sheet | Item number:780-631

Depth 77mm/ 3.031inch

Mechanical data

Design angled

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.177 MJ

Weight 9.25g

Commercial data

Country of origin DE

GTIN 4044918544610

Customs Tariff No. 85369010000

Approvals / Certificates

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2157201.01

CSA

DEKRA Certification B.V.

C22.2 No. 158 1833819

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0

BV

CCA

DEKRA Certification B.V.

EN 60947 2157201.01

780-631

22.08.2019Page /3 12

Data sheet | Item number:780-631

CSA

DEKRA Certification B.V.

C22.2 No. 158 1833819

LR

Lloyds Register

EN 60947 91/20112

(E9)

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0

BV

LR

Lloyds Register

EN 60947 91/20112

(E9)

Other Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 20190731-

E45172
