Wago 780-613 Data Sheet

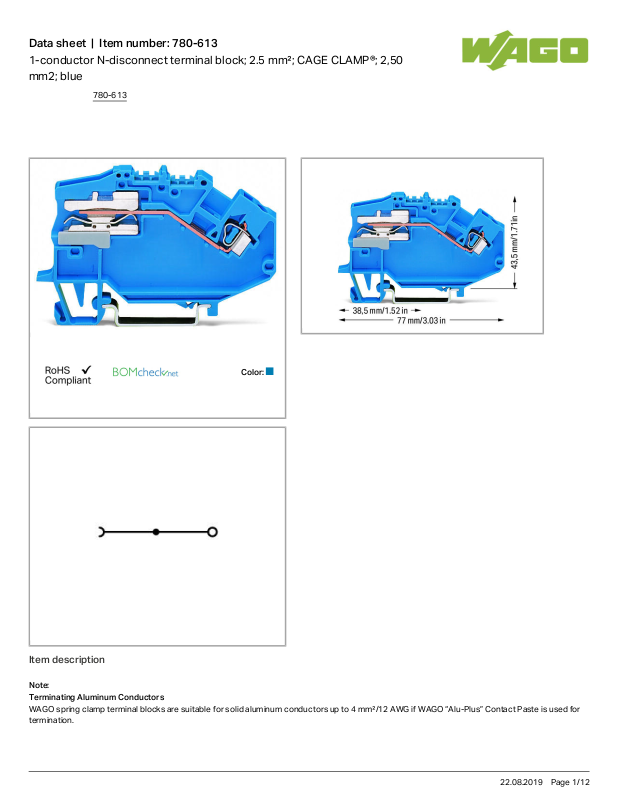

Data sheet | Item number:780-613

1-conductor N-disconnect terminal block; 2.5 mm²; CAGE CLAMP®; 2,50
mm2; blue

Color:

Item description

Note:
Terminating Aluminum Conductors

WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4mm²/12AWG if WAGO “Alu-Plus” Contact Paste is used for
termination.

780-613

22.08.2019Page /1 12

Data sheet | Item number:780-613

“Alu-Plus” Contact Paste Advantages:

Automatically destroys the oxide film during clamping.

Prevents fresh oxidation at the clamping point.

Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).

Provides long-term protection against corrosion.

Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, and aluminum conductors must first be cleaned with a blade
then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.

It is also possible to apply WAGO “Alu-Plus” on the whole surface of the aluminum conductor before termination.additionally

Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:

2.5mm² (14 AWG) = 16 A
4mm² (12 AWG) = 22 A

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V

Rated impulse voltage (III / 3) 6 kV

Rated current 24 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Aluminum

Solid conductor 0.08 2.5mm²/ 28 12AWG

Fine-stranded conductor 0.08 2.5mm²/ 28 12AWG

Strip length 8 9mm/ 0.31 0.35inch

Note (conductor cross-section) 12 AWG: THHN, THWN

Total number of connection points 1

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch

Height from upper-edge of DIN-35 rail 43.5mm/ 1.713inch

780-613

22.08.2019Page /2 12

Data sheet | Item number:780-613

Depth 77mm/ 3.031inch

Mechanical data

Design angled

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color blue

Insulating material Polyamide 66 (PA 66)

Weight 13.15g

Commercial data

Product Group 17 (TOP JOB installation terminal blocks)

Country of origin PL

GTIN 4044918965569

Customs Tariff No. 85365080990

Approvals / Certificates

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2157201.01

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0

BV

CCA

DEKRA Certification B.V.

EN 60947 2157201.01

LR

Lloyds Register

EN 60947 91/20112

(E9)

780-613

22.08.2019Page /3 12

Data sheet | Item number:780-613

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0

BV

LR

Lloyds Register

EN 60947 91/20112

(E9)

Other Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 20190731-

E45172

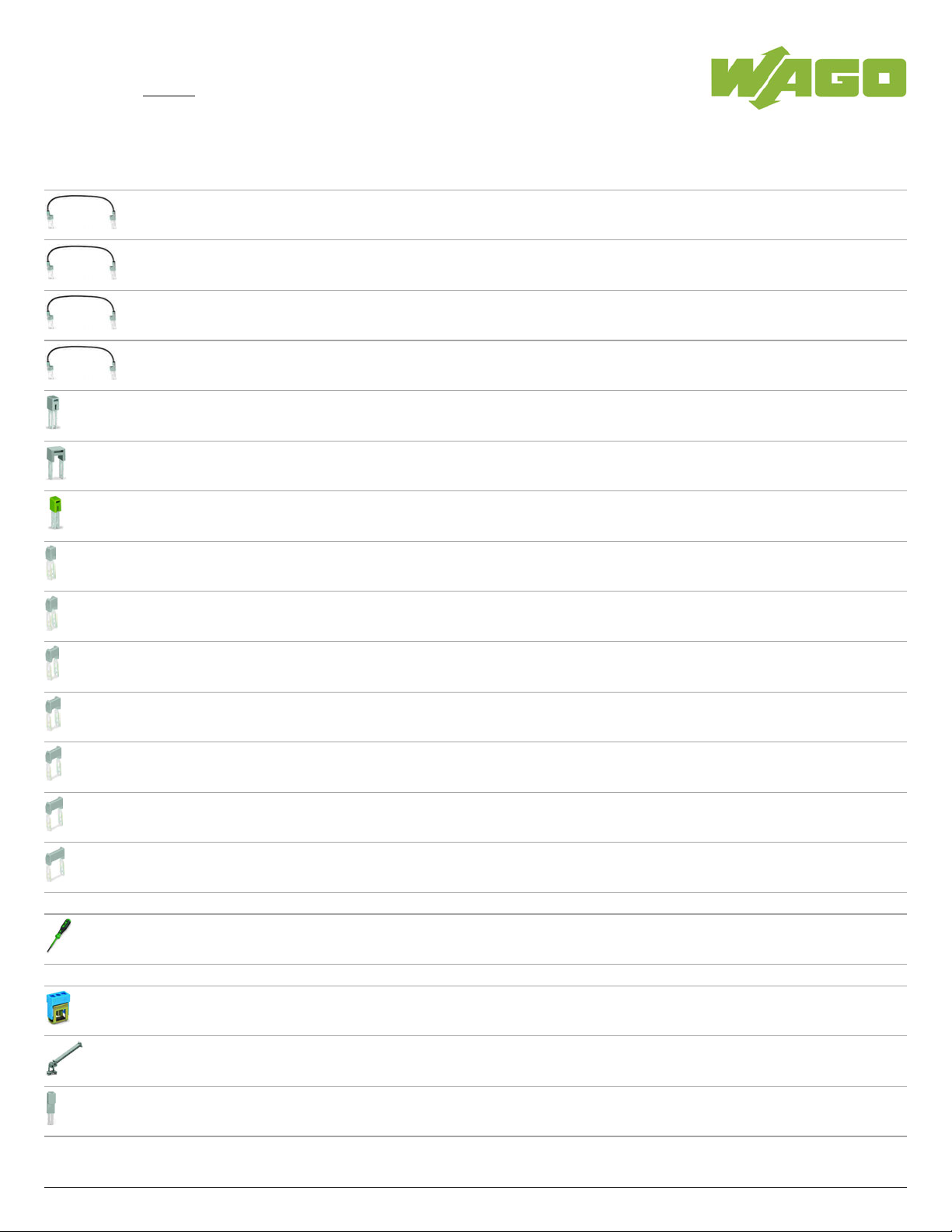

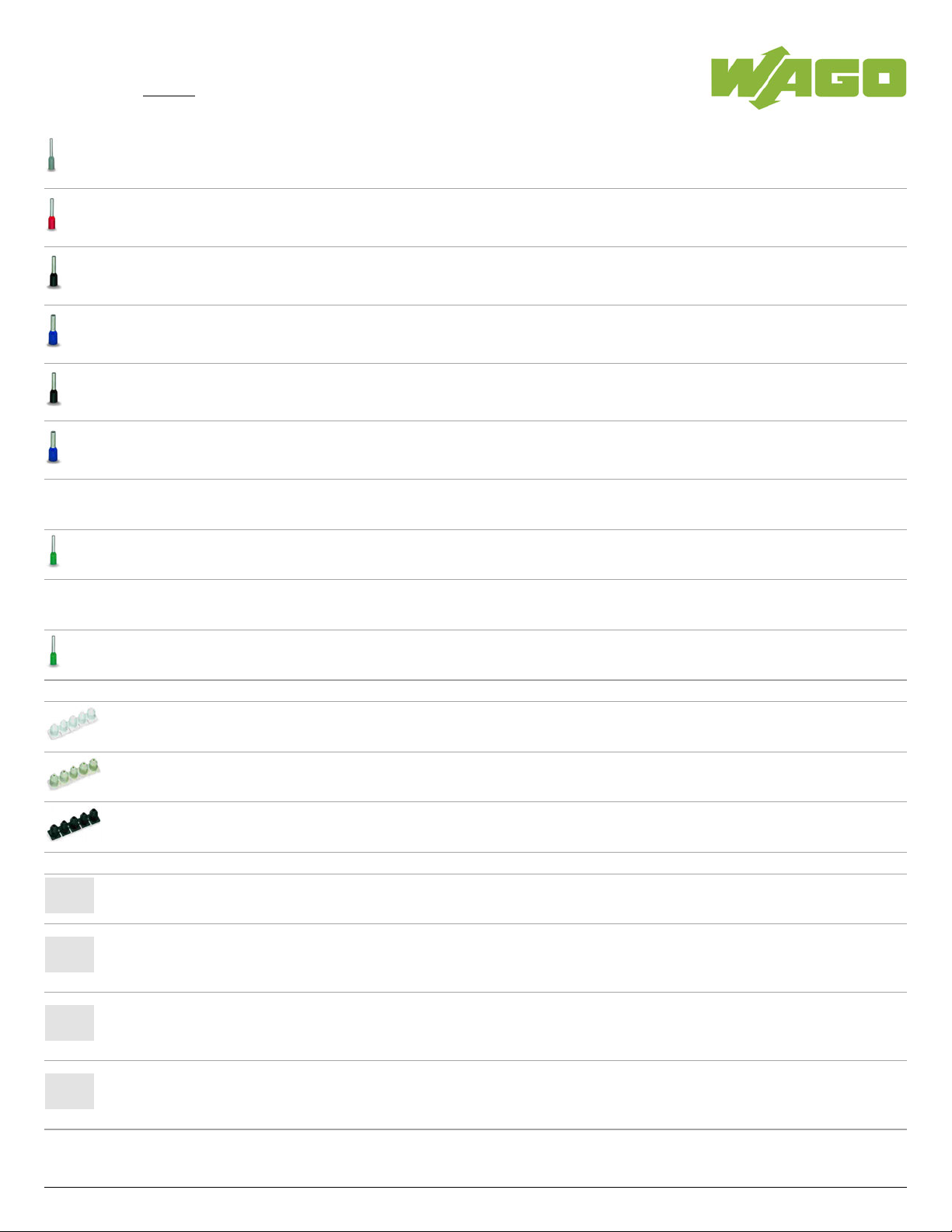

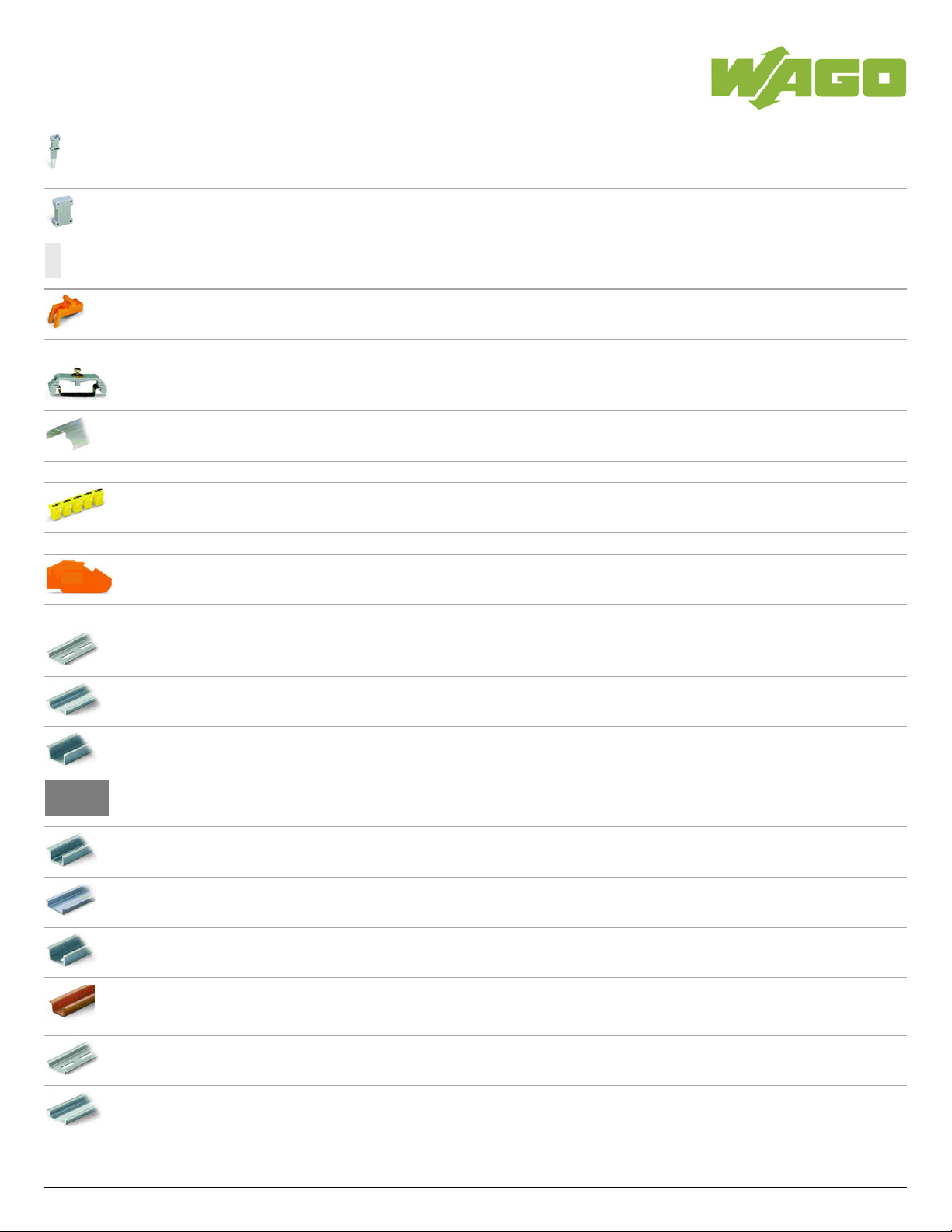

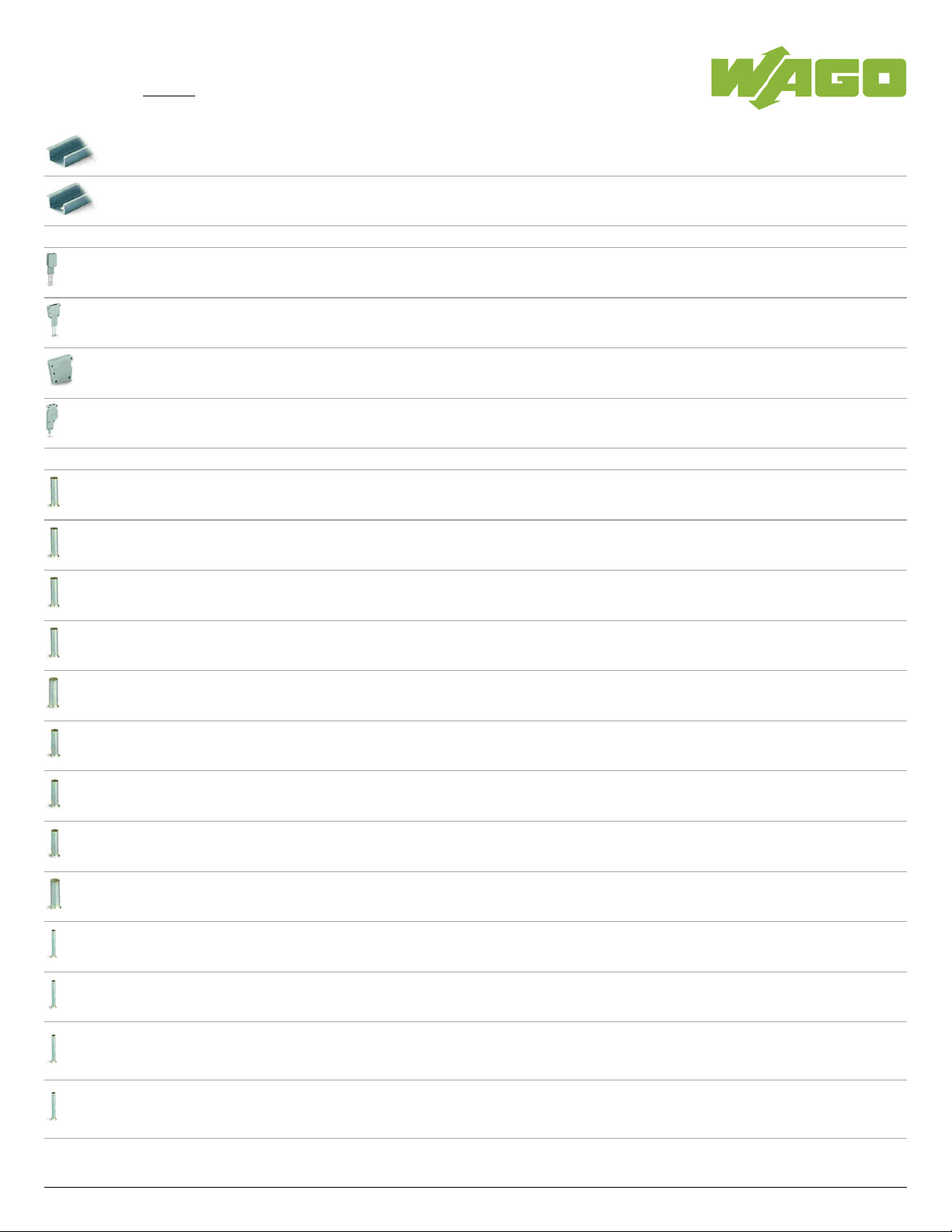

Compatible products
