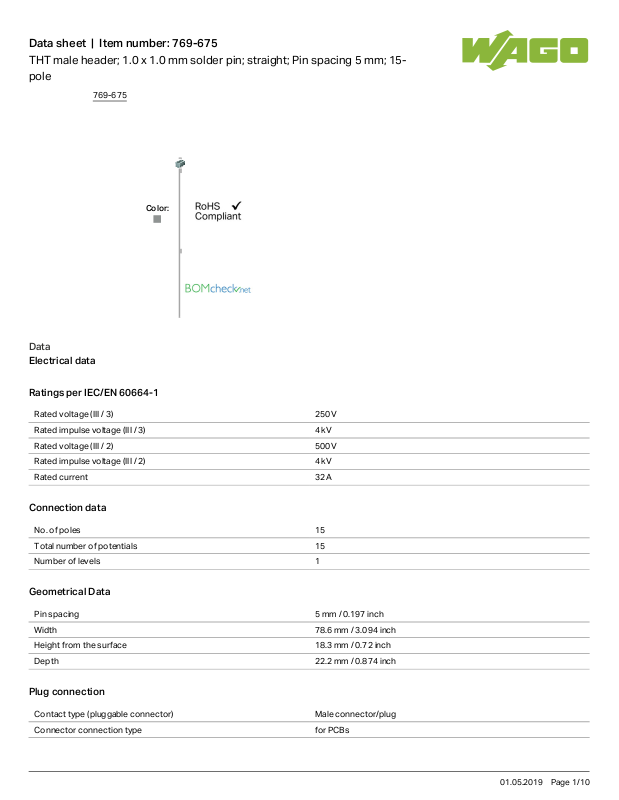

Wago 769-675 Data Sheet
Data sheet | Item number:769-675
THT male header; 1.0 x 1.0 mm solder pin; straight; Pin spacing 5 mm; 15pole
Color:
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 250 V
Rated impulse voltage (III / 3) 4 kV
Rated voltage (III / 2) 500 V
Rated impulse voltage (III / 2) 4 kV
Rated current 32 A
Connection data
No. of poles 15
Total number of potentials 15
Number of levels 1
Geometrical Data
Pin spacing 5mm/ 0.197inch
Width 78.6mm/ 3.094inch
Height from the surface 18.3mm/ 0.72inch
Depth 22.2mm/ 0.874inch
Plug connection
Contact type (pluggable connector) Male connector/plug
Connector connection type for PCBs
769-675
01.05.2019Page /1 10
Data sheet | Item number:769-675
Mismating protection No
Mating direction to the PCB 0 °
PCB contact
PCB contact THT
Material Data
Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.314 MJ
Weight 15.895 g
Commercial data
Product Group 18 (X-COM-System)
Country of origin DE
GTIN 4044918397506
Customs Tariff No. 85366990990
Approvals / Certificates
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7626
CCA
DEKRA Certification B.V.
EN 61984 2190419.02
CCA
DEKRA Certification B.V.
IEC 61984 NL-47799
CSA
DEKRA Certification B.V.
C22.2 No. 158 1101144
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 2190419.01
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
769-675
01.05.2019Page /2 10
Data sheet | Item number:769-675
Logo Approval Additional Approval Text name
UR
Underwriters Laboratories Inc.
UL 1059 E45172
UR
Underwriters Laboratories Inc.
UL 1977 E45171
Compatible products
Coding
Item no.: 769-435
Coding pin; for coding of female plugs; for carrier terminal blocks / male connectors
769-435
Marking accessories
Item no.: 210-831
Marking strips; on reel; 2.3 mm wide; plain; Self-adhesive
210-831
Item no.: 210-832
Marking strips; on reel; 3 mm wide; plain; Self-adhesive
210-832
Item no.: 210-833
Marking strips; on reel; 6 mm wide; plain; Self-adhesive
210-833
Item no.: 210-834
Marking strips; on reel; 5 mm wide; plain; Self-adhesive
210-834
ferrule
Item no.: 216-101
Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-101
Item no.: 216-102
Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
216-102
Item no.: 216-103
Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated
216-103
Item no.: 216-104
Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated
216-104
Item no.: 216-201
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated
216-201
Item no.: 216-202
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated
216-202
Item no.: 216-203
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated
216-203
769-675
01.05.2019Page /3 10
