Wago 769-672 Data Sheet

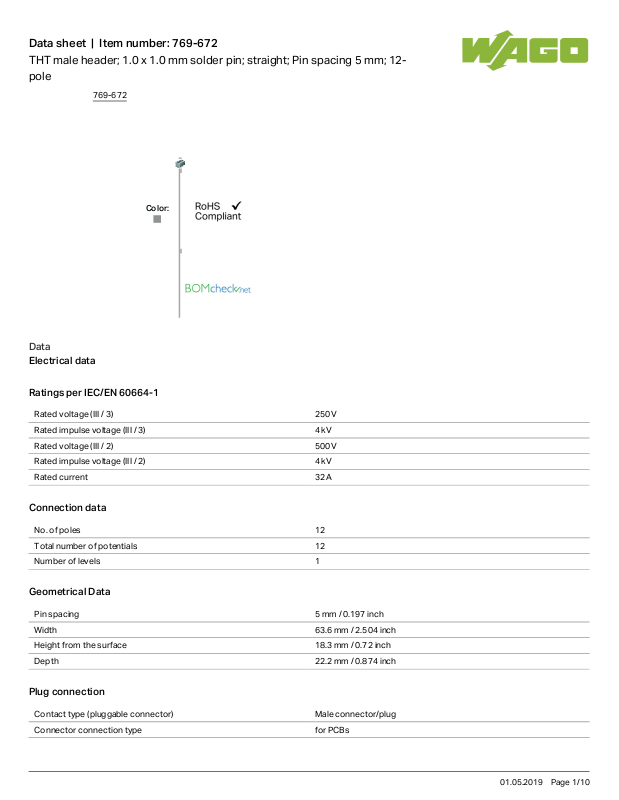

Data sheet | Item number:769-672

THT male header; 1.0 x 1.0 mm solder pin; straight; Pin spacing 5 mm; 12­pole

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 250 V

Rated impulse voltage (III / 3) 4 kV

Rated voltage (III / 2) 500 V

Rated impulse voltage (III / 2) 4 kV

Rated current 32 A

Connection data

No. of poles 12

Total number of potentials 12

Number of levels 1

Geometrical Data

Pin spacing 5mm/ 0.197inch

Width 63.6mm/ 2.504inch

Height from the surface 18.3mm/ 0.72inch

Depth 22.2mm/ 0.874inch

Plug connection

Contact type (pluggable connector) Male connector/plug

Connector connection type for PCBs

769-672

01.05.2019Page /1 10

Data sheet | Item number:769-672

Mismating protection No

Mating direction to the PCB 0 °

PCB contact

PCB contact THT

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.261 MJ

Weight 13.034 g

Commercial data

Product Group 18 (X-COM-System)

Country of origin PL

GTIN 4044918397186

Customs Tariff No. 85366990990

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7626

CCA

DEKRA Certification B.V.

EN 61984 2190419.02

CCA

DEKRA Certification B.V.

IEC 61984 NL-47799

CSA

DEKRA Certification B.V.

C22.2 No. 158 1101144

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2190419.01

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

769-672

01.05.2019Page /2 10

Data sheet | Item number:769-672

Logo Approval Additional Approval Text name

UR

Underwriters Laboratories Inc.

UL 1977 E45171

UR

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

Coding

Item no.: 769-435

Coding pin; for coding of female plugs; for carrier terminal blocks / male connectors

769-435

Marking accessories

Item no.: 210-831

Marking strips; on reel; 2.3 mm wide; plain; Self-adhesive

210-831

Item no.: 210-832

Marking strips; on reel; 3 mm wide; plain; Self-adhesive

210-832

Item no.: 210-833

Marking strips; on reel; 6 mm wide; plain; Self-adhesive

210-833

Item no.: 210-834

Marking strips; on reel; 5 mm wide; plain; Self-adhesive

210-834

Female plug

Item no.: 769-101

1-conductor female plug; 4 mm²; 1-pole

769-101

Item no.: 769-102

1-conductor female plug; 4 mm²; 2-pole

769-102

Item no.: 769-102/000-036

1-conductor female plug; 4 mm²; 2-pole

769-102

/000-036

Item no.: 769-102/000-037

1-conductor female plug; 4 mm²; 2-pole

769-102

/000-037

Item no.: 769-103

1-conductor female plug; 4 mm²; 3-pole

769-103

Item no.: 769-103/000-036

1-conductor female plug; 4 mm²; 3-pole

769-103

/000-036

769-672

01.05.2019Page /3 10
