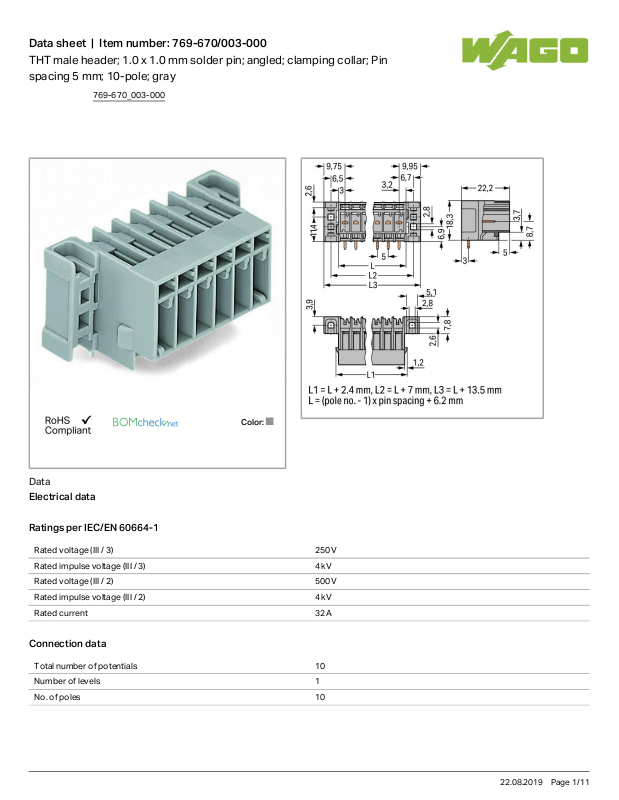

Page 1
Data sheet | Item number:769-670/003-000
THT male header; 1.0 x 1.0 mm solder pin; angled; clamping collar; Pin spacing 5 mm; 10-pole; gray
Color:
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 250 V
Rated impulse voltage (III / 3) 4 kV
Rated voltage (III / 2) 500 V
Rated impulse voltage (III / 2) 4 kV
Rated current 32 A
Connection data
Total number of potentials 10
Number of levels 1
No. of poles 10
769-670_003-000
22.08.2019Page /1 11
Page 2
Data sheet | Item number:769-670/003-000
Geometrical Data
Pin spacing 5mm/ 0.197inch
Width 64.7mm/ 2.547inch
Height from the surface 18.3mm/ 0.72inch
Depth 22.2mm/ 0.874inch
Mechanical data
Mounting type Mounting flange
Plug connection
Contact type (pluggable connector) Male connector/plug
Connector connection type for PCBs
Mismating protection No
Mating direction to the PCB 0 °
PCB contact
PCB contact THT
Material Data
Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.237 MJ
Weight 11.505 g
Commercial data
Product Group 18 (X-COM-System)
Country of origin PL
GTIN 4044918397056
Customs Tariff No. 85366990990
Approvals / Certificates
Radio-Approvals
Logo Approval Additional Approval Text
Certificate name
CCA IEC 61984 NL-47799
CCA EN 61984 2190419.02
769-670_003-000
22.08.2019Page /2 11
Page 3
Data sheet | Item number:769-670/003-000
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7626
CSA
DEKRA Certification B.V.
C22.2 No. 158 1101144
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 2190419.01
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 61984 2190419.02
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7626
CCA
DEKRA Certification B.V.
IEC 61984 NL-47799
CSA
DEKRA Certification B.V.
C22.2 No. 158 1101144
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 2190419.01
Other Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1977 E45171
UR
Underwriters Laboratories Inc.
UL 1059 E45172
UL-Approvals
769-670_003-000
22.08.2019Page /3 11
Page 4
Data sheet | Item number:769-670/003-000
Logo
Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 31.07.2019-
E45172
UR
Underwriters Laboratories Inc.
UL 1977 E45171-
20010720
Compatible products
Marking accessories
Item no.: 210-831
Marking strips; on reel; 2.3 mm wide; plain; Self-adhesive; white
210-831
Item no.: 210-832
Marking strips; on reel; 3 mm wide; plain; Self-adhesive; white
210-832
Item no.: 210-833
Marking strips; on reel; 6 mm wide; plain; Self-adhesive; white
210-833
Item no.: 210-834
Marking strips; on reel; 5 mm wide; plain; Self-adhesive; white
210-834
ferrule
Item no.: 216-101
Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-101
Item no.: 216-102
Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
216-102
Item no.: 216-103
Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated
216-103
Item no.: 216-104
Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated
216-104
Item no.: 216-201
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; white
216-201
Item no.: 216-202
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; gray
216-202
Item no.: 216-203
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; red
216-203
Item no.: 216-204
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; black
216-204
769-670_003-000
22.08.2019Page /4 11
Page 5
Data sheet | Item number:769-670/003-000
Item no.: 216-206
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; blue
216-206
Item no.: 216-301
Ferrule; Sleeve for 0.25 mm² / AWG 24; insulated; electro-tin plated; yellow
216-301
Item no.: 216-302
Ferrule; Sleeve for 0.34 mm² / 22 AWG; insulated; electro-tin plated; green
216-302
Female plug
Item no.: 769-101
1-conductor female plug; 4 mm²; 1-pole; 4,00 mm2; gray
769-101
Item no.: 769-102
1-conductor female plug; 4 mm²; 2-pole; 4,00 mm2; gray
769-102
Item no.: 769-102/000-036
1-conductor female plug; 4 mm²; 2-pole; 4,00 mm2; gray, green-yellow
769-102
/000-036
Item no.: 769-102/000-037
1-conductor female plug; 4 mm²; 2-pole; 4,00 mm2; green-yellow, gray
769-102
/000-037
Item no.: 769-103
1-conductor female plug; 4 mm²; 3-pole; 4,00 mm2; gray
769-103
Item no.: 769-103/000-036
1-conductor female plug; 4 mm²; 3-pole; 4,00 mm2; gray, green-yellow
769-103
/000-036
Item no.: 769-103/000-037
1-conductor female plug; 4 mm²; 3-pole; 4,00 mm2; green-yellow, gray
769-103
/000-037
Item no.: 769-103/000-038
1-conductor female plug; 4 mm²; 3-pole; 4,00 mm2; gray, blue, green-yellow
769-103
/000-038
Item no.: 769-103/000-039
1-conductor female plug; 4 mm²; 3-pole; 4,00 mm2; green-yellow, blue, gray
769-103
/000-039
Item no.: 769-104
1-conductor female plug; 4 mm²; 4-pole; 4,00 mm2; gray
769-104
Item no.: 769-104/000-036
1-conductor female plug; 4 mm²; 4-pole; 4,00 mm2; gray, green-yellow
769-104
/000-036
Item no.: 769-104/000-037
1-conductor female plug; 4 mm²; 4-pole; 4,00 mm2; green-yellow, gray
769-104
/000-037
Item no.: 769-104/000-038
1-conductor female plug; 4 mm²; 4-pole; 4,00 mm2; gray, blue, green-yellow
769-104
/000-038
769-670_003-000
22.08.2019Page /5 11
Page 6
Data sheet | Item number:769-670/003-000
Item no.: 769-104/000-039
1-conductor female plug; 4 mm²; 4-pole; 4,00 mm2; green-yellow, blue, gray
769-104
/000-039
Item no.: 769-105
1-conductor female plug; 4 mm²; 5-pole; 4,00 mm2; gray
769-105
Item no.: 769-105/000-036
1-conductor female plug; 4 mm²; 5-pole; 4,00 mm2; gray, green-yellow
769-105
/000-036
Item no.: 769-105/000-037
1-conductor female plug; 4 mm²; 5-pole; 4,00 mm2; green-yellow, gray
769-105
/000-037
Item no.: 769-105/000-038
1-conductor female plug; 4 mm²; 5-pole; 4,00 mm2; gray, blue, green-yellow
769-105
/000-038
Item no.: 769-105/000-039
1-conductor female plug; 4 mm²; 5-pole; 4,00 mm2; green-yellow, blue, gray
769-105
/000-039
Item no.: 769-106
1-conductor female plug; 4 mm²; 6-pole; 4,00 mm2; gray
769-106
Item no.: 769-106/000-006
1-conductor female plug; 4 mm²; 6-pole; 4,00 mm2; blue
769-106
/000-006
Item no.: 769-106/000-036
1-conductor female plug; 4 mm²; 6-pole; 4,00 mm2; gray, green-yellow
769-106
/000-036
Item no.: 769-106/000-037
1-conductor female plug; 4 mm²; 6-pole; 4,00 mm2; green-yellow, gray
769-106
/000-037
Item no.: 769-106/000-038
1-conductor female plug; 4 mm²; 6-pole; 4,00 mm2; gray, blue, green-yellow
769-106
/000-038
Item no.: 769-106/000-039
1-conductor female plug; 4 mm²; 6-pole; 4,00 mm2; green-yellow, blue, gray
769-106
/000-039
Item no.: 769-107
1-conductor female plug; 4 mm²; 7-pole; 4,00 mm2; gray
769-107
Item no.: 769-107/000-036
1-conductor female plug; 4 mm²; 7-pole; 4,00 mm2; gray, green-yellow
769-107
/000-036
Item no.: 769-107/000-037
1-conductor female plug; 4 mm²; 7-pole; 4,00 mm2; green-yellow, gray
769-107
/000-037
Item no.: 769-107/000-038
1-conductor female plug; 4 mm²; 7-pole; 4,00 mm2; gray, blue, green-yellow
769-107
/000-038
769-670_003-000
22.08.2019Page /6 11
Page 7
Data sheet | Item number:769-670/003-000
Item no.: 769-107/000-039
1-conductor female plug; 4 mm²; 7-pole; 4,00 mm2; green-yellow, blue, gray
769-107
/000-039
Item no.: 769-108
1-conductor female plug; 4 mm²; 8-pole; 4,00 mm2; gray
769-108
Item no.: 769-108/000-036
1-conductor female plug; 4 mm²; 8-pole; 4,00 mm2; gray, green-yellow
769-108
/000-036
Item no.: 769-108/000-037
1-conductor female plug; 4 mm²; 8-pole; 4,00 mm2; green-yellow, gray
769-108
/000-037
Item no.: 769-108/000-038
1-conductor female plug; 4 mm²; 8-pole; 4,00 mm2; gray, blue, green-yellow
769-108
/000-038
Item no.: 769-108/000-039
1-conductor female plug; 4 mm²; 8-pole; 4,00 mm2; green-yellow, blue, gray
769-108
/000-039
Item no.: 769-109
1-conductor female plug; 4 mm²; 9-pole; 4,00 mm2; gray
769-109
Item no.: 769-109/000-036
1-conductor female plug; 4 mm²; 9-pole; 4,00 mm2; gray, green-yellow
769-109
/000-036
Item no.: 769-109/000-037
1-conductor female plug; 4 mm²; 9-pole; 4,00 mm2; green-yellow, gray
769-109
/000-037
Item no.: 769-109/000-038
1-conductor female plug; 4 mm²; 9-pole; 4,00 mm2; gray, blue, green-yellow
769-109
/000-038
Item no.: 769-109/000-039
1-conductor female plug; 4 mm²; 9-pole; 4,00 mm2; green-yellow, blue, gray
769-109
/000-039
Item no.: 769-110
1-conductor female plug; 4 mm²; 10-pole; 4,00 mm2; gray
769-110
Item no.: 769-110/000-036
1-conductor female plug; 4 mm²; 10-pole; 4,00 mm2; gray, green-yellow
769-110
/000-036
Item no.: 769-110/000-037
1-conductor female plug; 4 mm²; 10-pole; 4,00 mm2; green-yellow, gray
769-110
/000-037
Item no.: 769-110/000-038
1-conductor female plug; 4 mm²; 10-pole; 4,00 mm2; gray, blue, green-yellow
769-110
/000-038
769-670_003-000
22.08.2019Page /7 11
Page 8
Data sheet | Item number:769-670/003-000
Item no.: 769-110/000-039
1-conductor female plug; 4 mm²; 10-pole; 4,00 mm2; green-yellow, blue, gray
769-110
/000-039
Item no.: 769-110/021-000
1-conductor female plug; Locking lever; 4 mm²; 10-pole; 4,00 mm2; gray
769-110
/021-000
Item no.: 769-111
1-conductor female plug; 4 mm²; 11-pole; 4,00 mm2; gray
769-111
Item no.: 769-111/000-036
1-conductor female plug; 4 mm²; 11-pole; 4,00 mm2; gray, green-yellow
769-111
/000-036
Item no.: 769-111/000-037
1-conductor female plug; 4 mm²; 11-pole; 4,00 mm2; green-yellow, gray
769-111
/000-037
Item no.: 769-111/000-038
1-conductor female plug; 4 mm²; 11-pole; 4,00 mm2; gray, blue, green-yellow
769-111
/000-038
Item no.: 769-111/000-039
1-conductor female plug; 4 mm²; 11-pole; 4,00 mm2; green-yellow, blue, gray
769-111
/000-039
Item no.: 769-112
1-conductor female plug; 4 mm²; 12-pole; 4,00 mm2; gray
769-112
Item no.: 769-112/000-036
1-conductor female plug; 4 mm²; 12-pole; 4,00 mm2; gray, green-yellow
769-112
/000-036
Item no.: 769-112/000-037
1-conductor female plug; 4 mm²; 12-pole; 4,00 mm2; green-yellow, gray
769-112
/000-037
Item no.: 769-112/000-038
1-conductor female plug; 4 mm²; 12-pole; 4,00 mm2; gray, blue, green-yellow
769-112
/000-038
Item no.: 769-112/000-039
1-conductor female plug; 4 mm²; 12-pole; 4,00 mm2; green-yellow, blue, gray
769-112
/000-039
Item no.: 769-113
1-conductor female plug; 4 mm²; 13-pole; 4,00 mm2; gray
769-113
Item no.: 769-113/000-036
1-conductor female plug; 4 mm²; 13-pole; 4,00 mm2; gray, green-yellow
769-113
/000-036
Item no.: 769-113/000-037
1-conductor female plug; 4 mm²; 13-pole; 4,00 mm2; green-yellow, gray
769-113
/000-037
769-670_003-000
22.08.2019Page /8 11
Page 9
Data sheet | Item number:769-670/003-000
Item no.: 769-113/000-038
1-conductor female plug; 4 mm²; 13-pole; 4,00 mm2; gray, blue, green-yellow
769-113
/000-038
Item no.: 769-113/000-039
1-conductor female plug; 4 mm²; 13-pole; 4,00 mm2; green-yellow, blue, gray
769-113
/000-039
Item no.: 769-114
1-conductor female plug; 4 mm²; 14-pole; 4,00 mm2; gray
769-114
Item no.: 769-114/000-036
1-conductor female plug; 4 mm²; 14-pole; 4,00 mm2; gray, green-yellow
769-114
/000-036
Item no.: 769-114/000-037
1-conductor female plug; 4 mm²; 14-pole; 4,00 mm2; green-yellow, gray
769-114
/000-037
Item no.: 769-114/000-038
1-conductor female plug; 4 mm²; 14-pole; 4,00 mm2; gray, blue, green-yellow
769-114
/000-038
Item no.: 769-114/000-039
1-conductor female plug; 4 mm²; 14-pole; 4,00 mm2; green-yellow, blue, gray
769-114
/000-039
Item no.: 769-115
1-conductor female plug; 4 mm²; 15-pole; 4,00 mm2; gray
769-115
Item no.: 769-115/000-036
1-conductor female plug; 4 mm²; 15-pole; 4,00 mm2; gray, green-yellow
769-115
/000-036
Item no.: 769-115/000-037
1-conductor female plug; 4 mm²; 15-pole; 4,00 mm2; green-yellow, gray
769-115
/000-037
Item no.: 769-115/000-038
1-conductor female plug; 4 mm²; 15-pole; 4,00 mm2; gray, blue, green-yellow
769-115
/000-038
Item no.: 769-115/000-039
1-conductor female plug; 4 mm²; 15-pole; 4,00 mm2; green-yellow, blue, gray
769-115
/000-039
Item no.: 769-121
2-conductor female connector; 4 mm²; 1-pole; 4,00 mm2; gray
769-121
Item no.: 769-122
2-conductor female connector; 4 mm²; 2-pole; 4,00 mm2; gray
769-122
Item no.: 769-123
2-conductor female connector; 4 mm²; 3-pole; 4,00 mm2; gray
769-123
Item no.: 769-124
2-conductor female connector; 4 mm²; 4-pole; 4,00 mm2; gray
769-124
769-670_003-000
22.08.2019Page /9 11

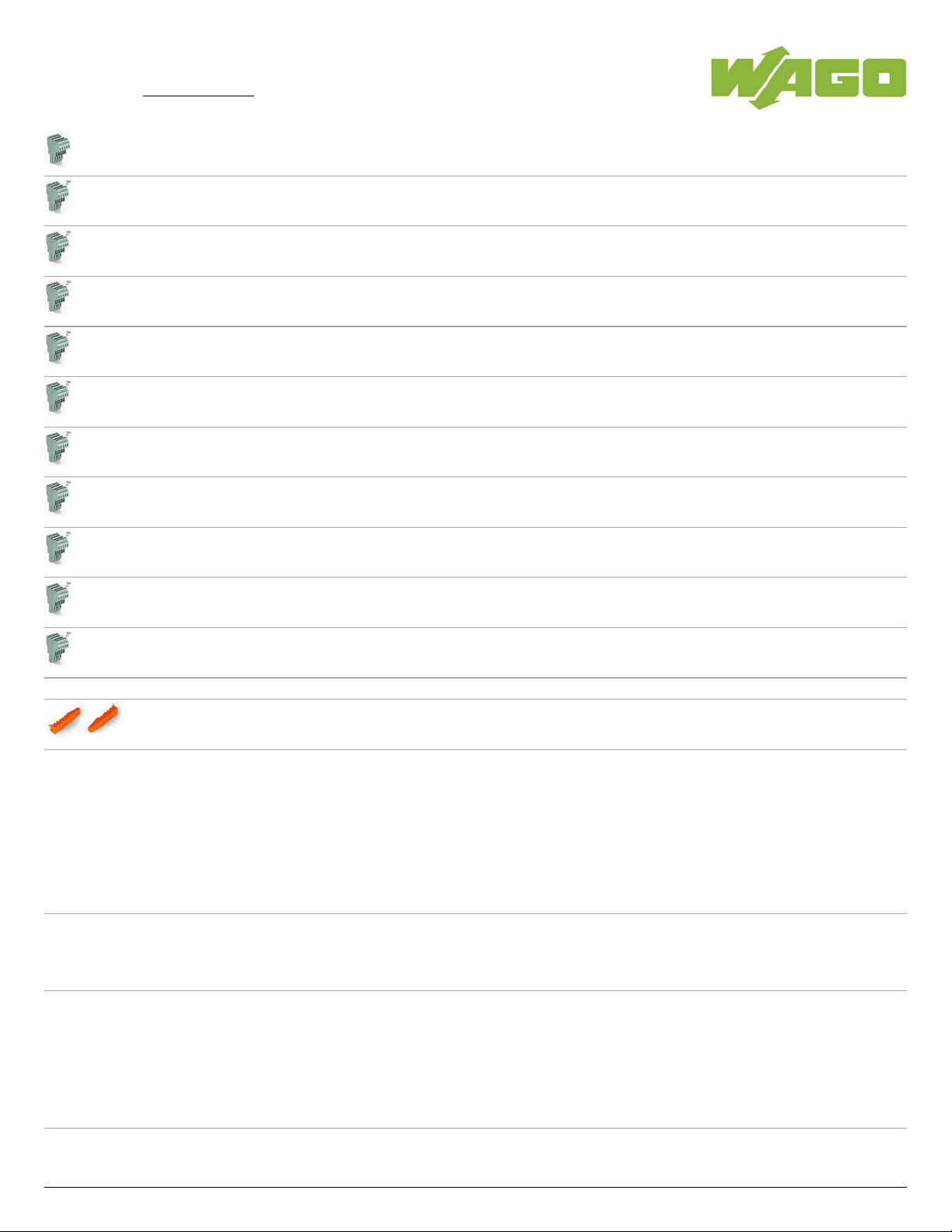

Page 10
Data sheet | Item number:769-670/003-000
Item no.: 769-125
2-conductor female connector; 4 mm²; 5-pole; 4,00 mm2; gray
769-125
Item no.: 769-126
2-conductor female connector; 4 mm²; 6-pole; 4,00 mm2; gray
769-126
Item no.: 769-127
2-conductor female connector; 4 mm²; 7-pole; 4,00 mm2; gray
769-127
Item no.: 769-128
2-conductor female connector; 4 mm²; 8-pole; 4,00 mm2; gray
769-128
Item no.: 769-129
2-conductor female connector; 4 mm²; 9-pole; 4,00 mm2; gray
769-129
Item no.: 769-130
2-conductor female connector; 4 mm²; 10-pole; 4,00 mm2; gray
769-130
Item no.: 769-131
2-conductor female connector; 4 mm²; 11-pole; 4,00 mm2; gray
769-131
Item no.: 769-132
2-conductor female connector; 4 mm²; 12-pole; 4,00 mm2; gray
769-132
Item no.: 769-133
2-conductor female connector; 4 mm²; 13-pole; 4,00 mm2; gray
769-133
Item no.: 769-134
2-conductor female connector; 4 mm²; 14-pole; 4,00 mm2; gray
769-134
Item no.: 769-135
2-conductor female connector; 4 mm²; 15-pole; 4,00 mm2; gray
769-135
Coding
Item no.: 769-435
Coding pin; for coding of female plugs; for carrier terminal blocks / male connectors; orange
769-435
Downloads
Documentation
Bid Text
769-670/003-000 doc
25.6 kB
Download
Additional Information
Technical explanations Apr 3, 2019 pdf
2.1 MB
Download
CAD/CAE - Smart Data
CAD data
3D Download 769-670/003-000 URL Download
769-670_003-000
22.08.2019Page /10 11
Page 11
Data sheet | Item number:769-670/003-000
Product family
X-COM
Show all products from the family
769-670_003-000
Subject to changes.
22.08.2019Page /11 11
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
