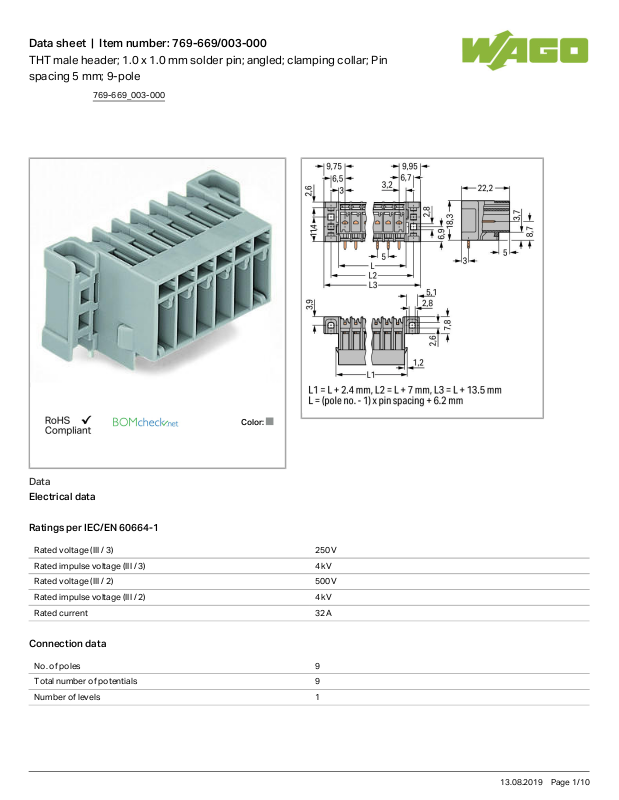

Data sheet | Item number:769-669/003-000
THT male header; 1.0 x 1.0 mm solder pin; angled; clamping collar; Pin spacing 5 mm; 9-pole
Color:
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 250 V
Rated impulse voltage (III / 3) 4 kV
Rated voltage (III / 2) 500 V
Rated impulse voltage (III / 2) 4 kV
Rated current 32 A
Connection data
No. of poles 9
Total number of potentials 9
Number of levels 1
769-669_003-000
13.08.2019Page /1 10
Page 2
Data sheet | Item number:769-669/003-000
Geometrical Data
Pin spacing 5mm/ 0.197inch
Width 59.7mm/ 2.35inch
Height from the surface 18.3mm/ 0.72inch
Depth 22.2mm/ 0.874inch
Mechanical data
Mounting type Mounting flange
Plug connection
Contact type (pluggable connector) Male connector/plug
Connector connection type for PCBs
Mismating protection No
Mating direction to the PCB 0 °
PCB contact
PCB contact THT
Material Data
Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.213 MJ
Weight 10.355 g
Commercial data
Product Group 18 (X-COM-System)
Country of origin PL
GTIN 4044918396974
Customs Tariff No. 85366990990
Approvals / Certificates
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7626
CCA
EN 61984 2190419.02
769-669_003-000
13.08.2019Page /2 10
Page 3
Data sheet | Item number:769-669/003-000
DEKRA Certification B.V.
CCA
DEKRA Certification B.V.
IEC 61984 NL-47799
CSA
DEKRA Certification B.V.
C22.2 No. 158 1101144
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 2190419.01
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 31.07.2019-
E45172
