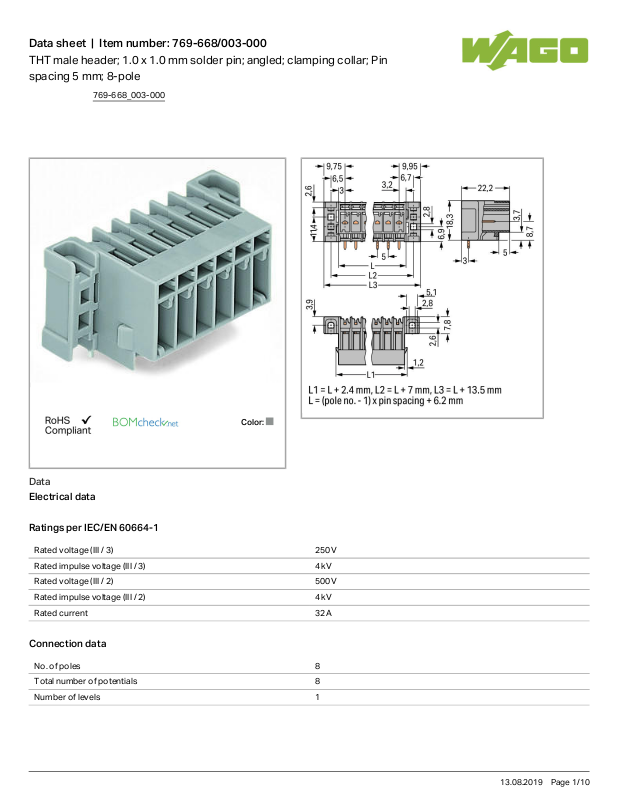

Page 1
Data sheet | Item number:769-668/003-000
THT male header; 1.0 x 1.0 mm solder pin; angled; clamping collar; Pin spacing 5 mm; 8-pole
Color:
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 250 V
Rated impulse voltage (III / 3) 4 kV
Rated voltage (III / 2) 500 V
Rated impulse voltage (III / 2) 4 kV
Rated current 32 A
Connection data
No. of poles 8
Total number of potentials 8
Number of levels 1
769-668_003-000
13.08.2019Page /1 10
Page 2
Data sheet | Item number:769-668/003-000
Geometrical Data
Pin spacing 5mm/ 0.197inch
Width 54.7mm/ 2.154inch
Height from the surface 18.3mm/ 0.72inch
Depth 22.2mm/ 0.874inch
Mechanical data
Mounting type Mounting flange
Plug connection
Contact type (pluggable connector) Male connector/plug
Connector connection type for PCBs
Mismating protection No
Mating direction to the PCB 0 °
PCB contact
PCB contact THT
Material Data
Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.198 MJ
Weight 9.512 g
Commercial data
Product Group 18 (X-COM-System)
Country of origin PL
GTIN 4044918396875
Customs Tariff No. 85366990990
Approvals / Certificates
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7626
CCA
EN 61984 2190419.02
769-668_003-000
13.08.2019Page /2 10
Page 3
Data sheet | Item number:769-668/003-000
DEKRA Certification B.V.
CCA
DEKRA Certification B.V.
IEC 61984 NL-47799
CSA
DEKRA Certification B.V.
C22.2 No. 158 1101144
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 2190419.01
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 31.07.2019-
E45172
Compatible products
Marking accessories
Item no.: 210-831
Marking strips; on reel; 2.3 mm wide; plain; Self-adhesive
210-831
Item no.: 210-832
Marking strips; on reel; 3 mm wide; plain; Self-adhesive
210-832
Item no.: 210-833
Marking strips; on reel; 6 mm wide; plain; Self-adhesive
210-833
Item no.: 210-834
Marking strips; on reel; 5 mm wide; plain; Self-adhesive
210-834
Female plug
Item no.: 769-101
1-conductor female plug; 4 mm²; 1-pole
769-101
Item no.: 769-102
1-conductor female plug; 4 mm²; 2-pole
769-102
Item no.: 769-102/000-036
1-conductor female plug; 4 mm²; 2-pole
769-102
/000-036
769-668_003-000
13.08.2019Page /3 10
Page 4
Data sheet | Item number:769-668/003-000
Item no.: 769-102/000-037
1-conductor female plug; 4 mm²; 2-pole
769-102
/000-037
Item no.: 769-103
1-conductor female plug; 4 mm²; 3-pole
769-103
Item no.: 769-103/000-036
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-036
Item no.: 769-103/000-037
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-037
Item no.: 769-103/000-038
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-038
Item no.: 769-103/000-039
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-039
Item no.: 769-104
1-conductor female plug; 4 mm²; 4-pole
769-104
Item no.: 769-104/000-036
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-036
Item no.: 769-104/000-037
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-037
Item no.: 769-104/000-038
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-038
Item no.: 769-104/000-039
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-039
Item no.: 769-105
1-conductor female plug; 4 mm²; 5-pole
769-105
Item no.: 769-105/000-036
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-036
Item no.: 769-105/000-037
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-037
Item no.: 769-105/000-038
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-038
769-668_003-000
13.08.2019Page /4 10
Page 5
Data sheet | Item number:769-668/003-000
Item no.: 769-105/000-039
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-039
Item no.: 769-106
1-conductor female plug; 4 mm²; 6-pole
769-106
Item no.: 769-106/000-006
1-conductor female plug; 4 mm²; 6-pole
769-106
/000-006
Item no.: 769-106/000-036
1-conductor female plug; 4 mm²; 6-pole
769-106
/000-036
Item no.: 769-106/000-037
1-conductor female plug; 4 mm²; 6-pole
769-106
/000-037
Item no.: 769-106/000-038
1-conductor female plug; 4 mm²; 6-pole
769-106
/000-038
Item no.: 769-106/000-039
1-conductor female plug; 4 mm²; 6-pole
769-106
/000-039
Item no.: 769-107
1-conductor female plug; 4 mm²; 7-pole
769-107
Item no.: 769-107/000-036
1-conductor female plug; 4 mm²; 7-pole
769-107
/000-036
Item no.: 769-107/000-037
1-conductor female plug; 4 mm²; 7-pole
769-107
/000-037
Item no.: 769-107/000-038
1-conductor female plug; 4 mm²; 7-pole
769-107
/000-038
Item no.: 769-107/000-039
1-conductor female plug; 4 mm²; 7-pole
769-107
/000-039
Item no.: 769-108
1-conductor female plug; 4 mm²; 8-pole
769-108
Item no.: 769-108/000-036
1-conductor female plug; 4 mm²; 8-pole
769-108
/000-036
Item no.: 769-108/000-037
1-conductor female plug; 4 mm²; 8-pole
769-108
/000-037
769-668_003-000
13.08.2019Page /5 10
Page 6
Data sheet | Item number:769-668/003-000
Item no.: 769-108/000-038
1-conductor female plug; 4 mm²; 8-pole
769-108
/000-038
Item no.: 769-108/000-039
1-conductor female plug; 4 mm²; 8-pole
769-108
/000-039
Item no.: 769-108/021-000
1-conductor female plug; Locking lever; 4 mm²; 8-pole
769-108
/021-000
Item no.: 769-109
1-conductor female plug; 4 mm²; 9-pole
769-109
Item no.: 769-109/000-036
1-conductor female plug; 4 mm²; 9-pole
769-109
/000-036
Item no.: 769-109/000-037
1-conductor female plug; 4 mm²; 9-pole
769-109
/000-037
Item no.: 769-109/000-038
1-conductor female plug; 4 mm²; 9-pole
769-109
/000-038
Item no.: 769-109/000-039
1-conductor female plug; 4 mm²; 9-pole
769-109
/000-039
Item no.: 769-110
1-conductor female plug; 4 mm²; 10-pole
769-110
Item no.: 769-110/000-036
1-conductor female plug; 4 mm²; 10-pole
769-110
/000-036
Item no.: 769-110/000-037
1-conductor female plug; 4 mm²; 10-pole
769-110
/000-037
Item no.: 769-110/000-038
1-conductor female plug; 4 mm²; 10-pole
769-110
/000-038
Item no.: 769-110/000-039
1-conductor female plug; 4 mm²; 10-pole
769-110
/000-039
Item no.: 769-111
1-conductor female plug; 4 mm²; 11-pole
769-111
Item no.: 769-111/000-036
1-conductor female plug; 4 mm²; 11-pole
769-111
/000-036
769-668_003-000
13.08.2019Page /6 10
Page 7
Data sheet | Item number:769-668/003-000
Item no.: 769-111/000-037
1-conductor female plug; 4 mm²; 11-pole
769-111
/000-037
Item no.: 769-111/000-038
1-conductor female plug; 4 mm²; 11-pole
769-111
/000-038
Item no.: 769-111/000-039
1-conductor female plug; 4 mm²; 11-pole
769-111
/000-039
Item no.: 769-112
1-conductor female plug; 4 mm²; 12-pole
769-112
Item no.: 769-112/000-036
1-conductor female plug; 4 mm²; 12-pole
769-112
/000-036
Item no.: 769-112/000-037
1-conductor female plug; 4 mm²; 12-pole
769-112
/000-037
Item no.: 769-112/000-038
1-conductor female plug; 4 mm²; 12-pole
769-112
/000-038
Item no.: 769-112/000-039
1-conductor female plug; 4 mm²; 12-pole
769-112
/000-039
Item no.: 769-113
1-conductor female plug; 4 mm²; 13-pole
769-113
Item no.: 769-113/000-036
1-conductor female plug; 4 mm²; 13-pole
769-113
/000-036
Item no.: 769-113/000-037
1-conductor female plug; 4 mm²; 13-pole
769-113
/000-037
Item no.: 769-113/000-038
1-conductor female plug; 4 mm²; 13-pole
769-113
/000-038
Item no.: 769-113/000-039
1-conductor female plug; 4 mm²; 13-pole
769-113
/000-039
Item no.: 769-114
1-conductor female plug; 4 mm²; 14-pole
769-114
Item no.: 769-114/000-036
1-conductor female plug; 4 mm²; 14-pole
769-114
/000-036
769-668_003-000
13.08.2019Page /7 10
Page 8
Data sheet | Item number:769-668/003-000
Item no.: 769-114/000-037
1-conductor female plug; 4 mm²; 14-pole
769-114
/000-037
Item no.: 769-114/000-038
1-conductor female plug; 4 mm²; 14-pole
769-114
/000-038
Item no.: 769-114/000-039
1-conductor female plug; 4 mm²; 14-pole
769-114
/000-039
Item no.: 769-115
1-conductor female plug; 4 mm²; 15-pole
769-115
Item no.: 769-115/000-036
1-conductor female plug; 4 mm²; 15-pole
769-115
/000-036
Item no.: 769-115/000-037
1-conductor female plug; 4 mm²; 15-pole
769-115
/000-037
Item no.: 769-115/000-038
1-conductor female plug; 4 mm²; 15-pole
769-115
/000-038
Item no.: 769-115/000-039
1-conductor female plug; 4 mm²; 15-pole
769-115
/000-039
Item no.: 769-121
2-conductor female connector; 4 mm²; 1-pole
769-121
Item no.: 769-122
2-conductor female connector; 4 mm²; 2-pole
769-122
Item no.: 769-123
2-conductor female connector; 4 mm²; 3-pole
769-123
Item no.: 769-124
2-conductor female connector; 4 mm²; 4-pole
769-124
Item no.: 769-125
2-conductor female connector; 4 mm²; 5-pole
769-125
Item no.: 769-126
2-conductor female connector; 4 mm²; 6-pole
769-126
Item no.: 769-127
2-conductor female connector; 4 mm²; 7-pole
769-127
Item no.: 769-128
2-conductor female connector; 4 mm²; 8-pole
769-128
Item no.: 769-129
2-conductor female connector; 4 mm²; 9-pole
769-129
769-668_003-000
13.08.2019Page /8 10
Page 9
Data sheet | Item number:769-668/003-000
Item no.: 769-130
2-conductor female connector; 4 mm²; 10-pole
769-130
Item no.: 769-131
2-conductor female connector; 4 mm²; 11-pole
769-131
Item no.: 769-132
2-conductor female connector; 4 mm²; 12-pole
769-132
Item no.: 769-133
2-conductor female connector; 4 mm²; 13-pole
769-133
Item no.: 769-134
2-conductor female connector; 4 mm²; 14-pole
769-134
Item no.: 769-135
2-conductor female connector; 4 mm²; 15-pole
769-135
Coding
Item no.: 769-435
Coding pin; for coding of female plugs; for carrier terminal blocks / male connectors
769-435
ferrule
Item no.: 216-101
Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-101
Item no.: 216-102
Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
216-102
Item no.: 216-103
Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated
216-103
Item no.: 216-104
Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated
216-104
Item no.: 216-201
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated
216-201
Item no.: 216-202
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated
216-202
Item no.: 216-203
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated
216-203
Item no.: 216-204
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated
216-204
Item no.: 216-206
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated
216-206
Item no.: 216-301
Ferrule; Sleeve for 0.25 mm² / AWG 24; insulated; electro-tin plated
216-301
Item no.: 216-302
Ferrule; Sleeve for 0.34 mm² / 22 AWG; insulated; electro-tin plated
216-302
769-668_003-000
13.08.2019Page /9 10
Page 10
Data sheet | Item number:769-668/003-000
Downloads
Documentation
Bid Text
769-668/003-000 doc
25.6 kB
Download
Additional Information
Technical explanations Apr 3, 2019 pdf
2.1 MB
Download
CAD/CAE - Smart Data
CAD data
3D Download 769-668/003-000 URL Download
Product family
X-COM
Show all products from the family
769-668_003-000
Subject to changes.
13.08.2019Page /10 10
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
