Wago 769-668 Data Sheet

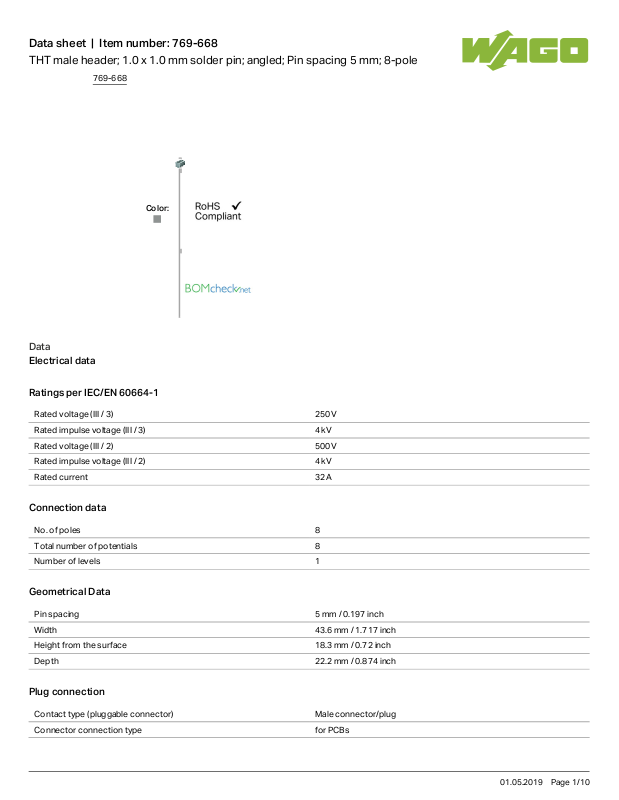

Data sheet | Item number:769-668
THT male header; 1.0 x 1.0 mm solder pin; angled; Pin spacing 5 mm; 8-pole
Color:

Data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 250 V
Rated impulse voltage (III / 3) 4 kV
Rated voltage (III / 2) 500 V
Rated impulse voltage (III / 2) 4 kV
Rated current 32 A

Connection data

No. of poles 8
Total number of potentials 8
Number of levels 1

Geometrical Data

Pin spacing 5mm/ 0.197inch
Width 43.6mm/ 1.717inch
Height from the surface 18.3mm/ 0.72inch
Depth 22.2mm/ 0.874inch

Plug connection

Contact type (pluggable connector) Male connector/plug
Connector connection type for PCBs
769-668
01.05.2019Page /1 10
Data sheet | Item number:769-668
Mismating protection No
Mating direction to the PCB 0 °

PCB contact

PCB contact THT

Material Data

Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.173 MJ
Weight 8.55 g

Commercial data

Product Group 18 (X-COM-System)
Country of origin DE
GTIN 4044918396851
Customs Tariff No. 85366990990

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7626
CCA
DEKRA Certification B.V.
EN 61984 2190419.02
CCA
DEKRA Certification B.V.
IEC 61984 NL-47799
CSA
DEKRA Certification B.V.
C22.2 No. 158 1101144
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 2190419.01
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
769-668
01.05.2019Page /2 10
Data sheet | Item number:769-668
Logo Approval Additional Approval Text name
UR
Underwriters Laboratories Inc.
UL 1977 E45171
UR
Underwriters Laboratories Inc.
UL 1059 E45172

Compatible products

ferrule
Item no.: 216-101
Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-101
Item no.: 216-102
Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
216-102
Item no.: 216-103
Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated
216-103
Item no.: 216-104
Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated
216-104
Item no.: 216-201
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated
216-201
Item no.: 216-202
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated
216-202
Item no.: 216-203
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated
216-203
Item no.: 216-204
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated
216-204
Item no.: 216-206
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated
216-206
Item no.: 216-301
Ferrule; Sleeve for 0.25 mm² / AWG 24; insulated; electro-tin plated
216-301
Item no.: 216-302
Ferrule; Sleeve for 0.34 mm² / 22 AWG; insulated; electro-tin plated
216-302
Coding
Item no.: 769-435
Coding pin; for coding of female plugs; for carrier terminal blocks / male connectors
769-435
Marking accessories
769-668
01.05.2019Page /3 10
