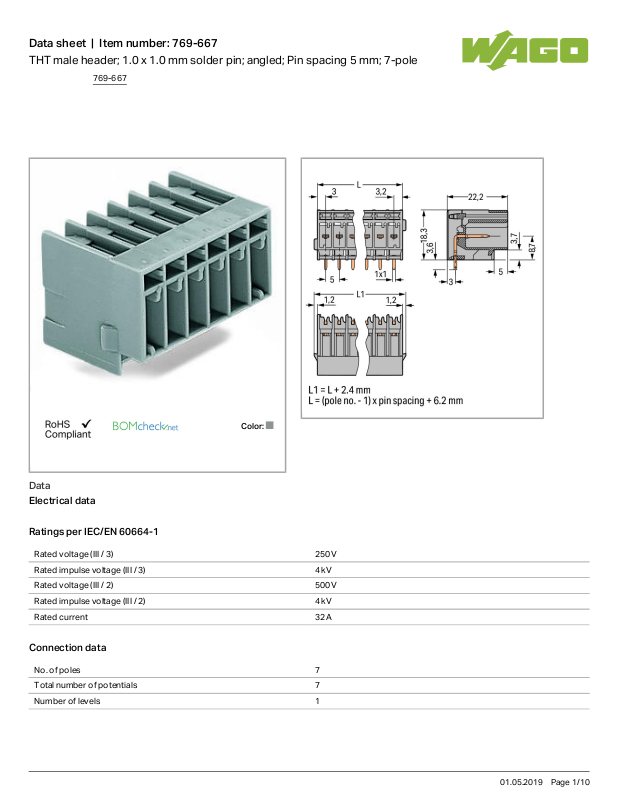

Wago 769-667 Data Sheet
Data sheet | Item number:769-667
THT male header; 1.0 x 1.0 mm solder pin; angled; Pin spacing 5 mm; 7-pole
Color:
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 250 V
Rated impulse voltage (III / 3) 4 kV
Rated voltage (III / 2) 500 V
Rated impulse voltage (III / 2) 4 kV
Rated current 32 A
Connection data
No. of poles 7
Total number of potentials 7
Number of levels 1
769-667
01.05.2019Page /1 10
Data sheet | Item number:769-667
Geometrical Data
Pin spacing 5mm/ 0.197inch
Width 38.6mm/ 1.52inch
Height from the surface 18.3mm/ 0.72inch
Depth 22.2mm/ 0.874inch
Plug connection
Contact type (pluggable connector) Male connector/plug
Connector connection type for PCBs
Mismating protection No
Mating direction to the PCB 0 °
PCB contact
PCB contact THT
Material Data
Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.158 MJ
Weight 7.801 g
Commercial data
Product Group 18 (X-COM-System)
Country of origin DE
GTIN 4044918760416
Customs Tariff No. 85366990990
Approvals / Certificates
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7626
CCA
DEKRA Certification B.V.
EN 61984 2190419.02
CCA
IEC 61984 NL-47799
769-667
01.05.2019Page /2 10
Data sheet | Item number:769-667
DEKRA Certification B.V.
CSA
DEKRA Certification B.V.
C22.2 No. 158 1101144
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 2190419.01
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UR
Underwriters Laboratories Inc.
UL 1977 E45171
UR
Underwriters Laboratories Inc.
UL 1059 E45172
Compatible products
Coding
Item no.: 769-435
Coding pin; for coding of female plugs; for carrier terminal blocks / male connectors
769-435
Female plug
Item no.: 769-101
1-conductor female plug; 4 mm²; 1-pole
769-101
Item no.: 769-102
1-conductor female plug; 4 mm²; 2-pole
769-102
Item no.: 769-102/000-036
1-conductor female plug; 4 mm²; 2-pole
769-102
/000-036
Item no.: 769-102/000-037
1-conductor female plug; 4 mm²; 2-pole
769-102
/000-037
Item no.: 769-103
1-conductor female plug; 4 mm²; 3-pole
769-103
769-667
01.05.2019Page /3 10
