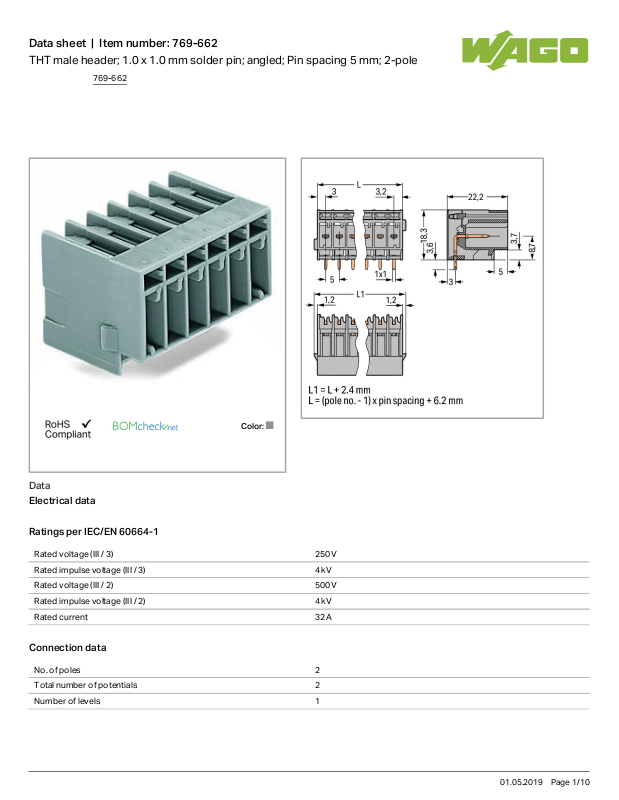

Wago 769-662 Data Sheet

Data sheet | Item number:769-662

THT male header; 1.0 x 1.0 mm solder pin; angled; Pin spacing 5 mm; 2-pole

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 250 V

Rated impulse voltage (III / 3) 4 kV

Rated voltage (III / 2) 500 V

Rated impulse voltage (III / 2) 4 kV

Rated current 32 A

Connection data

No. of poles 2

Total number of potentials 2

Number of levels 1

769-662

01.05.2019Page /1 10

Data sheet | Item number:769-662

Geometrical Data

Pin spacing 5mm/ 0.197inch

Width 13.6mm/ 0.535inch

Height from the surface 18.3mm/ 0.72inch

Depth 22.2mm/ 0.874inch

Plug connection

Contact type (pluggable connector) Male connector/plug

Connector connection type for PCBs

Mismating protection No

Mating direction to the PCB 0 °

PCB contact

PCB contact THT

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.055 MJ

Weight 2.564 g

Commercial data

Product Group 18 (X-COM-System)

Country of origin DE

GTIN 4044918396493

Customs Tariff No. 85366990990

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7626

CCA

DEKRA Certification B.V.

EN 61984 2190419.02

CCA

IEC 61984 NL-47799

769-662

01.05.2019Page /2 10

Data sheet | Item number:769-662

DEKRA Certification B.V.

CSA

DEKRA Certification B.V.

C22.2 No. 158 1101144

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2190419.01

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1977 E45171

UR

Underwriters Laboratories Inc.

UL 1059 E45172

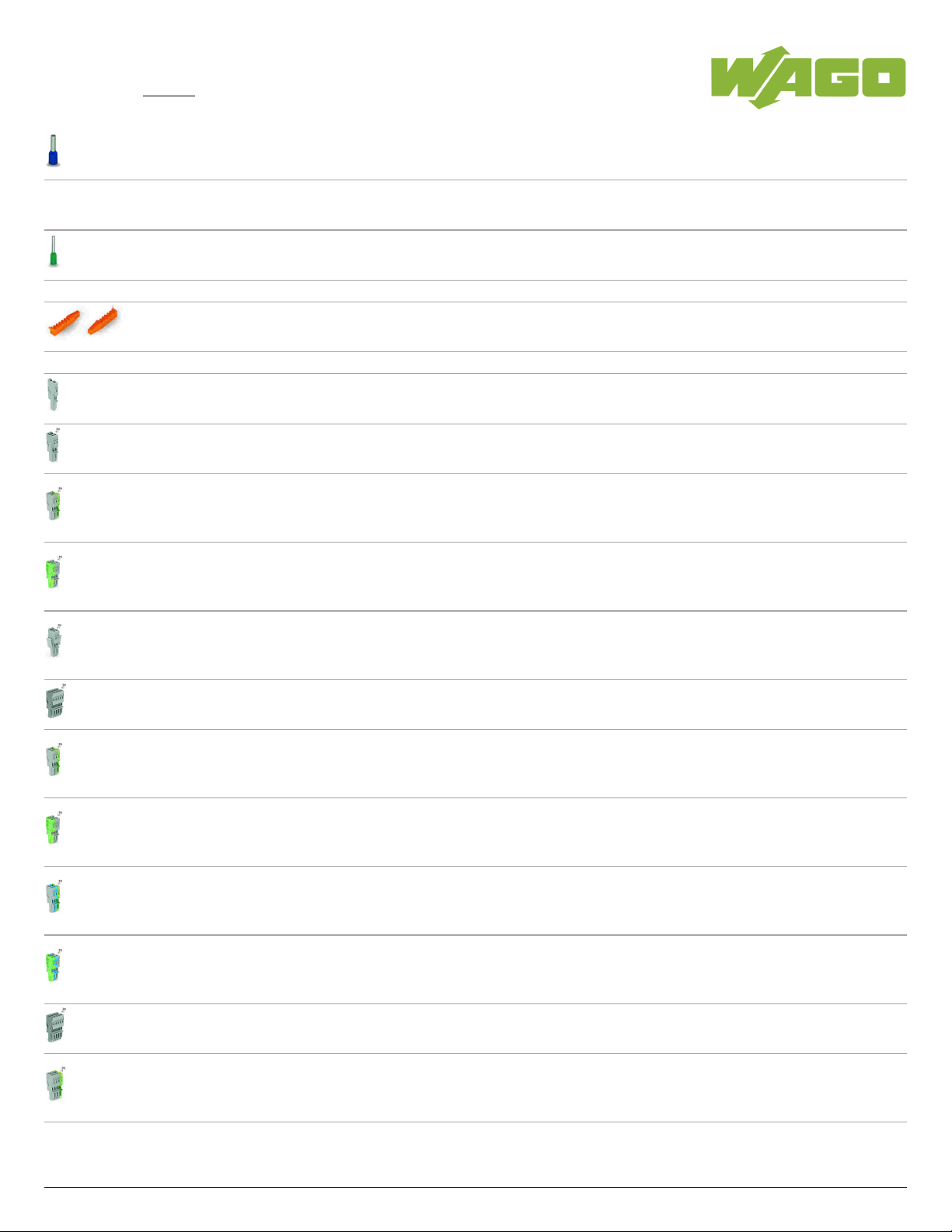

Compatible products

ferrule

Item no.: 216-101

Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated

216-101

Item no.: 216-102

Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated

216-102

Item no.: 216-103

Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated

216-103

Item no.: 216-104

Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated

216-104

Item no.: 216-201

Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated

216-201

Item no.: 216-202

Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated

216-202

Item no.: 216-203

Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated

216-203

Item no.: 216-204

Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated

216-204
