Wago 769-612/002-000 Data Sheet

Download

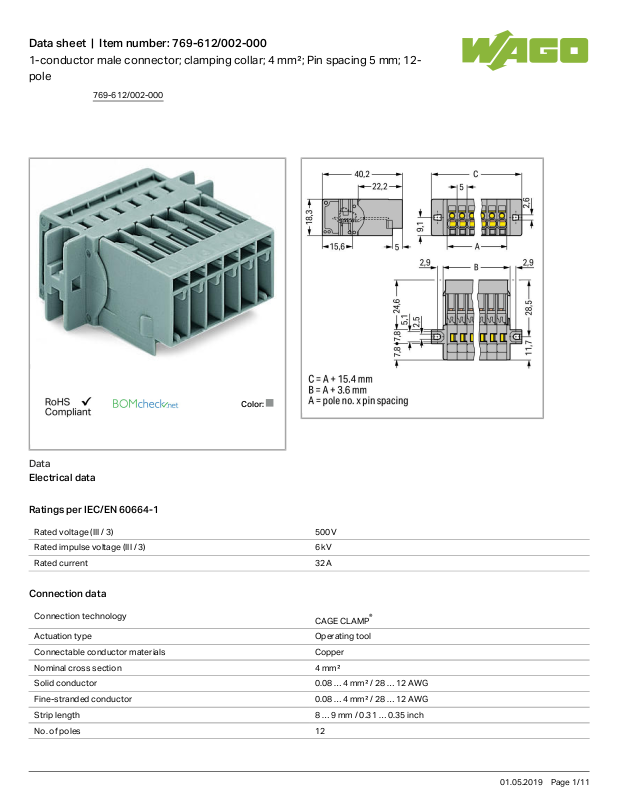

Data sheet | Item number:769-612/002-000
1-conductor male connector; clamping collar; 4 mm²; Pin spacing 5 mm; 12­pole
Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V
Rated impulse voltage (III / 3) 6 kV
Rated current 32 A

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Nominal cross section 4mm²
Solid conductor 0.08 … 4mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
No. of poles 12
769-612/002-000
01.05.2019Page /1 11
Data sheet | Item number:769-612/002-000
Total number of connection points 12
Total number of potentials 12
Type of wiring Front-entry wiring

Geometrical Data

Pin spacing 5mm/ 0.197inch
Width 75.4mm/ 2.969inch
Height from the surface 18.3mm/ 0.72inch
Depth 40.2mm/ 1.583inch

Mechanical data

Mounting type Mounting flange

Plug connection

Contact type (pluggable connector) Male connector/plug
Connector connection type for conductors

Material Data

Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.733 MJ
Weight 35.858 g

Commercial data

Country of origin PL
GTIN 4044918521734
Customs Tariff No. 85366990990

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7626
CCA
DEKRA Certification B.V.
EN 61984 2190419.02
CCA
IEC 61984 NL-47799
769-612/002-000
01.05.2019Page /2 11
Data sheet | Item number:769-612/002-000
DEKRA Certification B.V.
CSA
DEKRA Certification B.V.
C22.2 No. 158 1101144
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 2190419.01
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 E45172
UR
Underwriters Laboratories Inc.
UL 1977 E45171

Compatible products

Marking accessories
Item no.: 2009-145
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
Item no.: 2009-145/000-002
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-002
Item no.: 2009-145/000-005
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-005
Item no.: 2009-145/000-006
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-006
Item no.: 2009-145/000-007
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-007
769-612/002-000
01.05.2019Page /3 11
Data sheet | Item number:769-612/002-000
Item no.: 2009-145/000-012
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-012
Item no.: 2009-145/000-023
Mini-WSB Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-023
Item no.: 2009-145/000-024
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-024
Item no.: 210-831
Marking strips; on reel; 2.3 mm wide; plain; Self-adhesive
210-831
Item no.: 210-832
Marking strips; on reel; 3 mm wide; plain; Self-adhesive
210-832
Item no.: 210-833
Marking strips; on reel; 6 mm wide; plain; Self-adhesive
210-833
Item no.: 210-834
Marking strips; on reel; 5 mm wide; plain; Self-adhesive
210-834
Item no.: 248-501
Miniature WSB Quick marking system; plain; Marker width 5 mm; 10 strips with 10 markers per card
248-501
Item no.: 248-501/000-002
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-002
Item no.: 248-501/000-005
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-005
Item no.: 248-501/000-006
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-006
Item no.: 248-501/000-007
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-007
Item no.: 248-501/000-012
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-012
Item no.: 248-501/000-017
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-017
Item no.: 248-501/000-023
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-023
Item no.: 248-501/000-024
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-024
769-612/002-000
01.05.2019Page /4 11
Data sheet | Item number:769-612/002-000
