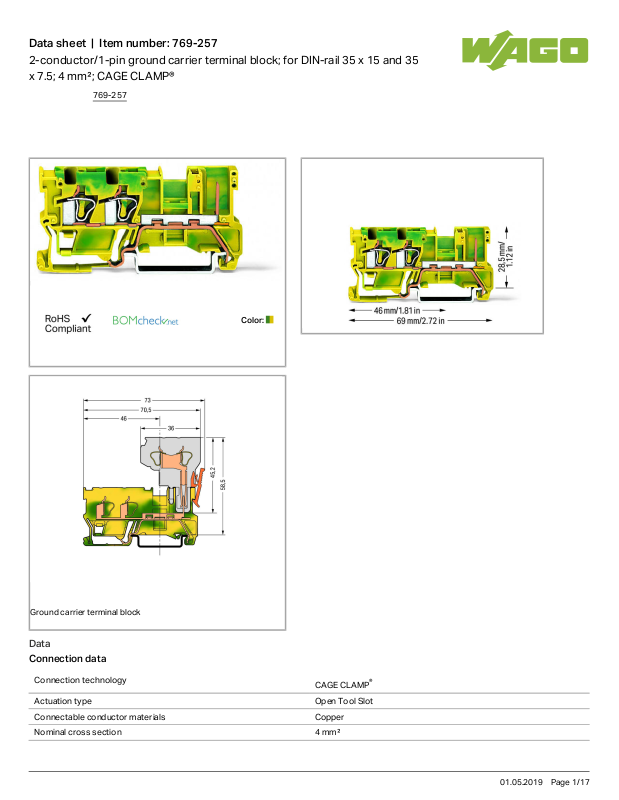

Wago 769-257 Data Sheet

Data sheet | Item number:769-257
2-conductor/1-pin ground carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP®
Ground carrier terminal block

Data

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 4mm²
769-257
01.05.2019Page /1 17
Data sheet | Item number:769-257
Solid conductor 0.08 … 4mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 28.5mm/ 1.122inch
Depth 69mm/ 2.717inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center marking

Material Data

Color green-yellow
Insulating material Polyamide 66 (PA 66)
Fire load 0.134 MJ
Weight 9.366g

Commercial data

Product Group 18 (X-COM-System)
Country of origin DE
GTIN 4044918827867
Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7626
CSA
DEKRA Certification B.V.
C22.2 No. 158 1101144
769-257
01.05.2019Page /2 17
Data sheet | Item number:769-257
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 2190419.01
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1977 E45171
UR
Underwriters Laboratories Inc.
UL 1059 E45172

Compatible products

Jumper
Item no.: 249-123
Push-in type wire jumper; insulated; wire length 180 mm; Conductor cross section 0.75 mm²
249-123
Item no.: 249-125
Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 0.75 mm²
249-125
Item no.: 249-126
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 0.75 mm²
249-126
769-257
01.05.2019Page /3 17
Data sheet | Item number:769-257
Item no.: 249-127
Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 0.75 mm²
249-127
Item no.: 280-402
Adjacent jumper; insulated; IN = IN terminal block
280-402
Item no.: 280-409
Alternate jumper; insulated; IN = IN terminal block
280-409
Item no.: 280-422
Adjacent jumper; insulated; IN = IN terminal block
280-422
Item no.: 780-452
Staggered jumper; insulated; from 1 to 2; Spacing: 5 mm; suitable for 2-conductor female plugs
780-452
Item no.: 780-453
Staggered jumper; insulated; from 1 to 3; Spacing: 5 mm; suitable for 2-conductor female plugs
780-453
Item no.: 780-454
Staggered jumper; insulated; from 1 to 4; Spacing: 5 mm; suitable for 2-conductor female plugs
780-454
Item no.: 780-455
Staggered jumper; insulated; from 1 to 5; Spacing: 5 mm; suitable for 2-conductor female plugs
780-455
Item no.: 780-456
Staggered jumper; insulated; from 1 to 6; Spacing: 5 mm; suitable for 2-conductor female plugs
780-456
Item no.: 780-457
Staggered jumper; insulated; from 1 to 7; Spacing: 5 mm; suitable for 2-conductor female plugs
780-457
Item no.: 780-458
Staggered jumper; insulated; from 1 to 8; Spacing: 5 mm; suitable for 2-conductor female plugs
780-458
assembling
Item no.: 209-106
Mounting carrier; for isolated mounting on DIN 35 rails
209-106
tools
Item no.: 210-720
Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm
210-720
check
Item no.: 210-136
Test plug; 2 mm Ø; with 500 mm cable
210-136
Item no.: 210-137
Test plug; 2.3 mm Ø; with 500 mm cable
210-137
Coding
Item no.: 769-435
Coding pin; for coding of female plugs; for carrier terminal blocks / male connectors
769-435
Insulation stop
Item no.: 769-470
Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 5 pieces/strip
769-470
Item no.: 769-471
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip
769-471
769-257
01.05.2019Page /4 17
Data sheet | Item number:769-257
Item no.: 769-472
Insulation stop; 0.75 - 1 mm²; 5 pieces/strip
769-472
Protective Warning Marker
Item no.: 280-415
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
280-415
Female plug
Item no.: 769-101
1-conductor female plug; 4 mm²; 1-pole
769-101
Item no.: 769-101/000-006
1-conductor female plug; 4 mm²; 1-pole
769-101
/000-006
Item no.: 769-101/000-016
1-conductor female plug; 4 mm²; 1-pole
769-101
/000-016
Item no.: 769-101/022-000
1-conductor female plug; angled; 4 mm²; 1-pole
769-101
/022-000
Item no.: 769-101/022-016
1-conductor female plug; angled; 4 mm²; 1-pole
769-101
/022-016
Item no.: 769-102
1-conductor female plug; 4 mm²; 2-pole
769-102
Item no.: 769-102/000-006
1-conductor female plug; 4 mm²; 2-pole
769-102
/000-006
Item no.: 769-102/000-036
1-conductor female plug; 4 mm²; 2-pole
769-102
/000-036
Item no.: 769-102/000-037
1-conductor female plug; 4 mm²; 2-pole
769-102
/000-037
Item no.: 769-102/022-000
1-conductor female plug; angled; 4 mm²; 2-pole
769-102
/022-000
Item no.: 769-103
1-conductor female plug; 4 mm²; 3-pole
769-103
Item no.: 769-103/000-006
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-006
Item no.: 769-103/000-036
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-036
769-257
01.05.2019Page /5 17
Data sheet | Item number:769-257
Item no.: 769-103/000-037
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-037
Item no.: 769-103/000-038
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-038
Item no.: 769-103/000-039
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-039
Item no.: 769-103/022-000
1-conductor female plug; angled; 4 mm²; 3-pole
769-103
/022-000
Item no.: 769-104
1-conductor female plug; 4 mm²; 4-pole
769-104
Item no.: 769-104/000-006
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-006
Item no.: 769-104/000-036
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-036
Item no.: 769-104/000-037
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-037
Item no.: 769-104/000-038
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-038
Item no.: 769-104/000-039
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-039
Item no.: 769-104/022-000
1-conductor female plug; angled; 4 mm²; 4-pole
769-104
/022-000
Item no.: 769-105
1-conductor female plug; 4 mm²; 5-pole
769-105
Item no.: 769-105/000-006
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-006
Item no.: 769-105/000-036
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-036
Item no.: 769-105/000-037
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-037
769-257
01.05.2019Page /6 17
