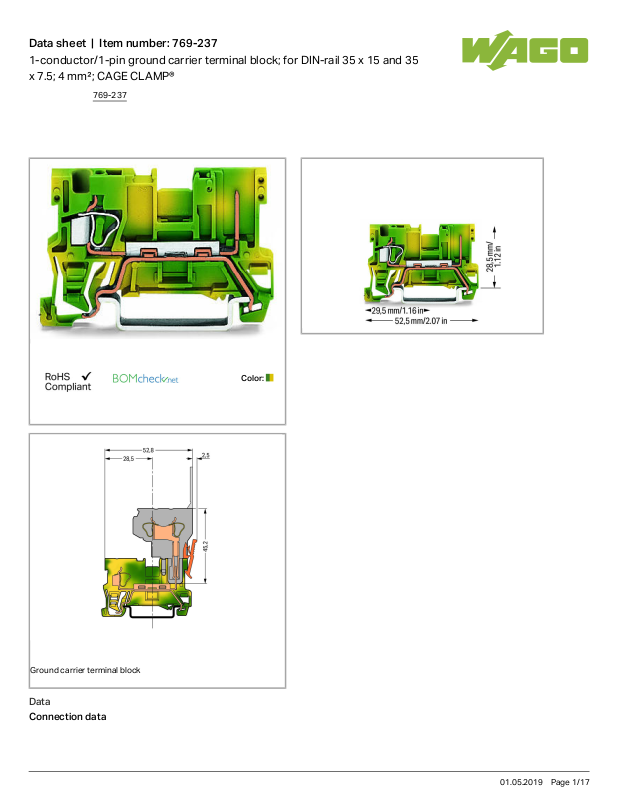

Wago 769-237 Data Sheet

Data sheet | Item number:769-237
1-conductor/1-pin ground carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP®
Ground carrier terminal block

Data

Connection data

769-237
01.05.2019Page /1 17
Data sheet | Item number:769-237
Connection technology
CAGE CLAMP
®
Actuation type Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 4mm²
Solid conductor 0.08 … 4mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 28.5mm/ 1.122inch
Depth 52.5mm/ 2.067inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center marking

Material Data

Color green-yellow
Insulating material Polyamide 66 (PA 66)
Fire load 0.101 MJ
Weight 6.831g

Commercial data

Product Group 18 (X-COM-System)
Country of origin DE
GTIN 4044918827843
Customs Tariff No. 85366990990

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7626
769-237
01.05.2019Page /2 17
Data sheet | Item number:769-237
CSA
DEKRA Certification B.V.
C22.2 No. 158 1101144
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 2190419.01
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1977 E45171
UR
Underwriters Laboratories Inc.
UL 1059 E45172

Compatible products

769-237
01.05.2019Page /3 17
Data sheet | Item number:769-237
check
Item no.: 210-136
Test plug; 2 mm Ø; with 500 mm cable
210-136
Item no.: 210-137
Test plug; 2.3 mm Ø; with 500 mm cable
210-137
Protective Warning Marker
Item no.: 280-415
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
280-415
General accessories
Item no.: 280-404
Test plug adapter; 5 mm wide; for test plug 210-137 (2.3 mm Ø); suitable for 1.5 mm² - 4 mm² tbs
280-404
Item no.: 280-418 Test plug module; modular; suitable for all WAGO 280 and 780 Series rail-mounted terminal blocks with jumper slots in the current bar
280-418
Item no.: 280-419 Spacer module; modular; bridging commoned terminal blocks
280-419
Item no.: 769-438 Pin cover; with marker slot for miniature WSB
769-438
Item no.: 769-439 Pin cover; with marker slot for miniature WSB
769-439
Item no.: 769-501 Start module for 1-conductor female connector; with integrated end plate; 4 mm²; 1-pole
769-501
Item no.: 769-501/000-006
Start module for 1-conductor female connector; 4 mm²; 1-pole
769-501
/000-006
Item no.: 769-501/000-016
Start module for 1-conductor female connector; with integrated end plate; 4 mm²; 1-pole
769-501
/000-016
Item no.: 769-502 Center module for 1-conductor female connector; 4 mm²; 1-pole
769-502
Item no.: 769-502/000-006
Center module for 1-conductor female connector; 4 mm²; 1-pole
769-502
/000-006
Item no.: 769-502/000-016
Center module for 1-conductor female connector; 4 mm²; 1-pole
769-502
/000-016
Item no.: 769-503 End module for 1-conductor female connector; 4 mm²; 1-pole
769-503
Item no.: 769-503/000-006
End module for 1-conductor female connector; 4 mm²; 1-pole
769-503
/000-006
769-237
01.05.2019Page /4 17
Data sheet | Item number:769-237
Item no.: 769-503/000-016
End module for 1-conductor female connector; 4 mm²; 1-pole
769-503
/000-016
Item no.: 769-504 Start module for 2-conductor female connector; with integrated end plate; 4 mm²; 1-pole
769-504
Item no.: 769-504/000-006
Start module for 2-conductor female connector; with integrated end plate; 4 mm²; 1-pole
769-504
/000-006
Item no.: 769-504/000-016
Start module for 2-conductor female connector; 4 mm²; 1-pole
769-504
/000-016
Item no.: 769-505 Center module for 2-conductor female connector; 4 mm²; 1-pole
769-505
Item no.: 769-505/000-006
Center module for 2-conductor female connector; 4 mm²; 1-pole
769-505
/000-006
Item no.: 769-505/000-016
Center module for 2-conductor female connector; 4 mm²; 1-pole
769-505
/000-016
Item no.: 769-506 End module for 2-conductor female connector; 4 mm²; 1-pole
769-506
Item no.: 769-506/000-006
End module for 2-conductor female connector; 4 mm²; 1-pole
769-506
/000-006
Item no.: 769-506/000-016
End module for 2-conductor female connector; 4 mm²; 1-pole
769-506
/000-016
Item no.: 769-512 Start module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-512
Item no.: 769-512/000-006
Start module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-512
/000-006
Item no.: 769-512/000-016
Start module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-512
/000-016
Item no.: 769-513 Center module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-513
Item no.: 769-513/000-006
1-conductor center module; angled; codable; 1-pole
769-513
/000-006
Item no.: 769-513/000-016
1-conductor center module; angled; codable; 1-pole
769-513
/000-016
769-237
01.05.2019Page /5 17
Data sheet | Item number:769-237
Item no.: 769-515 1-conductor end module; angled; codable; 1-pole
769-515
Item no.: 769-515/000-006
1-conductor end module; angled; codable; 1-pole
769-515
/000-006
Item no.: 769-515/000-016
1-conductor end module; angled; codable; 1-pole
769-515
/000-016
tools
Item no.: 210-720 Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm
210-720
ferrule
Item no.: 216-101 Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-101
Item no.: 216-102 Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
216-102
Item no.: 216-103 Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated
216-103
Item no.: 216-104 Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated
216-104
Item no.: 216-201 Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated
216-201
Item no.: 216-202 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated
216-202
Item no.: 216-203 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated
216-203
Item no.: 216-204 Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated
216-204
Item no.: 216-206 Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated
216-206
Item no.: 216-301 Ferrule; Sleeve for 0.25 mm² / AWG 24; insulated; electro-tin plated
216-301
Item no.: 216-302 Ferrule; Sleeve for 0.34 mm² / 22 AWG; insulated; electro-tin plated
216-302
Insulation stop
Item no.: 769-470 Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 5 pieces/strip
769-470
Item no.: 769-471 Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip
769-471
Item no.: 769-472 Insulation stop; 0.75 - 1 mm²; 5 pieces/strip
769-472
769-237
01.05.2019Page /6 17
