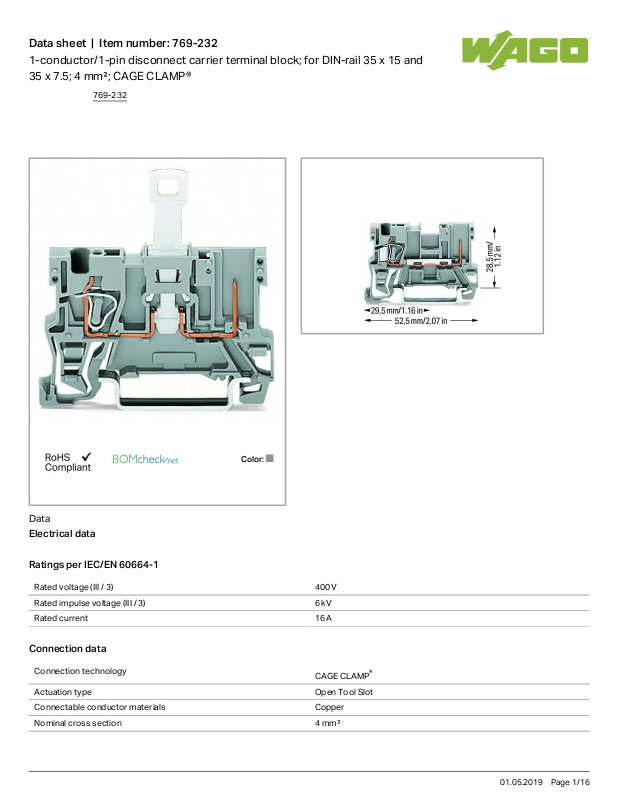

Wago 769-232 Data Sheet

Data sheet | Item number:769-232

1-conductor/1-pin disconnect carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V

Rated impulse voltage (III / 3) 6 kV

Rated current 16 A

Connection data

Connection technology

CAGE CLAMP

Actuation type Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 4mm²

769-232

01.05.2019Page /1 16

Data sheet | Item number:769-232

Solid conductor 0.08 … 4mm²/ 28 … 12AWG

Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG

Strip length 8 … 9mm/ 0.31 … 0.35inch

Total number of connection points 1

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch

Height from upper-edge of DIN-35 rail 28.5mm/ 1.122inch

Depth 52.5mm/ 2.067inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.116 MJ

Weight 5.566g

Commercial data

Product Group 18 (X-COM-System)

Country of origin DE

GTIN 4045454619497

Customs Tariff No. 85365080990

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7626

CSA

DEKRA Certification B.V.

C22.2 No. 158 1101144

769-232

01.05.2019Page /2 16

Data sheet | Item number:769-232

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2190419.01

Ship Approvals

Logo Approval Additional Approval Text

Certificate name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677PDA

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

Logo Approval Additional Approval Text

Certificate name

Underwriters Laboratories Inc.

UL 1977 E45171

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

Carrier rail

Item no.: 210-112

Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm

210-112

Item no.: 210-113

769-232

01.05.2019Page /3 16

Data sheet | Item number:769-232

Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715 210-113

Item no.: 210-114

Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715

210-114

Item no.: 210-115

Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm

210-115

Item no.: 210-118

Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715

210-118

Item no.: 210-196

Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715

210-196

Item no.: 210-197

Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715

210-197

Item no.: 210-198

Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715

210-198

Item no.: 210-504

Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715

210-504

Item no.: 210-505

Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715

210-505

Item no.: 210-506

Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715

210-506

Item no.: 210-508

Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715

210-508

Insulation stop

Item no.: 769-470

Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 5 pieces/strip

769-470

Item no.: 769-471

Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip

769-471

Item no.: 769-472

Insulation stop; 0.75 - 1 mm²; 5 pieces/strip

769-472

Protective Warning Marker

Item no.: 280-415

Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks

280-415

check

Item no.: 210-136

Test plug; 2 mm Ø; with 500 mm cable

210-136

Item no.: 210-137

Test plug; 2.3 mm Ø; with 500 mm cable

210-137

Female plug

Item no.: 769-101

1-conductor female plug; 4 mm²; 1-pole

769-101

769-232

01.05.2019Page /4 16

Data sheet | Item number:769-232

Item no.: 769-101/000-006

1-conductor female plug; 4 mm²; 1-pole

769-101

/000-006

Item no.: 769-101/000-016

1-conductor female plug; 4 mm²; 1-pole

769-101

/000-016

Item no.: 769-101/022-000

1-conductor female plug; angled; 4 mm²; 1-pole

769-101

/022-000

Item no.: 769-101/022-016

1-conductor female plug; angled; 4 mm²; 1-pole

769-101

/022-016

Item no.: 769-102

1-conductor female plug; 4 mm²; 2-pole

769-102

Item no.: 769-102/000-006

1-conductor female plug; 4 mm²; 2-pole

769-102

/000-006

Item no.: 769-102/000-036

1-conductor female plug; 4 mm²; 2-pole

769-102

/000-036

Item no.: 769-102/000-037

1-conductor female plug; 4 mm²; 2-pole

769-102

/000-037

Item no.: 769-102/022-000

1-conductor female plug; angled; 4 mm²; 2-pole

769-102

/022-000

Item no.: 769-103
