Wago 769-231 Data Sheet

Download

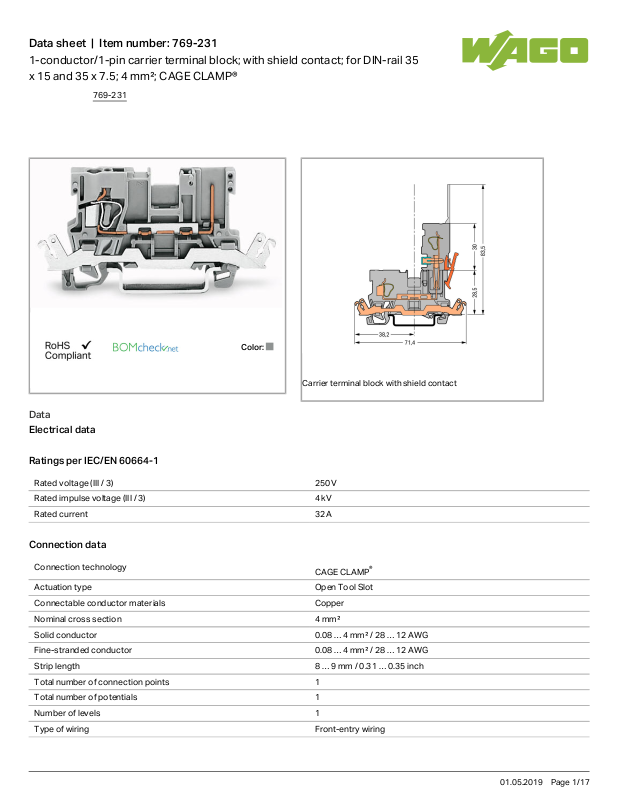

Data sheet | Item number:769-231
1-conductor/1-pin carrier terminal block; with shield contact; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP®
Carrier terminal block with shield contact

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 250 V
Rated impulse voltage (III / 3) 4 kV
Rated current 32 A

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 4mm²
Solid conductor 0.08 … 4mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
Total number of connection points 1
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
769-231
01.05.2019Page /1 17
Data sheet | Item number:769-231
Geometrical Data
Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 28.5mm/ 1.122inch
Depth 71.5mm/ 2.815inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center marking

Material Data

Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.104 MJ
Weight 7.516g

Commercial data

Product Group 18 (X-COM-System)
Country of origin DE
GTIN 4050821107415
Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7626
CSA
DEKRA Certification B.V.
C22.2 No. 158 1101144
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 2190419.01
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
769-231
01.05.2019Page /2 17
Data sheet | Item number:769-231
Logo Approval Additional Approval Text name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1977 E45171
UR
Underwriters Laboratories Inc.
UL 1059 E45172

Compatible products

tools
Item no.: 210-720
Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm
210-720
End plate
Item no.: 769-307
End and intermediate plate; 1.1 mm thick
769-307
Item no.: 769-308
End and intermediate plate; 1.1 mm thick
769-308
Carrier rail
Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm
210-112
769-231
01.05.2019Page /3 17
Data sheet | Item number:769-231
Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm
210-115
Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
Item no.: 210-504
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715
210-504
Item no.: 210-505
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715
210-505
Item no.: 210-506
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715
210-506
Item no.: 210-508
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715
210-508
General accessories
Item no.: 280-404
Test plug adapter; 5 mm wide; for test plug 210-137 (2.3 mm Ø); suitable for 1.5 mm² - 4 mm² tbs
280-404
Item no.: 280-418 Test plug module; modular; suitable for all WAGO 280 and 780 Series rail-mounted terminal blocks with jumper slots in the current bar
280-418
Item no.: 280-419 Spacer module; modular; bridging commoned terminal blocks
280-419
Item no.: 769-438 Pin cover; with marker slot for miniature WSB
769-438
Item no.: 769-439 Pin cover; with marker slot for miniature WSB
769-439
Item no.: 769-501 Start module for 1-conductor female connector; with integrated end plate; 4 mm²; 1-pole
769-501
Item no.: 769-501/000-006
Start module for 1-conductor female connector; 4 mm²; 1-pole
769-501
/000-006
Item no.: 769-501/000-016
Start module for 1-conductor female connector; with integrated end plate; 4 mm²; 1-pole
769-501
/000-016
769-231
01.05.2019Page /4 17
Data sheet | Item number:769-231
Item no.: 769-502 Center module for 1-conductor female connector; 4 mm²; 1-pole
769-502
Item no.: 769-502/000-006
Center module for 1-conductor female connector; 4 mm²; 1-pole
769-502
/000-006
Item no.: 769-502/000-016
Center module for 1-conductor female connector; 4 mm²; 1-pole
769-502
/000-016
Item no.: 769-503 End module for 1-conductor female connector; 4 mm²; 1-pole
769-503
Item no.: 769-503/000-006
End module for 1-conductor female connector; 4 mm²; 1-pole
769-503
/000-006
Item no.: 769-503/000-016
End module for 1-conductor female connector; 4 mm²; 1-pole
769-503
/000-016
Item no.: 769-504 Start module for 2-conductor female connector; with integrated end plate; 4 mm²; 1-pole
769-504
Item no.: 769-504/000-006
Start module for 2-conductor female connector; with integrated end plate; 4 mm²; 1-pole
769-504
/000-006
Item no.: 769-504/000-016
Start module for 2-conductor female connector; 4 mm²; 1-pole
769-504
/000-016
Item no.: 769-505 Center module for 2-conductor female connector; 4 mm²; 1-pole
769-505
Item no.: 769-505/000-006
Center module for 2-conductor female connector; 4 mm²; 1-pole
769-505
/000-006
Item no.: 769-505/000-016
Center module for 2-conductor female connector; 4 mm²; 1-pole
769-505
/000-016
Item no.: 769-506 End module for 2-conductor female connector; 4 mm²; 1-pole
769-506
Item no.: 769-506/000-006
End module for 2-conductor female connector; 4 mm²; 1-pole
769-506
/000-006
Item no.: 769-506/000-016
End module for 2-conductor female connector; 4 mm²; 1-pole
769-506
/000-016
Item no.: 769-512 Start module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-512
769-231
01.05.2019Page /5 17
Data sheet | Item number:769-231
Item no.: 769-512/000-006
Start module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-512
/000-006
Item no.: 769-512/000-016
Start module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-512
/000-016
Item no.: 769-513 Center module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-513
Item no.: 769-513/000-006
1-conductor center module; angled; codable; 1-pole
769-513
/000-006
Item no.: 769-513/000-016
1-conductor center module; angled; codable; 1-pole
769-513
/000-016
Item no.: 769-515 1-conductor end module; angled; codable; 1-pole
769-515
Item no.: 769-515/000-006
1-conductor end module; angled; codable; 1-pole
769-515
/000-006
Item no.: 769-515/000-016
1-conductor end module; angled; codable; 1-pole
769-515
/000-016
assembling
Item no.: 209-106 Mounting carrier; for isolated mounting on DIN 35 rails
209-106
Female plug
Item no.: 769-101 1-conductor female plug; 4 mm²; 1-pole
769-101
Item no.: 769-101/000-006
1-conductor female plug; 4 mm²; 1-pole
769-101
/000-006
Item no.: 769-101/000-016
1-conductor female plug; 4 mm²; 1-pole
769-101
/000-016
Item no.: 769-101/022-000
1-conductor female plug; angled; 4 mm²; 1-pole
769-101
/022-000
Item no.: 769-101/022-016
1-conductor female plug; angled; 4 mm²; 1-pole
769-101
/022-016
Item no.: 769-102 1-conductor female plug; 4 mm²; 2-pole
769-102
769-231
01.05.2019Page /6 17
Data sheet | Item number:769-231
Item no.: 769-102/000-006
1-conductor female plug; 4 mm²; 2-pole
769-102
/000-006
Item no.: 769-102/000-036
1-conductor female plug; 4 mm²; 2-pole
769-102
/000-036
Item no.: 769-102/000-037
1-conductor female plug; 4 mm²; 2-pole
769-102
/000-037
Item no.: 769-102/022-000
1-conductor female plug; angled; 4 mm²; 2-pole
769-102
/022-000
Item no.: 769-103 1-conductor female plug; 4 mm²; 3-pole
769-103
Item no.: 769-103/000-006
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-006
Item no.: 769-103/000-036
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-036
Item no.: 769-103/000-037
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-037
Item no.: 769-103/000-038
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-038
Item no.: 769-103/000-039
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-039
Item no.: 769-103/022-000
1-conductor female plug; angled; 4 mm²; 3-pole
769-103
/022-000
Item no.: 769-104 1-conductor female plug; 4 mm²; 4-pole
769-104
Item no.: 769-104/000-006
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-006
Item no.: 769-104/000-036
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-036
Item no.: 769-104/000-037
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-037
769-231
01.05.2019Page /7 17
Data sheet | Item number:769-231
Item no.: 769-104/000-038
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-038
Item no.: 769-104/000-039
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-039
Item no.: 769-104/022-000
1-conductor female plug; angled; 4 mm²; 4-pole
769-104
/022-000
Item no.: 769-105 1-conductor female plug; 4 mm²; 5-pole
769-105
Item no.: 769-105/000-006
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-006
Item no.: 769-105/000-036
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-036
Item no.: 769-105/000-037
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-037
Item no.: 769-105/000-038
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-038
Item no.: 769-105/000-039
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-039
Item no.: 769-105/022-000
1-conductor female plug; angled; 4 mm²; 5-pole
769-105
/022-000
Item no.: 769-106 1-conductor female plug; 4 mm²; 6-pole
769-106
Item no.: 769-106/000-006
1-conductor female plug; 4 mm²; 6-pole
769-106
/000-006
Item no.: 769-106/000-036
1-conductor female plug; 4 mm²; 6-pole
769-106
/000-036
Item no.: 769-106/000-037
1-conductor female plug; 4 mm²; 6-pole
769-106
/000-037
Item no.: 769-106/000-038
1-conductor female plug; 4 mm²; 6-pole
769-106
/000-038
769-231
01.05.2019Page /8 17
Data sheet | Item number:769-231
Item no.: 769-106/000-039
1-conductor female plug; 4 mm²; 6-pole
769-106
/000-039
Item no.: 769-106/022-000
1-conductor female plug; angled; 4 mm²; 6-pole
769-106
/022-000
Item no.: 769-107 1-conductor female plug; 4 mm²; 7-pole
769-107
Item no.: 769-107/000-006
1-conductor female plug; 4 mm²; 7-pole
769-107
/000-006
Item no.: 769-107/000-036
1-conductor female plug; 4 mm²; 7-pole
769-107
/000-036
Item no.: 769-107/000-037
1-conductor female plug; 4 mm²; 7-pole
769-107
/000-037
Item no.: 769-107/000-038
1-conductor female plug; 4 mm²; 7-pole
769-107
/000-038
Item no.: 769-107/000-039
1-conductor female plug; 4 mm²; 7-pole
769-107
/000-039
Item no.: 769-107/022-000
1-conductor female plug; angled; 4 mm²; 7-pole
769-107
/022-000
Item no.: 769-108 1-conductor female plug; 4 mm²; 8-pole
769-108
Item no.: 769-108/000-006
1-conductor female plug; 4 mm²; 8-pole
769-108
/000-006
Item no.: 769-108/000-036
1-conductor female plug; 4 mm²; 8-pole
769-108
/000-036
Item no.: 769-108/000-037
1-conductor female plug; 4 mm²; 8-pole
769-108
/000-037
Item no.: 769-108/000-038
1-conductor female plug; 4 mm²; 8-pole
769-108
/000-038
Item no.: 769-108/000-039
1-conductor female plug; 4 mm²; 8-pole
769-108
/000-039
769-231
01.05.2019Page /9 17
Data sheet | Item number:769-231
Item no.: 769-108/022-000
1-conductor female plug; angled; 4 mm²; 8-pole
769-108
/022-000
Item no.: 769-109 1-conductor female plug; 4 mm²; 9-pole
769-109
Item no.: 769-109/000-006
1-conductor female plug; 4 mm²; 9-pole
769-109
/000-006
Item no.: 769-109/000-036
1-conductor female plug; 4 mm²; 9-pole
769-109
/000-036
Item no.: 769-109/000-037
1-conductor female plug; 4 mm²; 9-pole
769-109
/000-037
Item no.: 769-109/000-038
1-conductor female plug; 4 mm²; 9-pole
769-109
/000-038
Item no.: 769-109/000-039
1-conductor female plug; 4 mm²; 9-pole
769-109
/000-039
Item no.: 769-109/022-000
1-conductor female plug; angled; 4 mm²; 9-pole
769-109
/022-000
Item no.: 769-110 1-conductor female plug; 4 mm²; 10-pole
769-110
Item no.: 769-110/000-006
1-conductor female plug; 4 mm²; 10-pole
769-110
/000-006
Item no.: 769-110/000-036
1-conductor female plug; 4 mm²; 10-pole
769-110
/000-036
Item no.: 769-110/000-037
1-conductor female plug; 4 mm²; 10-pole
769-110
/000-037
Item no.: 769-110/000-038
1-conductor female plug; 4 mm²; 10-pole
769-110
/000-038
Item no.: 769-110/000-039
1-conductor female plug; 4 mm²; 10-pole
769-110
/000-039
Item no.: 769-110/022-000
1-conductor female plug; angled; 4 mm²; 10-pole
769-110
/022-000
Item no.: 769-111
769-231
01.05.2019Page /10 17
Data sheet | Item number:769-231
1-conductor female plug; 4 mm²; 11-pole 769-111
Item no.: 769-111/000-006
1-conductor female plug; 4 mm²; 11-pole
769-111
/000-006
Item no.: 769-111/000-036
1-conductor female plug; 4 mm²; 11-pole
769-111
/000-036
Item no.: 769-111/000-037
1-conductor female plug; 4 mm²; 11-pole
769-111
/000-037
Item no.: 769-111/000-038
1-conductor female plug; 4 mm²; 11-pole
769-111
/000-038
Item no.: 769-111/000-039
1-conductor female plug; 4 mm²; 11-pole
769-111
/000-039
Item no.: 769-111/022-000
1-conductor female plug; angled; 4 mm²; 11-pole
769-111
/022-000
Item no.: 769-112 1-conductor female plug; 4 mm²; 12-pole
769-112
Item no.: 769-112/000-006
1-conductor female plug; 4 mm²; 12-pole
769-112
/000-006
Item no.: 769-112/000-036
1-conductor female plug; 4 mm²; 12-pole
769-112
/000-036
Item no.: 769-112/000-037
1-conductor female plug; 4 mm²; 12-pole
769-112
/000-037
Item no.: 769-112/000-038
1-conductor female plug; 4 mm²; 12-pole
769-112
/000-038
Item no.: 769-112/000-039
1-conductor female plug; 4 mm²; 12-pole
769-112
/000-039
Item no.: 769-112/022-000
1-conductor female plug; angled; 4 mm²; 12-pole
769-112
/022-000
Item no.: 769-113 1-conductor female plug; 4 mm²; 13-pole
769-113
769-231
01.05.2019Page /11 17
Data sheet | Item number:769-231
Item no.: 769-113/000-036
1-conductor female plug; 4 mm²; 13-pole
769-113
/000-036
Item no.: 769-113/000-037
1-conductor female plug; 4 mm²; 13-pole
769-113
/000-037
Item no.: 769-113/000-038
1-conductor female plug; 4 mm²; 13-pole
769-113
/000-038
Item no.: 769-113/000-039
1-conductor female plug; 4 mm²; 13-pole
769-113
/000-039
Item no.: 769-113/022-000
1-conductor female plug; angled; 4 mm²; 13-pole
769-113
/022-000
Item no.: 769-114 1-conductor female plug; 4 mm²; 14-pole
769-114
Item no.: 769-114/000-006
1-conductor female plug; 4 mm²; 14-pole
769-114
/000-006
Item no.: 769-114/000-036
1-conductor female plug; 4 mm²; 14-pole
769-114
/000-036
Item no.: 769-114/000-037
1-conductor female plug; 4 mm²; 14-pole
769-114
/000-037
Item no.: 769-114/000-038
1-conductor female plug; 4 mm²; 14-pole
769-114
/000-038
Item no.: 769-114/000-039
1-conductor female plug; 4 mm²; 14-pole
769-114
/000-039
Item no.: 769-114/022-000
1-conductor female plug; angled; 4 mm²; 14-pole
769-114
/022-000
Item no.: 769-115 1-conductor female plug; 4 mm²; 15-pole
769-115
Item no.: 769-115/000-036
1-conductor female plug; 4 mm²; 15-pole
769-115
/000-036
Item no.: 769-115/000-037
1-conductor female plug; 4 mm²; 15-pole
769-115
/000-037
769-231
01.05.2019Page /12 17
Data sheet | Item number:769-231
Item no.: 769-115/000-038
1-conductor female plug; 4 mm²; 15-pole
769-115
/000-038
Item no.: 769-115/000-039
1-conductor female plug; 4 mm²; 15-pole
769-115
/000-039
Item no.: 769-115/022-000
1-conductor female plug; angled; 4 mm²; 15-pole
769-115
/022-000
Item no.: 769-121 2-conductor female connector; 4 mm²; 1-pole
769-121
Item no.: 769-121/000-016
2-conductor female connector; 4 mm²; 1-pole
769-121
/000-016
Item no.: 769-122 2-conductor female connector; 4 mm²; 2-pole
769-122
Item no.: 769-123 2-conductor female connector; 4 mm²; 3-pole
769-123
Item no.: 769-124 2-conductor female connector; 4 mm²; 4-pole
769-124
Item no.: 769-125 2-conductor female connector; 4 mm²; 5-pole
769-125
Item no.: 769-126 2-conductor female connector; 4 mm²; 6-pole
769-126
Item no.: 769-127 2-conductor female connector; 4 mm²; 7-pole
769-127
Item no.: 769-128 2-conductor female connector; 4 mm²; 8-pole
769-128
Item no.: 769-129 2-conductor female connector; 4 mm²; 9-pole
769-129
Item no.: 769-130 2-conductor female connector; 4 mm²; 10-pole
769-130
Item no.: 769-131 2-conductor female connector; 4 mm²; 11-pole
769-131
Item no.: 769-132 2-conductor female connector; 4 mm²; 12-pole
769-132
Item no.: 769-133 2-conductor female connector; 4 mm²; 13-pole
769-133
Item no.: 769-134 2-conductor female connector; 4 mm²; 14-pole
769-134
Item no.: 769-135 2-conductor female connector; 4 mm²; 15-pole
769-135
769-231
01.05.2019Page /13 17
Data sheet | Item number:769-231
Coding
Item no.: 769-435 Coding pin; for coding of female plugs; for carrier terminal blocks / male connectors
769-435
Insulation stop
Item no.: 769-470 Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 5 pieces/strip
769-470
Item no.: 769-471 Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip
769-471
Item no.: 769-472 Insulation stop; 0.75 - 1 mm²; 5 pieces/strip
769-472
Protective Warning Marker
Item no.: 280-415 Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
280-415
ferrule
Item no.: 216-101 Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-101
Item no.: 216-102 Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
216-102
Item no.: 216-103 Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated
216-103
Item no.: 216-104 Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated
216-104
Item no.: 216-201 Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated
216-201
Item no.: 216-202 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated
216-202
Item no.: 216-203 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated
216-203
Item no.: 216-204 Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated
216-204
Item no.: 216-206 Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated
216-206
Item no.: 216-301 Ferrule; Sleeve for 0.25 mm² / AWG 24; insulated; electro-tin plated
216-301
Item no.: 216-302 Ferrule; Sleeve for 0.34 mm² / 22 AWG; insulated; electro-tin plated
216-302
Marking accessories
Item no.: 2009-145
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
769-231
01.05.2019Page /14 17
Data sheet | Item number:769-231
Item no.: 2009-145/000-002
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-002
Item no.: 2009-145/000-005
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-005
Item no.: 2009-145/000-006
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-006
Item no.: 2009-145/000-007
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-007
Item no.: 2009-145/000-012
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-012
Item no.: 2009-145/000-023
Mini-WSB Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-023
Item no.: 2009-145/000-024
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-024
Item no.: 248-501 Miniature WSB Quick marking system; plain; Marker width 5 mm; 10 strips with 10 markers per card
248-501
Item no.: 248-501/000-002
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-002
Item no.: 248-501/000-005
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-005
Item no.: 248-501/000-006
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-006
Item no.: 248-501/000-007
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-007
Item no.: 248-501/000-012
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-012
Item no.: 248-501/000-017
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-017
Item no.: 248-501/000-023
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-023
769-231
01.05.2019Page /15 17
Data sheet | Item number:769-231
Item no.: 248-501/000-024
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-024
check
Item no.: 210-136 Test plug; 2 mm Ø; with 500 mm cable
210-136
Item no.: 210-137 Test plug; 2.3 mm Ø; with 500 mm cable
210-137
Jumper
Item no.: 249-123 Push-in type wire jumper; insulated; wire length 180 mm; Conductor cross section 0.75 mm²
249-123
Item no.: 249-125 Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 0.75 mm²
249-125
Item no.: 249-126 Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 0.75 mm²
249-126
Item no.: 249-127 Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 0.75 mm²
249-127
Item no.: 280-402 Adjacent jumper; insulated; IN = IN terminal block
280-402
Item no.: 280-409 Alternate jumper; insulated; IN = IN terminal block
280-409
Item no.: 780-452 Staggered jumper; insulated; from 1 to 2; Spacing: 5 mm; suitable for 2-conductor female plugs
780-452
Item no.: 780-453 Staggered jumper; insulated; from 1 to 3; Spacing: 5 mm; suitable for 2-conductor female plugs
780-453
Item no.: 780-454 Staggered jumper; insulated; from 1 to 4; Spacing: 5 mm; suitable for 2-conductor female plugs
780-454
Item no.: 780-455 Staggered jumper; insulated; from 1 to 5; Spacing: 5 mm; suitable for 2-conductor female plugs
780-455
Item no.: 780-456 Staggered jumper; insulated; from 1 to 6; Spacing: 5 mm; suitable for 2-conductor female plugs
780-456
Item no.: 780-457 Staggered jumper; insulated; from 1 to 7; Spacing: 5 mm; suitable for 2-conductor female plugs
780-457
Item no.: 780-458 Staggered jumper; insulated; from 1 to 8; Spacing: 5 mm; suitable for 2-conductor female plugs
780-458

Downloads

Documentation

Bid Text
769-231 doc
Download
769-231
01.05.2019Page /16 17
Data sheet | Item number:769-231
25.6 kB

CAD/CAE - Smart Data

CAD data
3D Download 769-231 URL Download

Product family

X-COM
Learn more about the product family.
Show all products from the family
769-231
Subject to changes.
01.05.2019Page /17 17
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
