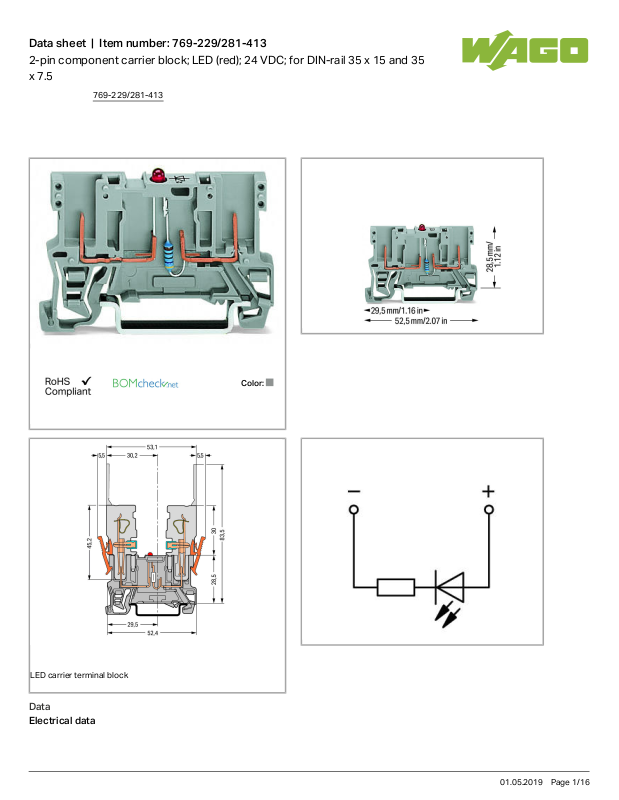

Wago 769-229/281-413 Data Sheet

Data sheet | Item number:769-229/281-413

2-pin component carrier block; LED (red); 24 VDC; for DIN-rail 35 x 15 and 35
x 7.5

LED carrier terminal block

Color:

Data

Electrical data

769-229/281-413

01.05.2019Page /1 16

Data sheet | Item number:769-229/281-413

Voltage type (1) DC

Nominal voltage 24 V

Ratings per IEC/EN 60664-1

Rated current 0.025 A

Connection data

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch

Height from upper-edge of DIN-35 rail 28.5mm/ 1.122inch

Depth 52.5mm/ 2.067inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.096 MJ

Weight 4.7g

Commercial data

Product Group 18 (X-COM-System)

Country of origin DE

GTIN 4045454619473

Customs Tariff No. 85369010000
