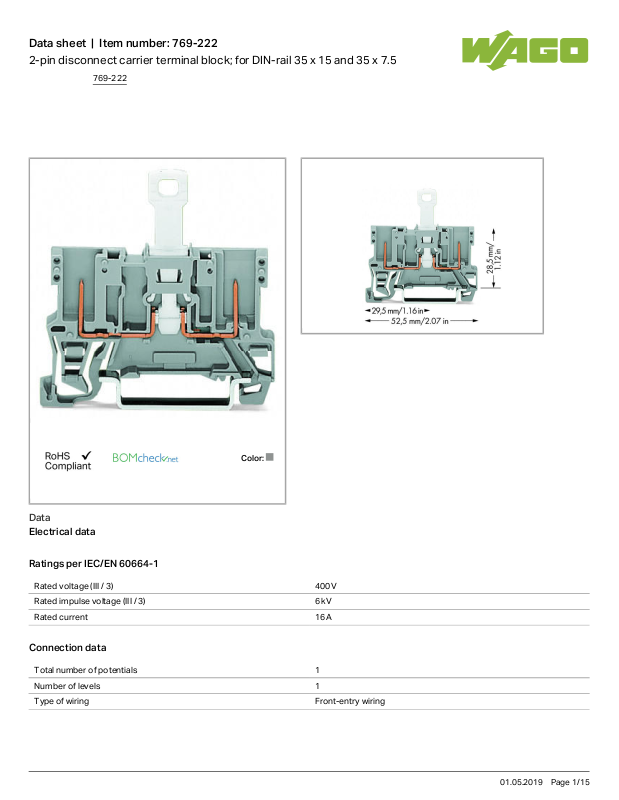

Wago 769-222 Data Sheet

Data sheet | Item number:769-222

2-pin disconnect carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V

Rated impulse voltage (III / 3) 6 kV

Rated current 16 A

Connection data

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

769-222

01.05.2019Page /1 15

Data sheet | Item number:769-222

Geometrical Data

Width 5mm/ 0.197inch

Height from upper-edge of DIN-35 rail 28.5mm/ 1.122inch

Depth 52.5mm/ 2.067inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.112 MJ

Weight 5.087g

Commercial data

Product Group 18 (X-COM-System)

Country of origin DE

GTIN 4045454619404

Customs Tariff No. 85365080990

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7626

CSA

DEKRA Certification B.V.

C22.2 No. 158 1101144

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2190419.01

Ship Approvals

Certificate

769-222

01.05.2019Page /2 15

Data sheet | Item number:769-222

Logo Approval Additional Approval Text name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677PDA

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

Logo Approval Additional Approval Text

Certificate name

Underwriters Laboratories Inc.

UL 1977 E45171

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

General accessories

Item no.: 709-170

Disconnect lock; for disconnect tab used on 280/281 and 769 Series disconnect terminal blocks

709-170

Item no.: 769-438

Pin cover; with marker slot for miniature WSB

769-438

Item no.: 769-439

Pin cover; with marker slot for miniature WSB

769-439

Item no.: 769-501

Start module for 1-conductor female connector; with integrated end plate; 4 mm²; 1-pole

769-501

Item no.: 769-501/000-006

Start module for 1-conductor female connector; 4 mm²; 1-pole

769-501

/000-006

769-222

01.05.2019Page /3 15

Data sheet | Item number:769-222

Item no.: 769-501/000-016

Start module for 1-conductor female connector; with integrated end plate; 4 mm²; 1-pole

769-501

/000-016

Item no.: 769-502

Center module for 1-conductor female connector; 4 mm²; 1-pole

769-502

Item no.: 769-502/000-006

Center module for 1-conductor female connector; 4 mm²; 1-pole

769-502

/000-006

Item no.: 769-502/000-016

Center module for 1-conductor female connector; 4 mm²; 1-pole

769-502

/000-016

Item no.: 769-503

End module for 1-conductor female connector; 4 mm²; 1-pole

769-503

Item no.: 769-503/000-006

End module for 1-conductor female connector; 4 mm²; 1-pole

769-503

/000-006

Item no.: 769-503/000-016

End module for 1-conductor female connector; 4 mm²; 1-pole

769-503

/000-016

Item no.: 769-504

Start module for 2-conductor female connector; with integrated end plate; 4 mm²; 1-pole

769-504

Item no.: 769-504/000-006

Start module for 2-conductor female connector; with integrated end plate; 4 mm²; 1-pole

769-504

/000-006

Item no.: 769-504/000-016

Start module for 2-conductor female connector; 4 mm²; 1-pole

769-504

/000-016

Item no.: 769-505

Center module for 2-conductor female connector; 4 mm²; 1-pole

769-505

Item no.: 769-505/000-006

Center module for 2-conductor female connector; 4 mm²; 1-pole

769-505

/000-006

Item no.: 769-505/000-016

Center module for 2-conductor female connector; 4 mm²; 1-pole

769-505

/000-016

Item no.: 769-506

End module for 2-conductor female connector; 4 mm²; 1-pole

769-506

Item no.: 769-506/000-006

End module for 2-conductor female connector; 4 mm²; 1-pole

769-506

/000-006

Item no.: 769-506/000-016

End module for 2-conductor female connector; 4 mm²; 1-pole

769-506

/000-016

769-222

01.05.2019Page /4 15

Data sheet | Item number:769-222

Item no.: 769-512

Start module for 1-conductor female connector; angled; 4 mm²; 1-pole

769-512

Item no.: 769-512/000-006

Start module for 1-conductor female connector; angled; 4 mm²; 1-pole

769-512

/000-006

Item no.: 769-512/000-016

Start module for 1-conductor female connector; angled; 4 mm²; 1-pole

769-512

/000-016

Item no.: 769-513

Center module for 1-conductor female connector; angled; 4 mm²; 1-pole

769-513

Item no.: 769-513/000-006

1-conductor center module; angled; codable; 1-pole

769-513

/000-006

Item no.: 769-513/000-016

1-conductor center module; angled; codable; 1-pole

769-513

/000-016

Item no.: 769-515

1-conductor end module; angled; codable; 1-pole

769-515

Item no.: 769-515/000-006

1-conductor end module; angled; codable; 1-pole

769-515

/000-006

Item no.: 769-515/000-016

1-conductor end module; angled; codable; 1-pole

769-515

/000-016

Marking accessories

Item no.: 2009-145
