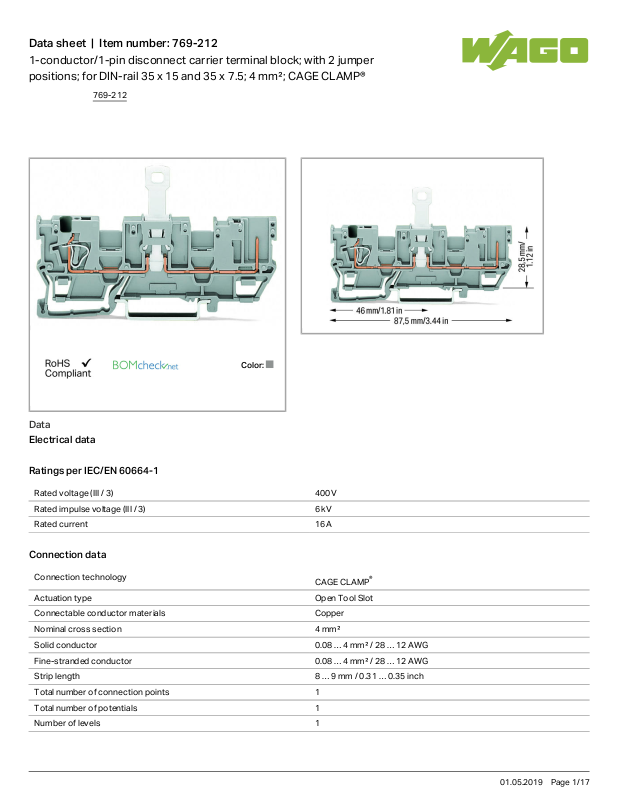

Wago 769-212 Data Sheet

Data sheet | Item number:769-212
1-conductor/1-pin disconnect carrier terminal block; with 2 jumper positions; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP®
Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V
Rated impulse voltage (III / 3) 6 kV
Rated current 16 A

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 4mm²
Solid conductor 0.08 … 4mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
Total number of connection points 1
Total number of potentials 1
Number of levels 1
769-212
01.05.2019Page /1 17
Data sheet | Item number:769-212
Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 28.5mm/ 1.122inch
Depth 87.5mm/ 3.445inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center marking

Material Data

Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.18 MJ
Weight 9g

Commercial data

Product Group 18 (X-COM-System)
Country of origin DE
GTIN 4044918934763
Customs Tariff No. 85365080990

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7626
CSA
DEKRA Certification B.V.
C22.2 No. 158 1101144
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 2190419.01
Ship Approvals
769-212
01.05.2019Page /2 17
Data sheet | Item number:769-212
Logo
Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1977 E45171
UR
Underwriters Laboratories Inc.
UL 1059 E45172

Compatible products

Female plug
Item no.: 769-101
1-conductor female plug; 4 mm²; 1-pole
769-101
Item no.: 769-101/000-006
1-conductor female plug; 4 mm²; 1-pole
769-101
/000-006
Item no.: 769-101/000-016
1-conductor female plug; 4 mm²; 1-pole
769-101
/000-016
769-212
01.05.2019Page /3 17
Data sheet | Item number:769-212
Item no.: 769-101/022-000
1-conductor female plug; angled; 4 mm²; 1-pole
769-101
/022-000
Item no.: 769-101/022-016
1-conductor female plug; angled; 4 mm²; 1-pole
769-101
/022-016
Item no.: 769-102
1-conductor female plug; 4 mm²; 2-pole
769-102
Item no.: 769-102/000-006
1-conductor female plug; 4 mm²; 2-pole
769-102
/000-006
Item no.: 769-102/000-036
1-conductor female plug; 4 mm²; 2-pole
769-102
/000-036
Item no.: 769-102/000-037
1-conductor female plug; 4 mm²; 2-pole
769-102
/000-037
Item no.: 769-102/022-000
1-conductor female plug; angled; 4 mm²; 2-pole
769-102
/022-000
Item no.: 769-103
1-conductor female plug; 4 mm²; 3-pole
769-103
Item no.: 769-103/000-006
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-006
Item no.: 769-103/000-036
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-036
Item no.: 769-103/000-037
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-037
Item no.: 769-103/000-038
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-038
Item no.: 769-103/000-039
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-039
Item no.: 769-103/022-000
1-conductor female plug; angled; 4 mm²; 3-pole
769-103
/022-000
Item no.: 769-104
1-conductor female plug; 4 mm²; 4-pole
769-104
Item no.: 769-104/000-006
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-006
