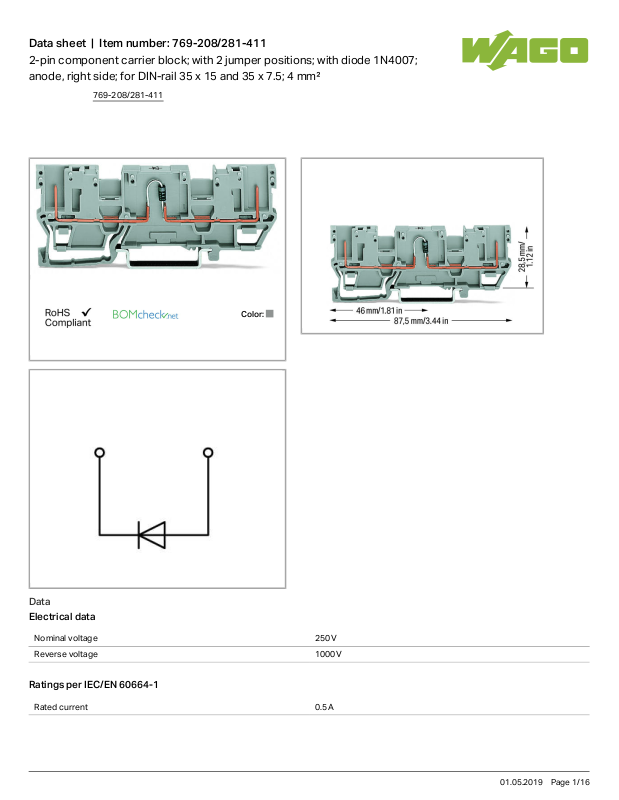

Wago 769-208/281-411 Data Sheet

Data sheet | Item number:769-208/281-411

2-pin component carrier block; with 2 jumper positions; with diode 1N4007;
anode, right side; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²

Color:

Data

Electrical data

Nominal voltage 250 V

Reverse voltage 1000V

Ratings per IEC/EN 60664-1

Rated current 0.5 A

769-208/281-411

01.05.2019Page /1 16

Data sheet | Item number:769-208/281-411

Connection data

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch

Height from upper-edge of DIN-35 rail 28.5mm/ 1.122inch

Depth 87.5mm/ 3.445inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.17 MJ

Weight 7.718g

Commercial data

Product Group 18 (X-COM-System)

Country of origin DE

GTIN 4045454198374

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7626

CSA

DEKRA Certification B.V.

C22.2 No. 158 1101144

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2190419.01

769-208/281-411

01.05.2019Page /2 16

Data sheet | Item number:769-208/281-411

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

Compatible products

Female plug

Item no.: 769-101

1-conductor female plug; 4 mm²; 1-pole

769-101

Item no.: 769-101/000-006

1-conductor female plug; 4 mm²; 1-pole

769-101

/000-006

Item no.: 769-101/000-016

1-conductor female plug; 4 mm²; 1-pole

769-101

/000-016

Item no.: 769-101/022-000

1-conductor female plug; angled; 4 mm²; 1-pole

769-101

/022-000

Item no.: 769-101/022-016

1-conductor female plug; angled; 4 mm²; 1-pole

769-101

/022-016

Item no.: 769-102

1-conductor female plug; 4 mm²; 2-pole

769-102

Item no.: 769-102/000-006

1-conductor female plug; 4 mm²; 2-pole

769-102

/000-006

769-208/281-411

01.05.2019Page /3 16

Data sheet | Item number:769-208/281-411

Item no.: 769-102/000-036

1-conductor female plug; 4 mm²; 2-pole

769-102

/000-036

Item no.: 769-102/000-037

1-conductor female plug; 4 mm²; 2-pole

769-102

/000-037

Item no.: 769-102/022-000

1-conductor female plug; angled; 4 mm²; 2-pole

769-102

/022-000

Item no.: 769-103

1-conductor female plug; 4 mm²; 3-pole

769-103

Item no.: 769-103/000-006

1-conductor female plug; 4 mm²; 3-pole

769-103

/000-006

Item no.: 769-103/000-036

1-conductor female plug; 4 mm²; 3-pole

769-103

/000-036

Item no.: 769-103/000-037

1-conductor female plug; 4 mm²; 3-pole

769-103

/000-037

Item no.: 769-103/000-038

1-conductor female plug; 4 mm²; 3-pole

769-103

/000-038

Item no.: 769-103/000-039

1-conductor female plug; 4 mm²; 3-pole

769-103

/000-039

Item no.: 769-103/022-000

1-conductor female plug; angled; 4 mm²; 3-pole

769-103

/022-000

Item no.: 769-104

1-conductor female plug; 4 mm²; 4-pole

769-104

Item no.: 769-104/000-006

1-conductor female plug; 4 mm²; 4-pole

769-104

/000-006

Item no.: 769-104/000-036

1-conductor female plug; 4 mm²; 4-pole

769-104

/000-036

Item no.: 769-104/000-037

1-conductor female plug; 4 mm²; 4-pole

769-104

/000-037

Item no.: 769-104/000-038

1-conductor female plug; 4 mm²; 4-pole

769-104

/000-038

769-208/281-411

01.05.2019Page /4 16

Data sheet | Item number:769-208/281-411

Item no.: 769-104/000-039

1-conductor female plug; 4 mm²; 4-pole

769-104

/000-039

Item no.: 769-104/022-000

1-conductor female plug; angled; 4 mm²; 4-pole

769-104

/022-000

Item no.: 769-105

1-conductor female plug; 4 mm²; 5-pole

769-105

Item no.: 769-105/000-006

1-conductor female plug; 4 mm²; 5-pole

769-105

/000-006

Item no.: 769-105/000-036

1-conductor female plug; 4 mm²; 5-pole

769-105

/000-036

Item no.: 769-105/000-037

1-conductor female plug; 4 mm²; 5-pole

769-105

/000-037

Item no.: 769-105/000-038

1-conductor female plug; 4 mm²; 5-pole

769-105

/000-038

Item no.: 769-105/000-039

1-conductor female plug; 4 mm²; 5-pole

769-105

/000-039

Item no.: 769-105/022-000

1-conductor female plug; angled; 4 mm²; 5-pole

769-105

/022-000

Item no.: 769-106

1-conductor female plug; 4 mm²; 6-pole

769-106

Item no.: 769-106/000-006

1-conductor female plug; 4 mm²; 6-pole

769-106

/000-006

Item no.: 769-106/000-036

1-conductor female plug; 4 mm²; 6-pole

769-106

/000-036

Item no.: 769-106/000-037

1-conductor female plug; 4 mm²; 6-pole

769-106

/000-037

Item no.: 769-106/000-038

1-conductor female plug; 4 mm²; 6-pole

769-106

/000-038

Item no.: 769-106/000-039

1-conductor female plug; 4 mm²; 6-pole

769-106

/000-039
