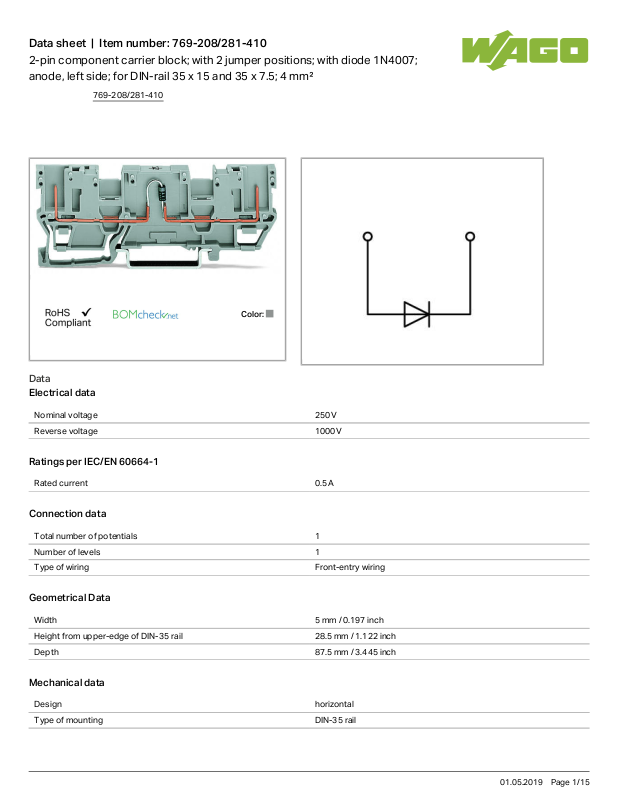

Wago 769-208/281-410 Data Sheet

Data sheet | Item number:769-208/281-410
2-pin component carrier block; with 2 jumper positions; with diode 1N4007; anode, left side; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²
Color:

Data

Electrical data

Nominal voltage 250 V
Reverse voltage 1000V

Ratings per IEC/EN 60664-1

Rated current 0.5 A

Connection data

Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 28.5mm/ 1.122inch
Depth 87.5mm/ 3.445inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
769-208/281-410
01.05.2019Page /1 15
Data sheet | Item number:769-208/281-410
Marking level Center marking

Material Data

Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.17 MJ
Weight 7.5g

Commercial data

Product Group 18 (X-COM-System)
Country of origin DE
GTIN 4045454198367
Customs Tariff No. 85369010000

Compatible products

Coding
Item no.: 769-435
Coding pin; for coding of female plugs; for carrier terminal blocks / male connectors
769-435
check
Item no.: 210-137
Test plug; 2.3 mm Ø; with 500 mm cable
210-137
End plate
Item no.: 769-309
End and intermediate plate; 1.1 mm thick
769-309
Item no.: 769-310
End and intermediate plate; 1.1 mm thick
769-310
Item no.: 769-313
Separator plate; 1.1 mm thick; oversized
769-313
tools
Item no.: 210-720
Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm
210-720
General accessories
Item no.: 280-404
769-208/281-410
01.05.2019Page /2 15
Data sheet | Item number:769-208/281-410
Test plug adapter; 5 mm wide; for test plug 210-137 (2.3 mm Ø); suitable for 1.5 mm² - 4 mm² tbs 280-404
Item no.: 280-418 Test plug module; modular; suitable for all WAGO 280 and 780 Series rail-mounted terminal blocks with jumper slots in the current bar
280-418
Item no.: 280-419 Spacer module; modular; bridging commoned terminal blocks
280-419
Item no.: 769-438 Pin cover; with marker slot for miniature WSB
769-438
Item no.: 769-439 Pin cover; with marker slot for miniature WSB
769-439
Item no.: 769-501 Start module for 1-conductor female connector; with integrated end plate; 4 mm²; 1-pole
769-501
Item no.: 769-501/000-006
Start module for 1-conductor female connector; 4 mm²; 1-pole
769-501
/000-006
Item no.: 769-501/000-016
Start module for 1-conductor female connector; with integrated end plate; 4 mm²; 1-pole
769-501
/000-016
Item no.: 769-502 Center module for 1-conductor female connector; 4 mm²; 1-pole
769-502
Item no.: 769-502/000-006
Center module for 1-conductor female connector; 4 mm²; 1-pole
769-502
/000-006
Item no.: 769-502/000-016
Center module for 1-conductor female connector; 4 mm²; 1-pole
769-502
/000-016
Item no.: 769-503 End module for 1-conductor female connector; 4 mm²; 1-pole
769-503
Item no.: 769-503/000-006
End module for 1-conductor female connector; 4 mm²; 1-pole
769-503
/000-006
Item no.: 769-503/000-016
End module for 1-conductor female connector; 4 mm²; 1-pole
769-503
/000-016
Item no.: 769-504 Start module for 2-conductor female connector; with integrated end plate; 4 mm²; 1-pole
769-504
Item no.: 769-504/000-006
Start module for 2-conductor female connector; with integrated end plate; 4 mm²; 1-pole
769-504
/000-006
Item no.: 769-504/000-016
Start module for 2-conductor female connector; 4 mm²; 1-pole
769-504
/000-016
769-208/281-410
01.05.2019Page /3 15
Data sheet | Item number:769-208/281-410
Item no.: 769-505 Center module for 2-conductor female connector; 4 mm²; 1-pole
769-505
Item no.: 769-505/000-006
Center module for 2-conductor female connector; 4 mm²; 1-pole
769-505
/000-006
Item no.: 769-505/000-016
Center module for 2-conductor female connector; 4 mm²; 1-pole
769-505
/000-016
Item no.: 769-506 End module for 2-conductor female connector; 4 mm²; 1-pole
769-506
Item no.: 769-506/000-006
End module for 2-conductor female connector; 4 mm²; 1-pole
769-506
/000-006
Item no.: 769-506/000-016
End module for 2-conductor female connector; 4 mm²; 1-pole
769-506
/000-016
Item no.: 769-512 Start module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-512
Item no.: 769-512/000-006
Start module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-512
/000-006
Item no.: 769-512/000-016
Start module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-512
/000-016
Item no.: 769-513 Center module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-513
Item no.: 769-513/000-006
1-conductor center module; angled; codable; 1-pole
769-513
/000-006
Item no.: 769-513/000-016
1-conductor center module; angled; codable; 1-pole
769-513
/000-016
Item no.: 769-515 1-conductor end module; angled; codable; 1-pole
769-515
Item no.: 769-515/000-006
1-conductor end module; angled; codable; 1-pole
769-515
/000-006
Item no.: 769-515/000-016
1-conductor end module; angled; codable; 1-pole
769-515
/000-016
Marking accessories
Item no.: 2009-145
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
769-208/281-410
01.05.2019Page /4 15
Data sheet | Item number:769-208/281-410
Item no.: 2009-145/000-002
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-002
Item no.: 2009-145/000-005
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-005
Item no.: 2009-145/000-006
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-006
Item no.: 2009-145/000-007
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-007
Item no.: 2009-145/000-012
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-012
Item no.: 2009-145/000-023
Mini-WSB Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-023
Item no.: 2009-145/000-024
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-024
Item no.: 248-501 Miniature WSB Quick marking system; plain; Marker width 5 mm; 10 strips with 10 markers per card
248-501
Item no.: 248-501/000-002
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-002
Item no.: 248-501/000-005
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-005
Item no.: 248-501/000-006
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-006
Item no.: 248-501/000-007
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-007
Item no.: 248-501/000-012
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-012
Item no.: 248-501/000-017
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-017
Item no.: 248-501/000-023
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-023
769-208/281-410
01.05.2019Page /5 15
