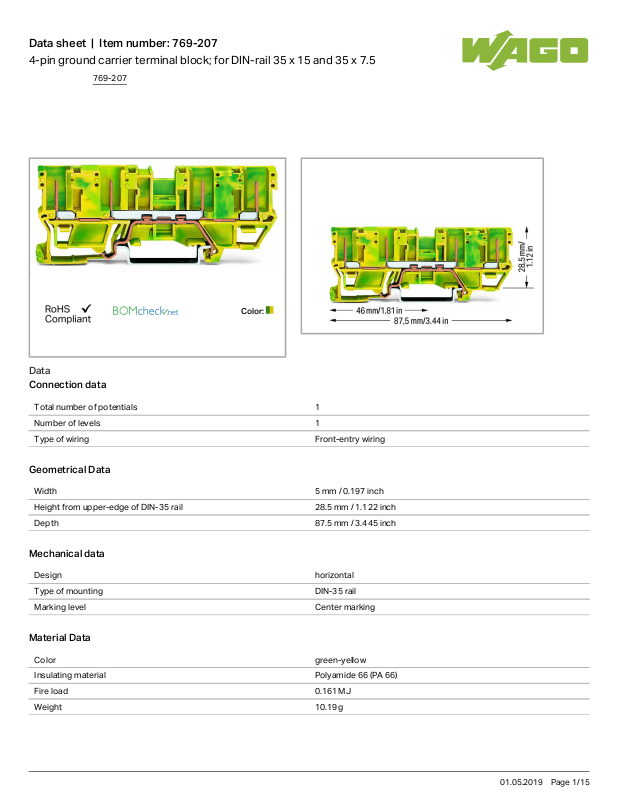

Wago 769-207 Data Sheet

Data sheet | Item number:769-207

4-pin ground carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5

Color:

Data

Connection data

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch

Height from upper-edge of DIN-35 rail 28.5mm/ 1.122inch

Depth 87.5mm/ 3.445inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color green-yellow

Insulating material Polyamide 66 (PA 66)

Fire load 0.161 MJ

Weight 10.19g

769-207

01.05.2019Page /1 15

Data sheet | Item number:769-207

Commercial data

Product Group 18 (X-COM-System)

Country of origin DE

GTIN 4044918827775

Customs Tariff No. 85366990990
