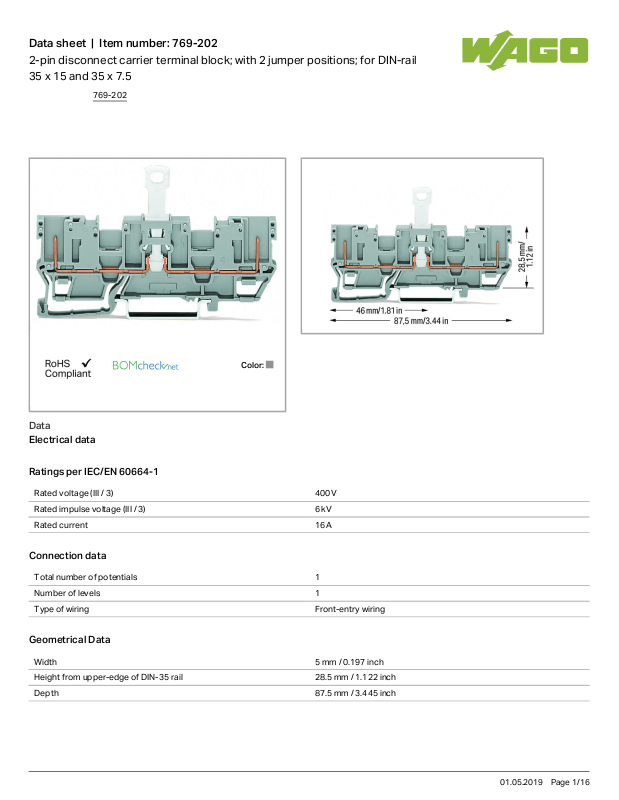

Wago 769-202 Data Sheet

Data sheet | Item number:769-202
2-pin disconnect carrier terminal block; with 2 jumper positions; for DIN-rail 35 x 15 and 35 x 7.5
Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V
Rated impulse voltage (III / 3) 6 kV
Rated current 16 A

Connection data

Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 28.5mm/ 1.122inch
Depth 87.5mm/ 3.445inch
769-202
01.05.2019Page /1 16
Data sheet | Item number:769-202

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center marking

Material Data

Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.179 MJ
Weight 8.17g

Commercial data

Product Group 18 (X-COM-System)
Country of origin DE
GTIN 4044918630108
Customs Tariff No. 85365080990

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7626
CSA
DEKRA Certification B.V.
C22.2 No. 158 1101144
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 2190419.01
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
LR
EN 60947 91/20112
769-202
01.05.2019Page /2 16
Data sheet | Item number:769-202
Lloyds Register (E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1977 E45171
UR
Underwriters Laboratories Inc.
UL 1059 E45172

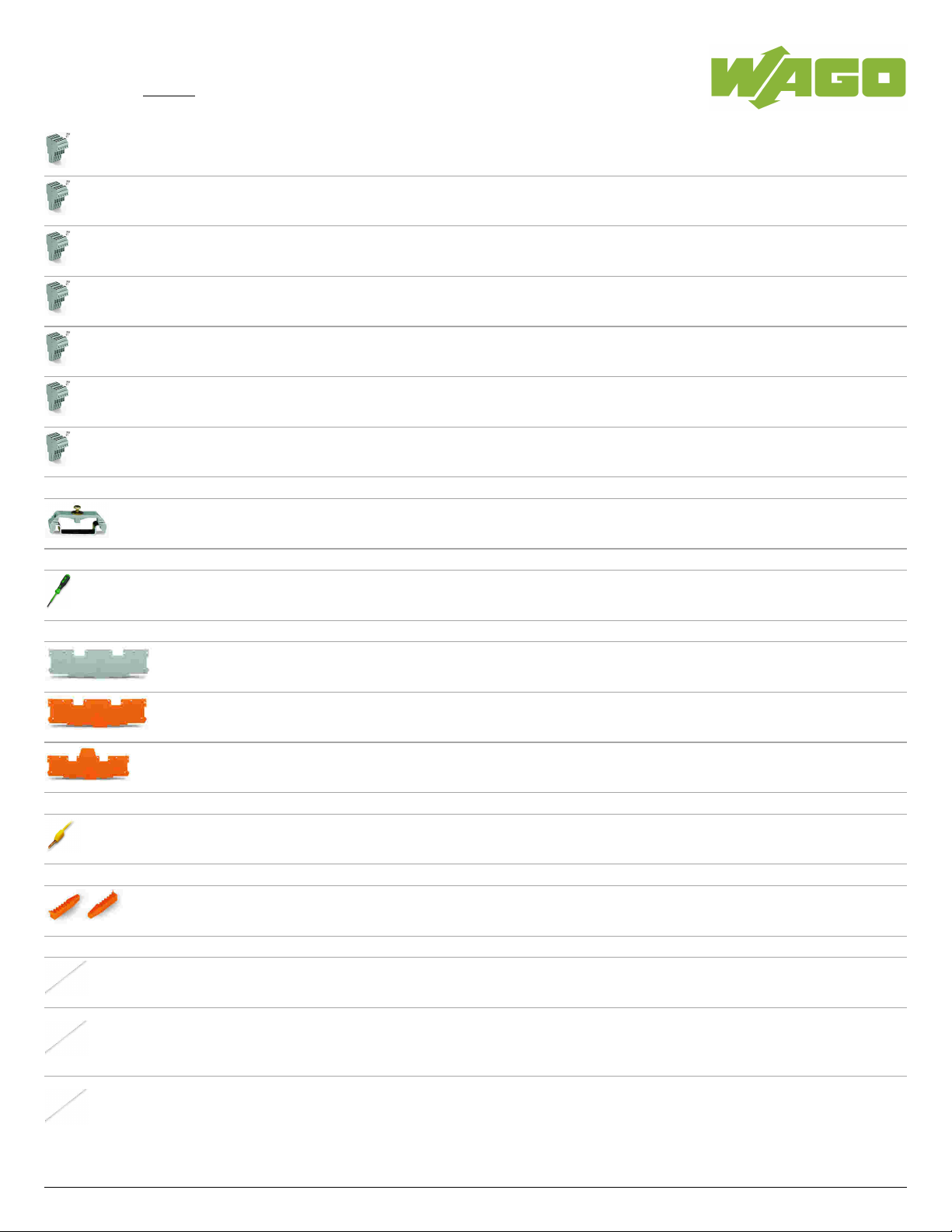

Compatible products

General accessories
Item no.: 280-404
Test plug adapter; 5 mm wide; for test plug 210-137 (2.3 mm Ø); suitable for 1.5 mm² - 4 mm² tbs
280-404
Item no.: 280-418 Test plug module; modular; suitable for all WAGO 280 and 780 Series rail-mounted terminal blocks with jumper slots in the current bar
280-418
Item no.: 280-419 Spacer module; modular; bridging commoned terminal blocks
280-419
Item no.: 709-170 Disconnect lock; for disconnect tab used on 280/281 and 769 Series disconnect terminal blocks
709-170
Item no.: 769-438 Pin cover; with marker slot for miniature WSB
769-438
Item no.: 769-439 Pin cover; with marker slot for miniature WSB
769-439
Item no.: 769-501 Start module for 1-conductor female connector; with integrated end plate; 4 mm²; 1-pole
769-501
769-202
01.05.2019Page /3 16
Data sheet | Item number:769-202
Item no.: 769-501/000-006
Start module for 1-conductor female connector; 4 mm²; 1-pole
769-501
/000-006
Item no.: 769-501/000-016
Start module for 1-conductor female connector; with integrated end plate; 4 mm²; 1-pole
769-501
/000-016
Item no.: 769-502 Center module for 1-conductor female connector; 4 mm²; 1-pole
769-502
Item no.: 769-502/000-006
Center module for 1-conductor female connector; 4 mm²; 1-pole
769-502
/000-006
Item no.: 769-502/000-016
Center module for 1-conductor female connector; 4 mm²; 1-pole
769-502
/000-016
Item no.: 769-503 End module for 1-conductor female connector; 4 mm²; 1-pole
769-503
Item no.: 769-503/000-006
End module for 1-conductor female connector; 4 mm²; 1-pole
769-503
/000-006
Item no.: 769-503/000-016
End module for 1-conductor female connector; 4 mm²; 1-pole
769-503
/000-016
Item no.: 769-504 Start module for 2-conductor female connector; with integrated end plate; 4 mm²; 1-pole
769-504
Item no.: 769-504/000-006
Start module for 2-conductor female connector; with integrated end plate; 4 mm²; 1-pole
769-504
/000-006
Item no.: 769-504/000-016
Start module for 2-conductor female connector; 4 mm²; 1-pole
769-504
/000-016
Item no.: 769-505 Center module for 2-conductor female connector; 4 mm²; 1-pole
769-505
Item no.: 769-505/000-006
Center module for 2-conductor female connector; 4 mm²; 1-pole
769-505
/000-006
Item no.: 769-505/000-016
Center module for 2-conductor female connector; 4 mm²; 1-pole
769-505
/000-016
Item no.: 769-506 End module for 2-conductor female connector; 4 mm²; 1-pole
769-506
Item no.: 769-506/000-006
End module for 2-conductor female connector; 4 mm²; 1-pole
769-506
/000-006
769-202
01.05.2019Page /4 16
Data sheet | Item number:769-202
Item no.: 769-506/000-016
End module for 2-conductor female connector; 4 mm²; 1-pole
769-506
/000-016
Item no.: 769-512 Start module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-512
Item no.: 769-512/000-006
Start module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-512
/000-006
Item no.: 769-512/000-016
Start module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-512
/000-016
Item no.: 769-513 Center module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-513
Item no.: 769-513/000-006
1-conductor center module; angled; codable; 1-pole
769-513
/000-006
Item no.: 769-513/000-016
1-conductor center module; angled; codable; 1-pole
769-513
/000-016
Item no.: 769-515 1-conductor end module; angled; codable; 1-pole
769-515
Item no.: 769-515/000-006
1-conductor end module; angled; codable; 1-pole
769-515
/000-006
Item no.: 769-515/000-016
1-conductor end module; angled; codable; 1-pole
769-515
/000-016
Carrier rail
Item no.: 210-112 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm
210-112
Item no.: 210-113 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm
210-115
Item no.: 210-118 Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196 Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
769-202
01.05.2019Page /5 16
