Wago 769-181 Data Sheet

Download
Data sheet | Item number:769-181
1-conductor/1-pin carrier terminal block; with 2 jumper positions; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP®
Carrier terminal block

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V
Rated impulse voltage (III / 3) 6 kV
769-181
01.05.2019Page /1 23
Data sheet | Item number:769-181
Rated current 16 A

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 4mm²
Solid conductor 0.08 … 4mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
No. of poles 2
Total number of connection points 1
Total number of potentials 2
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 28.5mm/ 1.122inch
Depth 87.5mm/ 3.445inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center marking

Material Data

Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.168 MJ
Weight 7.97g

Commercial data

Product Group 18 (X-COM-System)
Country of origin DE
GTIN 4044918934725
Customs Tariff No. 85369010000
769-181
01.05.2019Page /2 23
Data sheet | Item number:769-181

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7626
CSA
DEKRA Certification B.V.
C22.2 No. 158 1101144
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 2190419.01
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 E45172
UR
Underwriters Laboratories Inc.
UL 1977 E45171

Compatible products

769-181
01.05.2019Page /3 23
Data sheet | Item number:769-181
Coding
Item no.: 769-435
Coding pin; for coding of female plugs; for carrier terminal blocks / male connectors
769-435
ferrule
Item no.: 216-101
Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-101
Item no.: 216-102
Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
216-102
Item no.: 216-103
Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated
216-103
Item no.: 216-104
Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated
216-104
Item no.: 216-201
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated
216-201
Item no.: 216-202
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated
216-202
Item no.: 216-203
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated
216-203
Item no.: 216-204
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated
216-204
Item no.: 216-206
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated
216-206
Item no.: 216-301
Ferrule; Sleeve for 0.25 mm² / AWG 24; insulated; electro-tin plated
216-301
Item no.: 216-302
Ferrule; Sleeve for 0.34 mm² / 22 AWG; insulated; electro-tin plated
216-302
tools
Item no.: 210-720
Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm
210-720
Jumper
Item no.: 249-123
Push-in type wire jumper; insulated; wire length 180 mm; Conductor cross section 0.75 mm²
249-123
769-181
01.05.2019Page /4 23
Data sheet | Item number:769-181
Item no.: 249-125
Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 0.75 mm²
249-125
Item no.: 249-126
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 0.75 mm²
249-126
Item no.: 249-127
Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 0.75 mm²
249-127
Item no.: 280-402
Adjacent jumper; insulated; IN = IN terminal block
280-402
Item no.: 280-409
Alternate jumper; insulated; IN = IN terminal block
280-409
Item no.: 780-452
Staggered jumper; insulated; from 1 to 2; Spacing: 5 mm; suitable for 2-conductor female plugs
780-452
Item no.: 780-453
Staggered jumper; insulated; from 1 to 3; Spacing: 5 mm; suitable for 2-conductor female plugs
780-453
Item no.: 780-454
Staggered jumper; insulated; from 1 to 4; Spacing: 5 mm; suitable for 2-conductor female plugs
780-454
Item no.: 780-455
Staggered jumper; insulated; from 1 to 5; Spacing: 5 mm; suitable for 2-conductor female plugs
780-455
Item no.: 780-456
Staggered jumper; insulated; from 1 to 6; Spacing: 5 mm; suitable for 2-conductor female plugs
780-456
Item no.: 780-457
Staggered jumper; insulated; from 1 to 7; Spacing: 5 mm; suitable for 2-conductor female plugs
780-457
Item no.: 780-458
Staggered jumper; insulated; from 1 to 8; Spacing: 5 mm; suitable for 2-conductor female plugs
780-458
check
Item no.: 210-136
Test plug; 2 mm Ø; with 500 mm cable
210-136
Item no.: 210-137
Test plug; 2.3 mm Ø; with 500 mm cable
210-137
assembling
Item no.: 209-106
Mounting carrier; for isolated mounting on DIN 35 rails
209-106
Female plug
Item no.: 769-101
1-conductor female plug; 4 mm²; 1-pole
769-101
Item no.: 769-101/000-006
1-conductor female plug; 4 mm²; 1-pole
769-101
/000-006
Item no.: 769-101/000-016
1-conductor female plug; 4 mm²; 1-pole
769-101
/000-016
769-181
01.05.2019Page /5 23
Data sheet | Item number:769-181
Item no.: 769-101/022-000
1-conductor female plug; angled; 4 mm²; 1-pole
769-101
/022-000
Item no.: 769-101/022-016
1-conductor female plug; angled; 4 mm²; 1-pole
769-101
/022-016
Item no.: 769-102
1-conductor female plug; 4 mm²; 2-pole
769-102
Item no.: 769-102/000-006
1-conductor female plug; 4 mm²; 2-pole
769-102
/000-006
Item no.: 769-102/000-036
1-conductor female plug; 4 mm²; 2-pole
769-102
/000-036
Item no.: 769-102/000-037
1-conductor female plug; 4 mm²; 2-pole
769-102
/000-037
Item no.: 769-102/022-000
1-conductor female plug; angled; 4 mm²; 2-pole
769-102
/022-000
Item no.: 769-103
1-conductor female plug; 4 mm²; 3-pole
769-103
Item no.: 769-103/000-006
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-006
Item no.: 769-103/000-036
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-036
Item no.: 769-103/000-037
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-037
Item no.: 769-103/000-038
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-038
Item no.: 769-103/000-039
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-039
Item no.: 769-103/022-000
1-conductor female plug; angled; 4 mm²; 3-pole
769-103
/022-000
Item no.: 769-104
1-conductor female plug; 4 mm²; 4-pole
769-104
769-181
01.05.2019Page /6 23
Data sheet | Item number:769-181
Item no.: 769-104/000-006
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-006
Item no.: 769-104/000-036
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-036
Item no.: 769-104/000-037
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-037
Item no.: 769-104/000-038
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-038
Item no.: 769-104/000-039
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-039
Item no.: 769-104/022-000
1-conductor female plug; angled; 4 mm²; 4-pole
769-104
/022-000
Item no.: 769-105
1-conductor female plug; 4 mm²; 5-pole
769-105
Item no.: 769-105/000-006
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-006
Item no.: 769-105/000-036
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-036
Item no.: 769-105/000-037
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-037
Item no.: 769-105/000-038
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-038
Item no.: 769-105/000-039
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-039
Item no.: 769-105/022-000
1-conductor female plug; angled; 4 mm²; 5-pole
769-105
/022-000
Item no.: 769-106
1-conductor female plug; 4 mm²; 6-pole
769-106
Item no.: 769-106/000-006
1-conductor female plug; 4 mm²; 6-pole
769-106
/000-006
769-181
01.05.2019Page /7 23
Data sheet | Item number:769-181
Item no.: 769-106/000-036
1-conductor female plug; 4 mm²; 6-pole
769-106
/000-036
Item no.: 769-106/000-037
1-conductor female plug; 4 mm²; 6-pole
769-106
/000-037
Item no.: 769-106/000-038
1-conductor female plug; 4 mm²; 6-pole
769-106
/000-038
Item no.: 769-106/000-039
1-conductor female plug; 4 mm²; 6-pole
769-106
/000-039
Item no.: 769-106/022-000
1-conductor female plug; angled; 4 mm²; 6-pole
769-106
/022-000
Item no.: 769-107
1-conductor female plug; 4 mm²; 7-pole
769-107
Item no.: 769-107/000-006
1-conductor female plug; 4 mm²; 7-pole
769-107
/000-006
Item no.: 769-107/000-036
1-conductor female plug; 4 mm²; 7-pole
769-107
/000-036
Item no.: 769-107/000-037
1-conductor female plug; 4 mm²; 7-pole
769-107
/000-037
Item no.: 769-107/000-038
1-conductor female plug; 4 mm²; 7-pole
769-107
/000-038
Item no.: 769-107/000-039
1-conductor female plug; 4 mm²; 7-pole
769-107
/000-039
Item no.: 769-107/022-000
1-conductor female plug; angled; 4 mm²; 7-pole
769-107
/022-000
Item no.: 769-108
1-conductor female plug; 4 mm²; 8-pole
769-108
Item no.: 769-108/000-006
1-conductor female plug; 4 mm²; 8-pole
769-108
/000-006
Item no.: 769-108/000-036
1-conductor female plug; 4 mm²; 8-pole
769-108
/000-036
769-181
01.05.2019Page /8 23
Data sheet | Item number:769-181
Item no.: 769-108/000-037
1-conductor female plug; 4 mm²; 8-pole
769-108
/000-037
Item no.: 769-108/000-038
1-conductor female plug; 4 mm²; 8-pole
769-108
/000-038
Item no.: 769-108/000-039
1-conductor female plug; 4 mm²; 8-pole
769-108
/000-039
Item no.: 769-108/022-000
1-conductor female plug; angled; 4 mm²; 8-pole
769-108
/022-000
Item no.: 769-109
1-conductor female plug; 4 mm²; 9-pole
769-109
Item no.: 769-109/000-006
1-conductor female plug; 4 mm²; 9-pole
769-109
/000-006
Item no.: 769-109/000-036
1-conductor female plug; 4 mm²; 9-pole
769-109
/000-036
Item no.: 769-109/000-037
1-conductor female plug; 4 mm²; 9-pole
769-109
/000-037
Item no.: 769-109/000-038
1-conductor female plug; 4 mm²; 9-pole
769-109
/000-038
Item no.: 769-109/000-039
1-conductor female plug; 4 mm²; 9-pole
769-109
/000-039
Item no.: 769-109/022-000
1-conductor female plug; angled; 4 mm²; 9-pole
769-109
/022-000
Item no.: 769-110
1-conductor female plug; 4 mm²; 10-pole
769-110
Item no.: 769-110/000-006
1-conductor female plug; 4 mm²; 10-pole
769-110
/000-006
Item no.: 769-110/000-036
1-conductor female plug; 4 mm²; 10-pole
769-110
/000-036
Item no.: 769-110/000-037
1-conductor female plug; 4 mm²; 10-pole
769-110
/000-037
769-181
01.05.2019Page /9 23
Data sheet | Item number:769-181
Item no.: 769-110/000-038
1-conductor female plug; 4 mm²; 10-pole
769-110
/000-038
Item no.: 769-110/000-039
1-conductor female plug; 4 mm²; 10-pole
769-110
/000-039
Item no.: 769-110/022-000
1-conductor female plug; angled; 4 mm²; 10-pole
769-110
/022-000
Item no.: 769-111
1-conductor female plug; 4 mm²; 11-pole
769-111
Item no.: 769-111/000-006
1-conductor female plug; 4 mm²; 11-pole
769-111
/000-006
Item no.: 769-111/000-036
1-conductor female plug; 4 mm²; 11-pole
769-111
/000-036
Item no.: 769-111/000-037
1-conductor female plug; 4 mm²; 11-pole
769-111
/000-037
Item no.: 769-111/000-038
1-conductor female plug; 4 mm²; 11-pole
769-111
/000-038
Item no.: 769-111/000-039
1-conductor female plug; 4 mm²; 11-pole
769-111
/000-039
Item no.: 769-111/022-000
1-conductor female plug; angled; 4 mm²; 11-pole
769-111
/022-000
Item no.: 769-112
1-conductor female plug; 4 mm²; 12-pole
769-112
Item no.: 769-112/000-006
1-conductor female plug; 4 mm²; 12-pole
769-112
/000-006
Item no.: 769-112/000-036
1-conductor female plug; 4 mm²; 12-pole
769-112
/000-036
Item no.: 769-112/000-037
1-conductor female plug; 4 mm²; 12-pole
769-112
/000-037
Item no.: 769-112/000-038
1-conductor female plug; 4 mm²; 12-pole
769-112
/000-038
769-181
01.05.2019Page /10 23
Data sheet | Item number:769-181
Item no.: 769-112/000-039
1-conductor female plug; 4 mm²; 12-pole
769-112
/000-039
Item no.: 769-112/022-000
1-conductor female plug; angled; 4 mm²; 12-pole
769-112
/022-000
Item no.: 769-113
1-conductor female plug; 4 mm²; 13-pole
769-113
Item no.: 769-113/000-036
1-conductor female plug; 4 mm²; 13-pole
769-113
/000-036
Item no.: 769-113/000-037
1-conductor female plug; 4 mm²; 13-pole
769-113
/000-037
Item no.: 769-113/000-038
1-conductor female plug; 4 mm²; 13-pole
769-113
/000-038
Item no.: 769-113/000-039
1-conductor female plug; 4 mm²; 13-pole
769-113
/000-039
Item no.: 769-113/022-000
1-conductor female plug; angled; 4 mm²; 13-pole
769-113
/022-000
Item no.: 769-114
1-conductor female plug; 4 mm²; 14-pole
769-114
Item no.: 769-114/000-006
1-conductor female plug; 4 mm²; 14-pole
769-114
/000-006
Item no.: 769-114/000-036
1-conductor female plug; 4 mm²; 14-pole
769-114
/000-036
Item no.: 769-114/000-037
1-conductor female plug; 4 mm²; 14-pole
769-114
/000-037
Item no.: 769-114/000-038
1-conductor female plug; 4 mm²; 14-pole
769-114
/000-038
Item no.: 769-114/000-039
1-conductor female plug; 4 mm²; 14-pole
769-114
/000-039
Item no.: 769-114/022-000
1-conductor female plug; angled; 4 mm²; 14-pole
769-114
/022-000
769-181
01.05.2019Page /11 23
Data sheet | Item number:769-181
Item no.: 769-115
1-conductor female plug; 4 mm²; 15-pole
769-115
Item no.: 769-115/000-036
1-conductor female plug; 4 mm²; 15-pole
769-115
/000-036
Item no.: 769-115/000-037
1-conductor female plug; 4 mm²; 15-pole
769-115
/000-037
Item no.: 769-115/000-038
1-conductor female plug; 4 mm²; 15-pole
769-115
/000-038
Item no.: 769-115/000-039
1-conductor female plug; 4 mm²; 15-pole
769-115
/000-039
Item no.: 769-115/022-000
1-conductor female plug; angled; 4 mm²; 15-pole
769-115
/022-000
Insulation stop
Item no.: 769-470
Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 5 pieces/strip
769-470
Item no.: 769-471
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip
769-471
Item no.: 769-472
Insulation stop; 0.75 - 1 mm²; 5 pieces/strip
769-472
General accessories
Item no.: 280-404
Test plug adapter; 5 mm wide; for test plug 210-137 (2.3 mm Ø); suitable for 1.5 mm² - 4 mm² tbs
280-404
Item no.: 280-418 Test plug module; modular; suitable for all WAGO 280 and 780 Series rail-mounted terminal blocks with jumper slots in the current bar
280-418
Item no.: 280-419 Spacer module; modular; bridging commoned terminal blocks
280-419
Item no.: 280-801 Empty component plug housing
280-801
Item no.: 280-801/281-411
Component plug; for carrier terminal blocks; 2-pole; with diode 1N4007; 5 mm wide
280-801
/281-411
Item no.: 280-801/281-413
Component plug; for carrier terminal blocks; 1-pole; LED (red); 24 VDC; 5 mm wide
280-801
/281-413
Item no.: 280-801/281-414
Component plug; for carrier terminal blocks; 1-pole; LED (red); 48 VDC; 5 mm wide
280-801
/281-414
769-181
01.05.2019Page /12 23
Data sheet | Item number:769-181
Item no.: 280-801/281-415
Component plug; for carrier terminal blocks; 1-pole; LED (red); 5 mm wide
280-801
/281-415
Item no.: 280-801/281-416
Component plug; for carrier terminal blocks; 1-pole; LED (red); 5 mm wide
280-801
/281-416
Item no.: 280-801/281-417
Component plug; for carrier terminal blocks; 1-pole; 5 mm wide
280-801
/281-417
Item no.: 280-801/281-418
Component plug; for carrier terminal blocks; 1-pole; 5 mm wide
280-801
/281-418
Item no.: 280-801/281-420
Component plug; for carrier terminal blocks; 2-pole; with LED and recovery diode; 5 mm wide
280-801
/281-420
Item no.: 280-801/281-421
Component plug; for carrier terminal blocks; 2-pole; with LED and recovery diode; 5 mm wide
280-801
/281-421
Item no.: 280-802 Empty component plug housing
280-802
Item no.: 280-804 Empty component plug housing; 10 mm wide; Type 3; 4-pole
280-804
Item no.: 281-511 Fuse plug; with pull-tab; for miniature metric fuses 5 x 20 mm and 5 x 25 mm; without blown fuse indication; 6 mm wide
281-511
Item no.: 281-512 Fuse plug; with pull-tab; for miniature metric fuses 5 x 20 mm and 5 x 25 mm; with port for LED; 6 mm wide
281-512
Item no.: 281-512/281-417 Fuse plug; with pull-tab; for miniature metric fuses 5 x 20 mm and 5 x 25 mm; with blown fuse indication by neon lamp; 230 V; 6 mm wide
281-512
/281-417
Item no.: 281-512/281-418 Fuse plug; with pull-tab; for miniature metric fuses 5 x 20 mm and 5 x 25 mm; with blown fuse indication by neon lamp; 120 V; 6 mm wide
281-512
/281-418
Item no.: 281-512/281-501 Fuse plug; with pull-tab; for miniature metric fuses 5 x 20 mm and 5 x 25 mm; with LED indicator; 24 V AC/DC; 6 mm wide
281-512
/281-501
Item no.: 286-110
Empty component plug housing; Type 9; 10 mm wide; 4-pole
286-110
Item no.: 286-111
Empty component plug housing; Type 10; 15 mm wide; 6-pole
286-111
Item no.: 286-112
Empty component plug housing; Type 11; 20 mm wide; 8-pole
286-112
769-181
01.05.2019Page /13 23
Data sheet | Item number:769-181
Item no.: 286-113
Empty component plug housing; Type 12; 25 mm wide; 10-pole
286-113
Item no.: 286-304 Relay module; Nominal input voltage: 24 VDC; 1 changeover contact; Limiting continuous current: 7 A; Red status indicator; Module width: 15 mm
286-304
Item no.: 286-304/004-000 Relay module; Nominal input voltage: 24 VDC; 1 changeover contact; Limiting continuous current: 7 A; Path; Red status indicator; Module width: 15 mm
286-304
/004-000
Item no.: 286-307/004-000 Relay module; Nominal input voltage: 110 VDC; 1 changeover contact; Limiting continuous current: 7 A; Path; Red status indicator; Module width: 15 mm
286-307
/004-000
Item no.: 286-312
Relay module; Relay with 2 changeover contacts (2u)
286-312
Item no.: 286-312/004-000 Relay module; Nominal input voltage: 24 VDC; 2 changeover contacts; Limiting continuous current: 7 A; Path; Red status indicator; Module width: 20 mm
286-312
/004-000
Item no.: 286-316 Relay module; Nominal input voltage: 220 VDC; 2 changeover contacts; Limiting continuous current: 7 A; Red status indicator; Module width: 20 mm
286-316
Item no.: 286-320 Relay module; Nominal input voltage: 24 VDC; 1 break and 1 make contact; Limiting continuous current: 6 A; Red status indicator; Module width: 20 mm
286-320
Item no.: 286-320/004-000 Relay module; Nominal input voltage: 24 VDC; 1 break and 1 make contact; Path; Red status indicator; Module width: 20 mm
286-320
/004-000
Item no.: 286-328 Relay module; Nominal input voltage: 24 VDC; 2 make contact; Limiting continuous current: 6 A; Red status indicator; Module width: 20 mm
286-328
Item no.: 286-328/004-000 Relay module; Nominal input voltage: 24 VDC; 2 make contact; Limiting continuous current: 6 A; Path; Red status indicator; Module width: 20 mm
286-328
/004-000
Item no.: 286-336/001-000 Relay module; Nominal input voltage: 24 VDC; 2 break and 2 make contacts; Red status indicator; Module width: 25 mm
286-336
/001-000
Item no.: 286-344/004-000 Relay module; Nominal input voltage: 24 VDC; 3 break contacts and 1 make contact; Path; Red status indicator; Module width: 25 mm
286-344
/004-000
Item no.: 286-352/004-000 Relay module; Nominal input voltage: 24 VDC; 4 make contacts; Limiting continuous current: 5 A; Path; Red status indicator; Module width: 25 mm
286-352
/004-000
Item no.: 286-364 Relay module; Nominal input voltage: 24 VDC; 1 make contact; Limiting continuous current: 5 A; Red status indicator; Module width: 10 mm
286-364
Item no.: 286-364/004-000 Relay module; Nominal input voltage: 24 VDC; 1 make contact; Path; Red status indicator; Module width: 10 mm
286-364
/004-000
769-181
01.05.2019Page /14 23
Data sheet | Item number:769-181
Item no.: 286-368 Relay module; Nominal input voltage: 24 VDC; 1 break contact; Limiting continuous current: 5 A; Red status indicator; Module width: 10 mm
286-368
Item no.: 286-368/004-000 Relay module; Nominal input voltage: 24 VDC; 1 break contact; Limiting continuous current: 5 A; Path; Red status indicator; 10 mm wide
286-368
/004-000
Item no.: 286-376 Relay module; Nominal input voltage: 24 VDC; 1 make contact; Limiting continuous current: 5 A; for switching higher DC loads; Red status indicator; Module width: 15 mm
286-376
Item no.: 286-380 Bistable relay module; Nominal input voltage: 24 VDC; 1 changeover contact; Limiting continuous current: 6 A; Red status indicator; Module width: 15 mm
286-380
Item no.: 286-381 Bistable relay module; Nominal input voltage: 24 VDC; 1 changeover contact; Limiting continuous current: 6 A; Red status indicator; Module width: 15 mm
286-381
Item no.: 286-394/004-000 Relay module; Nominal input voltage: 24 VDC; 1 changeover contact; Path; Red status indicator; Module width: 15 mm
286-394
/004-000
Item no.: 286-427 Timer relay module; Nominal input voltage: 24 VDC; Limiting continuous current: 5 A; Pulse lengthening: 1 … 10 s; Red status indicator; Module width: 20 mm
286-427
Item no.: 286-507 Relay module; Nominal input voltage: 115 VAC; 1 changeover contact; Limiting continuous current: 7 A; Red status indicator; Module width: 15 mm
286-507
Item no.: 286-508 Relay module; Nominal input voltage: 230 VAC; 1 changeover contact; Limiting continuous current: 7 A; Red status indicator; Module width: 15 mm
286-508
Item no.: 286-516 Relay module; Nominal input voltage: 230 VAC; 2 changeover contacts; Limiting continuous current: 7 A; Red status indicator; Module width: 15 mm
286-516
Item no.: 286-573 Latching relay module; Nominal input voltage: 24 VDC; 1 changeover contact; Limiting continuous current: 6 A; Red status indicator; Module width: 17 mm
286-573
Item no.: 286-575 Stromstoßschaltermodul; Eingangsnennspannung DC 24 V; 1 Wechsler; Grenzdauerstrom 3 A; Bahn; Statusanzeige rot; 22 mm Baubreite
286-575
Item no.: 286-604/004-000 Timer relay module; Nominal input voltage: 24 VDC; Limiting continuous current: 6 A; On-delay: 10 … 100 s; Red status indicator; Module width: 20 mm
286-604
/004-000
Item no.: 286-640 Timer relay module; Nominal input voltage: 24 VDC; Limiting continuous current: 6 A; Path; Multifunction/Multitime; Yellow status indicator; Module width: 6 mm
286-640
Item no.: 286-640/004-000 Multifunction timing relay module; Relay with 1 changeover contact (1u); 4 time ranges; for railway operations; 4 functions
286-640
/004-000
Item no.: 286-661
Current flow monitoring module; AC current flow monitoring module; 80 mA ... 6 A
286-661
Item no.: 286-662
Current flow monitoring module; DC current flow monitoring module; 0.4 A ... 3.5 A; Relay with 1
286-662
769-181
01.05.2019Page /15 23
Data sheet | Item number:769-181
make contact (1a)
Item no.: 286-664 Current flow monitoring module; AC current flow monitoring module; 1 A ... 10 A; Adjustable; Relay with 1 changeover contact (1u)
286-664
Item no.: 286-665 Current flow monitoring module; Relay with 1 changeover contact (1u); adjustable
286-665
Item no.: 286-721 Optocoupler module; Nominal input voltage: 24 VDC; Output voltage range: 15 … 30 VDC; Limiting continuous current: 5 A; 3-wire connection/low-side switching; Red status indicator; Module width: 15 mm
286-721
Item no.: 286-723 Optocoupler module; Nominal input voltage: 24 VDC; Output voltage range: 15 … 30 VDC; Limiting continuous current: 4 A; 3-wire connection/high-side switching; Red status indicator; Module width: 15 mm
286-723
Item no.: 286-725 Optocoupler module; Input AC/DC 10 V ... 30 V; Output DC 24 V/ 1 mA ... 0.5 A; negative switching
286-725
Item no.: 286-742 S0 interface power supply; Input voltage: 230 VAC; S0 interface
286-742
Item no.: 286-752 Optocoupler module; Nominal input voltage: 24 VDC; Output voltage range: 20 … 30 VDC; Limiting continuous current: 0.5 A; 3-wire connection/high-side switching; Frequency: 25 kHz; Red status indicator; Module width: 15 mm
286-752
Item no.: 286-752/002-000
Optocoupler module; Red status indicator
286-752
/002-000
Item no.: 286-790 Optocoupler module
286-790
Item no.: 286-791 Optocoupler module; Nominal input voltage: 24 VDC; Output voltage range: 20 … 60 VDC; Limiting continuous current: 0.1 A; 2-wire connection; Frequency: 3 kHz; Red status indicator; Module width: 10 mm
286-791
Item no.: 286-792 Optocoupler module; Red status indicator
286-792
Item no.: 286-794 Optocoupler module; Nominal input voltage: 24 VDC; Output voltage range: 20 … 60 VDC; Limiting continuous current: 0.1 A; 2-wire connection; Red status indicator; Module width: 10 mm
286-794
Item no.: 286-797 Optocoupler module; Red status indicator
286-797
Item no.: 286-803 Component module with diode
286-803
Item no.: 286-805 Component module with diode
286-805
Item no.: 286-807 Component module with diode; with 7 pcs; Diode 1N4007; with common anode
286-807
769-181
01.05.2019Page /16 23
Data sheet | Item number:769-181
Item no.: 286-809 Component module with diode
286-809
Item no.: 286-822 Component module with LED; Red LED; with common cathode
286-822
Item no.: 286-826 AND gate module with 6 inputs
286-826
Item no.: 286-830 Bridge rectifier module; Input voltage: 24 VAC; with varistor protective circuit
286-830
Item no.: 286-831 Surge suppression module for signal technology; Nominal voltage: 24 VAC/DC; for 2 signal paths with common surge arrester; plugged on rail-mount terminal block, 15 mm wide
286-831
Item no.: 286-832 Surge suppression module for signal technology; Nominal voltage: 24 VAC/DC; for 2 signal paths with common surge arrester; pluggable on rail-mount terminal block, 20 mm wide
286-832
Item no.: 286-833 Surge suppression module for signal technology; Nominal voltage: 24 VDC; for 1 signal path; plugged on rail-mount terminal block, 15 mm wide
286-833
Item no.: 286-834 Surge suppression module for signal technology; Nominal voltage: 12 VDC; for 2 signal paths with common surge arrester; pluggable on rail-mount terminal block, 20 mm wide
286-834
Item no.: 286-834/024-000 Surge suppression module for signal technology; Nominal voltage: 24 VDC; for 2 signal paths with common surge arrester; pluggable on rail-mount terminal block, 15 mm wide
286-834
/024-000
Item no.: 286-840
Bridge rectifier module; Input voltage: 250 VAC; with varistor protective circuit
286-840
Item no.: 286-841 Surge suppression module for signal technology; Nominal voltage: 220 VDC; for 2 signal paths with common surge arrester; pluggable on rail-mount terminal block, 25 mm wide
286-841
Item no.: 286-842 Surge suppression module for signal technology; Nominal voltage: 230 VAC; for 2 signal paths with common surge arrester; pluggable on rail-mount terminal block, 25 mm wide
286-842
Item no.: 286-843 Surge suppression module for signal technology; Nominal voltage: 115 VAC; for 2 signal paths with common surge arrester; pluggable on rail-mount terminal block, 25 mm wide
286-843
Item no.: 286-844 Surge suppression module for signal technology; for 2 signal paths with common surge arrester; pluggable on rail-mount terminal block, 25 mm wide
286-844
Item no.: 286-890 Component module with fuse; for (5 x 20) mm microfuse; Nominal voltage: 24 VAC/DC
286-890
Item no.: 286-891 Component module with fuse; for (5 x 20) mm microfuse; Nominal voltage: 230 VAC/DC
286-891
Item no.: 286-895 Switching module; with changeover rocker switch; Switching voltage: 250 VAC; Switching current: 6 A
286-895
Item no.: 286-896 Switching module; Changeover; 1-pole; with momentary switch
286-896
769-181
01.05.2019Page /17 23
Data sheet | Item number:769-181
Item no.: 769-438 Pin cover; with marker slot for miniature WSB
769-438
Item no.: 769-439 Pin cover; with marker slot for miniature WSB
769-439
Item no.: 769-501 Start module for 1-conductor female connector; with integrated end plate; 4 mm²; 1-pole
769-501
Item no.: 769-501/000-006
Start module for 1-conductor female connector; 4 mm²; 1-pole
769-501
/000-006
Item no.: 769-501/000-016
Start module for 1-conductor female connector; with integrated end plate; 4 mm²; 1-pole
769-501
/000-016
Item no.: 769-502 Center module for 1-conductor female connector; 4 mm²; 1-pole
769-502
Item no.: 769-502/000-006
Center module for 1-conductor female connector; 4 mm²; 1-pole
769-502
/000-006
Item no.: 769-502/000-016
Center module for 1-conductor female connector; 4 mm²; 1-pole
769-502
/000-016
Item no.: 769-503 End module for 1-conductor female connector; 4 mm²; 1-pole
769-503
Item no.: 769-503/000-006
End module for 1-conductor female connector; 4 mm²; 1-pole
769-503
/000-006
Item no.: 769-503/000-016
End module for 1-conductor female connector; 4 mm²; 1-pole
769-503
/000-016
Item no.: 769-512 Start module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-512
Item no.: 769-512/000-006
Start module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-512
/000-006
Item no.: 769-512/000-016
Start module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-512
/000-016
Item no.: 769-513 Center module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-513
Item no.: 769-513/000-006
1-conductor center module; angled; codable; 1-pole
769-513
/000-006
769-181
01.05.2019Page /18 23

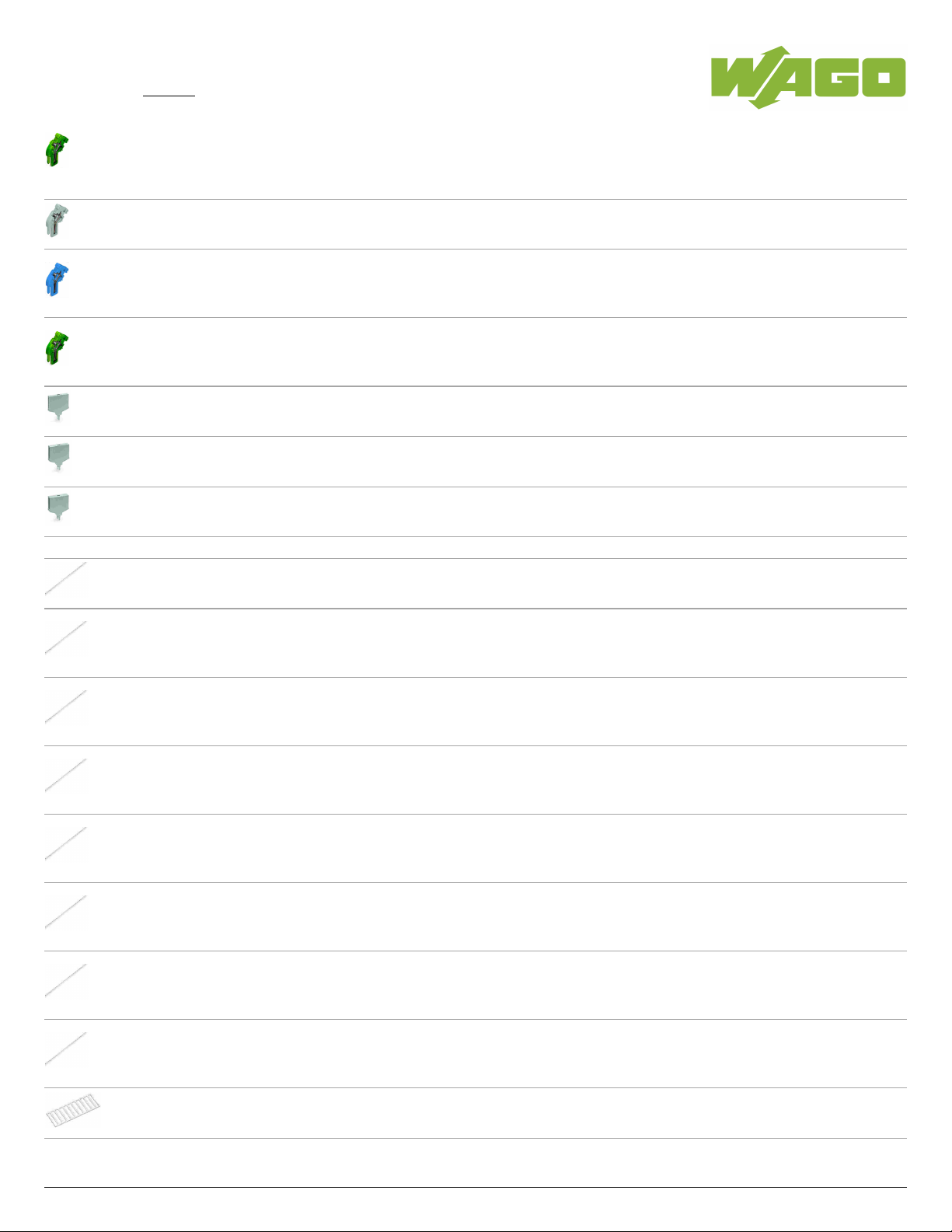

Data sheet | Item number:769-181
Item no.: 769-513/000-016
1-conductor center module; angled; codable; 1-pole
769-513
/000-016
Item no.: 769-515 1-conductor end module; angled; codable; 1-pole
769-515
Item no.: 769-515/000-006
1-conductor end module; angled; codable; 1-pole
769-515
/000-006
Item no.: 769-515/000-016
1-conductor end module; angled; codable; 1-pole
769-515
/000-016
Item no.: 786-101 Empty component plug housing; Type 14; 15 mm wide; 6-pole
786-101
Item no.: 786-102 Empty component plug housing; Type 15; 20 mm wide; 8-pole
786-102
Item no.: 786-103 Empty component plug housing; Type 16; 25 mm wide; 10-pole
786-103
Marking accessories
Item no.: 2009-145
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
Item no.: 2009-145/000-002
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-002
Item no.: 2009-145/000-005
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-005
Item no.: 2009-145/000-006
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-006
Item no.: 2009-145/000-007
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-007
Item no.: 2009-145/000-012
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-012
Item no.: 2009-145/000-023
Mini-WSB Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-023
Item no.: 2009-145/000-024
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-024
Item no.: 248-501 Miniature WSB Quick marking system; plain; Marker width 5 mm; 10 strips with 10 markers per card
248-501
769-181
01.05.2019Page /19 23
Data sheet | Item number:769-181
Item no.: 248-501/000-002
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-002
Item no.: 248-501/000-005
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-005
Item no.: 248-501/000-006
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-006
Item no.: 248-501/000-007
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-007
Item no.: 248-501/000-012
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-012
Item no.: 248-501/000-017
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-017
Item no.: 248-501/000-023
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-023
Item no.: 248-501/000-024
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-024
Carrier rail
Item no.: 210-112 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm
210-112
Item no.: 210-113 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm
210-115
Item no.: 210-118 Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196 Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198 Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
769-181
01.05.2019Page /20 23
Data sheet | Item number:769-181
Item no.: 210-504 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715
210-504
Item no.: 210-505 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715
210-505
Item no.: 210-506 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715
210-506
Item no.: 210-508 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715
210-508
plug
Item no.: 280-850 Fuse plug; with soldered miniature fuse; 250 mA FF; 5 mm wide
280-850
Item no.: 280-850/281-413 Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); DC 15 - 30 V; 250 mA FF; 5 mm wide
280-850
/281-413
Item no.: 280-850/281-414 Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); DC 30 - 65 V; 250 mA FF; 5 mm wide
280-850
/281-414
Item no.: 280-850/281-415 Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); AC 15 - 30 V; 250 mA FF; 5 mm wide
280-850
/281-415
Item no.: 280-852
Fuse plug; with soldered miniature fuse; 500 mA FF; 5 mm wide
280-852
Item no.: 280-852/281-413 Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); DC 15 - 30 V; 500 mA FF; 5 mm wide
280-852
/281-413
Item no.: 280-852/281-414 Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); DC 30 - 65 V; 500 mA FF; 5 mm wide
280-852
/281-414
Item no.: 280-852/281-415 Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); AC 15 - 30 V; 500 mA FF; 5 mm wide
280-852
/281-415
Item no.: 280-854
Fuse plug; with soldered miniature fuse; 1 A FF; 5 mm wide
280-854
Item no.: 280-854/281-413 Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); DC 15 - 30 V; 1 A FF; 5 mm wide
280-854
/281-413
Item no.: 280-854/281-414 Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); DC 30 - 65 V; 1 A FF; 5 mm wide
280-854
/281-414
Item no.: 280-854/281-415 Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); AC 15 - 30 V; 1 A FF; 5 mm wide
280-854
/281-415
769-181
01.05.2019Page /21 23

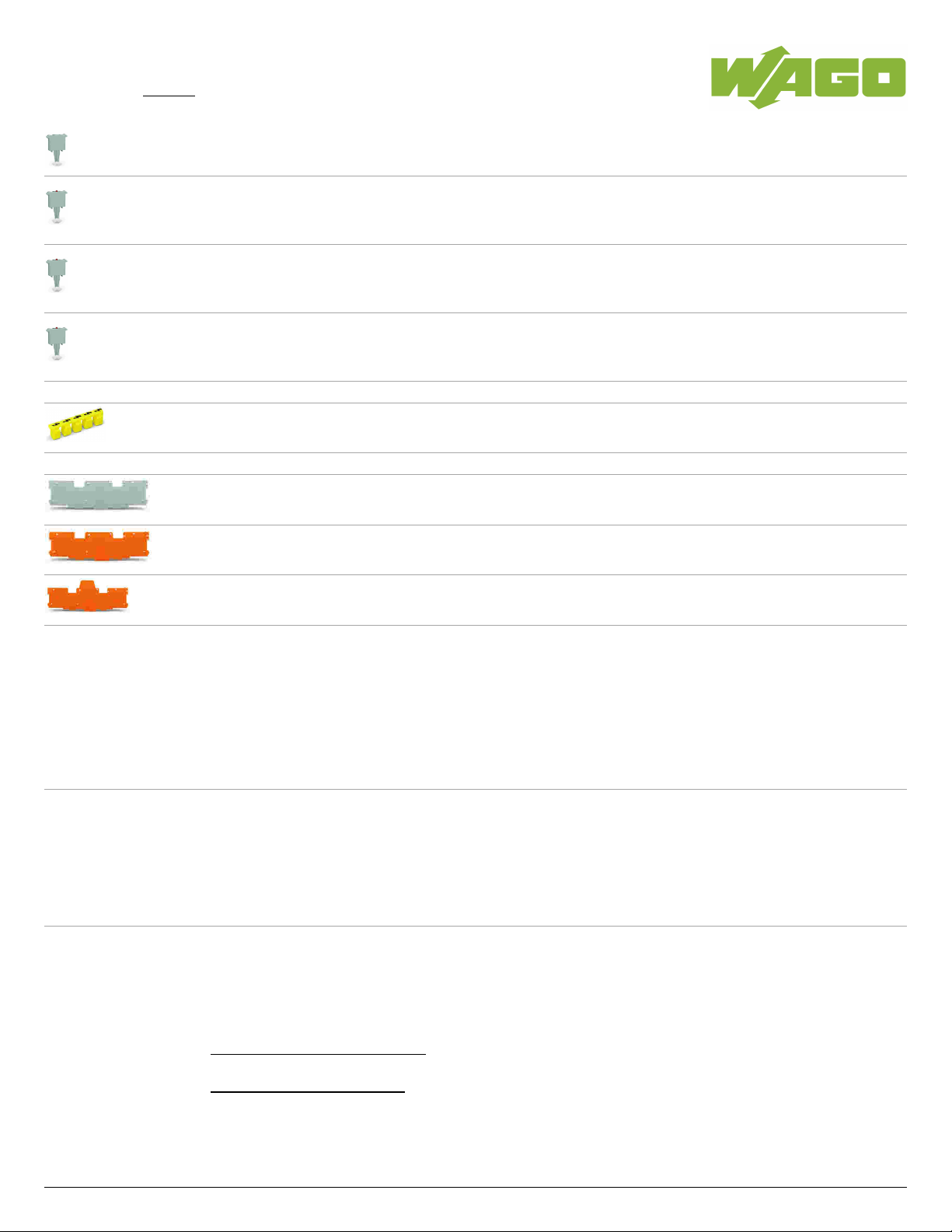

Data sheet | Item number:769-181
Item no.: 280-856
Fuse plug; with soldered miniature fuse; 2 A FF; 5 mm wide
280-856
Item no.: 280-856/281-413 Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); DC 15 - 30 V; 2 A FF; 5 mm wide
280-856
/281-413
Item no.: 280-856/281-414 Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); DC 30 - 65 V; 2 A FF; 5 mm wide
280-856
/281-414
Item no.: 280-856/281-415 Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); AC 15 - 30 V; 2 A FF; 5 mm wide
280-856
/281-415
Protective Warning Marker
Item no.: 280-415
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
280-415
End plate
Item no.: 769-311
End and intermediate plate; 1.1 mm thick
769-311
Item no.: 769-312
End and intermediate plate; 1.1 mm thick
769-312
Item no.: 769-314
Separator plate; 1.1 mm thick; oversized
769-314

Downloads

Documentation

Bid Text
769-181 doc
25.1 kB
Download

CAD/CAE - Smart Data

CAD data
3D Download 769-181 URL Download

Product family

X-COM
Learn more about the product family.
Show all products from the family
769-181
01.05.2019Page /22 23
Data sheet | Item number:769-181
769-181
Subject to changes.
01.05.2019Page /23 23
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
