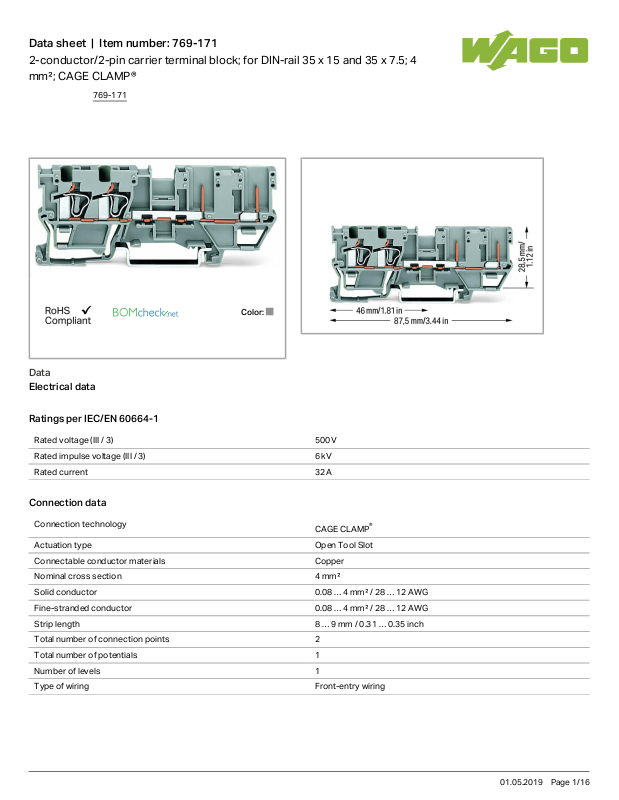

Wago 769-171 Data Sheet

Data sheet | Item number:769-171

2-conductor/2-pin carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 4
mm²; CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V

Rated impulse voltage (III / 3) 6 kV

Rated current 32 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 4mm²

Solid conductor 0.08 … 4mm²/ 28 … 12AWG

Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG

Strip length 8 … 9mm/ 0.31 … 0.35inch

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

769-171

01.05.2019Page /1 16

Data sheet | Item number:769-171

Geometrical Data

Width 5mm/ 0.197inch

Height from upper-edge of DIN-35 rail 28.5mm/ 1.122inch

Depth 87.5mm/ 3.445inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.169 MJ

Weight 9.653g

Commercial data

Product Group 18 (X-COM-System)

Country of origin CN

GTIN 4045454871673

Customs Tariff No. 85366990990

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7626

CSA

DEKRA Certification B.V.

C22.2 No. 158 1101144

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2190419.01

Ship Approvals

Certificate

769-171

01.05.2019Page /2 16

Data sheet | Item number:769-171

Logo Approval Additional Approval Text name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0

BV

LR

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1977 E45171

UR

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

General accessories

Item no.: 280-404

Test plug adapter; 5 mm wide; for test plug 210-137 (2.3 mm Ø); suitable for 1.5 mm² - 4 mm² tbs

280-404

Item no.: 280-418
Test plug module; modular; suitable for all WAGO 280 and 780 Series rail-mounted terminal blocks
with jumper slots in the current bar

280-418

Item no.: 280-419
Spacer module; modular; bridging commoned terminal blocks

280-419

769-171

01.05.2019Page /3 16

Data sheet | Item number:769-171

Spacer module; modular; bridging commoned terminal blocks

Item no.: 769-438
Pin cover; with marker slot for miniature WSB

769-438

Item no.: 769-439
Pin cover; with marker slot for miniature WSB

769-439

Item no.: 769-501
Start module for 1-conductor female connector; with integrated end plate; 4 mm²; 1-pole

769-501

Item no.: 769-501/000-006

Start module for 1-conductor female connector; 4 mm²; 1-pole

769-501

/000-006

Item no.: 769-501/000-016

Start module for 1-conductor female connector; with integrated end plate; 4 mm²; 1-pole

769-501

/000-016

Item no.: 769-502
Center module for 1-conductor female connector; 4 mm²; 1-pole

769-502

Item no.: 769-502/000-006

Center module for 1-conductor female connector; 4 mm²; 1-pole

769-502

/000-006

Item no.: 769-502/000-016

Center module for 1-conductor female connector; 4 mm²; 1-pole

769-502

/000-016

Item no.: 769-503
End module for 1-conductor female connector; 4 mm²; 1-pole

769-503

Item no.: 769-503/000-006

End module for 1-conductor female connector; 4 mm²; 1-pole

769-503

/000-006

Item no.: 769-503/000-016

End module for 1-conductor female connector; 4 mm²; 1-pole

769-503

/000-016

Item no.: 769-504
Start module for 2-conductor female connector; with integrated end plate; 4 mm²; 1-pole

769-504

Item no.: 769-504/000-006

Start module for 2-conductor female connector; with integrated end plate; 4 mm²; 1-pole

769-504

/000-006

Item no.: 769-504/000-016

Start module for 2-conductor female connector; 4 mm²; 1-pole

769-504

/000-016

Item no.: 769-505
Center module for 2-conductor female connector; 4 mm²; 1-pole

769-505

Item no.: 769-505/000-006

Center module for 2-conductor female connector; 4 mm²; 1-pole

769-505

/000-006

769-171

01.05.2019Page /4 16

Data sheet | Item number:769-171

Item no.: 769-505/000-016

Center module for 2-conductor female connector; 4 mm²; 1-pole

769-505

/000-016

Item no.: 769-506
End module for 2-conductor female connector; 4 mm²; 1-pole

769-506

Item no.: 769-506/000-006

End module for 2-conductor female connector; 4 mm²; 1-pole

769-506

/000-006

Item no.: 769-506/000-016

End module for 2-conductor female connector; 4 mm²; 1-pole

769-506

/000-016

Item no.: 769-512
Start module for 1-conductor female connector; angled; 4 mm²; 1-pole

769-512

Item no.: 769-512/000-006

Start module for 1-conductor female connector; angled; 4 mm²; 1-pole

769-512

/000-006

Item no.: 769-512/000-016

Start module for 1-conductor female connector; angled; 4 mm²; 1-pole

769-512

/000-016

Item no.: 769-513
Center module for 1-conductor female connector; angled; 4 mm²; 1-pole

769-513

Item no.: 769-513/000-006

1-conductor center module; angled; codable; 1-pole

769-513

/000-006

Item no.: 769-513/000-016

1-conductor center module; angled; codable; 1-pole

769-513

/000-016

Item no.: 769-515
1-conductor end module; angled; codable; 1-pole

769-515

Item no.: 769-515/000-006

1-conductor end module; angled; codable; 1-pole

769-515

/000-006

Item no.: 769-515/000-016

1-conductor end module; angled; codable; 1-pole

769-515

/000-016

End plate

Item no.: 769-303
End and intermediate plate; 1.1 mm thick

769-303

Item no.: 769-304
End and intermediate plate; 1.1 mm thick

769-304

Carrier rail

Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25

210-112

769-171

01.05.2019Page /5 16
