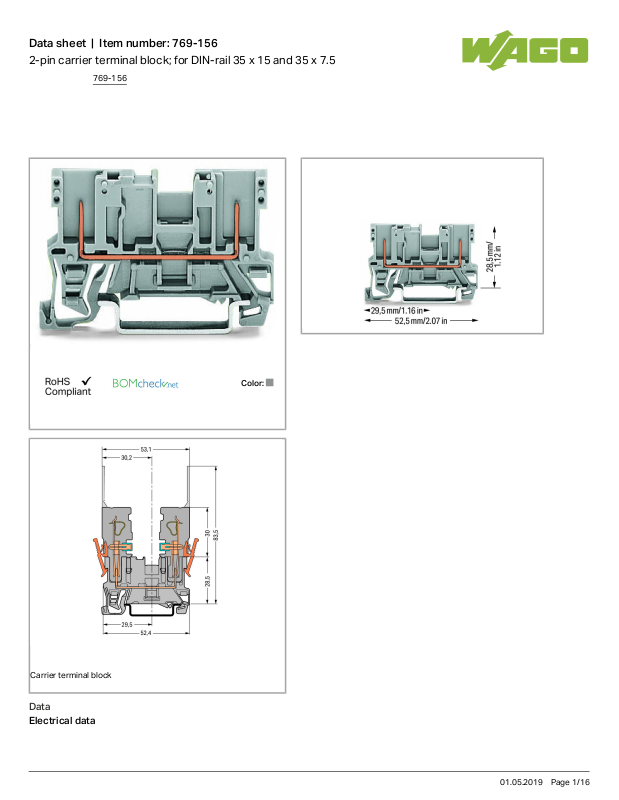

Wago 769-156 Data Sheet

Data sheet | Item number:769-156

2-pin carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5

Carrier terminal block

Color:

Data

Electrical data

769-156

01.05.2019Page /1 16

Data sheet | Item number:769-156

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V

Rated impulse voltage (III / 3) 6 kV

Rated current 32 A

Connection data

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch

Height from upper-edge of DIN-35 rail 28.5mm/ 1.122inch

Depth 52.5mm/ 2.067inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.099 MJ

Weight 4.47g

Commercial data

Product Group 18 (X-COM-System)

Country of origin DE

GTIN 4044918391672

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7626

769-156

01.05.2019Page /2 16

Data sheet | Item number:769-156

CSA

DEKRA Certification B.V.

C22.2 No. 158 1101144

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2190419.01

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

LR

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1977 E45171

UR

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

Coding

Item no.: 769-435

Coding pin; for coding of female plugs; for carrier terminal blocks / male connectors

769-435

769-156

01.05.2019Page /3 16

Data sheet | Item number:769-156

check

Item no.: 210-137

Test plug; 2.3 mm Ø; with 500 mm cable

210-137

Female plug

Item no.: 769-101

1-conductor female plug; 4 mm²; 1-pole

769-101

Item no.: 769-101/000-006

1-conductor female plug; 4 mm²; 1-pole

769-101

/000-006

Item no.: 769-101/000-016

1-conductor female plug; 4 mm²; 1-pole

769-101

/000-016

Item no.: 769-101/022-000

1-conductor female plug; angled; 4 mm²; 1-pole

769-101

/022-000

Item no.: 769-101/022-016

1-conductor female plug; angled; 4 mm²; 1-pole

769-101

/022-016

Item no.: 769-102

1-conductor female plug; 4 mm²; 2-pole

769-102

Item no.: 769-102/000-006

1-conductor female plug; 4 mm²; 2-pole

769-102

/000-006

Item no.: 769-102/000-036

1-conductor female plug; 4 mm²; 2-pole

769-102

/000-036

Item no.: 769-102/000-037

1-conductor female plug; 4 mm²; 2-pole

769-102

/000-037

Item no.: 769-102/022-000

1-conductor female plug; angled; 4 mm²; 2-pole

769-102

/022-000

Item no.: 769-103

1-conductor female plug; 4 mm²; 3-pole

769-103

Item no.: 769-103/000-006

1-conductor female plug; 4 mm²; 3-pole

769-103

/000-006

Item no.: 769-103/000-036

1-conductor female plug; 4 mm²; 3-pole

769-103

/000-036

Item no.: 769-103/000-037

1-conductor female plug; 4 mm²; 3-pole

769-103

/000-037

769-156

01.05.2019Page /4 16

Data sheet | Item number:769-156

Item no.: 769-103/000-038

1-conductor female plug; 4 mm²; 3-pole

769-103

/000-038

Item no.: 769-103/000-039

1-conductor female plug; 4 mm²; 3-pole

769-103

/000-039

Item no.: 769-103/022-000

1-conductor female plug; angled; 4 mm²; 3-pole

769-103

/022-000

Item no.: 769-104

1-conductor female plug; 4 mm²; 4-pole

769-104

Item no.: 769-104/000-006

1-conductor female plug; 4 mm²; 4-pole

769-104

/000-006

Item no.: 769-104/000-036

1-conductor female plug; 4 mm²; 4-pole

769-104

/000-036

Item no.: 769-104/000-037

1-conductor female plug; 4 mm²; 4-pole

769-104

/000-037

Item no.: 769-104/000-038

1-conductor female plug; 4 mm²; 4-pole

769-104

/000-038

Item no.: 769-104/000-039

1-conductor female plug; 4 mm²; 4-pole

769-104

/000-039

Item no.: 769-104/022-000

1-conductor female plug; angled; 4 mm²; 4-pole

769-104

/022-000

Item no.: 769-105

1-conductor female plug; 4 mm²; 5-pole

769-105

Item no.: 769-105/000-006

1-conductor female plug; 4 mm²; 5-pole

769-105

/000-006

Item no.: 769-105/000-036

1-conductor female plug; 4 mm²; 5-pole

769-105

/000-036

Item no.: 769-105/000-037

1-conductor female plug; 4 mm²; 5-pole

769-105

/000-037

Item no.: 769-105/000-038

1-conductor female plug; 4 mm²; 5-pole

769-105

/000-038
