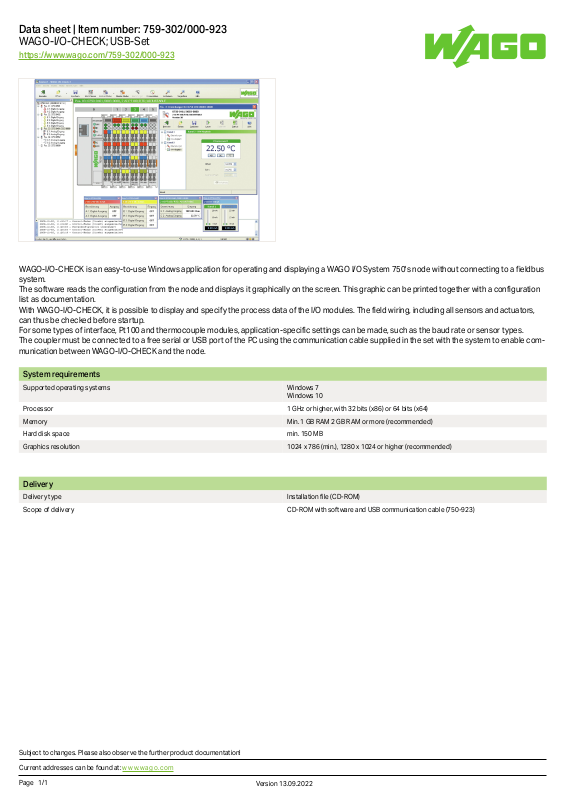

Data sheet | Item number: 759-302/000-923
WAGO-I/O-CHECK; USB-Set
https://www.wago.com/759-302/000-923
WAGO-I/O-CHECK is an easy-to-use Windows application for operating and displaying a WAGO I/O System 750's node without connecting to a fieldbus
system.
The software reads the configuration from the node and displays it graphically on the screen. This graphic can be printed together with a configuration
list as documentation.
With WAGO-I/O-CHECK, it is possible to display and specify the process data of the I/O modules. The field wiring, including all sensors and actuators,
can thus be checked before startup.
For some types of interface, Pt100 and thermocouple modules, application-specific settings can be made, such as the baud rate or sensor types.
The coupler must be connected to a free serial or USB port of the PC using the communication cable supplied in the set with the system to enable com
munication between WAGO‐I/O‐CHECK and the node.
System requirements
Supported operating systemsWindows 7
Processor1 GHz or higher, with 32 bits (x86) or 64 bits (x64)
MemoryMin. 1 GB RAM 2 GB RAM or more (recommended)
Hard disk spacemin. 150 MB
Graphics resolution1024 x 786 (min.), 1280 x 1024 or higher (recommended)
.
Windows 10
Delivery
Delivery typeInstallation file (CD-ROM)
Scope of deliveryCD-ROM with software and USB communication cable (750-923)
.
Subject to changes. Please also observe the further product documentation!
Current addresses can be found at: www.wago. com
Page1/1
Version 13.09.2022
