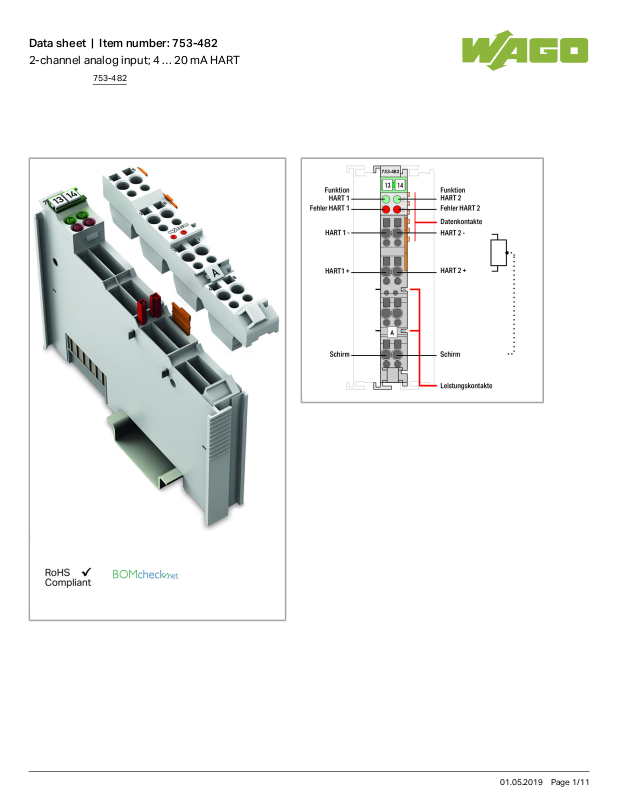

Wago 753-482 Data Sheet

Data sheet | Item number:753-482

2-channel analog input; 4 … 20 mA HART

753-482

01.05.2019Page /1 11

Data sheet | Item number:753-482

Item description

The analog input module powers the transducers, receives transmitted analog signals, and with electrical isolation, transmits the signals to the fieldbus.

The 24V supply for the field is derived from the module's power jumper contacts. The shield (screen) is directly connected to the DIN rail. At approx. 25mA, the overload protection switches the measurement input to a high-resistance state. Under normal operating conditions it will automatically switch back. This input module can supply the voltage for 2-wire transducers.

Up to 4 HART dynamic variables (PV, SV, TV, QV) per channel can be mapped in the cyclic process image of the coupler or controller (configurable). For HART communication with connected intelligent HART field devices, the HART protocol can be mapped in the cyclic process image of the coupler or controller (configurable).

FDT/DTM device drivers are available for select (programmable) couplers, allowing HART tool routing to the connected HART device.

Note:

WAGO's 753 Series Pluggable Connectors and Coding Fingers are not included.

Data

Technical Data

Number of analog inputs 2

753-482

01.05.2019Page /2 11

Data sheet | Item number:753-482

Total number of channels (module) 2

Type of signal Current

Type of signal current DC4 … 20mA

Sensor connection 2 x (2-conductor)

Input filter parametrizable

Input filter: parametrizable (channel by channel) yes

Input voltage (max.) 24V

Input voltage drop (I < 28 mA): not linear, as protected against overload U = 0.9 V +

meas

270 Ω x I meas

Signal characteristic Single-ended

Diagnostics Wire break, measurement range overflow

Resolution [bit] 12 Bit

Bit width 2 x 2-byte data; 2 x 2-byte data + 2n x 4-byte data (n = number of

dynamic variables); 2 x 2-byte data + 6-byte mailbox

Overvoltage protection 30 V, reverse polarity protected

Conversion time (typ. ≤) 10 ms

Messfehler, Bezugstemperatur 25 °C

Messfehler, Abweichung max. vom Messbereichsendwert 0.1 %

Temperaturfehler max. vom Messbereichsendwert 0.01 %/K

Line break detection I meas < 3.10 mA

Short circuit detection I meas > 22 mA

System supply voltage DC5V;via data contacts

Current consumption, system supply (5 V) 65 mA

System and sensor supply voltage )

Field supply voltage DC24V(-25 … +30%);über Leistungskontakte (Einspeisung über

Messerkontakt; Weiterleitung über Federkontakt)

HART devices per channel 1 device (single-drop, no multi-drop)

HART modems per channel 1 modem (no multiplex)

Isolation 500 V system/supply

Number of incoming power jumper contacts 2

Number of outgoing power jumper contacts 2

Connection data

Connection technology: In-/Outputs

8 x CAGE CLAMP

Connection type (1) Inputs/Outputs

Solid conductor 0.08 … 2.5mm²/ 28 … 14AWG

Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 14AWG

Strip length 9 … 10mm/ 0.35 … 0.39inch

Geometrical Data

Width 12mm/ 0.472inch

753-482

01.05.2019Page /3 11

Data sheet | Item number:753-482

Height 69.8mm/ 2.748inch

Height from upper-edge of DIN-35 rail 62.6mm/ 2.465inch

Depth 100mm/ 3.937inch

Mechanical data

Type of mounting DIN-35 rail

Pluggable connector yes

Material Data

Color light gray

Housing material Polycarbonate, polyamide 6.6

Weight 44.5 g

Conformity marking 1

Environmental Requirements

Surrounding air (operating) temperature 0 … 55°C

Surrounding air (storage) temperature -40 … 85°C

Protection class IP20

Degree of pollution (5) 2 per IEC 61131-2

Operating altitude 0 … 2000 m

Mounting position horizontal (standing/lying) or vertical

Relative air humidity (no condensation) 95 %

Vibration resistance acc. to IEC 60068-2-6

Shock resistance 15g per IEC 60068-2-27

EMC immunity to interference acc. to EN 61000-6-2

EMC emission of interference acc. to EN 61000-6-3

Exposure to pollutants Per IEC 60068-2-42 and IEC 60068-2-43

Permissible H S contaminant concentration at a relative humidity 75

10 ppm

Permissible SO contaminant concentration at a relative humidity 75

25 ppm

Commercial data

Product Group 15 (Remote I/O)

Country of origin DE

GTIN 4045454502683

Customs Tariff No. 85389099990

Approvals / Certificates

Ex-Approvals

753-482

01.05.2019Page /4 11
