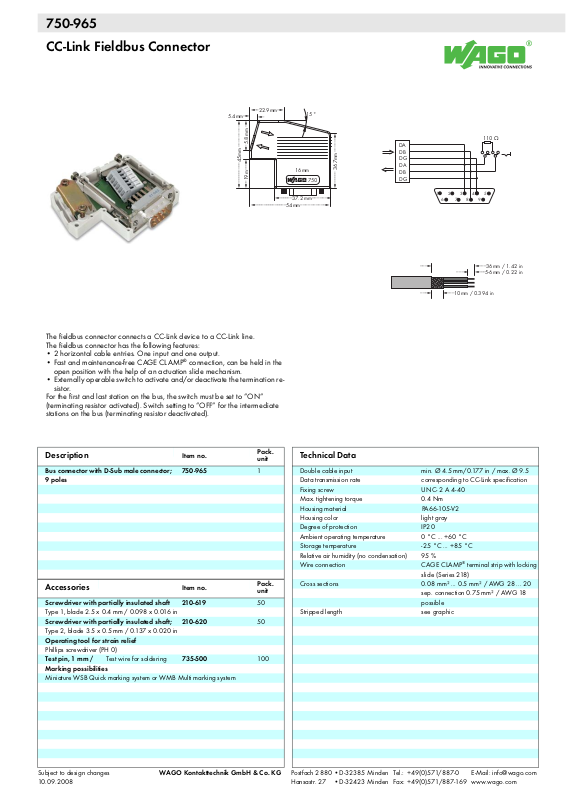

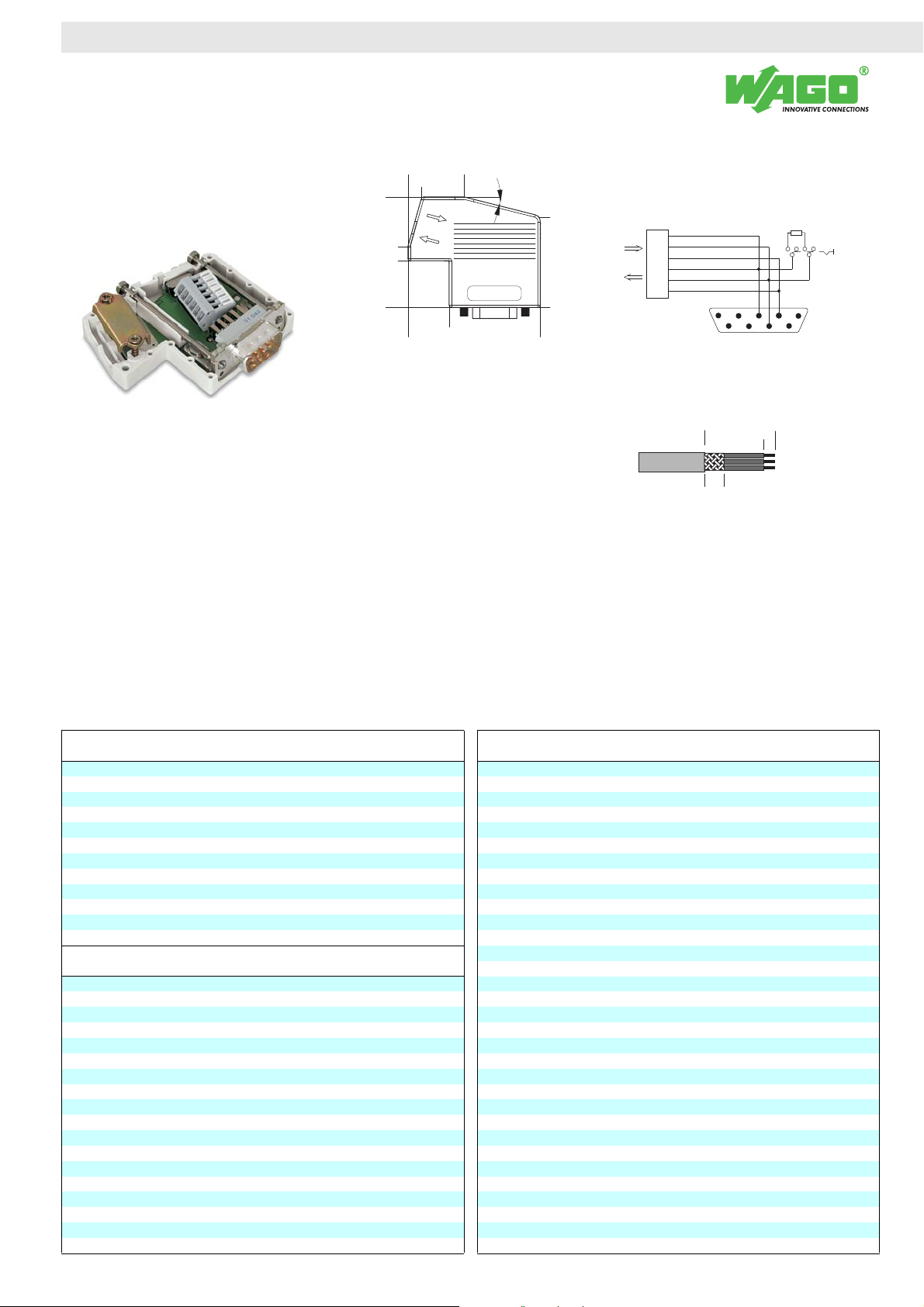

WAGO 750-965 Datasheet

750-965

CC-Link Fieldbus Connector

<_22.9 mm>

5.4 mm>

<

< 5.8 mm >

<_________45m m ________>

<_19m __>

<_____37.2 mm_____>

<_____________54 mm_________>

The fieldbus connector connects a CC-Link device to a CC-Link line.
The fieldbus connector has the following features:

• 2 horizontal cable entries. One input and one output.

• Fast and maintenance-free CAGE CLAMP

®

connection, can be held in the

open position with the help of an actuation slide mechanism.

• Externally operable switch to activate and/or deactivate the termination re­sistor.

For the first and last station on the bus, the switch must be set to “ON“
(terminating resistor activated). Switch setting to “OFF“ for the intermediate
stations on the bus (terminating resistor deactivated).

15 °

16 mm

w 750

<_____ 36 .7mm _____>

DA
DB
DG
DA
DB
DG

1 2 3 4 5

6 7 8 9

__>

__>

<__10 mm / 0.394 in

<__36 mm / 1.42 in

<__5-6 mm / 0.22 in

__>

110 Ω

Description

Bus connector with D-Sub male connector;

Item no.

750-965 1

Pack.
unit

9 poles

Accessories

Item no.

Pack.
unit

Screwdriver with partially insulated shaft 210-619 50

Type 1, blade 2.5 x 0.4 mm / 0.098 x 0.016 in
Screwdriver with partially insulated shaft; 210-620 50
Type 2, blade 3.5 x 0.5 mm / 0.137 x 0.020 in

Operating tool for strain relief

Phillips screwdriver (PH 0)

Test pin, 1 mm / Test wire for soldering 735-500 100
Marking possibilities

Miniature WSB Quick marking system or WMB Multi marking system

Technical Data

Double cable input min. Ø 4.5 mm/0.177 in / max. Ø 9.5
Data transmission rate corresponding to CC-Link specification
Fixing screw UNC- 2 A 4-40
Max. tightening torque 0.4 Nm
Housing material PA66-105-V2
Housing color light gray
Degree of protection IP20
Ambient operating temperature 0 °C ... +60 °C
Storage temperature -25 °C ... +85 °C
Relative air humidity (no condensation) 95 %
Wire connection CAGE CLAMP

slide (Series 218)

Cross sections 0.08 mm² ... 0.5 mm² / AWG 28 ... 20

sep. connection 0.75 mm² / AWG 18
possible

Stripped length see graphic

®

terminal strip with locking

Subject to design changes WAGO Kontakttechnik GmbH & Co. KG Postfach 2880 • D-32385 Minden Tel.: [phone] E-Mail: [email protected]

10.09.2008 Hansastr. 27 •D-32423 Minden Fax: [phone] www.wago.com
