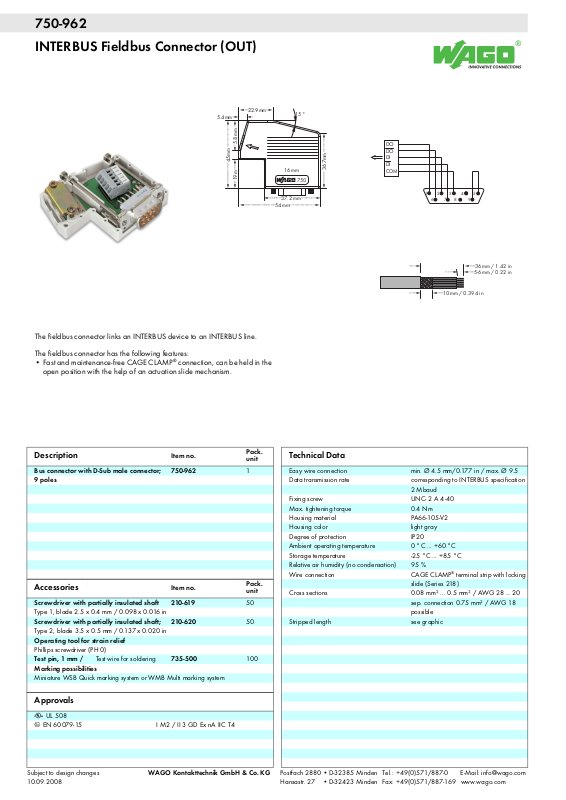

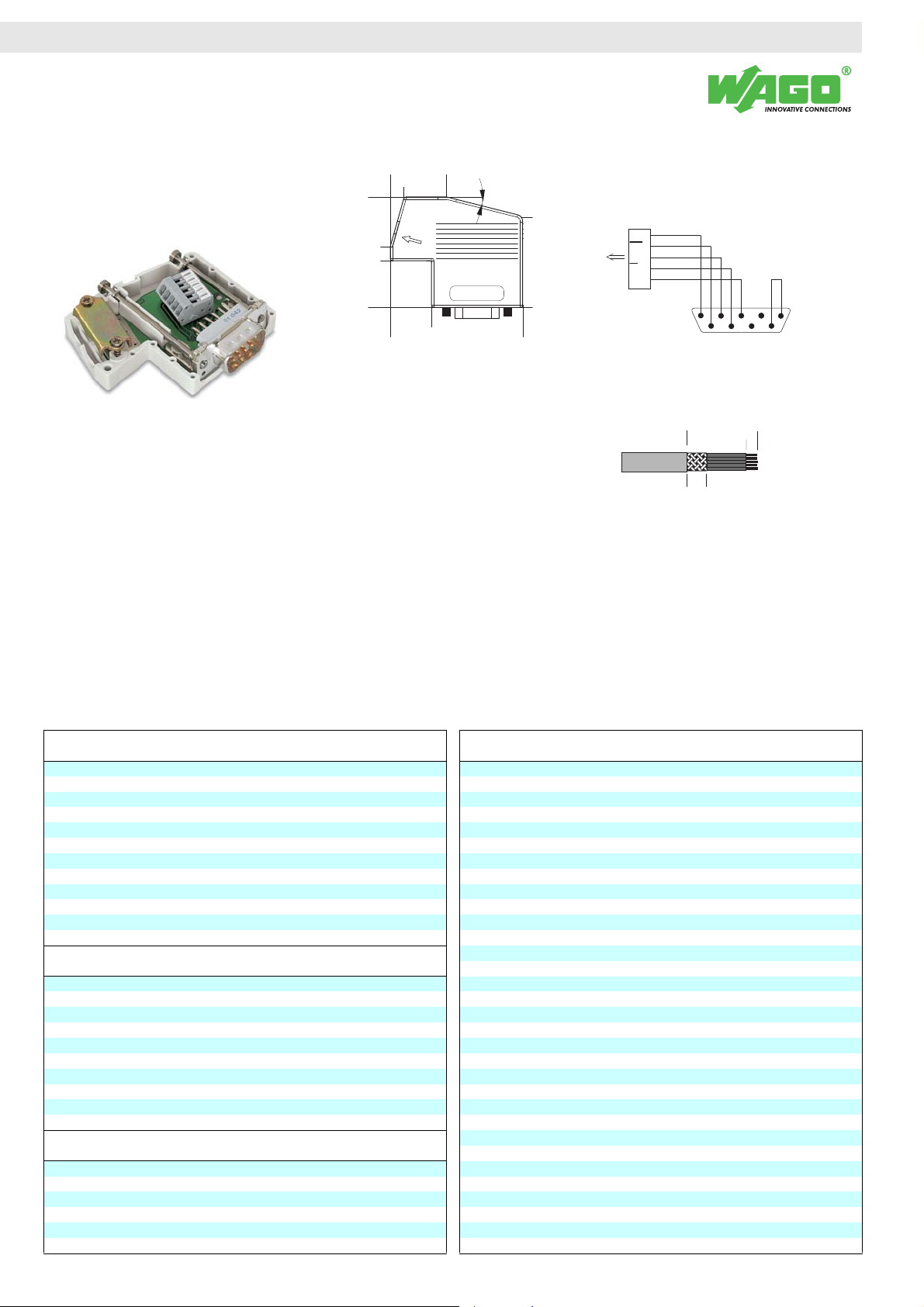

Page 1
750-962
INTERBUS Fieldbus Connector (OUT)
<_22.9 mm>
5.4 mm>
<
< 5.8 mm >
<_________45m m ________>
<_19m __>
<_____________54 mm_________>
The fieldbus connector links an INTERBUS device to an INTERBUS line.
The fieldbus connector has the following features:
• Fast and maintenance-free CAGE CLAMP
®
connection, can be held in the
open position with the help of an actuation slide mechanism.
15 °
16 mm
w 750
<_____37.2 mm_____>
<_____ 36 .7mm _____>
DO
DO
DI
DI
COM
1 2 3 4 5
6 7 8 9
__>
__>
<__10 mm / 0.394 in
<__36 mm / 1.42 in
<__5-6 mm / 0.22 in
__>
Description
Bus connector with D-Sub male connector;
Item no.
750-962 1
Pack.
unit
9 poles
Accessories
Item no.
Pack.
unit
Screwdriver with partially insulated shaft 210-619 50
Type 1, blade 2.5 x 0.4 mm / 0.098 x 0.016 in
Screwdriver with partially insulated shaft; 210-620 50
Type 2, blade 3.5 x 0.5 mm / 0.137 x 0.020 in
Operating tool for strain relief
Phillips screwdriver (PH 0)
Test pin, 1 mm / Test wire for soldering 735-500 100
Marking possibilities
Miniature WSB Quick marking system or WMB Multi marking system
Approvals
r UL 508
4 EN 60079-15 I M2 / II 3 GD Ex nA IIC T4
Technical Data
Easy wire connection min. Ø 4.5 mm/0.177 in / max. Ø 9.5
Data transmission rate corresponding to INTERBUS specification
Fixing screw UNC- 2 A 4-40
Max. tightening torque 0.4 Nm
Housing material PA66-105-V2
Housing color light gray
Degree of protection IP20
Ambient operating temperature 0 °C ... +60 °C
Storage temperature -25 °C ... +85 °C
Relative air humidity (no condensation) 95 %
Wire connection CAGE CLAMP
Cross sections 0.08 mm² ... 0.5 mm² / AWG 28 ... 20
Stripped length see graphic
2 Mbaud
®
terminal strip with locking
slide (Series 218)
sep. connection 0.75 mm² / AWG 18
possible
Subject to design changes WAGO Kontakttechnik GmbH & Co. KG Postfach 2880 • D-32385 Minden Tel.: +49(0)571/887-0 E-Mail: [email protected]
10.09.2008 Hansastr. 27 •D-32423 Minden Fax: +49(0)571/887-169 www.wago.com
