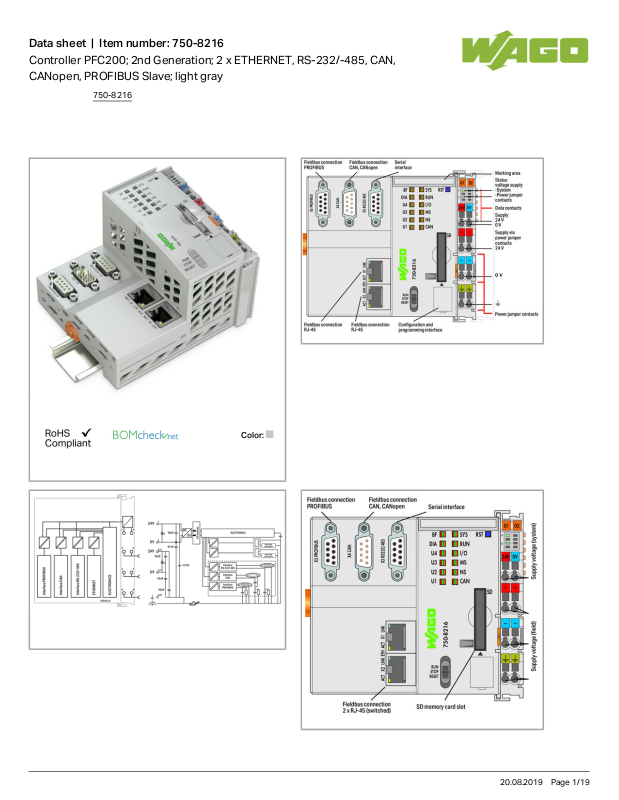

Data sheet | Item number:750-8216
Controller PFC200; 2nd Generation; 2 x ETHERNET, RS-232/-485, CAN,
CANopen, PROFIBUS Slave; light gray
Color:
750-8216
20.08.2019Page /1 19
Data sheet | Item number:750-8216
Item description
The PFC200 Controller is a compact PLC for the modular WAGO-I/O-SYSTEM. Besides network and fieldbus interfaces, the controller supports all
digital, analog and specialty modules found within the 750/753 Series.
Two ETHERNET interfaces and an integrated switch enable line topology wiring.
An integrated Webserver provides user configuration options, while displaying PFC200 status information.
Besides the processing industry and building automation, typical applications for the PFC200 include standard machinery and equipment control (e.
g., packaging, bottling and manufacturing systems, as well as textile, metal and wood processing machines).
Programming per IEC 61131-3
Programmable via WAGO-I/O-PRO V2.3 or COCKPITe!
Direct connection of WAGO I/O modules
2 x ETHERNET (configurable), RS-232/-485, CAN, CANopen, PROFIBUS DP Slave
Linux operating system with RT‐Preempt patch
Configuration via CODESYS, COCKPIT or Web-Based Management user interfacee!
Maintenance-free
Data
Technical Data
Communication PROFIBUS
CANopen
Modbus (TCP, UDP)
Ethernet
Modbus RTU
RS-232 serial interface
RS-485 interface
EtherNet/IP adapter (slave), Library for e!RUNTIME
EtherCAT-Master (mit Zusatzlizenz)
MQTT
Ethernet protocol DHCP
DNS
NTP
FTP
FTPS
SNMP
HTTP
HTTPS
SSH
Visualization Web-Visu
Operating system Real-time Linux (with RT-Preempt patch)
CPU Cortex A8; 1 GHz
Programming languages per IEC 61131-3 Instruction List (IL)
Ladder Diagram (LD)
Function Block Diagram (FBD), Continuous Function Chart (CFC)
750-8216
20.08.2019Page /2 19
Data sheet | Item number:750-8216
Structured Text (ST)
Sequential Function Chart (SFC)
Programming environment e!COCKPIT (based on CODESYS V3)
WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
Configuration options e!COCKPIT
WAGO-I/O-CHECK
Web-based management
e!RUNTIME library
CODESYS Library
Baud rate (communication/fieldbus 1) 10/100Mbit/s
Baud rate ETHERNET:10/100Mbit/s
Transmission medium (communication/fieldbus) ETHERNET:Twisted Pair S-UTP; 100 Ω; Cat. 5; Line length (max.):
100 m
Main memory (RAM) 512 MB
Internal memory (flash) 4000 MB
Hardware non-volatile memory 128 Kbytes
Program memory CODESYS V2:16MB;e!RUNTIME:60MB (Program and data memory
(dynamically distributed))
Data memory CODESYS V2:64MB;e!RUNTIME:60MBProgram and data memory
(dynamically distributed)
Software non-volatile memory 128 Kbytes
Type of memory card SD and SDHC up to 32 GB (All guaranteed properties are only valid
in connection with the WAGO 758-879/000-001 memory card.)
Memory card slot Push-push mechanism, sealable cover lid
Number of modules per node max. 250
Number of I/O modules without bus extension max. 64
Input and output process image (internal) max. 1000Worte/1000Worte
Input and output process image (MODBUS) max. 1000Worte/1000Worte
Input and output process image (PROFIBUS) max. 244Byte/244Byte
Input and output process image (CAN) max. 2000Worte/2000Worte
Indicators LED (SYS, RUN, I/O, CAN, BF, DIA, U1 U4) red/green/orange:
Status system, program, internal data bus, CANopen, PROFIBUS,
PROFIBUS diagnostics, status programmable by user (can be used
via CODESYS library); LED (A, B) green: System power supply status,
field supply
System supply voltage
DC24V(-25 +30%);via wiring level (CAGE CLAMP connection)
®
Input current typ. at rated load (24 V) 550 mA
Total current for system supply 1700 mA
Field supply voltage DC24V(-25 +30%);via power jumper contacts
Current carrying capacity of the power jumper contacts 10 A
Number of outgoing power jumper contacts 3
Isolation 500 V system/supply
750-8216
20.08.2019Page /3 19
Data sheet | Item number:750-8216
Connection data
Connection technology: communication/fieldbus PROFIBUS:1 x D-Sub 9 socket;CANopen:1 x D-Sub 9
connector;Modbus TCP/UDP:2 x RJ-45;Modbus RTU:1 x D-Sub 9
socket;RS-232 serial interface:1 x D-sub 9 socket;RS-485
interface:1 x D-Sub 9 socket
Connection technology: system supply
2 x CAGE CLAMP
®
Connection technology: field supply
6 x CAGE CLAMP
®
Connection type (1) System/field supply
Solid conductor 0.08 2.5mm²/ 28 14AWG
Fine-stranded conductor 0.08 2.5mm²/ 28 14AWG
Strip length 8 9mm/ 0.31 0.35inch
Connection technology: Device configuration 1 x 4-pole male connector
Geometrical Data
Width 112mm/ 4.409inch
Height 71.9mm/ 2.831inch
Height from upper-edge of DIN-35 rail 64.7mm/ 2.547inch
Depth 100mm/ 3.937inch
Mechanical data
Weight 266.638 g
Color light gray
Housing material Polycarbonate, polyamide 6.6
Conformity marking CE
Environmental Requirements
Surrounding air (operating) temperature 0 55°C
Surrounding air (storage) temperature -40 85°C
Protection class IP20
Degree of pollution (5) 2 per IEC 61131-2
Operating altitude without temperature derating: 0 2000 m; with temperature
derating: 2000 5000 m (0.5 K/100 m); max.: 5000 m
Relative air humidity (no condensation) 95 %
Mounting position any
Type of mounting DIN-35 rail
Vibration resistance 4g per IEC 60068-2-6
Shock resistance 15g per IEC 60068-2-27
EMC immunity to interference acc. to EN 61000-6-2, marine applications
EMC emission of interference acc. to EN 61000-6-3, marine applications
750-8216
20.08.2019Page /4 19
Data sheet | Item number:750-8216
Exposure to pollutants Per IEC 60068-2-42 and IEC 60068-2-43
Permissible H S contaminant concentration at a relative humidity 75
2
%
10 ppm
Permissible SO contaminant concentration at a relative humidity 75
2
%
25 ppm
Commercial data
Country of origin DE
GTIN 4055143759809
Customs Tariff No. 85371091990
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text Certificate name
ATEX
TUEV Nord Cert GmbH
EN 60079 TUEV_14_ATEX_148929_X
ATEX
TUEV Nord Cert GmbH
IEC 60079-0 IECEx_TUN_14.0035_X
UL
Underwriters Laboratories Inc. (HAZARDOUS
LOCATIONS)
ANSI/ISA 12.12.01 E198726 Sec.1
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
KC
National Radio Research Agency
Article 58-2, Clause 3 MSIP-
REM-W43PFC750
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
- 19HG1821926
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAA0000194
750-8216
20.08.2019Page /5 19
Data sheet | Item number:750-8216
LR
Lloyds Register
- 02/20026 (E6)
PRS
Polski Rejestr Statków
- TE/2236
/880590/19
RINA
RINA Germany GmbH
- ELE066419XG
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UL
Underwriters Laboratories Inc. (ORDINARY
LOCATIONS)
UL 61010-2-201 E175199
Sec11
Compatible products
system box
Item no.: 850-804
IP65 enclosure; Stainless steel; WxHxD (400x123x200 mm); 4 x M20, 16 x M16, 28 x M12 cable grip
850-804
Item no.: 850-804/000-001
IP65 enclosure; Stainless steel; WxHxD (400x123x200 mm); 2 x M20, 13 x M16, 32 x M12 cable grip
850-804
/000-001
Item no.: 850-805
IP65 enclosure; Stainless steel; WxHxD (600x123x200 mm); 4 x M20, 19 x M16, 67 x M12 cable grip
850-805
Item no.: 850-814/002-000
IP65 enclosure; Sheet steel (RAL 7035); WxHxD (200x120x200 mm); without flange plate
850-814
/002-000
750-8216
20.08.2019Page /6 19
Data sheet | Item number:750-8216
Item no.: 850-815/002-000
IP65 enclosure; Sheet steel (RAL 7035); WxHxD (300x120x200 mm); without flange plate
850-815
/002-000
Item no.: 850-816/002-000
IP65 enclosure; Sheet steel (RAL 7035); WxHxD (400x120x200 mm); without flange plate
850-816
/002-000
Item no.: 850-817/002-000
IP65 enclosure; Sheet steel (RAL 7035); WxHxD (600x120x200 mm); without flange plate
850-817
/002-000
Item no.: 850-825
IP65 enclosure; Aluminium (RAL 7032); WxHxD (160x100x160 mm); 9 x M12, 4 x M20
850-825
Item no.: 850-826
IP65 enclosure; Aluminium (RAL 7032); WxHxD (240x100x160 mm); 4 x M20, 4 x M16, 14 x M12 cable
grip
850-826
Item no.: 850-826/002-000
IP65 enclosure; Aluminium (RAL 7035); WxHxD (240x100x160 mm); 4 x M20, 4 x M16, 14 x M12 cable
grip
850-826
/002-000
Item no.: 850-827
IP65 enclosure; Aluminium (RAL 7032); WxHxD (320x100x160 mm); 4 x M20, 8 x M16, 17 x M12 cable
grip
850-827
Item no.: 850-827/002-000
IP65 enclosure; Aluminium (RAL 7035); WxHxD (320x100x160 mm); 4 x M20, 8 x M16, 17 x M12 cable
grip
850-827
/002-000
Item no.: 850-828
IP65 enclosure; Aluminium (RAL 7032); WxHxD (480x100x160 mm); 4 x M20, 10 x M16, 35 x M12 cable
grip
850-828
Item no.: 850-828/002-000
IP65 enclosure; Aluminium (RAL 7035); WxHxD (480x100x160 mm); 4 x M20, 10 x M16, 35 x M12 cable
grip
850-828
/002-000
Item no.: 850-834
IP65 enclosure; Polyester (RAL 7032); WxHxD (164x100x164 mm); 9 x M12, 4 x M20
850-834
Item no.: 850-835
IP65 enclosure; Polyester (RAL 7032); WxHxD (244x100x164 mm); 4 x M20, 4 x M16, 14 x M12 cable
grip
850-835
Item no.: 850-836
IP65 enclosure; Polyester (RAL 7032); WxHxD (324x100x164 mm); 4 x M20, 8 x M16, 17 x M12 cable
grip
850-836
wiring and connectors
Item no.: 750-960
Fieldbus Connector PROFIBUS; with D-sub male connector; 9-pole; light gray
750-960
Item no.: 750-963
Fieldbus Connector CANopen; with D-sub female connector; 9-pole; light gray
750-963
Item no.: 750-975
ETHERNET RJ-45 connector, IP20; ETHERNET 10/100 Mbit/s; for field assembly; light gray
750-975
750-8216
20.08.2019Page /7 19
Data sheet | Item number:750-8216
Item no.: 750-977/000-011
Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568A; AWG 22
750-977
/000-011
Item no.: 750-977/000-012
Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568B; AWG 22
750-977
/000-012
Item no.: 750-977/000-021
Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568A; AWG 24
750-977
/000-021
Item no.: 750-977/000-022
Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568B; AWG 24
750-977
/000-022
Item no.: 750-978/000-011
Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568A; AWG 22; Strain relief
750-978
/000-011
Item no.: 750-978/000-012
Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568B; AWG 22; Strain relief
750-978
/000-012
Item no.: 750-978/000-021
Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568A; AWG 24; Strain relief
750-978
/000-021
Item no.: 750-978/000-022
Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568B; AWG 24; Strain relief
750-978
/000-022
Item no.: 750-979/000-011
Connector ETHERNET; RJ-45; Cat. 6A; angled; Code T568A; AWG 22; Strain relief
750-979
/000-011
Item no.: 750-979/000-012
Connector ETHERNET; RJ-45; Cat. 6A; angled; Code T568B; AWG 22; Strain relief
750-979
/000-012
Item no.: 750-979/000-021
Connector ETHERNET; RJ-45; Cat. 6A; angled; Code T568A; AWG 24; Strain relief
750-979
/000-021
Item no.: 750-979/000-022
Connector ETHERNET; RJ-45; Cat. 6A; angled; Code T568B; AWG 24; Strain relief
750-979
/000-022
software
Item no.: 2759-101/1110-2002
e!COCKPIT; Workstation License
2759-101
/1110-2002
Item no.: 2759-101/1110-2005
e!COCKPIT; Multi-User License; 05 pcs
2759-101
/1110-2005
750-8216
20.08.2019Page /8 19
Data sheet | Item number:750-8216
Item no.: 2759-101/1110-2010
e!COCKPIT; Multi-User License; 10 pcs
2759-101
/1110-2010
Item no.: 2759-101/1110-2015
e!COCKPIT; Multi-User License; 15 pcs
2759-101
/1110-2015
Item no.: 2759-101/1110-2020
e!COCKPIT; Multi-User License; 20 pcs
2759-101
/1110-2020
Item no.: 2759-101/1110-3000
e!COCKPIT; Site License
2759-101
/1110-3000
Item no.: 2759-101/1110-4000
e!COCKPIT; Buy-out License
2759-101
/1110-4000
Item no.: 2759-247/210-1000
e!RUNTIME; Sparkplug; Single License
2759-247
/210-1000
Item no.: 2759-263/210-1000
e!RUNTIME; EtherCAT Master; 300; Single License
2759-263
/210-1000
Item no.: 759-333
WAGO-I/O-PRO
759-333
Item no.: 759-333/000-923
WAGO-I/O-PRO; USB-Set
759-333
/000-923
Item no.: 759-911
WAGO-I/O-PRO; CD
759-911
shield connection
Item no.: 790-108
Shield clamping saddle; 11 mm wide; diameter of compatible conductor
790-108
Item no.: 790-116
Shield clamping saddle; 19 mm wide; diameter of compatible conductor; 7 ... 16 mm
790-116
Item no.: 790-124
Shield clamping saddle; 27 mm wide; diameter of compatible conductor; 6 ... 24 mm
790-124
Item no.: 790-140
Shield clamping saddle; diameter of compatible conductor
790-140
Item no.: 790-208
Shield clamping saddle; 12.4 mm wide; 3 ... 8 mm
790-208
Item no.: 790-216
Shield clamping saddle; 21.8 mm wide; 6 ... 16 mm
790-216
Item no.: 790-220
Shield clamping saddle; 30 mm wide; 6 ... 20 mm
790-220
750-8216
20.08.2019Page /9 19
Data sheet | Item number:750-8216
General accessories
Item no.: 750-921
Bluetooth® Adapter; light gray
750-921
Item no.: 750-923
Configuration cable; USB connector; Length: 2.5 m; black
750-923
Item no.: 750-923/000-001
Configuration cable; USB connector; Length: 5 m
750-923
/000-001
Carrier rail
Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm
210-112
Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm
210-115
Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715; silver-colored
210-196
Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715; coppercolored
210-198
Item no.: 210-504
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715
210-504
Item no.: 210-505
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715
210-505
Item no.: 210-506
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715
210-506
Item no.: 210-508
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715
210-508
Marking accessories
Item no.: 2009-145
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; white
2009-145
Item no.: 2009-145/000-002
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; yellow
2009-145
/000-002
750-8216
20.08.2019Page /10 19
Data sheet | Item number:750-8216
Item no.: 2009-145/000-005
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; red
2009-145
/000-005
Item no.: 2009-145/000-006
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; blue
2009-145
/000-006
Item no.: 2009-145/000-007
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; gray
2009-145
/000-007
Item no.: 2009-145/000-012
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; orange
2009-145
/000-012
Item no.: 2009-145/000-023
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; green
2009-145
/000-023
Item no.: 2009-145/000-024
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; violet
2009-145
/000-024
Item no.: 248-501
Miniature WSB Quick marking system; plain; Marker width 5 mm; 10 strips with 10 markers per card
248-501
Item no.: 248-501/000-002
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; yellow
248-501
/000-002
Item no.: 248-501/000-005
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-005
Item no.: 248-501/000-006
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-006
Item no.: 248-501/000-007
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-007
Item no.: 248-501/000-012
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-012
Item no.: 248-501/000-017
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-017
Item no.: 248-501/000-023
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-023
Item no.: 248-501/000-024
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-024
750-8216
20.08.2019Page /11 19
Data sheet | Item number:750-8216
Item no.: 750-103
Group marker carrier
750-103
Item no.: 750-107
Group marker carrier
750-107
memory card
Item no.: 758-879/000-001
Memory Card SD; SLC-NAND; 2 GByte; Temperature from -40 to 90 °C
758-879
/000-001
Downloads
Documentation
Manual
WAGO MODBUS Master Configurator
for configuration of MODBUS networks in WAGO-I/O-PRO (CODESYS)
V 1.1.0 pdf
1.8 MB
Download
PFC200 G2 2ETH RS CAN DPS
2 x ETHERNET, RS-232 / RS-485, CAN, CANopen, PROFIBUS-DP Slave
V 1.1.1
Jul 24, 2019
pdf
5.9 MB
Download
Cyber Security for Controller PFC100 / PFC200 V 1.2.0 pdf
8.3 MB
Download
e!RUNTIME EtherCAT® Master V 1.1.1
Jul 23, 2019
pdf
879.5 kB
Download
e!COCKPIT Application Note WAGO Gateway Application
The WAGO Gateway Application for the WAGO 750-8212 PFC200 2nd Generation
enables
communication between different bus and/or communication systems and shortens
the
integration time. The user-friendly web interface allows the user to exchange
information
and measured values between different systems. The pre-configured application
shortens
startup times, especially in building technology. The WAGO Gateway Application
currently
enables communication with Modbus RTU, Modbus IP (TCP/UDP) and KNX-TP
devices. Every
conceivable combination is possible.
V 1.0.0.0
Apr 25, 2019
pdf
8.7 MB
Download
Bid Text
750-8216 doc
39.9 kB
Download
Tutorial
Establish connection to a controller using SSH
1.0
Aug 5, 2017
mp4
29.0 MB
Download
750-8216
20.08.2019Page /12 19
Data sheet | Item number:750-8216
In this video we are demonstrating how to establish a SSH connec-tion with a
controller using for example PuTTY to be able to work with the LINUX console.
Contents: 0:21 Download and install the SSH client; 0:40 Establish the SSH
connection; 0:50 Log on to the Controller
Set IP address with Ethernet Settings
In this video we are demonstrating how you can set a IP address with Ethernet
Settings. Content: 00:27 – Chapter #1 Download and install software; 00:56 – Chapter
#2 Open Ethernet Settings; 01:10 – Chapter #3 Establish serial Connection; 01:34 –
Chapter #4 Set IP address; 02:10 – Chapter #5 Check IP address
3.0
Dec 18, 2017
mp4
88.3 MB
Download
Additional Information
Disposal; Electrical and electronic equipment, Packaging V 1.0.0 pdf
265.8 kB
Download
e!RUNTIME EtherCAT® Master V 1.1.1
Jul 23, 2019
pdf
879.5 kB
Download
System Description
Design Notes
Basic conditions and recommendations for higher operational safety
V 2.0.0 pdf
1.5 MB
Download
Overview on WAGO-I/O-SYSTEM 750 approvals pdf
780.2 kB
Download
Controller PFC100/200, General Product Information pdf
591.2 kB
Download
Application Notes
Application Note CoDeSys 2.3
WagoConfigToolLIB
The library WagoConfigToolLIB.lib library provides function blocks for accessing the
device configuration (e.g., network settings, data and time, ongoing services).
1.0.0 pdf
349.1 kB
Download
ModuleAccess_01.lib
The ModuleAccess_01 library provides both module configuration and access to its
process data within a CoDeSys project without the use of WAGO I/O Check.
1.7
Jan 18, 2018
zip
1.5 MB
Download
Connection of Thermokon Multi-function room control units WRF 08
The fundamental way of carrying out the communication between the WAGO I/O
System and the multi-function room operating panel (WRF08 RS485 Modbus) from
Thermokon is described in this application note.
Apr 10, 2019 zip
876.4 kB
Download
Application note Cloud Connectivity
This application note explains how the WAGO controllers PFC100 and PFC200 can
communicate with cloud services like Microsoft Azure (WAGO Cloud), Amazon AWS
2019-07-17
Jul 17, 2019
zip
4.1 MB
Download
750-8216
20.08.2019Page /13 19
Data sheet | Item number:750-8216
and IBM Bluemix. Data could be send to the cloud and commands could receive from
the cloud. The libraries WagoLibCloud for WAGO-I/O-PRO V2.3 and WagoAppCloud
for e!COCKPIT are used.
Connection of a Thermokon Thanos SR L MODBUS room control unit to the WAGO-I
/O-SYSTEM
The fundamental method of setting up communication between the WAGO I/O
System and the Thanos SR L MODBUS room operating panel from Thermokon is
described in this application note.
02.05.2013
May 13, 2013
zip
313.2 kB
Download
e!COCKPIT application note WagoLibCloud
This application note explains how the WAGO controllers PFC100 and PFC200 can
communicate with cloud services like Microsoft Azure (WAGO Cloud), Amazon AWS
and IBM Bluemix. Data could be send to the cloud and commands could receive from
the cloud. The libraries WagoLibCloud for WAGO-I/O-PRO V2.3 and WagoAppCloud
for e!COCKPIT are used.
2019-07-17
Jul 17, 2019
zip
4.0 MB
Download
GRUNDFOS GENIbus interface, application note
This application note describes how communication between the WAGO-I/OSYSTEM and the Grundfos MAGNA series circulation pumps can be performed via
GENIbus interface.
20.03.2017
Mar 20, 2017
zip
286.6 kB
Download
Application Note Scheduler_03.lib
This application note describes different applications of the Scheduler_03.lib library.
May 20, 2011 zip
1.8 MB
Download
Application Note Data Plotter
The Data Plotter is a Web application that can be used as a visualization tool for the
data logger. It allows the user to graphically display data captured by the data logger
library (WAGO_Datalogger_02.lib for CODESYS V2.3 and WagoAppDatalogger for e!
COCKPIT from V1.2.100.6023).
V 2019-07-04
Jul 5, 2019
zip
7.4 MB
Download
Anwendungshinweis für die Steuerung eines Igus robolink
Der Anwendungshinweis beschreibt anhand einer Demoapplikation die Steuerung
eines Igus robolink® Roboterarms mit sechs Achsen. Als Steuerung wird ein Wago
PFC200 (Art.-Nr. 750-8202) verwendet.
12.11.2015
Nov 12, 2015
zip
1.3 MB
Download
Anbindung der HKW-Elektronik Wetterprognose-Station WS-K xx T ModBus
Dieser Anwendungshinweis beschreibt, wie die Kommunikation zwischen dem
WAGO-I/O-System und einer HKW-Elektronik Wettterprognose-Station Kompakt
realisiert werden kann.
V 1.1
Jul 7, 2017
zip
781.1 kB
Download
Connection of Thermokon Multi-function room control units WRF 06
The fundamental method of setting up communication between the WAGO I/O
System and the multi-function room operating panel (WRF06 RS485 Modbus) from
Thermokon is described in this application note.
Apr 8, 2016 zip
845.9 kB
Download
Application Note for the 750-494 3-Phase Power Measurement Module
The application note for the 3-Phase Power Measurement Module 750-494 shows
how the measured values of the power measurement module can be read. It is also
shown how the power module can be configured using the WAGO-I/O-PRO- V2.3
visualization tool.
24.01.2014
Nov 11, 2014
zip
1.7 MB
Download
750-8216
20.08.2019Page /14 19
Data sheet | Item number:750-8216
Application Note Weather Station Elsner P03 Modbus
This application note describes how communication can be set up between the
WAGO I/O System and the ELSNER P03/3 weather station with a Modbus interface.
01.12.2011
Oct 28, 2011
zip
275.6 kB
Download
Application Note Library WagoDatalogger_02
This application note describes the use of the WagoDatalogger_02.lib library. Up to
80 analog or digital signals can be recorded.
10.03.2016
Apr 4, 2016
zip
1.3 MB
Download
Application Note Connecting with an iPod Touch
This Application Note explains the basic procedures for access to the WAGO
Ethernet Controller 750-8xx or the WAGO Ethernet Coupler 750-3xx using an iPod
Touch.
30.03.2011
Oct 28, 2011
zip
439.1 kB
Download
HART Tool Routing via ETHERNET with
750-820x/750-88x and CODESYS 2.3 (a116120)
This application note describes how to set up asset management systems, which
facilitate simple, efficient configuration of HART field devices.
With the Cerabar PMC51 (Endress+Hauser) as an example, a connection is
established from any HART sensor to a WAGO PROFIBUS Controller and a WAGO
ETHERNET Fieldbus Coupler. The configuration is made with the asset management
software WAGOframe, PACTware und FieldCare.
1.0.0
Mar 22, 2019
pdf
3.9 MB
Download
Application Note PowerMeasurement_03 Library
This application note describes how current, voltage, effective power, power factor
and energy consumption can be measured using 3-phase power measurement
modules (750-493).
19.01.2011
Mar 19, 2012
zip
954.5 kB
Download
Application Note Library ModuleAccess_01
These instructions describe the use of the ModuleAccess_01.lib library using 4
examples.
Jan 29, 2016 zip
1.0 MB
Download
HVAC System Macros
WAGO provides system macros for HVAC applications that are based on
Building_HVAC_03.lib.
10.03.2017
Mar 15, 2019
zip
13.6 MB
Download
Application Note: EnOcean_06 Library
This application note describes how communication between the WAGO-I/OSYSTEM and different EnOcean wireless sensors can be implemented using the
EnOcean_06.lib library.
30.11.2016
Nov 30, 2016
zip
842.0 kB
Download
HLK-Anlagenmakros für TRIC
In dieser Zip-Datei finden Sie Vorlagen und Makros für die Planungssoftware TRIC.
TRIC ist ein Werkzeug für Planer und Errichter von HLK-Anlagen, das den Richtlinien
der VOB, VDI und DIN EN ISO entspricht.
Jul 10, 2015 zip
76.8 MB
Download
Connection of DMX devices to the WAGO-I/O-SYSTEM via the ArtNet-DMX STAGEPROFI 1.1
This application note describes connecting the ArtNet-DMX STAGE-PROFI 1.1 to the
WAGO-I/O-SYSTEM. The ArtNet-DMX STAGE-PROFI 1.1 can be operated as a DMX
master and a DMX slave.
11.01.2013
Jan 11, 2013
zip
1.5 MB
Download
750-8216
20.08.2019Page /15 19
Data sheet | Item number:750-8216
Application Note: DMX_02
This application note describes how a DMX master for DMX device control can be
performed via 750-652 serial interface.
26.04.2017
Apr 26, 2017
zip
751.0 kB
Download
Application Note for the 750-495 3-Phase Power Measurement Module
The application note for the 3-Phase Power Measurement Module 750-495 shows
how the measured values of the power measurement module can be read. It is also
shown how the power module can be configured using the WAGO-I/O-PRO- V2.3
visualization tool.
24.01.2014
Jan 24, 2014
zip
1.8 MB
Download
Application Note: MpBus_03 Library
This Application Note explains how a WAGO fieldbus controller sets up
communication to the MP-bus actuators via the MP-bus master module (750-643).
V 1.0.2
Apr 13, 2018
zip
1.4 MB
Download
HART Tool Routing via PROFIBUS with 750-833 and 750-333 (a116140)
This application note describes how to set up asset management systems, which
facilitate simple, efficient configuration of HART field devices.
Using the Cerabar PMC51 (Endress+Hauser) as an example, connecting any HART
sensor to a WAGO PROFIBUS controller and a WAGO PROFIBUS Coupler is
explained. The cyclic PROFIBUS Master (750-8208) realizes the data exchange. As an
acyclic master, a TH LINK PROFIBUS provides access for the plant asset
management applications WAGOframe, PACTware and FieldCare.
1.0.0
Mar 22, 2019
pdf
5.3 MB
Download
Application note for installing a MySQL-Server on a PFC-Controller
This Application Note explains how a MySQL-Server can be set up and used on a PFC
200. The Application shows how measurement values of the 3-Phase Power
Measurement Module can be written into a database.
V 1.0.4
May 16, 2019
zip
4.5 MB
Download
Application Note e!COCKPIT
SNMP Communication (a500850)
This application note explains how the WAGO controllers PFC100 andPFC200 can
communicate via SNMP: Sending traps / inform notifications, creating an MIB and
using the controller as an SNMP agent. To do so, the SNMP-specific libraries for
WAGO-I/O-PRO V2.3 and e!COCKPIT are used.
V1.1.0
Aug 19, 2019
zip
4.0 MB
Download
e!COCKPIT application note WagoLibCloud
This application note explains how the WAGO controllers PFC100 and PFC200 can
communicate with cloud services like Microsoft Azure (WAGO Cloud), Amazon AWS
and IBM Bluemix. Data could be send to the cloud and commands could receive from
the cloud. The libraries WagoLibCloud for WAGO-I/O-PRO V2.3 and WagoAppCloud
for e!COCKPIT are used.
2019-07-17
Jul 17, 2019
zip
4.0 MB
Download
HART Tool Routing via ETHERNET with 750-820x and e!RUNTIME (a116130)
This application note describes how to set up asset management systems, which
facilitate simple, efficient configuration of HART field devices.
With the Cerabar PMC51 (Endress+Hauser) as an example, a connection is
established from any HART sensor to a WAGO PROFIBUS Controller and a WAGO
ETHERNET fieldbus coupler. The configuration is made with the asset management
software WAGOframe, PACTware und FieldCare.
1.0.0
Mar 22, 2019
pdf
2.9 MB
Download
750-8216
20.08.2019Page /16 19
Data sheet | Item number:750-8216
eCOCKPIT application note installation MySQL-Server
This Application Note explains how a MySQL-Server can be set up and used on a PFC
200. The Application shows how measurement values of the 3-Phase Power
Measurement Module can be written into a database.
2019-07-10
Jul 10, 2019
pdf
1.9 MB
Download
Libraries
Library
WagoLibLed
This library contains function blocks that can be used for control and querying of the
user LEDs and for querying of the status LEDs. Depending on the device design, not
all of the user or status LEDs may be provided.
1.0.0 pdf
516.5 kB
Download
WagoConfigToolLIB
The library WagoConfigToolLIB.lib library provides function blocks for accessing the
device configuration (e.g., network settings, data and time, ongoing services).
1.0.0 pdf
349.1 kB
Download
WagoLibDiagnosticIDs
This library is used to take part in an internal diagnostics protocol via an IEC-61131
application. You can define your own IDs and provide your own texts for this. You can
also transmit your own diagnostics IDs. Diagnostics generated in this manner are
saved in the system log and displayed in text form, for example, in the WBM.
1.0.0 pdf
298.2 kB
Download
WagoLibCpuUsage
This library enables you to determine the CPU load (usage).
1.0.0 pdf
265.7 kB
Download
WagoLibNetSnmpManager
The “WagoLibNetSnmpManager.lib” library is used to implement SNMP manager
functions. This makes it possible to access other SNMP agents as well as call and
modify OIDs via an IEC program.
1.1.0 pdf
1.1 MB
Download
ModuleAccess_01.lib
The ModuleAccess_01 library provides both module configuration and access to its
process data within a CoDeSys project without the use of WAGO I/O Check.
1.7
Jan 18, 2018
zip
1.5 MB
Download
WAGO_Datalogger_02.lib
The FbDatalogger function block logs entries from up to 80 channels at an interval of
min. one second in a CSV file.
2.4
Nov 13, 2017
zip
678.0 kB
Download
Library WagoLibCloud_02.lib
Die Bibliothek dient zur Kommunikation des WAGO Controller PFC100 und PFC200
mit Cloud Diensten wie Microsoft Azure (WAGO Cloud), Amazon AWS and IBM
Bluemix. Daten können zur Cloud gesendet und Kommandos von der Cloud
empfangen werden.
V2.2.3
Apr 29, 2019
zip
57.1 kB
Download
750-8216
20.08.2019Page /17 19
Data sheet | Item number:750-8216
Engineering-Software
e!COCKPIT
COCKPITe!
Register at no cost and test our engineering software for 30 days.
V 1.5.1
Jul 10, 2019
ZIP
2.8 GB
Download
Configuration and Commissioning Software
WAGO-IO-PRO Demo-Version (759-912) / Serie 750, 758 und 762 2.3.9.55
Jul 3, 2015
zip
108.3 MB
Download
Runtime Software
Linux® Toolchain
Linux® Board Support Package (BSP)
With the PFC BSP, WAGO offers Linux® enthusiasts the opportunity to compile the
PFC firmware themselves, and to expand it according to their own wishes.
The WAGO PFC BSP includes a Pengutronix build environment, optimized for the
PFC, and the OSELAS Toolchain, which open up the following possibilities, among
others:
Expanding the firmware functions using open source packages like: Python,
SQLite3, PHP, etc.
Compiling their own C/C++ applications with direct or indirect bus access to
the local bus, CANopen, or PROFIBUS.
Compiling external libraries using CODESYS V2 to expand the PLC
applications.
There are detailed instructions for many of these tasks and ideas (see How
To's).
2018.2.8.FW(11)35
Aug 27, 2018
TXT
14.1 kB
Download
Firmware
Firmware: 750-8216 Controller PFC200; 2nd Generation; 2 x ETHERNET, RS-232/485, CAN, CANopen, PROFIBUS Slave; light gray
12 SP1
Jul 11, 2019
zip
81.9 MB
Download
IoT/ Cloud
Cloud Connectivity
Cloud Connectivity beta version
Since January 2018, cloud connectivity has been a component of Firmware 11. Thus,
all WAGO PFCs are inherently IoT-ready, so they can send data from the field level to
the cloud via MQTT. Here, the data can be aggregated and used for analysis. New
features are provided as beta versions. Register here at no cost to test the latest
beta functions.
Jun 4, 2019 ZIP
8.7 MB
Download
750-8216
20.08.2019Page /18 19
Data sheet | Item number:750-8216
"Remote Access" Beta Software
“Remote Access” Beta Software
Register for the beta version of “Remote Access” for the WAGO Cloud.
V 0.9.0.2
Jul 25, 2019
ZIP
1.3 MB
Download
CAD/CAE - Smart Data
CAD data
3D Download 750-8216 URL Download
Device Files
Device Description File
750-914; EDS file for CANopen / 750, 752 and 767 Series XR
Jul 30, 2019
zip
1.7 MB
Download
750-910; GSD files for PROFIBUS / 750, 752, 755, 758 and 767 Series 6.3
Jun 15, 2017
zip
4.7 MB
Download
Device Driver
750-914; EDS file for CANopen / 750, 752 and 767 Series XR
Jul 30, 2019
zip
1.7 MB
Download
Product family
Controller 750
Show all products from the family
750-8216
Subject to changes.
20.08.2019Page /19 19
Loading...
