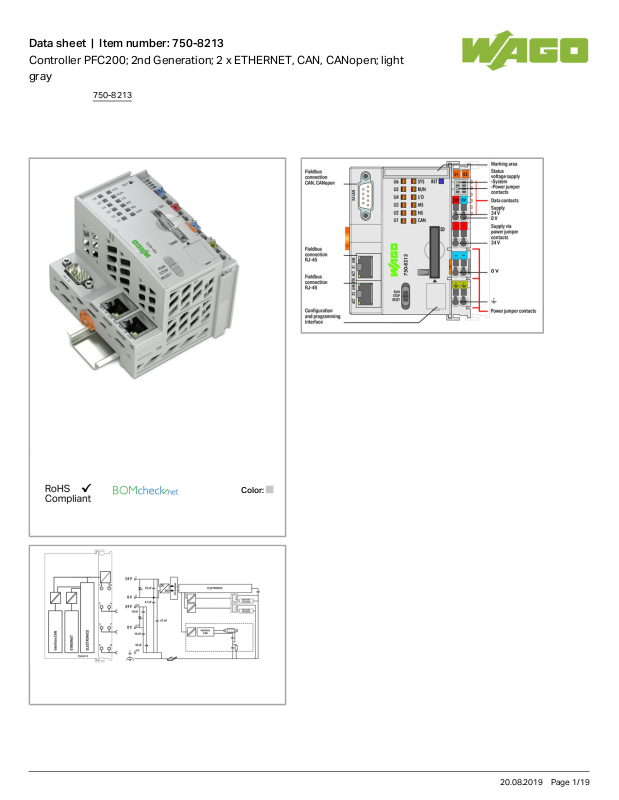

Wago 750-8213 Data Sheet

Data sheet | Item number:750-8213

Controller PFC200; 2nd Generation; 2 x ETHERNET, CAN, CANopen; light
gray

Color:

750-8213

20.08.2019Page /1 19

Data sheet | Item number:750-8213

Item description

The PFC200 Controller is a compact PLC for the modular WAGO-I/O-SYSTEM. Besides network and fieldbus interfaces, the controller supports all
digital, analog and specialty modules found within the 750/753 Series.

Two ETHERNET interfaces and an integrated switch enable line topology wiring.

An integrated Webserver provides user configuration options, while displaying PFC200 status information.

Besides the processing industry and building automation, typical applications for the PFC200 include standard machinery and equipment control (e.
g., packaging, bottling and manufacturing systems, as well as textile, metal and wood processing machines).

Programming per IEC 61131-3

Programmable via WAGO-I/O-PRO V2.3 or COCKPITe!

Direct connection of WAGO I/O modules

2 x ETHERNET (configurable), CAN, CANopen

Linux operating system with RT‐Preempt patch

Configuration via CODESYS, COCKPIT or Web-Based Management user interfacee!

Maintenance-free

Data

Technical Data

Communication CANopen

Modbus (TCP, UDP)

750-8213

20.08.2019Page /2 19

Data sheet | Item number:750-8213

Ethernet
EtherNet/IP adapter (slave), Library for e!RUNTIME
EtherCAT-Master (mit Zusatzlizenz)
MQTT

Ethernet protocol DHCP

DNS
NTP
FTP
FTPS
SNMP
HTTP
HTTPS
SSH

Visualization Web-Visu

Operating system Real-time Linux (with RT-Preempt patch)

CPU Cortex A8; 1 GHz

Programming languages per IEC 61131-3 Instruction List (IL)

Ladder Diagram (LD)
Function Block Diagram (FBD), Continuous Function Chart (CFC)
Structured Text (ST)
Sequential Function Chart (SFC)

Programming environment e!COCKPIT (based on CODESYS V3)

WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)

Configuration options e!COCKPIT

WAGO-I/O-CHECK
Web-based management
e!RUNTIME library
CODESYS Library

Baud rate (communication/fieldbus 1) 10/100Mbit/s

Baud rate ETHERNET:10/100Mbit/s

Transmission medium (communication/fieldbus) ETHERNET:Twisted Pair S-UTP; 100 Ω; Cat. 5; Line length (max.):

100 m

Main memory (RAM) 512 MB

Internal memory (flash) 4000 MB

Hardware non-volatile memory 128 Kbytes

Program memory CODESYS V2:16MB;e!RUNTIME:60MB (Program and data memory

(dynamically distributed))

Data memory CODESYS V2:64MB;e!RUNTIME:60MBProgram and data memory

(dynamically distributed)

Software non-volatile memory 128 Kbytes

Type of memory card SD and SDHC up to 32 GB (All guaranteed properties are only valid

in connection with the WAGO 758-879/000-001 memory card.)

Memory card slot Push-push mechanism, sealable cover lid

Number of modules per node max. 250

Number of I/O modules without bus extension max. 64

Input and output process image (internal) max. 1000Worte/1000Worte

Input and output process image (MODBUS) max. 1000Worte/1000Worte

750-8213

20.08.2019Page /3 19

Data sheet | Item number:750-8213

Input and output process image (CAN) max. 2000Worte/2000Worte

Indicators LED (SYS, RUN, I/O, U1 U6) red/green/orange: Status system,

program, internal data bus, CANopen, status programmable by user
(can be used via CODESYS library); LED (A, B) green: System power
supply status, field supply

System supply voltage

DC24V(-25 +30%);via wiring level (CAGE CLAMP connection)

®

Input current typ. at rated load (24 V) 550 mA

Total current for system supply 1700 mA

Field supply voltage DC24V(-25 +30%);via power jumper contacts

Current carrying capacity of the power jumper contacts 10 A

Number of outgoing power jumper contacts 3

Isolation 500 V system/supply

Connection data

Connection technology: communication/fieldbus CANopen:1 x D-Sub 9 connector;Modbus TCP/UDP:2 x RJ-45

Connection technology: system supply

2 x CAGE CLAMP

®

Connection technology: field supply

6 x CAGE CLAMP

®

Connection type (1) System/field supply

Solid conductor 0.08 2.5mm²/ 28 14AWG

Fine-stranded conductor 0.08 2.5mm²/ 28 14AWG

Strip length 8 9mm/ 0.31 0.35inch

Connection technology: Device configuration 1 x 4-pole male connector

Geometrical Data

Width 78.6mm/ 3.094inch

Height 71.9mm/ 2.831inch

Height from upper-edge of DIN-35 rail 64.7mm/ 2.547inch

Depth 100mm/ 3.937inch

Mechanical data

Weight 213.688 g

Color light gray

Housing material Polycarbonate, polyamide 6.6

Conformity marking CE

Environmental Requirements

Surrounding air (operating) temperature 0 55°C

Surrounding air (storage) temperature -40 85°C

Protection class IP20

Degree of pollution (5) 2 per IEC 61131-2

750-8213

20.08.2019Page /4 19

Data sheet | Item number:750-8213

Operating altitude without temperature derating: 0 2000 m; with temperature

derating: 2000 5000 m (0.5 K/100 m); max.: 5000 m

Relative air humidity (no condensation) 95 %

Mounting position any

Type of mounting DIN-35 rail

Vibration resistance 4g per IEC 60068-2-6

Shock resistance 15g per IEC 60068-2-27

EMC immunity to interference acc. to EN 61000-6-2, marine applications

EMC emission of interference acc. to EN 61000-6-3, marine applications

Exposure to pollutants Per IEC 60068-2-42 and IEC 60068-2-43

Permissible H S contaminant concentration at a relative humidity 75

2

%

10 ppm

Permissible SO contaminant concentration at a relative humidity 75

2

%

25 ppm

Commercial data

Country of origin DE

GTIN 4055143759687

Customs Tariff No. 85371091990

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text Certificate name

ATEX

TUEV Nord Cert GmbH

EN 60079 TUEV_14_ATEX_148929_X

ATEX

TUEV Nord Cert GmbH

IEC 60079-0 IECEx_TUN_14.0035_X

UL

Underwriters Laboratories Inc. (HAZARDOUS
LOCATIONS)

ANSI/ISA 12.12.01 E198726 Sec.1

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

KC

National Radio Research Agency

Article 58-2, Clause 3 MSIP-

REM-W43­PFC750

750-8213

20.08.2019Page /5 19

Data sheet | Item number:750-8213

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 19­HG1821926

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAA0000194

LR

Lloyds Register

- 02/20026 (E6)

PRS

Polski Rejestr Statków

- TE/2236
/880590/19

RINA

RINA Germany GmbH

- ELE066419XG

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

Underwriters Laboratories Inc. (ORDINARY
LOCATIONS)

UL 61010-2-201 E175199

Sec11

Compatible products

wiring and connectors

Item no.: 750-963

Fieldbus Connector CANopen; with D-sub female connector; 9-pole; light gray

750-963

Item no.: 750-975

ETHERNET RJ-45 connector, IP20; ETHERNET 10/100 Mbit/s; for field assembly; light gray

750-975
