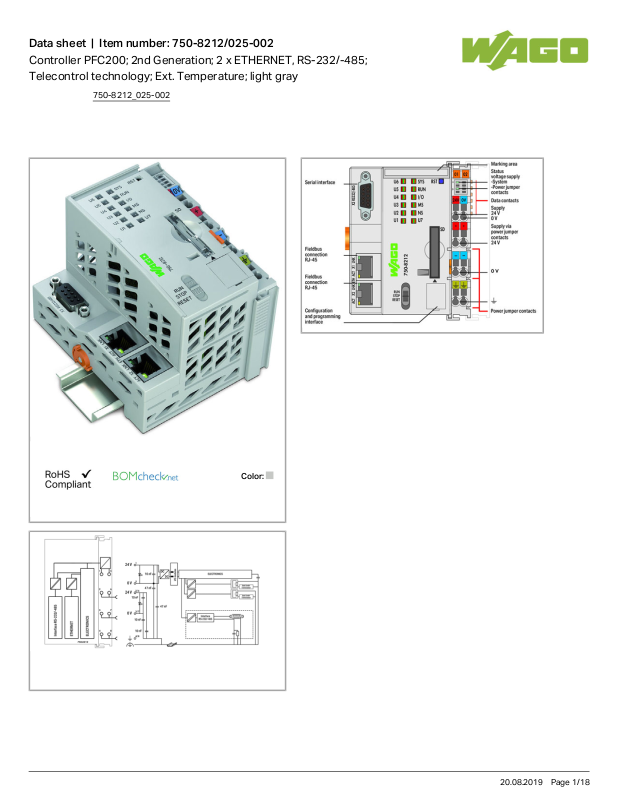

Wago 750-8212/025-002 Data Sheet

Data sheet | Item number:750-8212/025-002

Controller PFC200; 2nd Generation; 2 x ETHERNET, RS-232/-485;
Telecontrol technology; Ext. Temperature; light gray

Color:

750-8212_025-002

20.08.2019Page /1 18

Data sheet | Item number:750-8212/025-002

Item description

The PFC200 Controller is a compact PLC for the modular WAGO-I/O-SYSTEM. Besides network and fieldbus interfaces, the controller supports all
digital, analog and specialty modules found within the 750/753 Series.

Two ETHERNET interfaces and an integrated switch enable line topology wiring.

An integrated Webserver provides user configuration options, while displaying PFC200 status information.

Besides the processing industry and building automation, typical applications for the PFC200 include standard machinery and equipment control (e.
g., packaging, bottling and manufacturing systems, as well as textile, metal and wood processing machines).

Programming per IEC 61131-3

Programmable via WAGO-I/O-PRO V2.3

Direct connection of WAGO I/O modules

2 x ETHERNET (configurable), RS-232/-485

Linux operating system with RT‐Preempt patch

Configuration via CODESYS or Web-Based Management interface

Maintenance-free

Data

Technical Data

Communication Modbus (TCP, UDP)

Ethernet

750-8212_025-002

20.08.2019Page /2 18

Data sheet | Item number:750-8212/025-002

Modbus RTU
RS-232 serial interface
RS-485 interface
Telecontrol protocols
MQTT

Ethernet protocol DHCP

DNS
NTP
FTP
FTPS
SNMP
HTTP
HTTPS
SSH

Telecontrol protocols IEC 60870-5-101/-103/-104

IEC 61400-25
IEC 61850-7
DNP3

Visualization Web-Visu

Operating system Real-time Linux (with RT-Preempt patch)

CPU Cortex A8; 1 GHz

Programming languages per IEC 61131-3 Instruction List (IL)

Ladder Diagram (LD)
Function Block Diagram (FBD), Continuous Function Chart (CFC)
Structured Text (ST)
Sequential Function Chart (SFC)

Programming environment WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)

Configuration options e!COCKPIT

WAGO-I/O-CHECK
Web-based management

Baud rate (communication/fieldbus 1) 10/100Mbit/s

Baud rate ETHERNET:10/100Mbit/s

Transmission medium (communication/fieldbus) ETHERNET:Twisted Pair S-UTP; 100 Ω; Cat. 5; Line length (max.):

100 m

Main memory (RAM) 512 MB

Internal memory (flash) 4000 MB

Hardware non-volatile memory 128 Kbytes

Program memory 16MB

Data memory 64MB

Software non-volatile memory 128 Kbytes

Type of memory card SD and SDHC up to 32 GB (All guaranteed properties are only valid

in connection with the WAGO 758-879/000-001 memory card.)

Memory card slot Push-push mechanism, sealable cover lid

Number of modules per node max. 4

Input and output process image (internal) max. 1000Worte/1000Worte

Input and output process image (MODBUS) max. 1000Worte/1000Worte

Indicators LED (SYS, RUN, I/O, U1 U7) red/green/orange: Status system,

750-8212_025-002

20.08.2019Page /3 18

Data sheet | Item number:750-8212/025-002

program, internal data bus, status programmable by user (can be
used via CODESYS library); LED (A, B) green: System power supply
status, field supply

System supply voltage

DC24V(-25 +30%);via wiring level (CAGE CLAMP connection)

®

Input current typ. at rated load (24 V) 550 mA

Total current for system supply 1700 mA

Field supply voltage DC24V(-25 +30%);via power jumper contacts

Current carrying capacity of the power jumper contacts 10 A

Number of outgoing power jumper contacts 3

Isolation 500 V system/supply

Connection data

Connection technology: communication/fieldbus Modbus TCP/UDP:2 x RJ-45;Modbus RTU:1 x D-Sub 9 socket;RS-

232 serial interface:1 x D-Sub 9 socket;RS-485 interface:1 x D-Sub
9 socket;Telecontrol protocols:1 x D-sub 9 socket;Telecontrol
protocol IEC 60870-5-104:1 x RJ-45;Telecontrol protocol IEC
61850:1 x RJ-45;Telecontrol protocol DNP3:1 x RJ-45 or D-sub 9
socket

Connection technology: system supply

2 x CAGE CLAMP

®

Connection technology: field supply

6 x CAGE CLAMP

®

Connection type (1) System/field supply

Solid conductor 0.08 2.5mm²/ 28 14AWG

Fine-stranded conductor 0.08 2.5mm²/ 28 14AWG

Strip length 8 9mm/ 0.31 0.35inch

Connection technology: Device configuration 1 x 4-pole male connector

Geometrical Data

Width 78.6mm/ 3.094inch

Height 71.9mm/ 2.831inch

Height from upper-edge of DIN-35 rail 64.7mm/ 2.547inch

Depth 100mm/ 3.937inch

Mechanical data

Weight 218.659 g

Color light gray

Housing material Polycarbonate, polyamide 6.6

Conformity marking CE

Environmental Requirements

Surrounding air (operating) temperature -20 60°C

Surrounding air (storage) temperature -40 85°C

750-8212_025-002

20.08.2019Page /4 18

Data sheet | Item number:750-8212/025-002

Protection class IP20

Degree of pollution (5) 2 per IEC 61131-2

Operating altitude without temperature derating: 0 2000 m; with temperature

derating: 2000 5000 m (0.5 K/100 m); max.: 5000 m

Relative air humidity (no condensation) 95 %

Relative humidity Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E

DIN 40046-721-3, taking a temperature range of −20 +60 °C into
consideration (except wind-driven precipitation, water and ice
formation)

Mounting position any

Type of mounting DIN-35 rail

Vibration resistance 4g per IEC 60068-2-6

Shock resistance 15g per IEC 60068-2-27

EMC immunity to interference acc. to EN 61000-6-2, marine applications

EMC emission of interference acc. to EN 61000-6-3, marine applications

Exposure to pollutants Per IEC 60068-2-42 and IEC 60068-2-43

Permissible H S contaminant concentration at a relative humidity 75

2

%

10 ppm

Permissible SO contaminant concentration at a relative humidity 75

2

%

25 ppm

Commercial data

Country of origin DE

GTIN 4055143765077

Customs Tariff No. 85371091990

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text Certificate name

ATEX

TUEV Nord Cert GmbH

EN 60079 TUEV_14_ATEX_148929_X

ATEX

TUEV Nord Cert GmbH

IEC 60079-0 IECEx_TUN_14.0035_X

UL

Underwriters Laboratories Inc. (HAZARDOUS
LOCATIONS)

ANSI/ISA 12.12.01 E198726 Sec.1

Country specific Approvals

Certificate

750-8212_025-002

20.08.2019Page /5 18

Data sheet | Item number:750-8212/025-002

Logo Approval Additional Approval Text name

KC

National Radio Research Agency

Article 58-2, Clause 3 MSIP-

REM-W43­PFC750

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 19­HG1821812­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAA00001J4

PRS

Polski Rejestr Statków

- TE/2237
/880590/19

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

Underwriters Laboratories Inc. (ORDINARY
LOCATIONS)

UL 61010-2-201 E175199

Sec11

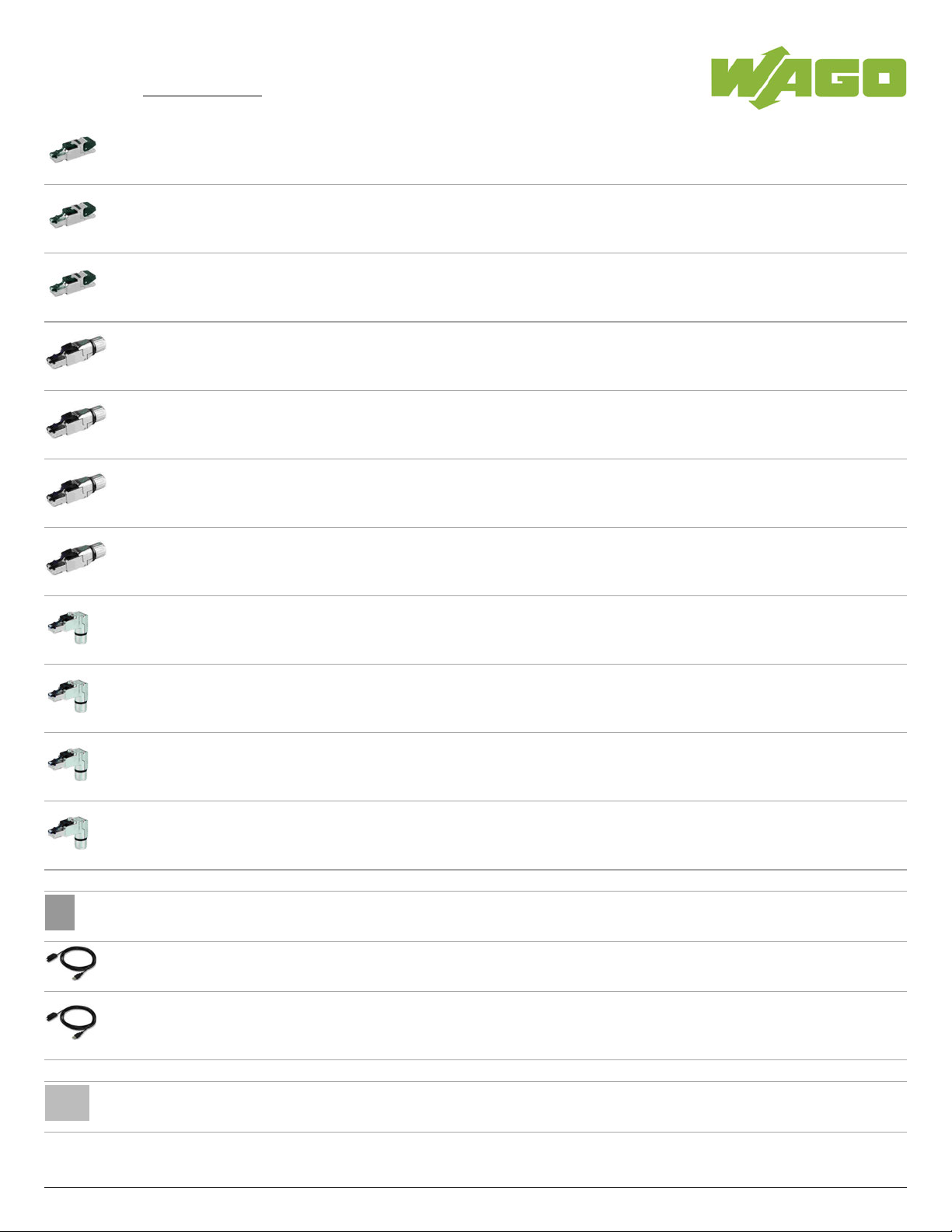

Compatible products

wiring and connectors

Item no.: 750-975

ETHERNET RJ-45 connector, IP20; ETHERNET 10/100 Mbit/s; for field assembly; light gray

750-975

Item no.: 750-977/000-011

Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568A; AWG 22

750-977

/000-011
