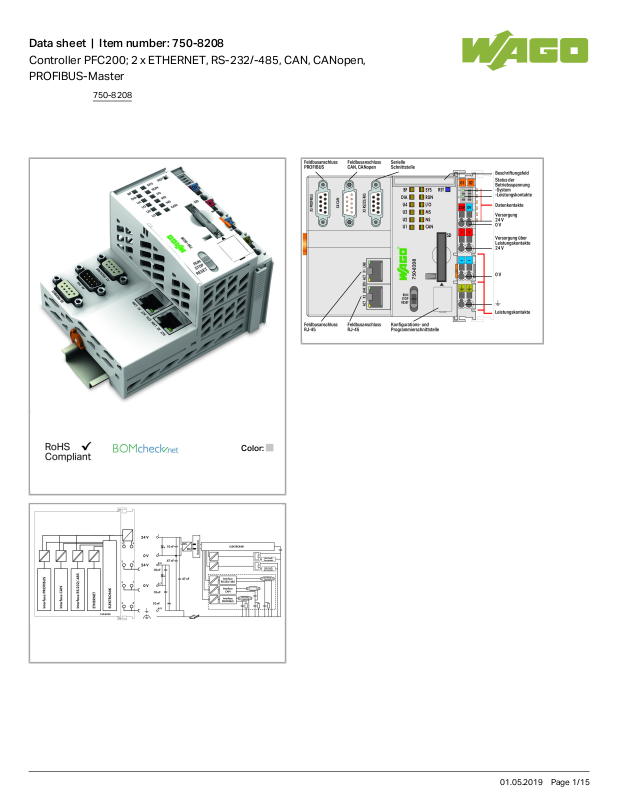

Data sheet | Item number:750-8208

Controller PFC200; 2 x ETHERNET, RS-232/-485, CAN, CANopen, PROFIBUS-Master

Color:

750-8208

01.05.2019Page /1 15

Data sheet | Item number:750-8208

Item description

The PFC200 Controller is a compact PLC for the modular WAGO-I/O-SYSTEM. Besides network and fieldbus interfaces, the controller supports all digital, analog and specialty modules found within the 750/753 Series.

Two ETHERNET interfaces and an integrated switch enable line topology wiring.

An integrated Webserver provides user configuration options, while displaying PFC200 status information.

Besides the processing industry and building automation, typical applications for the PFC200 include standard machinery and equipment control (e. g., packaging, bottling and manufacturing systems, as well as textile, metal and wood processing machines).

Programming per IEC 61131-3

Programmable via WAGO-I/O-PRO V2.3

Direct connection of WAGO I/O modules

2 x ETHERNET (configurable), RS-232/-485, CAN, CANopen, PROFIBUS DP Master

Linux operating system with RT‐Preempt patch

Configuration via CODESYS or Web-Based Management interface

Maintenance-free

Data

Technical Data

Communication PROFIBUS

CANopen Modbus (TCP, UDP) Ethernet Modbus RTU RS-232 serial interface

750-8208

01.05.2019Page /2 15

Data sheet | Item number:750-8208

RS-485 interface MQTT

Ethernet protocol DHCP

DNS NTP FTP FTPS SNMP HTTP HTTPS SSH

Visualization Web-Visu

Operating system Real-time Linux (with RT-Preempt patch)

CPU Cortex A8, 600 MHz

Programming languages per IEC 61131-3 Instruction List (IL)

Ladder Diagram (LD) Function Block Diagram (FBD), Continuous Function Chart (CFC) Structured Text (ST) Sequential Function Chart (SFC)

Programming environment WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)

Configuration options WAGO-I/O-CHECK

Web-based management

Baud rate (communication/fieldbus 1) 10/100Mbit/s

Baud rate ETHERNET:10/100Mbit/s

Transmission medium (communication/fieldbus) ETHERNET:Twisted Pair S-UTP; 100 Ω; Cat. 5; Line length (max.):

100 m

Main memory (RAM) 256 MB

Internal memory (flash) 256 MB

Hardware non-volatile memory 128 Kbytes

Program memory 16MB

Data memory 64MB

Software non-volatile memory 128 Kbytes

Type of memory card SD and SDHC up to 32 GB (All guaranteed properties are only valid

in connection with the WAGO 758-879/000-001 memory card.)

Memory card slot Push-push mechanism, sealable cover lid

Number of modules per node max. 250

Number of I/O modules without bus extension max. 64

Input and output process image (internal) max. 1000Worte/1000Worte

Input and output process image (MODBUS) max. 1000Worte/1000Worte

Input and output process image (PROFIBUS) max. 2500Worte/2500Worte

Input and output process image (CAN) max. 2000Worte/2000Worte

Indicators LED (SYS, RUN, I/O, CAN, BF, DIA, U1 … U4) red/green/orange:

Status system, program, internal data bus, CANopen, PROFIBUS, PROFIBUS diagnostics, status programmable by user (can be used via CODESYS library); LED (A, B) green: System power supply status, field supply

750-8208

01.05.2019Page /3 15

Data sheet | Item number:750-8208

System supply voltage

DC24V(-25 … +30%);via wiring level (CAGE CLAMP connection)

Input current typ. at rated load (24 V) 670 mA

Total current for system supply 1700 mA

Field supply voltage DC24V(-25 … +30%);via power jumper contacts

Current carrying capacity of the power jumper contacts 10 A

Number of outgoing power jumper contacts 3

Isolation 500 V system/supply

Connection data

Connection technology: communication/fieldbus PROFIBUS:1 x D-Sub 9 socket;CANopen:1 x D-Sub 9

connector;Modbus TCP/UDP:2 x RJ-45;Modbus RTU:1 x D-Sub 9 socket;RS-232 serial interface:1 x D-sub 9 socket;RS-485 interface:1 x D-Sub 9 socket

Connection technology: system supply

2 x CAGE CLAMP

Connection technology: field supply

6 x CAGE CLAMP

Connection type (1) System/field supply

Solid conductor 0.08 … 2.5mm²/ 28 … 14AWG

Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 14AWG

Strip length 8 … 9mm/ 0.31 … 0.35inch

Connection technology: Device configuration 1 x 4-pole male connector

Geometrical Data

Width 112mm/ 4.409inch

Height 71.9mm/ 2.831inch

Height from upper-edge of DIN-35 rail 64.7mm/ 2.547inch

Depth 100mm/ 3.937inch

Mechanical data

Weight 259 g

Color light gray

Housing material Polycarbonate, polyamide 6.6

Conformity marking 1

Environmental Requirements

Surrounding air (operating) temperature 0 … 55°C

Surrounding air (storage) temperature -40 … 85°C

Protection class IP20

Degree of pollution (5) 2 per IEC 61131-2

Operating altitude without temperature derating: 0 … 2000 m; with temperature

derating: 2000 … 5000 m (0.5 K/100 m); max.: 5000 m

750-8208

01.05.2019Page /4 15

Data sheet | Item number:750-8208

Relative air humidity (no condensation) 95 %

Mounting position any

Type of mounting DIN-35 rail

Vibration resistance acc. to IEC 60068-2-6

Shock resistance 15g per IEC 60068-2-27

EMC immunity to interference acc. to EN 61000-6-2, marine applications

EMC emission of interference acc. to EN 61000-6-3, marine applications

Exposure to pollutants Per IEC 60068-2-42 and IEC 60068-2-43

Fire load 0MJ

Permissible H S contaminant concentration at a relative humidity 75

10 ppm

Permissible SO contaminant concentration at a relative humidity 75

25 ppm

Commercial data

Country of origin DE

GTIN 4055143554220

Customs Tariff No. 85371091990

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text Certificate name

ATEX

TUEV Nord Cert GmbH

IEC 60079-0 IECEx_TUN_14.0035_X

ATEX

TUEV Nord Cert GmbH

EN 60079 TUEV_14_ATEX_148929_X

Country specific Approvals

Logo Approval Additional Approval Text

Certificate name

National Radio Research Agency

Article 58-2, Clause 3 MSIP-

REM-W43PFC750

Ship Approvals

Logo Approval Additional Approval Text

Certificate name

ABS

- 19-
