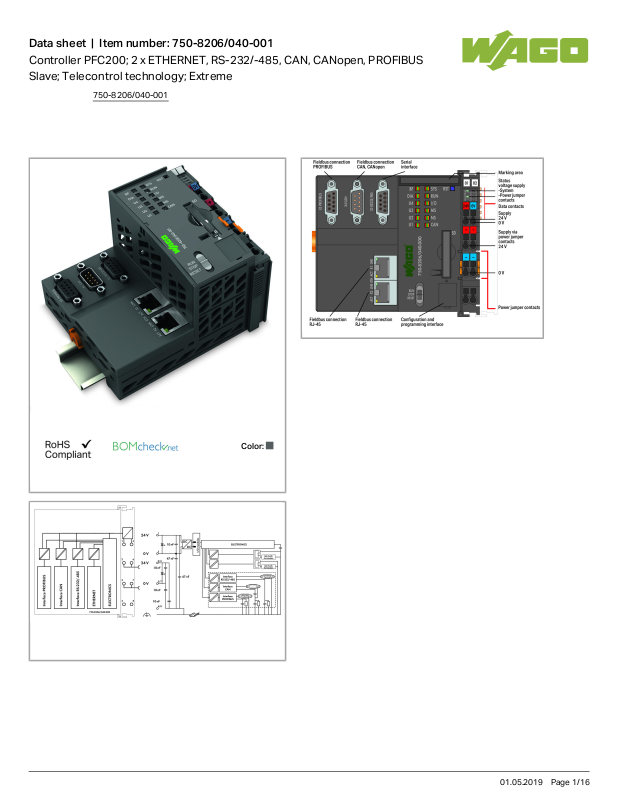

Wago 750-8206/040-001 Data Sheet
Data sheet | Item number:750-8206/040-001
Controller PFC200; 2 x ETHERNET, RS-232/-485, CAN, CANopen, PROFIBUS
Slave; Telecontrol technology; Extreme
Color:
750-8206/040-001
01.05.2019Page /1 16
Data sheet | Item number:750-8206/040-001
Item description
The PFC200 Controller is a compact PLC for the modular WAGO-I/O-SYSTEM. Besides network and fieldbus interfaces, the controller supports all
digital, analog and specialty modules found within the 750/753 Series.
Two ETHERNET interfaces and an integrated switch enable line topology wiring.
An integrated Webserver provides user configuration options, while displaying PFC200 status information.
Besides the processing industry and building automation, typical applications for the PFC200 include standard machinery and equipment control (e.
g., packaging, bottling and manufacturing systems, as well as textile, metal and wood processing machines).
Programming per IEC 61131-3
Programmable via WAGO-I/O-PRO V2.3
Direct connection of WAGO I/O modules
2 x ETHERNET (configurable), RS-232/-485, CAN, CANopen, PROFIBUS DP Slave
Linux operating system with RT‐Preempt patch
Configuration via CODESYS or Web-Based Management interface
Maintenance-free
The device is ideal for operation in extreme environments:
Extended temperature range
Greater immunity to impulse voltages and electromagnetic interference
Higher vibration and shock resistance
750-8206/040-001
01.05.2019Page /2 16
Data sheet | Item number:750-8206/040-001
Data
Technical Data
Communication PROFIBUS
CANopen
Modbus (TCP, UDP)
Ethernet
Modbus RTU
Telecontrol protocols
RS-232 serial interface
RS-485 interface
MQTT
Ethernet protocol DHCP
DNS
NTP
FTP
FTPS
SNMP
HTTP
HTTPS
SSH
Telecontrol protocols IEC 60870-5-101/-103/-104
IEC 61400-25
IEC 61850-7
DNP3
Visualization Web-Visu
Operating system Real-time Linux (with RT-Preempt patch)
CPU Cortex A8, 600 MHz
Programming languages per IEC 61131-3 Instruction List (IL)
Ladder Diagram (LD)
Function Block Diagram (FBD), Continuous Function Chart (CFC)
Structured Text (ST)
Sequential Function Chart (SFC)
Programming environment WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
Configuration options e!COCKPIT
WAGO-I/O-CHECK
Web-based management
e!RUNTIME library
CODESYS Library
Baud rate (communication/fieldbus 1) 10/100Mbit/s
Baud rate ETHERNET:10/100Mbit/s
Transmission medium (communication/fieldbus) ETHERNET:Twisted Pair S-UTP; 100 Ω; Cat. 5; Line length (max.):
100 m
Main memory (RAM) 256 MB
Internal memory (flash) 256 MB
Hardware non-volatile memory 128 Kbytes
Program memory 16MB
750-8206/040-001
01.05.2019Page /3 16
Data sheet | Item number:750-8206/040-001
Data memory 64MB
Software non-volatile memory 128 Kbytes
Type of memory card SD and SDHC up to 32 GB (All guaranteed properties are only valid
in connection with the WAGO 758-879/000-001 memory card.)
Memory card slot Push-push mechanism, sealable cover lid
Number of modules per node max. 64
Input and output process image (internal) max. 1000Worte/1000Worte
Input and output process image (MODBUS) max. 1000Worte/1000Worte
Input and output process image (PROFIBUS) max. 244Byte/244Byte
Input and output process image (CAN) max. 2000Worte/2000Worte
Indicators LED (SYS, RUN, I/O, CAN, BF, DIA, U1 … U4) red/green/orange:
Status system, program, internal data bus, CANopen, PROFIBUS,
PROFIBUS diagnostics, status programmable by user (can be used
via CODESYS library); LED (A, B) green: System power supply status,
field supply
System supply voltage
DC24V(-25 … +30%);via wiring level (CAGE CLAMP connection).
®
Specified values for ambient temperatures under laboratory
conditions +15 … +35 °C. For −40 … +55 °C: 24 V (−25 … +20 %). For
+55 … +70 °C: 24 V (−25 … +10 %). Lower limit in all temperature
ranges: −27.5 % (including 15 % residual ripple)
Input current typ. at rated load (24 V) 550 mA
Efficiency of the power supply (typ.) at nominal load (24 V) 90 %
Current consumption, system supply (5 V) 600 mA
Total current for system supply 1700 mA
Field supply voltage DC24V;via power jumper contacts
Current carrying capacity of the power jumper contacts 10 A
Number of outgoing power jumper contacts 2
Ratings per IEC/EN 60664-1
Rated surge voltage 1 kV
Connection data
Connection technology: communication/fieldbus PROFIBUS:1 x D-Sub 9 socket;CANopen:1 x D-Sub 9
connector;Modbus TCP/UDP:2 x RJ-45;Modbus RTU:1 x D-Sub 9
socket;RS-232 serial interface:1 x D-sub 9 socket;RS-485
interface:1 x D-Sub 9 socket;Telecontrol protocols:1 x D-Sub 9
socket;Telecontrol protocol IEC 60870-5-104:1 x
?;Fernwirkprotokoll IEC 61850:1 x RJ-45;Fernwirkprotokoll DNP3:1
x RJ-45 oder Buchse D-Sub 9
Connection technology: system supply
2 x CAGE CLAMP
®
Connection technology: field supply
4 x CAGE CLAMP
®
Connection type (1) System/field supply
Solid conductor 0.25 … 2.5mm²/ 24 … 14AWG
Fine-stranded conductor 0.25 … 2.5mm²/ 24 … 14AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
750-8206/040-001
01.05.2019Page /4 16
Data sheet | Item number:750-8206/040-001
Strip length 8 … 9mm/ 0.31 … 0.35inch
Connection technology: Device configuration 1 x 4-pole male connector
Geometrical Data
Width 112mm/ 4.409inch
Height 71.9mm/ 2.831inch
Height from upper-edge of DIN-35 rail 64.7mm/ 2.547inch
Depth 100mm/ 3.937inch
Mechanical data
Weight 262 g
Color dark gray
Housing material Polycarbonate, polyamide 6.6
Conformity marking 1
Environmental Requirements
Surrounding air (operating) temperature -40 … 70°C
Surrounding air (storage) temperature -40 … 85°C
Protection class IP20
Degree of pollution (5) 2 per IEC 61131-2
Operating altitude without temperature derating: 0 … 2000 m; with temperature
derating: 2000 … 5000 m (0.5 K/100 m); max.: 5000 m
Relative air humidity (no condensation) 95 %
Relative humidity Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E
DIN 40046-721-3 (except wind-driven precipitation, water and ice
formation)
Mounting position horizontal (standing/lying) or vertical
Type of mounting DIN-35 rail
Vibration resistance acc. to IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-
3-1, -3, EN 50155, EN 61373
Shock resistance acc. to IEC 60068-2-27 (15g/11 ms/half-sine/1000 shocks; 25g/6 ms
/1000 shocks), EN 50155, EN 61373
EMC immunity to interference acc. to EN 61000-6-1, -2, EN 61131-2, marine applications, EN
50121-3-2, -4, -5, EN 60255-26, EN 60870-2-1, EN 61850-3, IEC
61000-6-5, IEEE 1613, VDEW: 1994
EMC emission of interference acc. to EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine
applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 501214, -5
Exposure to pollutants Per IEC 60068-2-42 and IEC 60068-2-43
Permissible H S contaminant concentration at a relative humidity 75
2
%
10 ppm
Permissible SO contaminant concentration at a relative humidity 75
2
%
25 ppm
750-8206/040-001
01.05.2019Page /5 16
