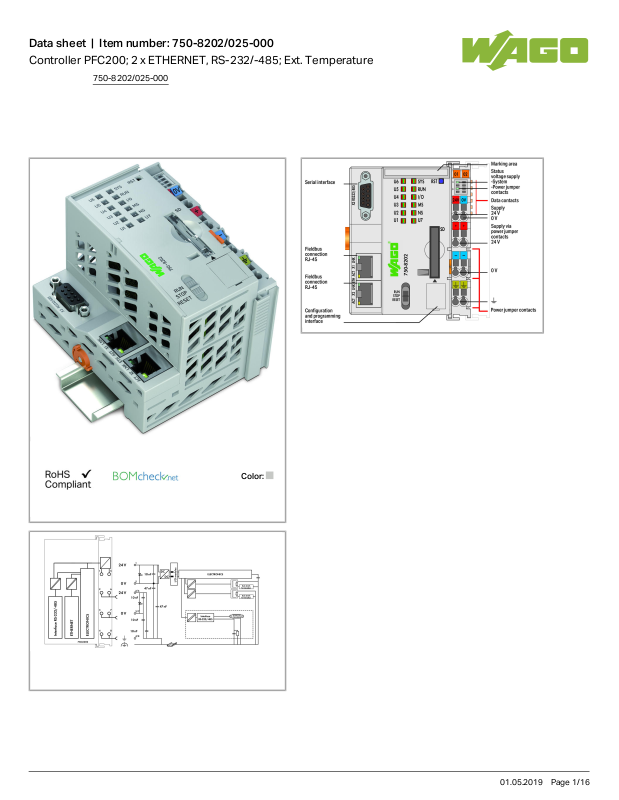

Wago 750-8202/025-000 Data Sheet

Data sheet | Item number:750-8202/025-000
Controller PFC200; 2 x ETHERNET, RS-232/-485; Ext. Temperature
Color:
750-8202/025-000
01.05.2019Page /1 16

Item description

The PFC200 Controller is a compact PLC for the modular WAGO-I/O-SYSTEM. Besides network and fieldbus interfaces, the controller supports all digital, analog and specialty modules found within the 750/753 Series.
Two ETHERNET interfaces and an integrated switch enable line topology wiring.
An integrated Webserver provides user configuration options, while displaying PFC200 status information.
Besides the processing industry and building automation, typical applications for the PFC200 include standard machinery and equipment control (e. g., packaging, bottling and manufacturing systems, as well as textile, metal and wood processing machines).
Programming per IEC 61131-3
Programmable via WAGO-I/O-PRO V2.3 or COCKPITe!
Direct connection of WAGO I/O modules
2 x ETHERNET (configurable), RS-232/-485
Linux operating system with RT‐Preempt patch
Configuration via CODESYS, COCKPIT or Web-Based Management user interfacee!
Maintenance-free
750-8202/025-000
01.05.2019Page /2 16

Data

Technical Data

Communication Modbus (TCP, UDP)
Ethernet Modbus RTU RS-232 serial interface RS-485 interface
Ethernet protocol DHCP
DNS NTP FTP FTPS SNMP HTTP HTTPS SSH
Visualization Web-Visu
Operating system Real-time Linux (with RT-Preempt patch)
CPU Cortex A8, 600 MHz
Programming languages per IEC 61131-3 Instruction List (IL)
Ladder Diagram (LD) Function Block Diagram (FBD), Continuous Function Chart (CFC) Structured Text (ST) Sequential Function Chart (SFC)
Programming environment e!COCKPIT (based on CODESYS V3)
WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
Configuration options e!COCKPIT
WAGO-I/O-CHECK Web-based management e!RUNTIME library CODESYS Library
Baud rate (communication/fieldbus 1) 10/100Mbit/s
Baud rate ETHERNET:10/100Mbit/s
Transmission medium (communication/fieldbus) ETHERNET:Twisted Pair S-UTP; 100 Ω; Cat. 5; Line length (max.):
100 m
Main memory (RAM) 256 MB
Internal memory (flash) 256 MB
Hardware non-volatile memory 128 Kbytes
Program memory CODESYS V2:16MB;e!RUNTIME:60MB (Program and data memory
(dynamically distributed))
Data memory CODESYS V2:64MB;e!RUNTIME:60MBProgram and data memory
(dynamically distributed)
Software non-volatile memory 128 Kbytes
Type of memory card SD and SDHC up to 32 GB (All guaranteed properties are only valid
in connection with the WAGO 758-879/000-001 memory card.)
750-8202/025-000
01.05.2019Page /3 16
Memory card slot Push-push mechanism, sealable cover lid
Number of modules per node max. 250
Number of I/O modules without bus extension max. 64
Input and output process image (internal) max. 1000Worte/1000Worte
Input and output process image (MODBUS) max. 1000Worte/1000Worte
Indicators LED (SYS, RUN, I/O, U1 … U7) red/green/orange: Status system,
program, internal data bus, status programmable by user (can be used via CODESYS library); LED (A, B) green: System power supply status, field supply
System supply voltage
DC24V(-25 … +30%);via wiring level (CAGE CLAMP connection)
®
Input current typ. at rated load (24 V) 550 mA
Total current for system supply 1700 mA
Field supply voltage DC24V(-25 … +30%);via power jumper contacts
Current carrying capacity of the power jumper contacts 10 A
Number of outgoing power jumper contacts 3
Isolation 500 V system/supply

Connection data

Connection technology: communication/fieldbus Modbus TCP/UDP:2 x RJ-45;Modbus RTU:1 x D-Sub 9 socket;RS-
232 serial interface:1 x D-Sub 9 socket;RS-485 interface:1 x D-Sub 9 socket
Connection technology: system supply
2 x CAGE CLAMP
®
Connection technology: field supply
6 x CAGE CLAMP
®
Connection type (1) System/field supply
Solid conductor 0.08 … 2.5mm²/ 28 … 14AWG
Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 14AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
Connection technology: Device configuration 1 x 4-pole male connector

Geometrical Data

Width 78.6mm/ 3.094inch
Height 71.9mm/ 2.831inch
Height from upper-edge of DIN-35 rail 64.7mm/ 2.547inch
Depth 100mm/ 3.937inch

Mechanical data

Weight 210 g
Color light gray
Housing material Polycarbonate, polyamide 6.6
Conformity marking 1
750-8202/025-000
01.05.2019Page /4 16
Environmental Requirements
Surrounding air (operating) temperature -20 … 60°C
Surrounding air (storage) temperature -40 … 85°C
Protection class IP20
Degree of pollution (5) 2 per IEC 61131-2
Operating altitude without temperature derating: 0 … 2000 m; with temperature
derating: 2000 … 5000 m (0.5 K/100 m); max.: 5000 m
Relative air humidity (no condensation) 95 %
Relative humidity Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E
DIN 40046-721-3, taking a temperature range of −20 … +60 °C into consideration (except wind-driven precipitation, water and ice formation)
Mounting position any
Type of mounting DIN-35 rail
Vibration resistance 4g per IEC 60068-2-6
Shock resistance 15g per IEC 60068-2-27
EMC immunity to interference acc. to EN 61000-6-2, marine applications
EMC emission of interference acc. to EN 61000-6-3, marine applications
Exposure to pollutants Per IEC 60068-2-42 and IEC 60068-2-43
Permissible H S contaminant concentration at a relative humidity 75
2
%
10 ppm
Permissible SO contaminant concentration at a relative humidity 75
2
%
25 ppm

Commercial data

Product Group 15 (Remote I/O)
Country of origin DE
GTIN 4055143206259
Customs Tariff No. 85371091990

Approvals / Certificates

Ex-Approvals
Logo Approval Additional Approval Text Certificate name
ATEX
TUEV Nord Cert GmbH
EN 60079-0 TUEV_14_ATEX_148929_X
ATEX
TUEV Nord Cert GmbH
IEC 60079-0 IECEx_TUN_14.0035_X
ATEX
IEC 60079-0 IECEx_TUN_14.0035_X
750-8202/025-000
01.05.2019Page /5 16
