Wago 750-8202/000-022 Data Sheet

Data sheet | Item number:750-8202/000-022

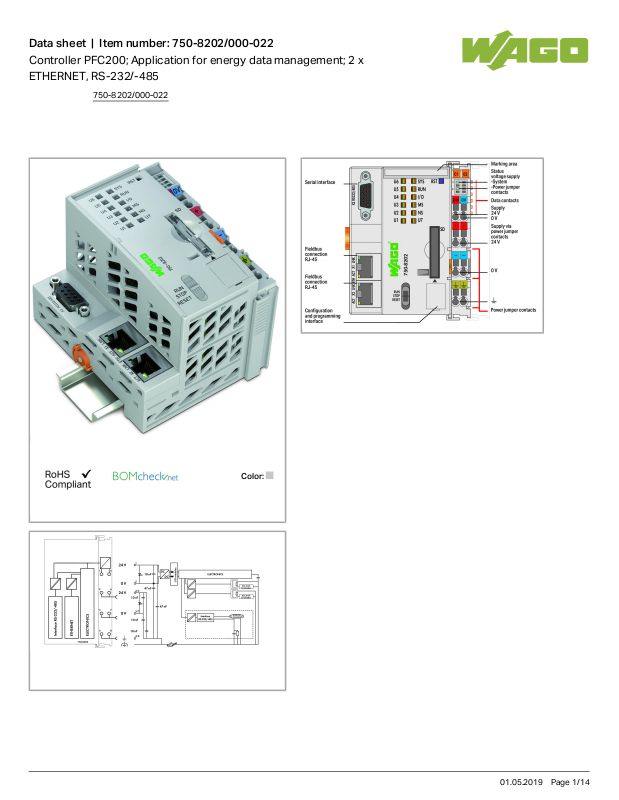

Controller PFC200; Application for energy data management; 2 x ETHERNET, RS-232/-485

Color:

750-8202/000-022

01.05.2019Page /1 14

Data sheet | Item number:750-8202/000-022

Item description

The controllers are designed for the processing of WAGO applications. They recognize these controllers by a special version of the item number.

The application can be downloaded from the respective item on our website. Additional information can be obtained from the application documentation.

The controllers can also be used with their own applications as they offer all possibilities of the respective standard variant beyond the use of the WAGO application(s).

Programming per IEC 61131-3

Programmable via WAGO-I/O-PRO V2.3 or COCKPITe!

Direct connection of WAGO I/O modules

2 x ETHERNET (configurable), RS-232/-485

Linux operating system with RT‐Preempt patch

Configuration via CODESYS, COCKPIT or Web-Based Management user interfacee!

Maintenance-free

Note:

Download and register the software:

wago.com/applicationcontroller

Data

Technical Data

Communication Modbus (TCP, UDP)

Ethernet Modbus RTU

750-8202/000-022

01.05.2019Page /2 14

Data sheet | Item number:750-8202/000-022

RS-232 serial interface RS-485 interface EtherNet/IP-Adapter (Slave), Bibliothek für e!RUNTIME

Ethernet protocol DHCP

DNS NTP FTP FTPS SNMP HTTP HTTPS SSH

Visualization Web-Visu

Operating system Real-time Linux (with RT-Preempt patch)

CPU Cortex A8, 600 MHz

Programming languages per IEC 61131-3 Instruction List (IL)

Ladder Diagram (LD) Function Block Diagram (FBD), Continuous Function Chart (CFC) Structured Text (ST) Sequential Function Chart (SFC)

Programming environment e!COCKPIT (based on CODESYS V3)

WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)

Configuration options e!COCKPIT

WAGO-I/O-CHECK Web-based management

Baud rate (communication/fieldbus 1) 10/100Mbit/s

Baud rate ETHERNET:10/100Mbit/s

Transmission medium (communication/fieldbus) ETHERNET:Twisted Pair S-UTP; 100 Ω; Cat. 5; Line length (max.):

100 m

Main memory (RAM) 256 MB

Internal memory (flash) 256 MB

Hardware non-volatile memory 128 Kbytes

Program memory CODESYS V2:16MB;e!RUNTIME:60MB (Program and data memory

(dynamically distributed))

Data memory CODESYS V2:64MB;e!RUNTIME:60MBProgram and data memory

(dynamically distributed)

Software non-volatile memory 128 Kbytes

Type of memory card SD and SDHC up to 32 GB (All guaranteed properties are only valid

in connection with the WAGO 758-879/000-001 memory card.)

Memory card slot Push-push mechanism, sealable cover lid

Number of modules per node max. 250

Number of I/O modules without bus extension max. 64

Input and output process image (internal) max. 1000Worte/1000Worte

Input and output process image (MODBUS) max. 1000Worte/1000Worte

Indicators LED (SYS, RUN, I/O, U1 … U7) red/green/orange: Status system,

program, internal data bus, status programmable by user (can be

750-8202/000-022

01.05.2019Page /3 14

Data sheet | Item number:750-8202/000-022

used via CODESYS library); LED (A, B) green: System power supply status, field supply

System supply voltage

DC24V(-25 … +30%);via wiring level (CAGE CLAMP connection)

Input current typ. at rated load (24 V) 550 mA

Total current for system supply 1700 mA

Field supply voltage DC24V(-25 … +30%);via power jumper contacts

Current carrying capacity of the power jumper contacts 10 A

Number of outgoing power jumper contacts 3

Isolation 500 V system/supply

Connection data

Connection technology: communication/fieldbus Modbus TCP/UDP:2 x RJ-45;Modbus RTU:1 x D-Sub 9 socket;RS-

232 serial interface:1 x D-Sub 9 socket;RS-485 interface:1 x D-Sub 9 socket

Connection technology: system supply

2 x CAGE CLAMP

Connection technology: field supply

6 x CAGE CLAMP

Connection type (1) System/field supply

Solid conductor 0.08 … 2.5mm²/ 28 … 14AWG

Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 14AWG

Strip length 8 … 9mm/ 0.31 … 0.35inch

Connection technology: Device configuration 1 x 4-pole male connector

Geometrical Data

Width 78.6mm/ 3.094inch

Height 71.9mm/ 2.831inch

Height from upper-edge of DIN-35 rail 64.7mm/ 2.547inch

Depth 100mm/ 3.937inch

Mechanical data

Weight 211.2 g

Color light gray

Housing material Polycarbonate, polyamide 6.6

Conformity marking 1

Environmental Requirements

Surrounding air (operating) temperature 0 … 55°C

Surrounding air (storage) temperature -40 … 85°C

Protection class IP20

Degree of pollution (5) 2 per IEC 61131-2

Operating altitude without temperature derating: 0 … 2000 m; with temperature

750-8202/000-022

01.05.2019Page /4 14

Data sheet | Item number:750-8202/000-022

derating: 2000 … 5000 m (0.5 K/100 m); max.: 5000 m

Relative air humidity (no condensation) 95 %

Mounting position any

Type of mounting DIN-35 rail

Vibration resistance acc. to IEC 60068-2-6

Shock resistance 15g per IEC 60068-2-27

EMC immunity to interference acc. to EN 61000-6-2, marine applications

EMC emission of interference acc. to EN 61000-6-3, marine applications

Exposure to pollutants Per IEC 60068-2-42 and IEC 60068-2-43

Permissible H S contaminant concentration at a relative humidity 75

10 ppm

Permissible SO contaminant concentration at a relative humidity 75

25 ppm

Commercial data

Country of origin DE

GTIN 4055143549196

Customs Tariff No. 85371091990

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text Certificate name

ATEX

TUEV Nord Cert GmbH

IEC 60079-0 IECEx_TUN_14.0035_X

ATEX

TUEV Nord Cert GmbH

EN 60079-0 TUEV_14_ATEX_148929_X

Compatible products

power supply

Item no.: 787-1012
