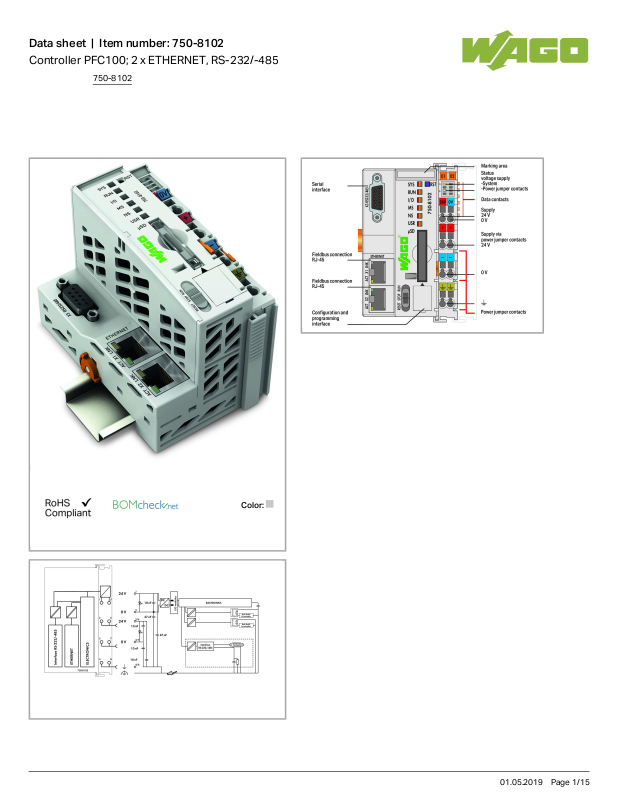

Data sheet | Item number:750-8102
Controller PFC100; 2 x ETHERNET, RS-232/-485
Color:
750-8102
01.05.2019Page /1 15
Page 2
Data sheet | Item number:750-8102
Item description
The PFC100 Controller is a compact PLC for the modular WAGO-I/O-SYSTEM. Besides network and fieldbus interfaces, the controller supports all
digital, analog and specialty modules found within the 750/753 Series.
Two ETHERNET interfaces and an integrated switch enable line topology wiring.
An integrated Webserver provides user configuration options, while displaying PFC100 status information.
Besides the processing industry and building automation, typical applications for the PFC100 include standard machinery and equipment control (e.
g., packaging, bottling and manufacturing systems, as well as textile, metal and wood processing machines).
Programming per IEC 61131-3
Programmable via COCKPITe!
Direct connection of WAGO I/O modules
2 x ETHERNET (configurable), RS-232/-485
Linux 3.18 operating system with RT‐Preemption patch
750-8102
01.05.2019Page /2 15
Page 3
Data sheet | Item number:750-8102
Configuration via COCKPIT or Web-Based Management user interfacee!
Maintenance-free
Data
Technical Data
Communication Modbus (TCP, UDP)
Ethernet
Modbus RTU
RS-232 serial interface
RS-485 interface
EtherNet/IP-Adapter (Slave), Bibliothek für e!RUNTIME
MQTT
Ethernet protocol DHCP
DNS
NTP
FTP
FTPS
SNMP
HTTP
HTTPS
SSH
Visualization Web-Visu
Operating system Real-time Linux 3.18 (with RT-Preemption patch)
CPU Cortex A8, 600 MHz
Programming languages per IEC 61131-3 Instruction List (IL)
Ladder Diagram (LD)
Function Block Diagram (FBD), Continuous Function Chart (CFC)
Structured Text (ST)
Sequential Function Chart (SFC)
Programming environment e!COCKPIT (based on CODESYS V3)
Configuration options e!COCKPIT
WAGO-I/O-CHECK
Web-based management
Baud rate (communication/fieldbus 1) 10/100Mbit/s
Baud rate ETHERNET:10/100Mbit/s
Transmission medium (communication/fieldbus) ETHERNET:Twisted Pair S-UTP; 100 Ω; Cat. 5; Line length (max.):
100 m
Hardware non-volatile memory 64 Kbytes
Program memory 12MB (Program and data memory (dynamically distributed))
Data memory 12MBProgram and data memory (dynamically distributed)
Software non-volatile memory 128 Kbytes
Type of memory card microSD up to 32 GB (all guaranteed properties only valid with
WAGO 758-879/000-3102 memory card)
Memory card slot Push-push mechanism, sealable cover lid
Number of modules per node max. 250
Number of I/O modules without bus extension max. 64
750-8102
01.05.2019Page /3 15
Page 4
Data sheet | Item number:750-8102
Input and output process image (internal) max. 1000Worte/1000Worte
Input and output process image (MODBUS) max. 32000Worte/32000Worte
Indicators LED (SYS, RUN, I/O, USR) red/green/orange: Status system,
program, internal data bus, status programmable by user (can be
used via CODESYS library); LED (A, B) green: System power supply
status, field supply
System supply voltage
DC24V(-25 … +30%);via wiring level (CAGE CLAMP connection)
®
Input current typ. at rated load (24 V) 550 mA
Total current for system supply 1700 mA
Field supply voltage DC24V(-25 … +30%);via power jumper contacts
Current carrying capacity of the power jumper contacts 10 A
Number of outgoing power jumper contacts 3
Isolation 500 V system/supply
Connection data
Connection technology: communication/fieldbus Modbus TCP/UDP:2 x RJ-45;Modbus RTU:1 x D-Sub 9 socket;RS-
232 serial interface:1 x D-Sub 9 socket;RS-485 interface:1 x D-Sub
9 socket
Connection technology: system supply
2 x CAGE CLAMP
®
Connection technology: field supply
6 x CAGE CLAMP
®
Connection type (1) System/field supply
Solid conductor 0.08 … 2.5mm²/ 28 … 14AWG
Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 14AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
Connection technology: Device configuration 1 x 4-pole male connector
Geometrical Data
Width 61.5mm/ 2.421inch
Height 71.9mm/ 2.831inch
Height from upper-edge of DIN-35 rail 64.7mm/ 2.547inch
Depth 100mm/ 3.937inch
Mechanical data
Weight 163 g
Color light gray
Housing material Polycarbonate, polyamide 6.6
Conformity marking 1
Environmental Requirements
Surrounding air (operating) temperature 0 … 55°C
750-8102
01.05.2019Page /4 15
Page 5
Data sheet | Item number:750-8102
Surrounding air (storage) temperature -40 … 85°C
Protection class IP20
Degree of pollution (5) 2 per IEC 61131-2
Operating altitude without temperature derating: 0 … 2000 m; with temperature
derating: 2000 … 5000 m (0.5 K/100 m); max.: 5000 m
Relative air humidity (no condensation) 95 %
Mounting position any
Type of mounting DIN-35 rail
Vibration resistance 4g per IEC 60068-2-6
Shock resistance 15g per IEC 60068-2-27
EMC immunity to interference acc. to EN 61000-6-2, marine applications
EMC emission of interference acc. to EN 61000-6-3, marine applications
Exposure to pollutants Per IEC 60068-2-42 and IEC 60068-2-43
Fire load 0.45 MJ
Permissible H S contaminant concentration at a relative humidity 75
2
%
10 ppm
Permissible SO contaminant concentration at a relative humidity 75
2
%
25 ppm
Commercial data
Country of origin DE
GTIN 4055143351829
Customs Tariff No. 85371091990
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text Certificate name
ATEX
TUEV Nord Cert GmbH
EN 60079-0 TUEV_14_ATEX_148929_X
ATEX
TUEV Nord Cert GmbH
IEC 60079-0 IECEx_TUN_14.0035_X
ATEX
TUEV Nord Cert GmbH
EN 60079-0 TUEV_14_ATEX_148929_X
ATEX
TUEV Nord Cert GmbH
IEC 60079-0 IECEx_TUN_14.0035_X
750-8102
01.05.2019Page /5 15
Page 6
Data sheet | Item number:750-8102
UL
Underwriters Laboratories Inc. (HAZARDOUS
LOCATIONS)
ANSI/ISA 12.12.01 E198726 Sec.1
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
KC
National Radio Research Agency
Article 58-2, Clause 3 MSIP-
REM-W43PFC750
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
- 19HG1821926
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAA0000194
PRS
Polski Rejestr Statków
- TE/2236
/880590/19
PRS
Polski Rejestr Statków
- TE/2210
/880590/18
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UL
UL International Netherlands B.V. (ORDINARY
LOCATIONS)
UL 508 E175199
Sec.1
Compatible products
750-8102
01.05.2019Page /6 15
Page 7
Data sheet | Item number:750-8102
General accessories
Item no.: 750-921
Bluetooth® Adapter
750-921
Item no.: 750-923
Configuration cable; USB connector; Length: 2.5 m
750-923
Item no.: 750-923/000-001
Configuration cable; USB connector; Length: 5 m
750-923
/000-001
Marking accessories
Item no.: 2009-145
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
Item no.: 2009-145/000-002
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-002
Item no.: 2009-145/000-005
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-005
Item no.: 2009-145/000-006
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-006
Item no.: 2009-145/000-007
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-007
Item no.: 2009-145/000-012
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-012
Item no.: 2009-145/000-023
Mini-WSB Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-023
Item no.: 2009-145/000-024
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-024
Item no.: 248-501
Miniature WSB Quick marking system; plain; Marker width 5 mm; 10 strips with 10 markers per card
248-501
Item no.: 248-501/000-002
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-002
Item no.: 248-501/000-005
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-005
750-8102
01.05.2019Page /7 15
Page 8
Data sheet | Item number:750-8102

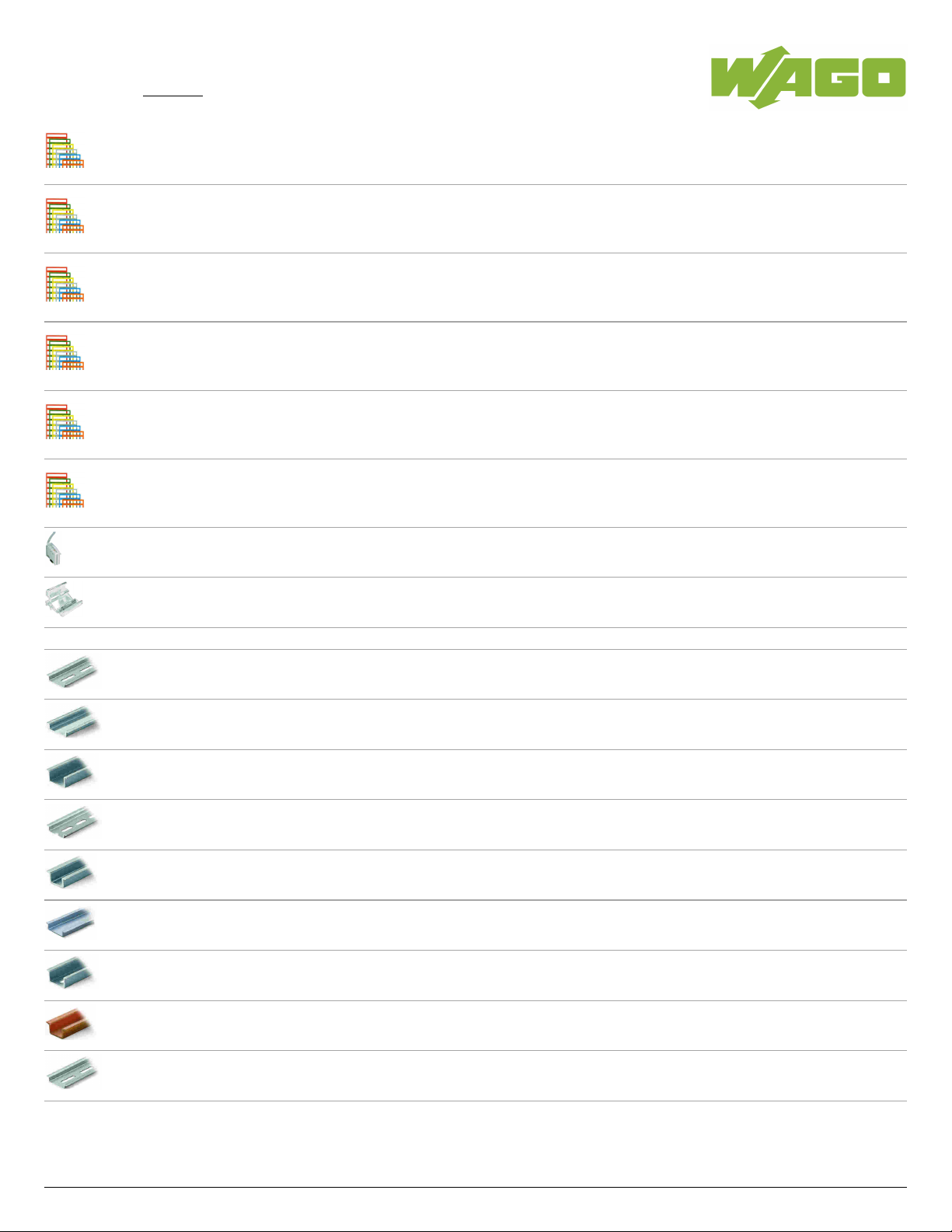

Item no.: 248-501/000-006
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-006
Item no.: 248-501/000-007
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-007
Item no.: 248-501/000-012
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-012
Item no.: 248-501/000-017
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-017
Item no.: 248-501/000-023
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-023
Item no.: 248-501/000-024
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-024
Item no.: 750-103
Group marker carrier
750-103
Item no.: 750-107
Group marker carrier
750-107
Carrier rail
Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm
210-112
Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm
210-115
Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
Item no.: 210-504
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715
210-504
750-8102
01.05.2019Page /8 15
Page 9
Data sheet | Item number:750-8102

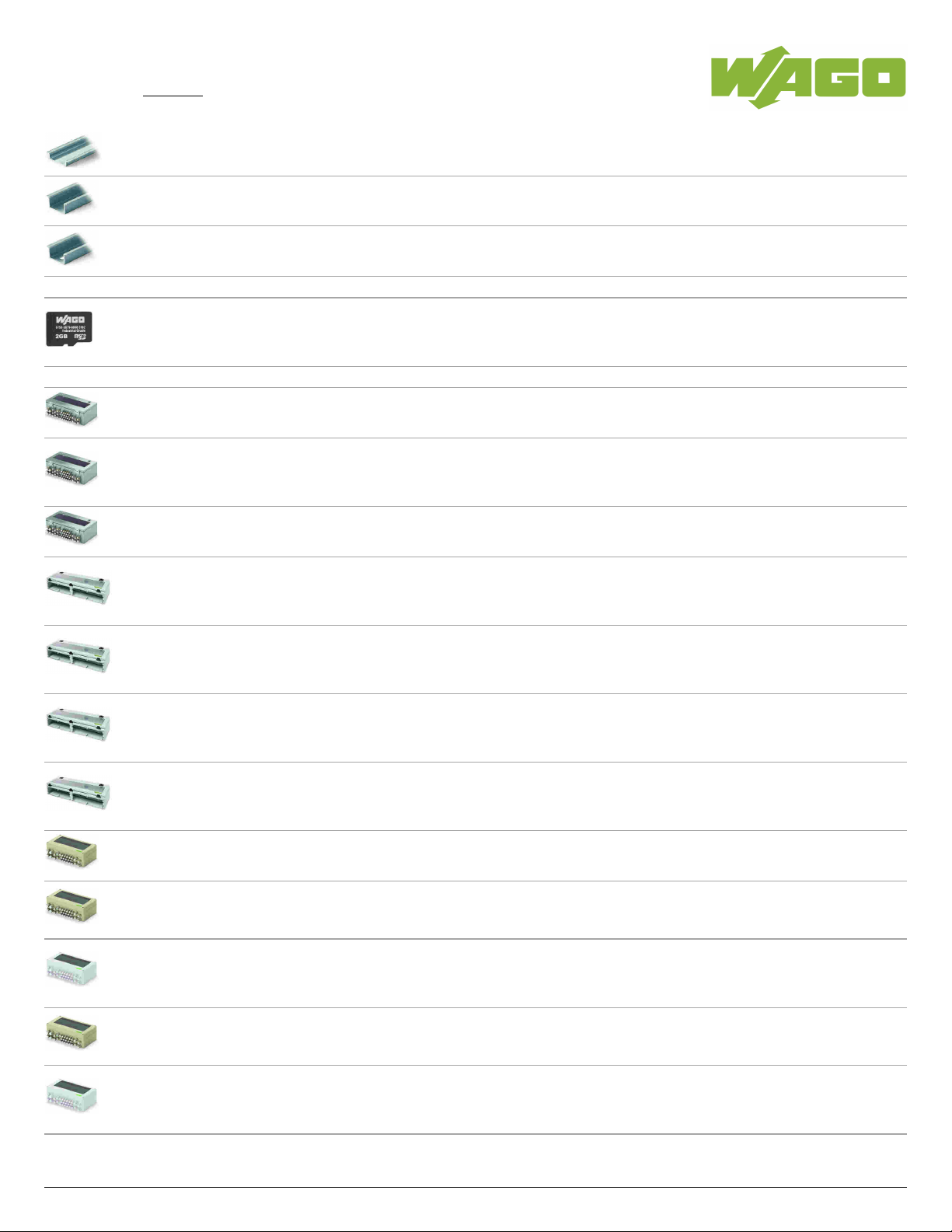

Item no.: 210-505
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715
210-505
Item no.: 210-506
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715
210-506
Item no.: 210-508
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715
210-508
memory card
Item no.: 758-879/000-3102
Memory Card SD Micro; 2 GByte
758-879
/000-3102
system box
Item no.: 850-804
IP65 enclosure; Stainless steel; WxHxD (400x123x200 mm); 4 x M20, 16 x M16, 28 x M12 cable grip
850-804
Item no.: 850-804/000-001
IP65 enclosure; Stainless steel; WxHxD (400x123x200 mm); 2 x M20, 13 x M16, 32 x M12 cable grip
850-804
/000-001
Item no.: 850-805
IP65 enclosure; Stainless steel; WxHxD (600x123x200 mm); 4 x M20, 19 x M16, 67 x M12 cable grip
850-805
Item no.: 850-814/002-000
IP65 enclosure; Sheet steel (RAL 7035); WxHxD (200x120x200 mm); without flange plate
850-814
/002-000
Item no.: 850-815/002-000
IP65 enclosure; Sheet steel (RAL 7035); WxHxD (300x120x200 mm); without flange plate
850-815
/002-000
Item no.: 850-816/002-000
IP65 enclosure; Sheet steel (RAL 7035); WxHxD (400x120x200 mm); without flange plate
850-816
/002-000
Item no.: 850-817/002-000
IP65 enclosure; Sheet steel (RAL 7035); WxHxD (600x120x200 mm); without flange plate
850-817
/002-000
Item no.: 850-825
IP65 enclosure; Aluminium (RAL 7032); WxHxD (160x100x160 mm); 9 x M12, 4 x M20
850-825
Item no.: 850-826
IP65 enclosure; Aluminium (RAL 7032); WxHxD (240x100x160 mm); 4 x M20, 4 x M16, 14 x M12 cable
grip
850-826
Item no.: 850-826/002-000
IP65 enclosure; Aluminium (RAL 7035); WxHxD (240x100x160 mm); 4 x M20, 4 x M16, 14 x M12 cable
grip
850-826
/002-000
Item no.: 850-827
IP65 enclosure; Aluminium (RAL 7032); WxHxD (320x100x160 mm); 4 x M20, 8 x M16, 17 x M12 cable
grip
850-827
Item no.: 850-827/002-000
IP65 enclosure; Aluminium (RAL 7035); WxHxD (320x100x160 mm); 4 x M20, 8 x M16, 17 x M12 cable
grip
850-827
/002-000
750-8102
01.05.2019Page /9 15
Page 10
Data sheet | Item number:750-8102

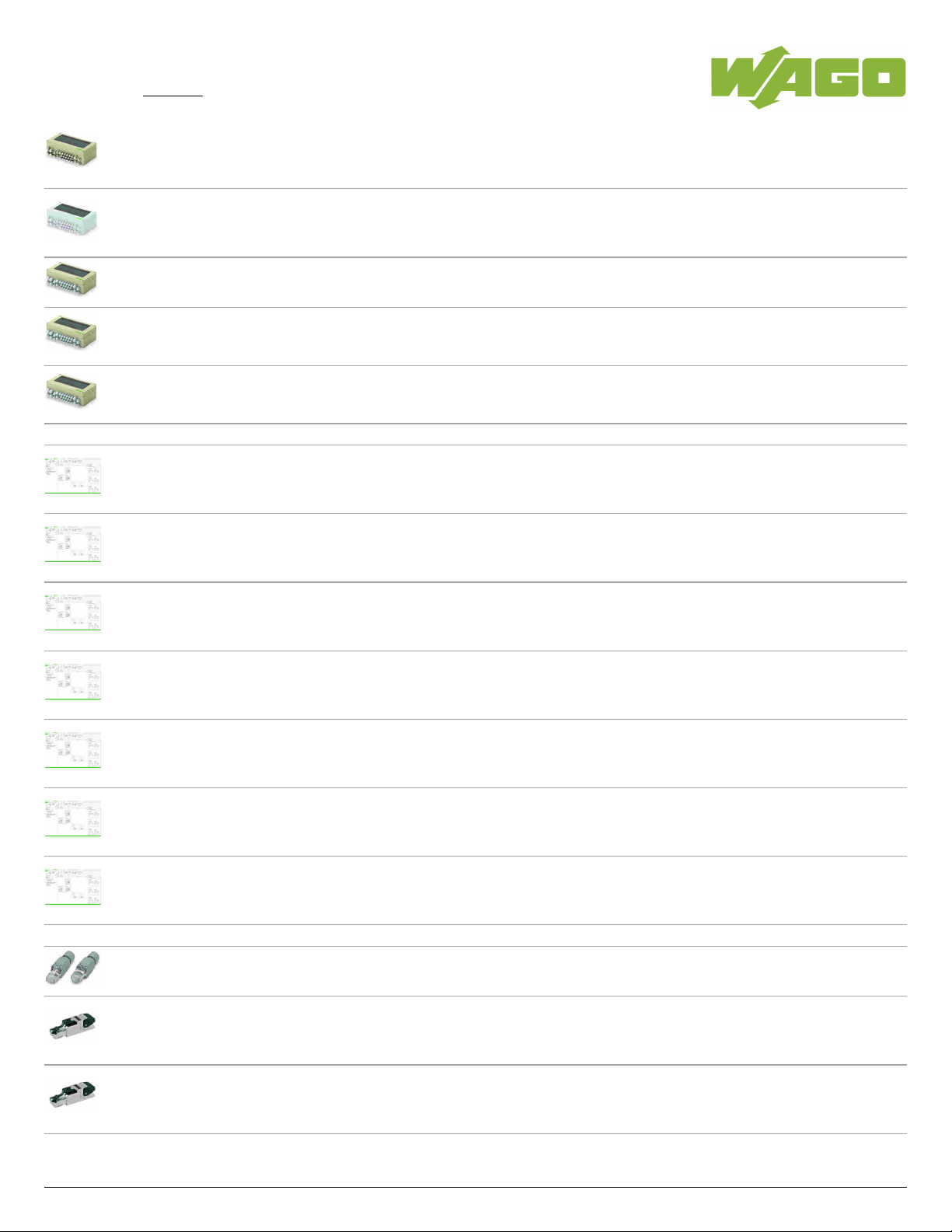

Item no.: 850-828
IP65 enclosure; Aluminium (RAL 7032); WxHxD (480x100x160 mm); 4 x M20, 10 x M16, 35 x M12 cable
grip
850-828
Item no.: 850-828/002-000
IP65 enclosure; Aluminium (RAL 7035); WxHxD (480x100x160 mm); 4 x M20, 10 x M16, 35 x M12 cable
grip
850-828
/002-000
Item no.: 850-834
IP65 enclosure; Polyester (RAL 7032); WxHxD (164x100x164 mm); 9 x M12, 4 x M20
850-834
Item no.: 850-835
IP65 enclosure; Polyester (RAL 7032); WxHxD (244x100x164 mm); 4 x M20, 4 x M16, 14 x M12 cable
grip
850-835
Item no.: 850-836
IP65 enclosure; Polyester (RAL 7032); WxHxD (324x100x164 mm); 4 x M20, 8 x M16, 17 x M12 cable
grip
850-836
software
Item no.: 2759-101/1110-2002
e!COCKPIT; Workstation License
2759-101
/1110-2002
Item no.: 2759-101/1110-2005
e!COCKPIT; Multi-User License; 05 pcs
2759-101
/1110-2005
Item no.: 2759-101/1110-2010
e!COCKPIT; Multi-User License; 10 pcs
2759-101
/1110-2010
Item no.: 2759-101/1110-2015
e!COCKPIT; Multi-User License; 15 pcs
2759-101
/1110-2015
Item no.: 2759-101/1110-2020
e!COCKPIT; Multi-User License; 20 pcs
2759-101
/1110-2020
Item no.: 2759-101/1110-3000
e!COCKPIT; Site License
2759-101
/1110-3000
Item no.: 2759-101/1110-4000
e!COCKPIT; Buy-out License
2759-101
/1110-4000
wiring and connectors
Item no.: 750-975
ETHERNET RJ-45 connector, IP20; ETHERNET 10/100 Mbit/s; for field assembly
750-975
Item no.: 750-977/000-011
Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568A; AWG 22
750-977
/000-011
Item no.: 750-977/000-012
Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568B; AWG 22
750-977
/000-012
750-8102
01.05.2019Page /10 15
Page 11
Data sheet | Item number:750-8102
Item no.: 750-977/000-021
Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568A; AWG 24
750-977
/000-021
Item no.: 750-977/000-022
Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568B; AWG 24
750-977
/000-022
Item no.: 750-978/000-011
Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568A; AWG 22; Strain relief
750-978
/000-011
Item no.: 750-978/000-012
Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568B; AWG 22; Strain relief
750-978
/000-012
Item no.: 750-978/000-021
Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568A; AWG 24; Strain relief
750-978
/000-021
Item no.: 750-978/000-022
Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568B; AWG 24; Strain relief
750-978
/000-022
Item no.: 750-979/000-011
Connector ETHERNET; RJ-45; Cat. 6A; angled; Code T568A; AWG 22; Strain relief
750-979
/000-011
Item no.: 750-979/000-012
Connector ETHERNET; RJ-45; Cat. 6A; angled; Code T568B; AWG 22; Strain relief
750-979
/000-012
Item no.: 750-979/000-021
Connector ETHERNET; RJ-45; Cat. 6A; angled; Code T568A; AWG 24; Strain relief
750-979
/000-021
Item no.: 750-979/000-022
Connector ETHERNET; RJ-45; Cat. 6A; angled; Code T568B; AWG 24; Strain relief
750-979
/000-022
shield connection
Item no.: 790-108
Shield clamping saddle; 11 mm wide; diameter of compatible conductor
790-108
Item no.: 790-116
Shield clamping saddle; 19 mm wide; diameter of compatible conductor; 7 ... 16 mm
790-116
Item no.: 790-124
Shield clamping saddle; 27 mm wide; diameter of compatible conductor; 6 ... 24 mm
790-124
Item no.: 790-140
Shield clamping saddle; diameter of compatible conductor
790-140
Item no.: 790-208
Shield clamping saddle; 12.4 mm wide; 3 ... 8 mm
790-208
Item no.: 790-216
Shield clamping saddle; 21.8 mm wide; 6 ... 16 mm
790-216
750-8102
01.05.2019Page /11 15
Page 12
Data sheet | Item number:750-8102
Item no.: 790-220
Shield clamping saddle; 30 mm wide; 6 ... 20 mm
790-220
Downloads
Documentation
Manual
PFC100 CS 2ETH RS
PLC – PFC100 Controller
V 1.3.0 pdf
3.4 MB
Download
Cyber Security for Controller PFC100 / PFC200 V 1.2.0 pdf
8.3 MB
Download
Bid Text
750-8102 doc
34.3 kB
Download
Tutorial
Set IP address with Ethernet Settings
In this video we are demonstrating how you can set a IP address with Ethernet
Settings. Content: 00:27 – Chapter #1 Download and install software; 00:56 – Chapter
#2 Open Ethernet Settings; 01:10 – Chapter #3 Establish serial Connection; 01:34 –
Chapter #4 Set IP address; 02:10 – Chapter #5 Check IP address
3.0
Dec 18, 2017
mp4
88.3 MB
Download
Establish connection to a controller using SSH
In this video we are demonstrating how to establish a SSH connec-tion with a
controller using for example PuTTY to be able to work with the LINUX console.
Contents: 0:21 Download and install the SSH client; 0:40 Establish the SSH
connection; 0:50 Log on to the Controller
1.0
Aug 5, 2017
mp4
29.0 MB
Download
Additional Information
Disposal; Electrical and electronic equipment, Packaging V 1.0.0 pdf
265.8 kB
Download
External license agreement for open source software
In Wago products
V 1.0.0 pdf
1.5 MB
Download
System Description
Overview on WAGO-I/O-SYSTEM 750 approvals pdf
780.2 kB
Download
Design Notes
Basic conditions and recommendations for higher operational safety
V 2.0.0 pdf
1.5 MB
Download
750-8102
01.05.2019Page /12 15
Page 13
Data sheet | Item number:750-8102
Application Notes
Application Note CoDeSys 2.3
Application note WagoLibCloud
This application note explains how the WAGO controllers PFC100 and PFC200 can
communicate with cloud services like Microsoft Azure (WAGO Cloud), Amazon AWS
and IBM Bluemix. Data could be send to the cloud and commands could receive from
the cloud. The libraries WagoLibCloud for WAGO-I/O-PRO V2.3 and WagoAppCloud
for e!COCKPIT are used.
V 1.4.0
Jul 31, 2018
zip
4.0 MB
Download
Application Note e!COCKPIT
e!COCKPIT application note WagoAppCloud
This application note explains how the WAGO controllers PFC100 and PFC200 can
communicate with cloud services like Microsoft Azure (WAGO Cloud), Amazon AWS
and IBM Bluemix. Data could be send to the cloud and commands could receive from
the cloud. The libraries WagoLibCloud for WAGO-I/O-PRO V2.3 and WagoAppCloud
for e!COCKPIT are used.
V 1.4.1
Apr 26, 2019
zip
4.5 MB
Download
Libraries
Library
Library WagoLibCloud.lib
This library lets the WAGO controllers PFC100 and PFC200 communicate with cloud
services like Microsoft Azure (WAGO Cloud), Amazon AWS and IBM Bluemix. Data
could be send to the cloud and commands could receive from the cloud.
V1.4.0 zip
100.3 kB
Download
Engineering-Software
COCKPITe!
COCKPITe!
Register at no cost and test our engineering software for 30 days.
V 1.5.0
Mar 11, 2019
ZIP
2.7 GB
Download
Runtime Software
Linux® Toolchain
Linux® Board Support Package (BSP)
With the PFC BSP, WAGO offers Linux® enthusiasts the opportunity to compile the
PFC firmware themselves, and to expand it according to their own wishes.
The WAGO PFC BSP includes a Pengutronix build environment, optimized for the
PFC, and the OSELAS Toolchain, which open up the following possibilities, among
others:
Expanding the firmware functions using open source packages like: Python,
SQLite3, PHP, etc.
2018.2.8.FW(11)35
Aug 27, 2018
TXT
14.1 kB
Download
750-8102
01.05.2019Page /13 15
Page 14
Data sheet | Item number:750-8102
Compiling their own C/C++ applications with direct or indirect bus access to
the local bus, CANopen, or PROFIBUS.
Compiling external libraries using CODESYS V2 to expand the PLC
applications.
There are detailed instructions for many of these tasks and ideas (see How
To's).
Firmware
Firmware: 750-8102 Controller PFC100; 2 x ETHERNET, RS-232/-485 12
Mar 11, 2019
zip
44.3 MB
Download
IoT/ Cloud
Cloud Connectivity
Cloud Connectivity beta version
Since January 2018, cloud connectivity has been a component of Firmware 11. Thus,
all WAGO PFCs are inherently IoT-ready, so they can send data from the field level to
the cloud via MQTT. Here, the data can be aggregated and used for analysis. New
features are provided as beta versions. Register here at no cost to test the latest
beta functions.
Jul 2, 2018 ZIP
5.7 MB
Download
"Remote Access" Beta Software
“Remote Access” Beta Software
Register for the beta version of “Remote Access” for the WAGO Cloud.
V 0.9
Mar 26, 2019
ZIP
1.3 MB
Download
CAD/CAE - Smart Data
CAD data
3D Download 750-8102 URL Download
Product family
Controller 750
Learn more about the product family.
Show all products from the family
750-8102
01.05.2019Page /14 15
Page 15
Data sheet | Item number:750-8102
750-8102
Subject to changes.
01.05.2019Page /15 15
Loading...
