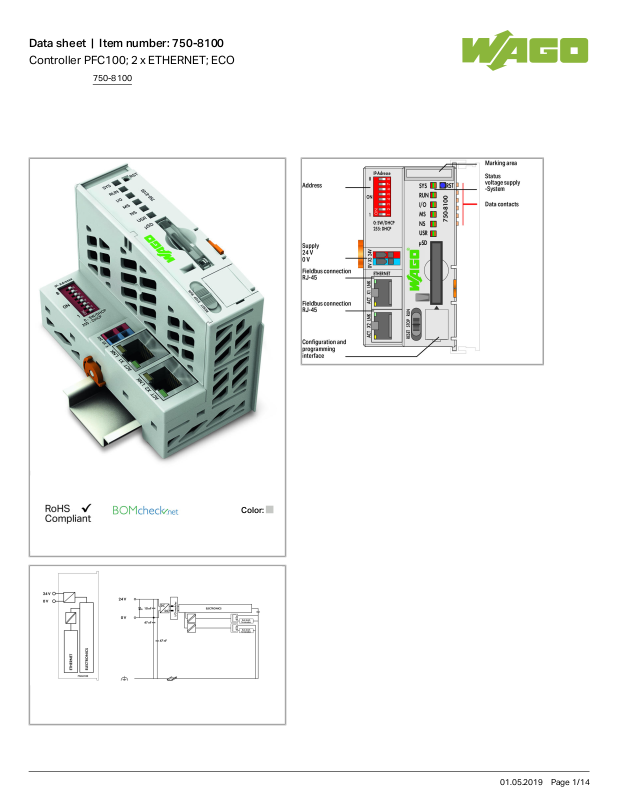

Wago 750-8100 Data Sheet

Data sheet | Item number:750-8100

Controller PFC100; 2 x ETHERNET; ECO

Color:

750-8100

01.05.2019Page /1 14

Data sheet | Item number:750-8100

Item description

The PFC100 Controller is a compact PLC for the modular WAGO-I/O-SYSTEM. Besides network and fieldbus interfaces, the controller supports all
digital, analog and specialty I/O modules found within the 750/753 Series.

Two ETHERNET interfaces and an integrated switch enable line topology wiring.

An integrated Webserver provides user configuration options, while displaying PFC100 status information.

Besides the processing industry and building automation, typical applications for the PFC100 include standard machinery and equipment control (e.
g., packaging, bottling and manufacturing systems, as well as textile, metal and wood processing machines).

The DIP switch configures the last byte of the IP address and may be used for IP address assignment.

Programming per IEC 61131-3

Programmable via COCKPITe!

Direct connection of WAGO I/O modules

2 x ETHERNET (configurable)

750-8100

01.05.2019Page /2 14

Data sheet | Item number:750-8100

Linux 3.18 operating system with RT‐Preemption patch

Configuration via COCKPIT or Web-Based Management user interfacee!

Maintenance-free

Data

Technical Data

Communication Modbus (TCP, UDP)

Ethernet
EtherNet/IP-Adapter (Slave), Bibliothek für e!RUNTIME
MQTT

Ethernet protocol DHCP

DNS
NTP
FTP
FTPS
SNMP
HTTP
HTTPS
SSH

Visualization Web-Visu

Operating system Real-time Linux 3.18 (with RT-Preemption patch)

CPU Cortex A8, 600 MHz

Programming languages per IEC 61131-3 Instruction List (IL)

Ladder Diagram (LD)
Function Block Diagram (FBD), Continuous Function Chart (CFC)
Structured Text (ST)
Sequential Function Chart (SFC)

Programming environment e!COCKPIT (based on CODESYS V3)

Configuration options e!COCKPIT

WAGO-I/O-CHECK
Web-based management

Baud rate (communication/fieldbus 1) 10/100Mbit/s

Baud rate ETHERNET:10/100Mbit/s

Transmission medium (communication/fieldbus) ETHERNET:Twisted Pair S-UTP; 100 Ω; Cat. 5; Line length (max.):

100 m

Hardware non-volatile memory 64 Kbytes

Program memory 10MB (Program and data memory (dynamically distributed))

Data memory 10MBProgram and data memory (dynamically distributed)

Software non-volatile memory 64 Kbytes

Type of memory card microSD up to 32 GB (all guaranteed properties only valid with

WAGO 758-879/000-3102 memory card)

Memory card slot Push-push mechanism, sealable cover lid

Number of modules per node max. 250

Number of I/O modules without bus extension max. 64

Input and output process image (internal) max. 1000Worte/1000Worte

750-8100

01.05.2019Page /3 14

Data sheet | Item number:750-8100

Input and output process image (MODBUS) max. 32000Worte/32000Worte

Indicators LED (SYS, RUN, I/O, USR) red/green/orange: Status system,

program, internal data bus, status programmable by user (can be
used via CODESYS library)

System supply voltage DC24V(-25 … +30%);via wiring level

Input current typ. at rated load (24 V) 300 mA

Total current for system supply 700 mA

Isolation 500 V system/supply

Connection data

Connection technology: communication/fieldbus Modbus TCP/UDP:2 x RJ-45

Connection technology: system supply

2 x CAGE CLAMP

®

Connection type (1) System supply

Solid conductor 0.08 … 2.5mm²/ 28 … 14AWG

Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 14AWG

Strip length 8 … 9mm/ 0.31 … 0.35inch

Connection technology: Device configuration 1 x 4-pole male connector

Geometrical Data

Width 49.5mm/ 1.949inch

Height 71.9mm/ 2.831inch

Height from upper-edge of DIN-35 rail 64.7mm/ 2.547inch

Depth 96.8mm/ 3.811inch

Mechanical data

Weight 112 g

Color light gray

Housing material Polycarbonate, polyamide 6.6

Conformity marking 1

Environmental Requirements

Surrounding air (operating) temperature 0 … 55°C

Surrounding air (storage) temperature -40 … 85°C

Protection class IP20

Degree of pollution (5) 2 per IEC 61131-2

Operating altitude without temperature derating: 0 … 2000 m; with temperature

derating: 2000 … 5000 m (0.5 K/100 m); max.: 5000 m

Relative air humidity (no condensation) 95 %

Mounting position any

Type of mounting DIN-35 rail

750-8100

01.05.2019Page /4 14

Data sheet | Item number:750-8100

Vibration resistance 4g per IEC 60068-2-6

Shock resistance 15g per IEC 60068-2-27

EMC immunity to interference acc. to EN 61000-6-2, marine applications

EMC emission of interference acc. to EN 61000-6-3, marine applications

Exposure to pollutants Per IEC 60068-2-42 and IEC 60068-2-43

Fire load 0.682 MJ

Permissible H S contaminant concentration at a relative humidity 75

2

%

10 ppm

Permissible SO contaminant concentration at a relative humidity 75

2

%

25 ppm

Commercial data

Country of origin DE

GTIN 4055143351805

Customs Tariff No. 85371091990

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text Certificate name

ATEX

TUEV Nord Cert GmbH

EN 60079-0 TUEV_14_ATEX_148929_X

ATEX

TUEV Nord Cert GmbH

IEC 60079-0 IECEx_TUN_14.0035_X

ATEX

TUEV Nord Cert GmbH

IEC 60079-0 IECEx_TUN_14.0035_X

ATEX

TUEV Nord Cert GmbH

EN 60079-0 TUEV_14_ATEX_148929_X

UL

Underwriters Laboratories Inc. (HAZARDOUS
LOCATIONS)

ANSI/ISA 12.12.01 E198726 Sec.1

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

KC

Article 58-2, Clause 3 MSIP-

750-8100

01.05.2019Page /5 14

Data sheet | Item number:750-8100

National Radio Research Agency REM-W43-

PFC750

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 19­HG1821926

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAA0000194

PRS

Polski Rejestr Statków

- TE/2236
/880590/19

PRS

Polski Rejestr Statków

- TE/2210
/880590/18

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Netherlands B.V. (ORDINARY
LOCATIONS)

UL 508 E175199

Sec.1

Compatible products

memory card

Item no.: 758-879/000-3102

Memory Card SD Micro; 2 GByte

758-879

/000-3102

shield connection

750-8100

01.05.2019Page /6 14

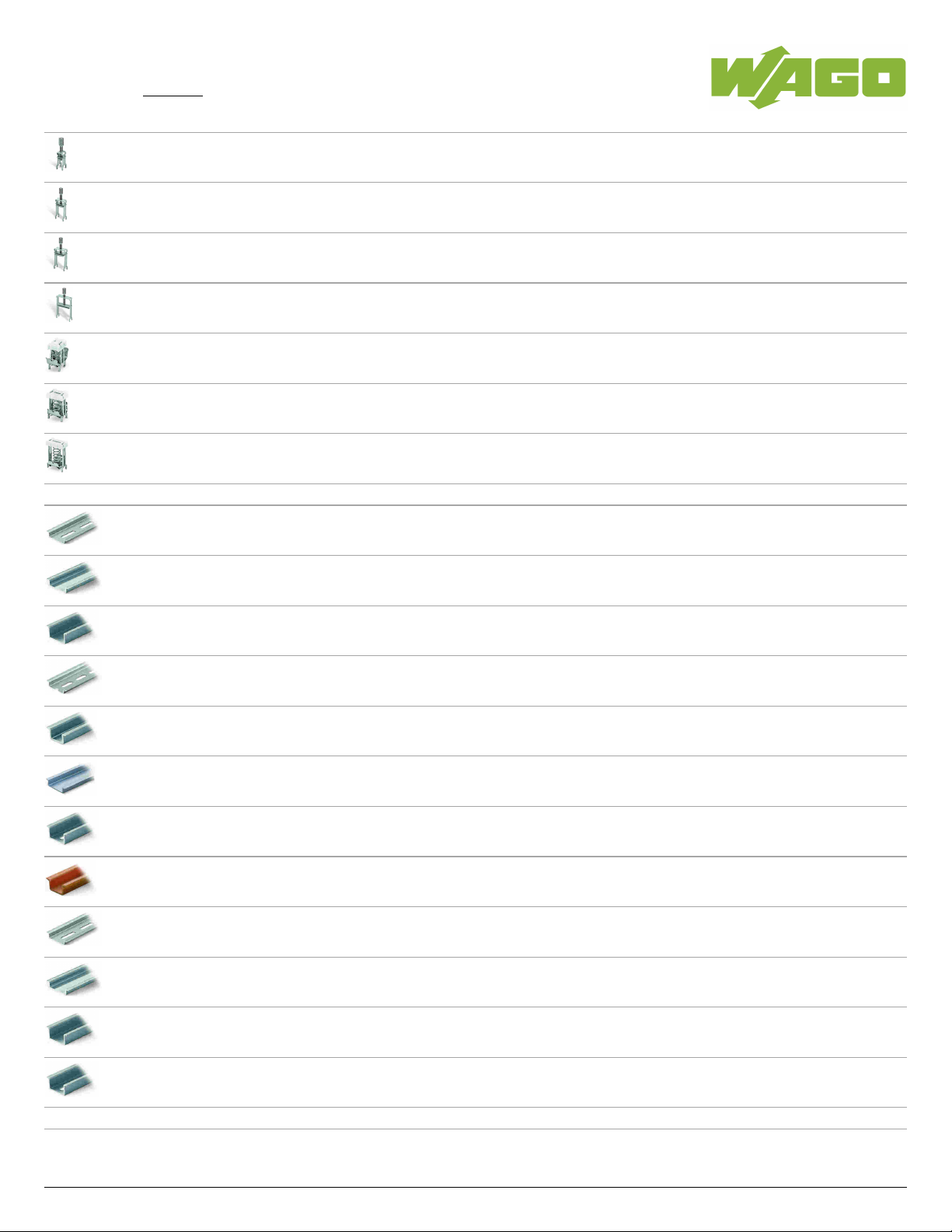

Data sheet | Item number:750-8100

shield connection

Item no.: 790-108

Shield clamping saddle; 11 mm wide; diameter of compatible conductor

790-108

Item no.: 790-116

Shield clamping saddle; 19 mm wide; diameter of compatible conductor; 7 ... 16 mm

790-116

Item no.: 790-124

Shield clamping saddle; 27 mm wide; diameter of compatible conductor; 6 ... 24 mm

790-124

Item no.: 790-140

Shield clamping saddle; diameter of compatible conductor

790-140

Item no.: 790-208

Shield clamping saddle; 12.4 mm wide; 3 ... 8 mm

790-208

Item no.: 790-216

Shield clamping saddle; 21.8 mm wide; 6 ... 16 mm

790-216

Item no.: 790-220

Shield clamping saddle; 30 mm wide; 6 ... 20 mm

790-220

Carrier rail

Item no.: 210-112

Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm

210-112

Item no.: 210-113

Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715

210-113

Item no.: 210-114

Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715

210-114

Item no.: 210-115

Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm

210-115

Item no.: 210-118

Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715

210-118

Item no.: 210-196

Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715

210-196

Item no.: 210-197

Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715

210-197

Item no.: 210-198

Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715

210-198

Item no.: 210-504

Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715

210-504

Item no.: 210-505

Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715

210-505

Item no.: 210-506

Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715

210-506

Item no.: 210-508

Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715

210-508

General accessories

750-8100

01.05.2019Page /7 14

Data sheet | Item number:750-8100

Item no.: 750-921

Bluetooth® Adapter

750-921

Item no.: 750-923

Configuration cable; USB connector; Length: 2.5 m

750-923

Item no.: 750-923/000-001

Configuration cable; USB connector; Length: 5 m

750-923

/000-001

software

Item no.: 2759-101/1110-2002

e!COCKPIT; Workstation License

2759-101

/1110-2002

Item no.: 2759-101/1110-2005

e!COCKPIT; Multi-User License; 05 pcs

2759-101

/1110-2005

Item no.: 2759-101/1110-2010

e!COCKPIT; Multi-User License; 10 pcs

2759-101

/1110-2010

Item no.: 2759-101/1110-2015

e!COCKPIT; Multi-User License; 15 pcs

2759-101

/1110-2015

Item no.: 2759-101/1110-2020

e!COCKPIT; Multi-User License; 20 pcs

2759-101

/1110-2020

Item no.: 2759-101/1110-3000

e!COCKPIT; Site License

2759-101

/1110-3000

Item no.: 2759-101/1110-4000

e!COCKPIT; Buy-out License

2759-101

/1110-4000

Marking accessories

Item no.: 2009-145

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

Item no.: 2009-145/000-002

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

/000-002

Item no.: 2009-145/000-005

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

/000-005

Item no.: 2009-145/000-006

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

/000-006

Item no.: 2009-145/000-007

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

/000-007

750-8100

01.05.2019Page /8 14

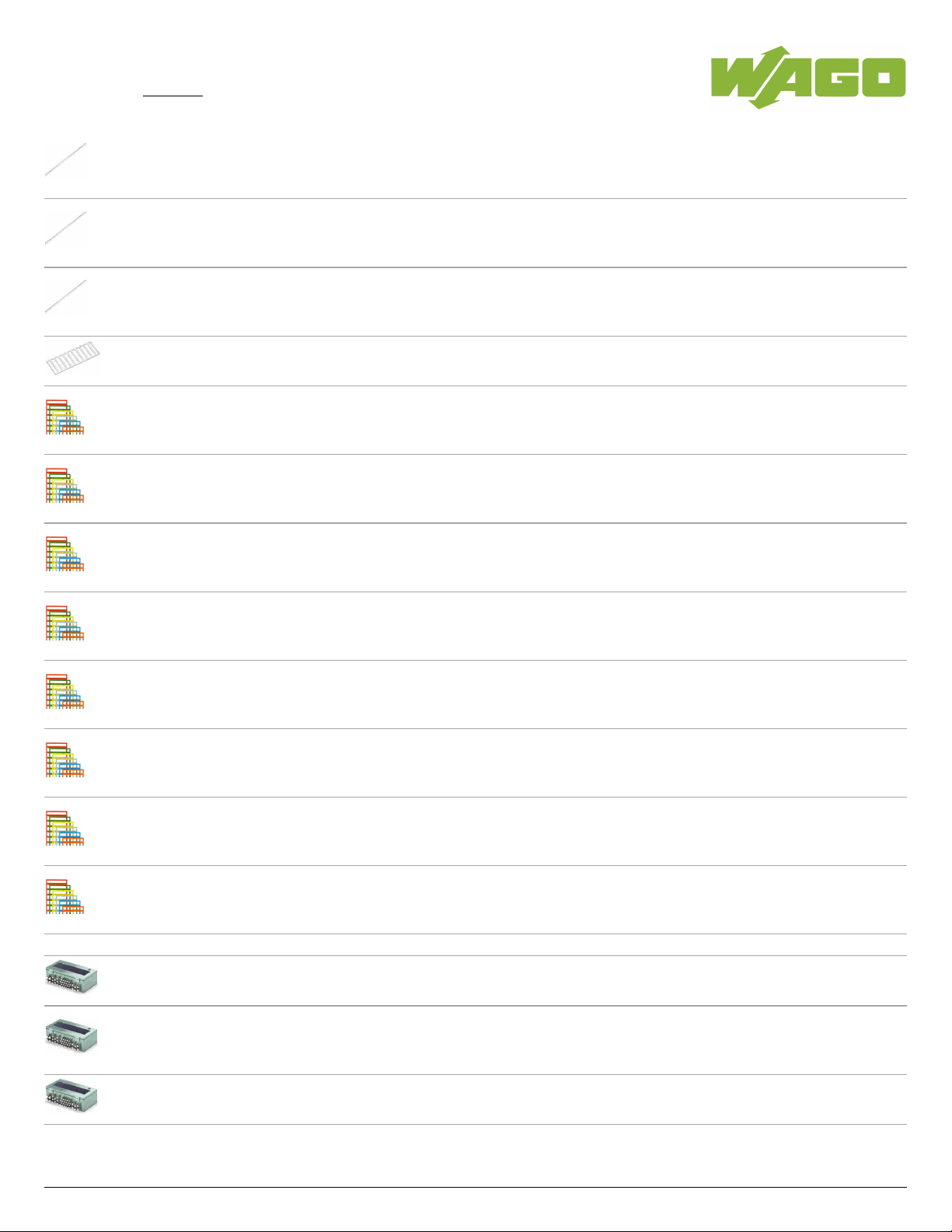

Data sheet | Item number:750-8100

Item no.: 2009-145/000-012

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

/000-012

Item no.: 2009-145/000-023

Mini-WSB Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

/000-023

Item no.: 2009-145/000-024

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

/000-024

Item no.: 248-501

Miniature WSB Quick marking system; plain; Marker width 5 mm; 10 strips with 10 markers per card

248-501

Item no.: 248-501/000-002

Mini-WSB marking card; as card; not stretchable; plain; snap-on type

248-501

/000-002

Item no.: 248-501/000-005

Mini-WSB marking card; as card; not stretchable; plain; snap-on type

248-501

/000-005

Item no.: 248-501/000-006

Mini-WSB marking card; as card; not stretchable; plain; snap-on type

248-501

/000-006

Item no.: 248-501/000-007

Mini-WSB marking card; as card; not stretchable; plain; snap-on type

248-501

/000-007

Item no.: 248-501/000-012

Mini-WSB marking card; as card; not stretchable; plain; snap-on type

248-501

/000-012

Item no.: 248-501/000-017

Mini-WSB marking card; as card; not stretchable; plain; snap-on type

248-501

/000-017

Item no.: 248-501/000-023

Mini-WSB marking card; as card; not stretchable; plain; snap-on type

248-501

/000-023

Item no.: 248-501/000-024

Mini-WSB marking card; as card; not stretchable; plain; snap-on type

248-501

/000-024

system box

Item no.: 850-804

IP65 enclosure; Stainless steel; WxHxD (400x123x200 mm); 4 x M20, 16 x M16, 28 x M12 cable grip

850-804

Item no.: 850-804/000-001

IP65 enclosure; Stainless steel; WxHxD (400x123x200 mm); 2 x M20, 13 x M16, 32 x M12 cable grip

850-804

/000-001

Item no.: 850-805

IP65 enclosure; Stainless steel; WxHxD (600x123x200 mm); 4 x M20, 19 x M16, 67 x M12 cable grip

850-805

750-8100

01.05.2019Page /9 14

Data sheet | Item number:750-8100

Item no.: 850-814/002-000

IP65 enclosure; Sheet steel (RAL 7035); WxHxD (200x120x200 mm); without flange plate

850-814

/002-000

Item no.: 850-815/002-000

IP65 enclosure; Sheet steel (RAL 7035); WxHxD (300x120x200 mm); without flange plate

850-815

/002-000

Item no.: 850-816/002-000

IP65 enclosure; Sheet steel (RAL 7035); WxHxD (400x120x200 mm); without flange plate

850-816

/002-000

Item no.: 850-817/002-000

IP65 enclosure; Sheet steel (RAL 7035); WxHxD (600x120x200 mm); without flange plate

850-817

/002-000

Item no.: 850-825

IP65 enclosure; Aluminium (RAL 7032); WxHxD (160x100x160 mm); 9 x M12, 4 x M20

850-825

Item no.: 850-826
IP65 enclosure; Aluminium (RAL 7032); WxHxD (240x100x160 mm); 4 x M20, 4 x M16, 14 x M12 cable
grip

850-826

Item no.: 850-826/002-000
IP65 enclosure; Aluminium (RAL 7035); WxHxD (240x100x160 mm); 4 x M20, 4 x M16, 14 x M12 cable
grip

850-826

/002-000

Item no.: 850-827
IP65 enclosure; Aluminium (RAL 7032); WxHxD (320x100x160 mm); 4 x M20, 8 x M16, 17 x M12 cable
grip

850-827

Item no.: 850-827/002-000
IP65 enclosure; Aluminium (RAL 7035); WxHxD (320x100x160 mm); 4 x M20, 8 x M16, 17 x M12 cable
grip

850-827

/002-000

Item no.: 850-828
IP65 enclosure; Aluminium (RAL 7032); WxHxD (480x100x160 mm); 4 x M20, 10 x M16, 35 x M12 cable
grip

850-828

Item no.: 850-828/002-000
IP65 enclosure; Aluminium (RAL 7035); WxHxD (480x100x160 mm); 4 x M20, 10 x M16, 35 x M12 cable
grip

850-828

/002-000

Item no.: 850-834

IP65 enclosure; Polyester (RAL 7032); WxHxD (164x100x164 mm); 9 x M12, 4 x M20

850-834

Item no.: 850-835
IP65 enclosure; Polyester (RAL 7032); WxHxD (244x100x164 mm); 4 x M20, 4 x M16, 14 x M12 cable
grip

850-835

Item no.: 850-836
IP65 enclosure; Polyester (RAL 7032); WxHxD (324x100x164 mm); 4 x M20, 8 x M16, 17 x M12 cable
grip

850-836

wiring and connectors

Item no.: 750-975
ETHERNET RJ-45 connector, IP20; ETHERNET 10/100 Mbit/s; for field assembly

750-975

Item no.: 750-977/000-011

Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568A; AWG 22

750-977

/000-011

750-8100

01.05.2019Page /10 14

Data sheet | Item number:750-8100

Item no.: 750-977/000-012

Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568B; AWG 22

750-977

/000-012

Item no.: 750-977/000-021

Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568A; AWG 24

750-977

/000-021

Item no.: 750-977/000-022

Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568B; AWG 24

750-977

/000-022

Item no.: 750-978/000-011

Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568A; AWG 22; Strain relief

750-978

/000-011

Item no.: 750-978/000-012

Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568B; AWG 22; Strain relief

750-978

/000-012

Item no.: 750-978/000-021

Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568A; AWG 24; Strain relief

750-978

/000-021

Item no.: 750-978/000-022

Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568B; AWG 24; Strain relief

750-978

/000-022

Item no.: 750-979/000-011

Connector ETHERNET; RJ-45; Cat. 6A; angled; Code T568A; AWG 22; Strain relief

750-979

/000-011

Item no.: 750-979/000-012

Connector ETHERNET; RJ-45; Cat. 6A; angled; Code T568B; AWG 22; Strain relief

750-979

/000-012

Item no.: 750-979/000-021

Connector ETHERNET; RJ-45; Cat. 6A; angled; Code T568A; AWG 24; Strain relief

750-979

/000-021

Item no.: 750-979/000-022

Connector ETHERNET; RJ-45; Cat. 6A; angled; Code T568B; AWG 24; Strain relief

750-979

/000-022

Downloads

Documentation

Manual

PFC100 CS 2ETH ECO

PLC – PFC100 Controller

V 1.3.0 pdf

3.3 MB

Download

Bid Text

750-8100 doc

34.8 kB

Download

750-8100

01.05.2019Page /11 14

Data sheet | Item number:750-8100

Tutorial

Set IP address with Ethernet Settings

In this video we are demonstrating how you can set a IP address with Ethernet
Settings. Content: 00:27 – Chapter #1 Download and install software; 00:56 – Chapter
#2 Open Ethernet Settings; 01:10 – Chapter #3 Establish serial Connection; 01:34 –
Chapter #4 Set IP address; 02:10 – Chapter #5 Check IP address

3.0
Dec 18, 2017

mp4

88.3 MB

Download

Establish connection to a controller using SSH

In this video we are demonstrating how to establish a SSH connec-tion with a
controller using for example PuTTY to be able to work with the LINUX console.
Contents: 0:21 Download and install the SSH client; 0:40 Establish the SSH
connection; 0:50 Log on to the Controller

1.0
Aug 5, 2017

mp4

29.0 MB

Download

Additional Information

Disposal; Electrical and electronic equipment, Packaging V 1.0.0 pdf

265.8 kB

Download

External license agreement for open source software

In Wago products

V 1.0.0 pdf

1.5 MB

Download

System Description

Overview on WAGO-I/O-SYSTEM 750 approvals pdf

780.2 kB

Download

Design Notes

Basic conditions and recommendations for higher operational safety

V 2.0.0 pdf

1.5 MB

Download

Application Notes

Application Note e!COCKPIT

e!COCKPIT application note WagoAppCloud

This application note explains how the WAGO controllers PFC100 and PFC200 can
communicate with cloud services like Microsoft Azure (WAGO Cloud), Amazon AWS
and IBM Bluemix. Data could be send to the cloud and commands could receive from
the cloud. The libraries WagoLibCloud for WAGO-I/O-PRO V2.3 and WagoAppCloud
for e!COCKPIT are used.

V 1.4.1
Apr 26, 2019

zip

4.5 MB

Download

Application Note CoDeSys 2.3

Application note WagoLibCloud

This application note explains how the WAGO controllers PFC100 and PFC200 can
communicate with cloud services like Microsoft Azure (WAGO Cloud), Amazon AWS
and IBM Bluemix. Data could be send to the cloud and commands could receive from
the cloud. The libraries WagoLibCloud for WAGO-I/O-PRO V2.3 and WagoAppCloud
for e!COCKPIT are used.

V 1.4.0
Jul 31, 2018

zip

4.0 MB

Download

750-8100

01.05.2019Page /12 14

Data sheet | Item number:750-8100

Libraries

Library

Library WagoLibCloud.lib

This library lets the WAGO controllers PFC100 and PFC200 communicate with cloud
services like Microsoft Azure (WAGO Cloud), Amazon AWS and IBM Bluemix. Data
could be send to the cloud and commands could receive from the cloud.

V1.4.0 zip

100.3 kB

Download

Engineering-Software

COCKPITe!

COCKPITe!

Register at no cost and test our engineering software for 30 days.

V 1.5.0
Mar 11, 2019

ZIP

2.7 GB

Download

Runtime Software

Linux® Toolchain

Linux® Board Support Package (BSP)

With the PFC BSP, WAGO offers Linux® enthusiasts the opportunity to compile the
PFC firmware themselves, and to expand it according to their own wishes.

The WAGO PFC BSP includes a Pengutronix build environment, optimized for the
PFC, and the OSELAS Toolchain, which open up the following possibilities, among
others:

Expanding the firmware functions using open source packages like: Python,
SQLite3, PHP, etc.

Compiling their own C/C++ applications with direct or indirect bus access to
the local bus, CANopen, or PROFIBUS.

Compiling external libraries using CODESYS V2 to expand the PLC
applications.

There are detailed instructions for many of these tasks and ideas (see How
To's).

2018.2.8.FW(11)35
Aug 27, 2018

TXT

14.1 kB

Download

Firmware

Firmware: 750-8100 Controller PFC100; 2 x ETHERNET; ECO 12

Mar 11, 2019

zip

44.3 MB

Download

IoT/ Cloud

Cloud Connectivity

Cloud Connectivity beta version

Jul 2, 2018 ZIP

Download

750-8100

01.05.2019Page /13 14

Data sheet | Item number:750-8100

Since January 2018, cloud connectivity has been a component of Firmware 11. Thus,
all WAGO PFCs are inherently IoT-ready, so they can send data from the field level to
the cloud via MQTT. Here, the data can be aggregated and used for analysis. New
features are provided as beta versions. Register here at no cost to test the latest
beta functions.

5.7 MB

"Remote Access" Beta Software

“Remote Access” Beta Software

Register for the beta version of “Remote Access” for the WAGO Cloud.

V 0.9
Mar 26, 2019

ZIP

1.3 MB

Download

CAD/CAE - Smart Data

CAD data

3D Download 750-8100 URL Download

Product family

Controller 750

Learn more about the product family.

Show all products from the family



750-8100

Subject to changes.

01.05.2019Page /14 14
