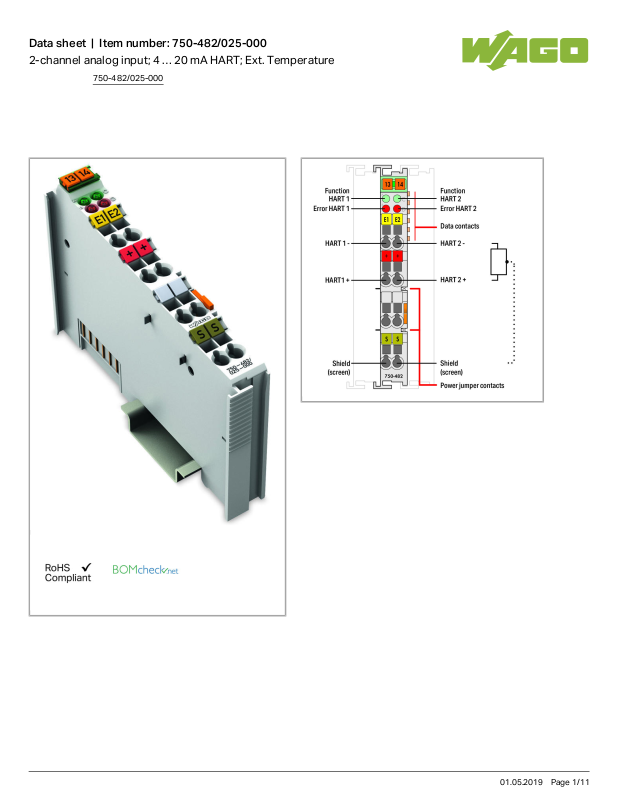

Data sheet | Item number:750-482/025-000
2-channel analog input; 4 … 20 mA HART; Ext. Temperature
750-482/025-000
01.05.2019Page /1 11
Data sheet | Item number:750-482/025-000
Item description
The analog input module powers the transducers, receives transmitted analog signals, and with electrical isolation, transmits the signals to the
fieldbus.
The 24V supply for the field is derived from the module's power jumper contacts. The shield (screen) is directly connected to the DIN rail. At approx.
25mA, the overload protection switches the measurement input to a high-resistance state. Under normal operating conditions it will automatically
switch back. This input module can supply the voltage for 2-wire transducers.
Up to 4 HART dynamic variables (PV, SV, TV, QV) per channel can be mapped in the cyclic process image of the coupler or controller (configurable).
For HART communication with connected intelligent HART field devices, the HART protocol can be mapped in the cyclic process image of the
coupler or controller (configurable).
FDT/DTM device drivers are available for select (programmable) couplers, allowing HART tool routing to the connected HART device.
Data
Technical Data
Number of analog inputs 2
Total number of channels (module) 2
Type of signal Current
Type of signal current DC4 … 20mA
Sensor connection 2 x (2-conductor)
750-482/025-000
01.05.2019Page /2 11
Data sheet | Item number:750-482/025-000
Input filter parametrizable
Input filter: parametrizable (channel by channel) yes
Input voltage (max.) 24 V
Input voltage drop (I < 28 mA): not linear, as protected against overload V = 0.9 V +
meas
270 Ω x I
meas
Signal characteristic Single-ended
Diagnostics Wire break, measurement range overflow
Resolution [bit] 12 Bit
Bit width 2 x 2-byte data; 2 x 2-byte data + 2n x 4-byte data (n = number of
dynamic variables); 2 x 2-byte data + 6-byte mailbox
Overvoltage protection 30 V, reverse polarity protected
Conversion time (typ. ≤) 10 ms
Messfehler, Bezugstemperatur 25 °C
Messfehler, Abweichung max. vom Messbereichsendwert 0.1 %
Temperaturfehler max. vom Messbereichsendwert 0.01 %/K
Line break detection I meas < 3.10 mA
Short circuit detection I meas > 22 mA
System supply voltage DC5V;via data contacts
Current consumption, system supply (5 V) 65 mA
System and sensor supply voltage )
Field supply voltage DC24V(-25 … +30%);über Leistungskontakte (Einspeisung über
Messerkontakt; Weiterleitung über Federkontakt)
HART devices per channel 1 device (single-drop, no multi-drop)
HART modems per channel 1 modem (no multiplex)
Isolation 500 V system/supply
Number of incoming power jumper contacts 2
Number of outgoing power jumper contacts 2
Connection data
Connection technology: In-/Outputs
8 x CAGE CLAMP
®
Connection type (1) Inputs/Outputs
Solid conductor 0.08 … 2.5mm²/ 28 … 14AWG
Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 14AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
Geometrical Data
Width 12mm/ 0.472inch
Height 69.8mm/ 2.748inch
Height from upper-edge of DIN-35 rail 62.6mm/ 2.465inch
Depth 100mm/ 3.937inch
750-482/025-000
01.05.2019Page /3 11
Data sheet | Item number:750-482/025-000
Mechanical data
Type of mounting DIN-35 rail
Material Data
Housing material Polycarbonate, polyamide 6.6
Weight 52.051 g
Conformity marking 1
Environmental Requirements
Surrounding air (operating) temperature -20 … 60°C
Surrounding air (storage) temperature -40 … 85°C
Protection class IP20
Degree of pollution (5) 2 per IEC 61131-2
Operating altitude 0 … 2000 m
Mounting position horizontal (standing/lying) or vertical
Relative air humidity (no condensation) 95 %
Relative humidity Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E
DIN 40046-721-3, taking a temperature range of −20 … +60 °C into
consideration (except wind-driven precipitation, water and ice
formation)
Vibration resistance acc. to IEC 60068-2-6
Shock resistance 15g per IEC 60068-2-27
EMC immunity to interference acc. to EN 61000-6-2
EMC emission of interference acc. to EN 61000-6-3
Exposure to pollutants Per IEC 60068-2-42 and IEC 60068-2-43
Permissible H S contaminant concentration at a relative humidity 75
2
%
10 ppm
Permissible SO contaminant concentration at a relative humidity 75
2
%
25 ppm
Commercial data
Product Group 15 (Remote I/O)
Country of origin DE
GTIN 4045454626914
Customs Tariff No. 85389099990
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate
name
750-482/025-000
01.05.2019Page /4 11
Data sheet | Item number:750-482/025-000
ATEX
TUEV Nord Cert GmbH
EN 60079-0 TÜV 07
ATEX
554086 X
en.
TUEV Nord
TUEV Nord Cert GmbH
IEC 60079-0 IECEx
TUN
09.0001 X
UL
Underwriters Laboratories Inc. (HAZARDOUS
LOCATIONS)
ANSI/ISA 12.12.01 E198726
Sec.1
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
KC
National Radio Research Agency
Article 58-2, Clause 3 MSIP-
REM-W43AIM750
KC
National Radio Research Agency
Article 58-2, Clause 3 MSIP-
REM-W43AIM750
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UL
UL International Netherlands B.V. (ORDINARY
LOCATIONS)
UL 508 E175199
Sec.1
Compatible products
system box
Item no.: 850-804
IP65 enclosure; Stainless steel; WxHxD (400x123x200 mm); 4 x M20, 16 x M16, 28 x M12 cable grip
850-804
Item no.: 850-804/000-001
IP65 enclosure; Stainless steel; WxHxD (400x123x200 mm); 2 x M20, 13 x M16, 32 x M12 cable grip
850-804
/000-001
750-482/025-000
01.05.2019Page /5 11
Data sheet | Item number:750-482/025-000

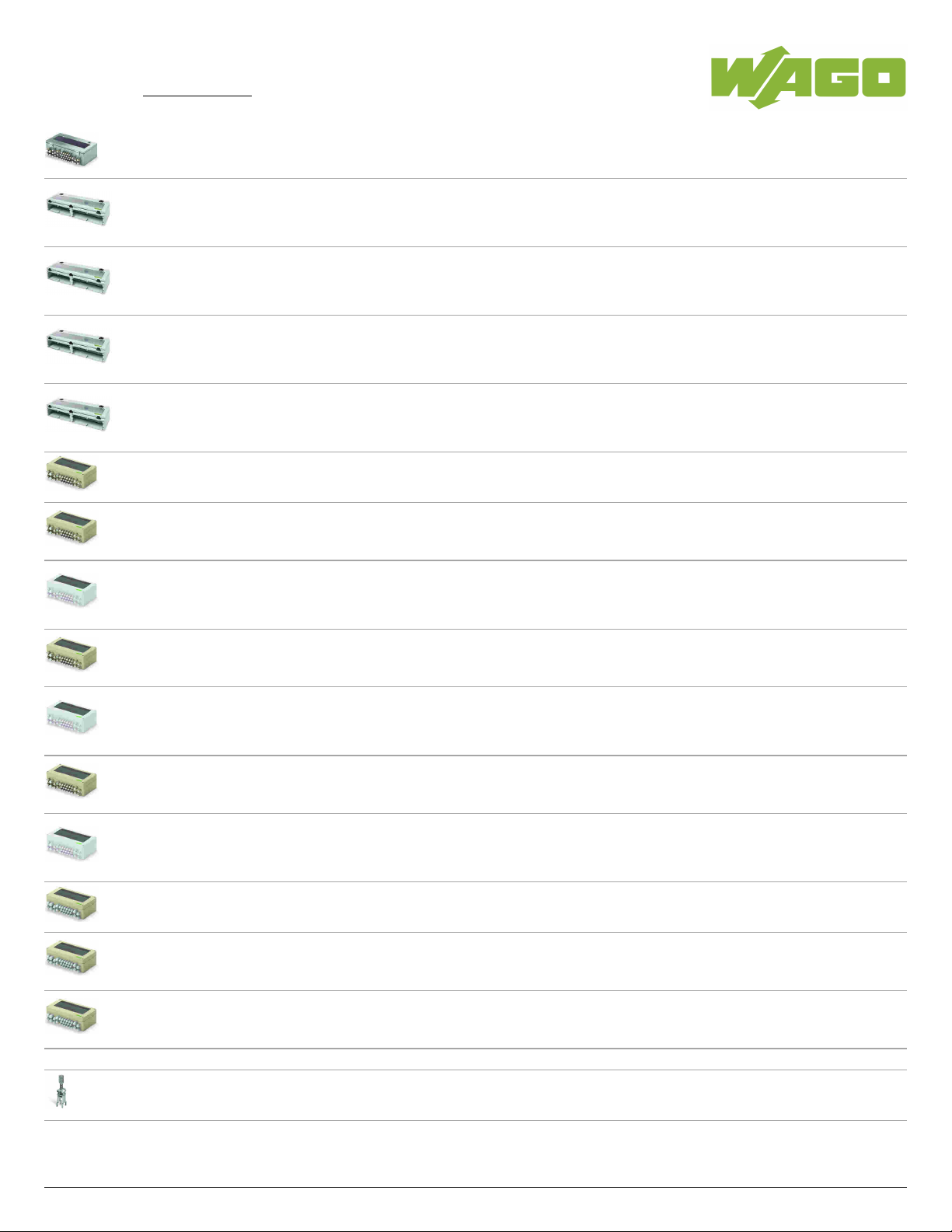

Item no.: 850-805
IP65 enclosure; Stainless steel; WxHxD (600x123x200 mm); 4 x M20, 19 x M16, 67 x M12 cable grip
850-805
Item no.: 850-814/002-000
IP65 enclosure; Sheet steel (RAL 7035); WxHxD (200x120x200 mm); without flange plate
850-814
/002-000
Item no.: 850-815/002-000
IP65 enclosure; Sheet steel (RAL 7035); WxHxD (300x120x200 mm); without flange plate
850-815
/002-000
Item no.: 850-816/002-000
IP65 enclosure; Sheet steel (RAL 7035); WxHxD (400x120x200 mm); without flange plate
850-816
/002-000
Item no.: 850-817/002-000
IP65 enclosure; Sheet steel (RAL 7035); WxHxD (600x120x200 mm); without flange plate
850-817
/002-000
Item no.: 850-825
IP65 enclosure; Aluminium (RAL 7032); WxHxD (160x100x160 mm); 9 x M12, 4 x M20
850-825
Item no.: 850-826
IP65 enclosure; Aluminium (RAL 7032); WxHxD (240x100x160 mm); 4 x M20, 4 x M16, 14 x M12 cable
grip
850-826
Item no.: 850-826/002-000
IP65 enclosure; Aluminium (RAL 7035); WxHxD (240x100x160 mm); 4 x M20, 4 x M16, 14 x M12 cable
grip
850-826
/002-000
Item no.: 850-827
IP65 enclosure; Aluminium (RAL 7032); WxHxD (320x100x160 mm); 4 x M20, 8 x M16, 17 x M12 cable
grip
850-827
Item no.: 850-827/002-000
IP65 enclosure; Aluminium (RAL 7035); WxHxD (320x100x160 mm); 4 x M20, 8 x M16, 17 x M12 cable
grip
850-827
/002-000
Item no.: 850-828
IP65 enclosure; Aluminium (RAL 7032); WxHxD (480x100x160 mm); 4 x M20, 10 x M16, 35 x M12 cable
grip
850-828
Item no.: 850-828/002-000
IP65 enclosure; Aluminium (RAL 7035); WxHxD (480x100x160 mm); 4 x M20, 10 x M16, 35 x M12 cable
grip
850-828
/002-000
Item no.: 850-834
IP65 enclosure; Polyester (RAL 7032); WxHxD (164x100x164 mm); 9 x M12, 4 x M20
850-834
Item no.: 850-835
IP65 enclosure; Polyester (RAL 7032); WxHxD (244x100x164 mm); 4 x M20, 4 x M16, 14 x M12 cable
grip
850-835
Item no.: 850-836
IP65 enclosure; Polyester (RAL 7032); WxHxD (324x100x164 mm); 4 x M20, 8 x M16, 17 x M12 cable
grip
850-836
shield connection
Item no.: 790-108
Shield clamping saddle; 11 mm wide; diameter of compatible conductor
790-108
750-482/025-000
01.05.2019Page /6 11
Data sheet | Item number:750-482/025-000

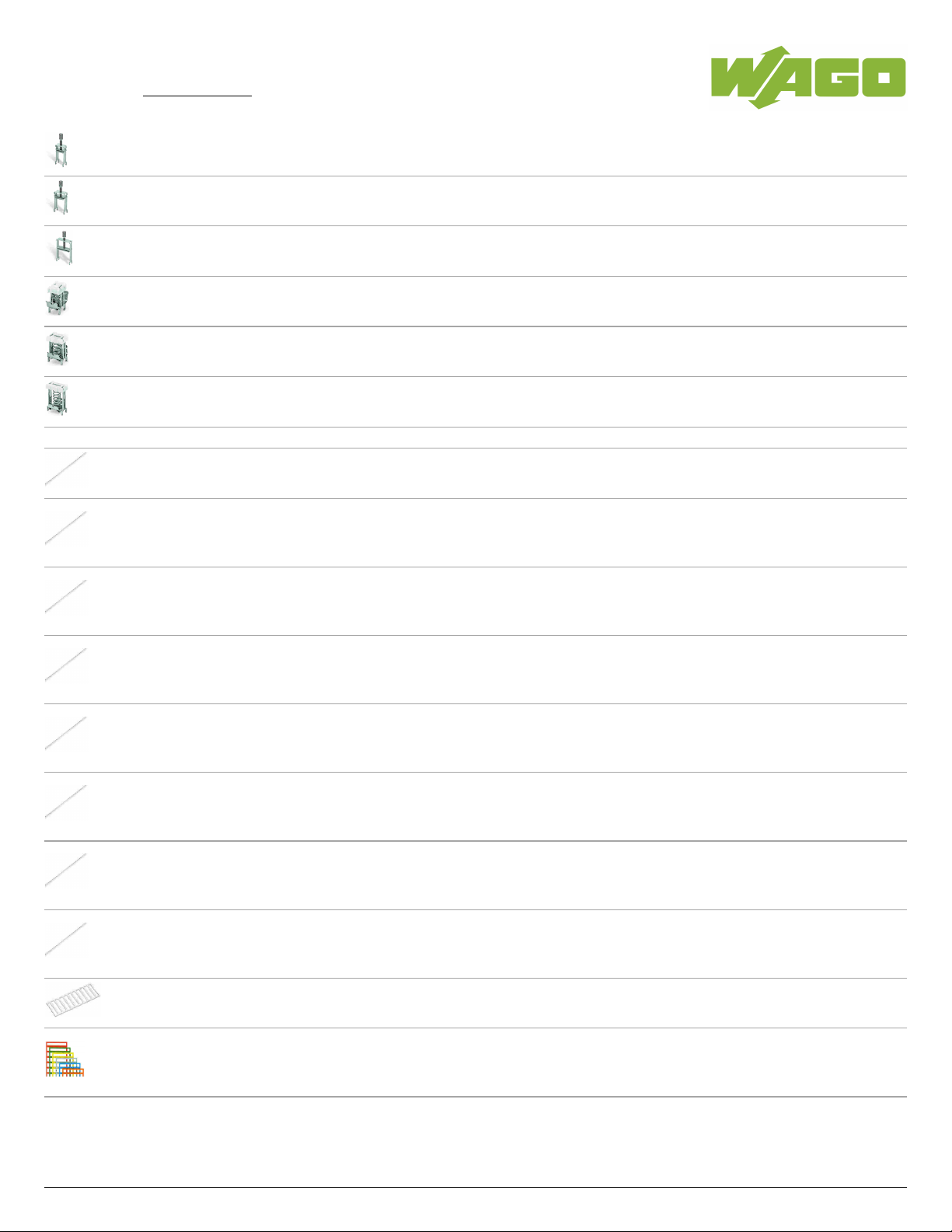

Item no.: 790-116
Shield clamping saddle; 19 mm wide; diameter of compatible conductor; 7 ... 16 mm
790-116
Item no.: 790-124
Shield clamping saddle; 27 mm wide; diameter of compatible conductor; 6 ... 24 mm
790-124
Item no.: 790-140
Shield clamping saddle; diameter of compatible conductor
790-140
Item no.: 790-208
Shield clamping saddle; 12.4 mm wide; 3 ... 8 mm
790-208
Item no.: 790-216
Shield clamping saddle; 21.8 mm wide; 6 ... 16 mm
790-216
Item no.: 790-220
Shield clamping saddle; 30 mm wide; 6 ... 20 mm
790-220
Marking accessories
Item no.: 2009-145
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
Item no.: 2009-145/000-002
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-002
Item no.: 2009-145/000-005
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-005
Item no.: 2009-145/000-006
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-006
Item no.: 2009-145/000-007
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-007
Item no.: 2009-145/000-012
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-012
Item no.: 2009-145/000-023
Mini-WSB Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-023
Item no.: 2009-145/000-024
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-024
Item no.: 248-501
Miniature WSB Quick marking system; plain; Marker width 5 mm; 10 strips with 10 markers per card
248-501
Item no.: 248-501/000-002
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-002
750-482/025-000
01.05.2019Page /7 11
Data sheet | Item number:750-482/025-000

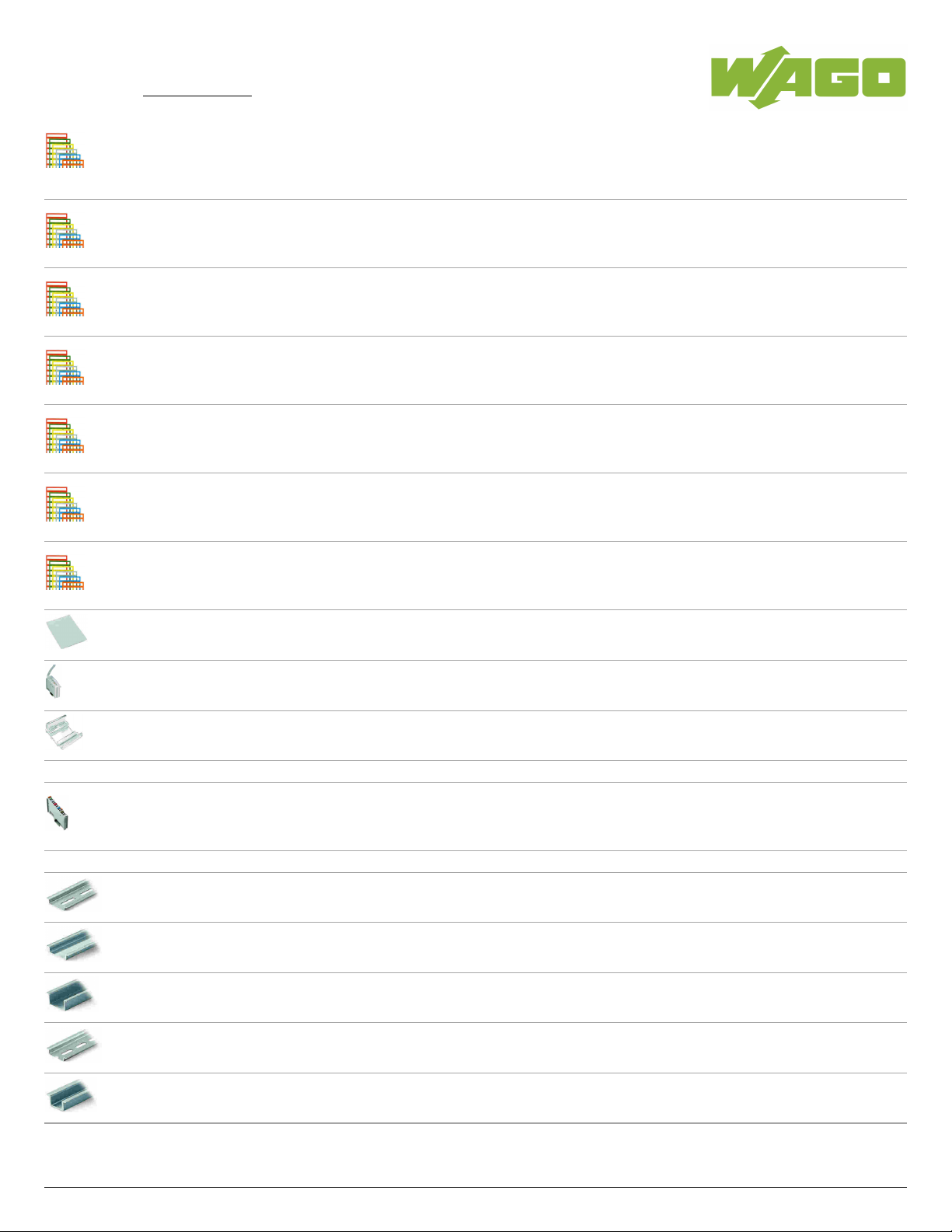

Item no.: 248-501/000-005
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-005
Item no.: 248-501/000-006
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-006
Item no.: 248-501/000-007
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-007
Item no.: 248-501/000-012
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-012
Item no.: 248-501/000-017
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-017
Item no.: 248-501/000-023
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-023
Item no.: 248-501/000-024
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-024
Item no.: 750-100
Marker card; as a DIN A4 sheet; plain
750-100
Item no.: 750-103
Group marker carrier
750-103
Item no.: 750-106
Group marker carrier
750-106
Supply module
Item no.: 750-602/025-000
Power Supply; 24 VDC; Ext. Temperature
750-602
/025-000

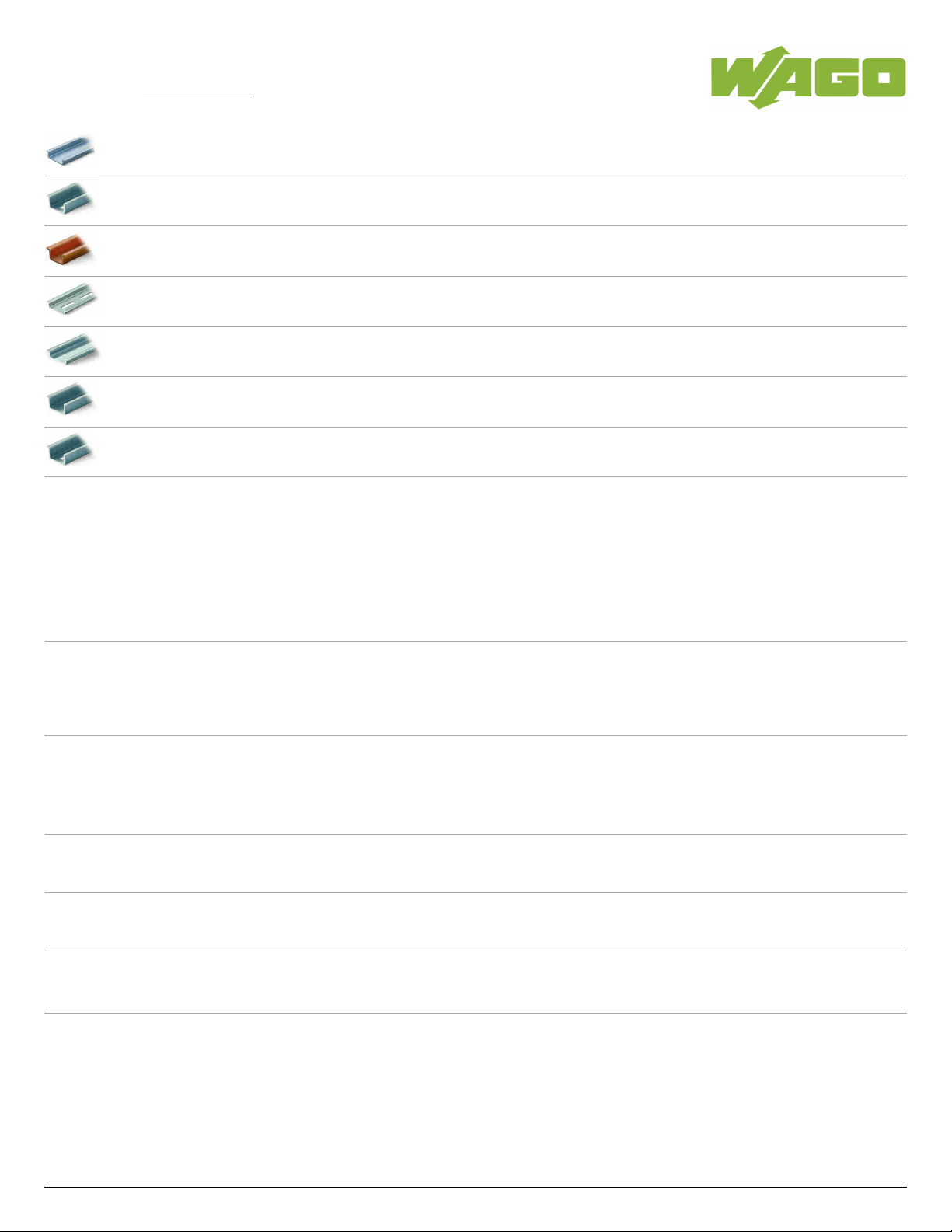

Carrier rail
Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm
210-112
Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm
210-115
Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
750-482/025-000
01.05.2019Page /8 11
Data sheet | Item number:750-482/025-000
Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
Item no.: 210-504
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715
210-504
Item no.: 210-505
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715
210-505
Item no.: 210-506
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715
210-506
Item no.: 210-508
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715
210-508
Downloads
Documentation
Bid Text
750-482/025-000 Oct 2, 2014 doc
31.7 kB
Download
Additional Information
Disposal; Electrical and electronic equipment, Packaging V 1.0.0 pdf
265.8 kB
Download
System Description
Use in Hazardous Environments
Term definition, marking and installation regulations
V 1.0.0 pdf
1.0 MB
Download
750/753 Series I/O-System ‒ General Product Information pdf
1.7 MB
Download
Overview on WAGO-I/O-SYSTEM 750 approvals pdf
780.2 kB
Download
Design Notes
Basic conditions and recommendations for higher operational safety
V 2.0.0 pdf
1.5 MB
Download
Application Notes
Application Note e!COCKPIT
HART Toolrouting über Ethernet mit 750-820x und eRUNTIME (a116130)
750-482/025-000
01.05.2019Page /9 11
Data sheet | Item number:750-482/025-000
HART Toolrouting über Ethernet mit 750-820x und eRUNTIME (a116130)
Der Anwendungshinweis beschreibt die Einrichtung von Asset-Management-
Systemen, welche das einfache, effiziente und schnelle Konfigurieren von HARTFeldgeräten ermöglichen. Am Beispiel des Cerabar PMC51 (Endress+Hauser) erfolgt
die Anbindung an die WAGO-ETHERNET-Controller 750-820x (e!RUNTIME). Hierbei
wird das HART-Modul 750-482 und 750-484 genutzt. Zusätzlich wird die
Konfiguration der Asset-Management-Software WAGOframe, PACTware und
FieldCare beschrieben.
1.0.0
Mar 22, 2019
pdf
2.9 MB
Download
Application Note CoDeSys 2.3
HART-Tool-Routing über PROFIBUS mit 750-833 und 750-333 (a116140)
Der Anwendungshinweis beschreibt die Einrichtung von Asset-Management-
Systemen, welche das einfache, effiziente und schnelle Konfigurieren von HARTFeldgeräten ermöglichen. Am Beispiel des Cerabar PMC51 (Endress+Hauser) erfolgt
die Anbindung des HART-Sensors an den WAGO-PROFIBUS-Controller (750-833)
bzw. WAGO-PROFIBUS-Koppler (750-333). Der zyklische PROFIBUS-Master (750-
8208) koordiniert den Profibus-Feldbus. Über den TH LINK PROFIBUS (azyklischer
Profibus Master) können die Asset-Management-Anwendungen (WAGOframe,
PACTware und FieldCare) azyklisch über das HART-Modul (750-482 bzw. 750-484)
auf die HART-Feldgeräte zugreifen.
1.0.0
Mar 22, 2019
pdf
5.3 MB
Download
HART-Tool-Routing über ETHERNET mit 750-820x/750-88x und CoDeSys 2.3
(a116120)
Der Anwendungshinweis beschreibt die Einrichtung von Asset-ManagementSystemen, welche das einfache, effiziente und schnelle Konfigurieren von HARTFeldgeräten ermöglichen. Am Beispiel des Cerabar PMC51 (Endress+Hauser) erfolgt
die Anbindung an die WAGO-ETHERNET-Controller 750-820x/750-88x (CoDeSys
2.3). Hierbei wird das HART-Modul 750-482 und 750-484 genutzt. Zusätzlich wird die
Konfiguration der Asset-Management-Software WAGOframe, PACTware und
FieldCare beschrieben.
1.0.0
Mar 22, 2019
pdf
3.9 MB
Download
CAD/CAE - Smart Data
CAD data
3D Download 750-482/025-000 URL Download
Device Files
Device Description File
EDD file for SIMATIC PDM for 750-333, 750-833, 750-482, 750-484 1.0
Nov 22, 2010
zip
185.2 kB
Download
Device Driver
759-360; Profibus/HART GatewayDTM for 75x-482/-484 2AI 4..20mA HART module
When using the 750-333 PROFIBUS DP/V1 Coupler or 750-833 PROFIBUS Controller
and the 759-360 PROFIBUS/HART Gateway DTM, FDT tool routing is possible to the
DTM of the connected HART device.
1.1.0.7
Aug 20, 2015
zip
4.6 MB
Download
750-482/025-000
01.05.2019Page /10 11
Data sheet | Item number:750-482/025-000
ModbusTCP/HARTGatewayDTM for 75x-482/-484 2AI 4..20mA HART module
1.00.0000
Aug 20, 2015
zip
21.5 MB
Download
WAGO USB Service Cable Driver / 750 and 857 Series
759-923
6.5.3.0
Sep 10, 2014
zip
4.8 MB
Download
Product family
750/753 Series I/O-System
Learn more about the product family.
Show all products from the family
750-482/025-000
Subject to changes.
01.05.2019Page /11 11
Loading...
