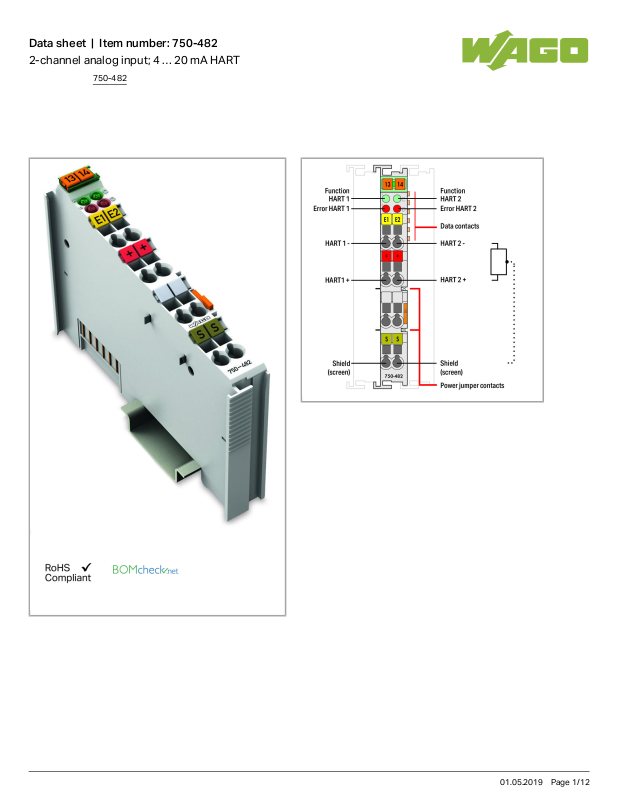

Data sheet | Item number:750-482

2-channel analog input; 4 … 20 mA HART

750-482

01.05.2019Page /1 12

Data sheet | Item number:750-482

Item description

The analog input module powers the transducers, receives transmitted analog signals, and with electrical isolation, transmits the signals to the
fieldbus.

The 24V supply for the field is derived from the module's power jumper contacts. The shield (screen) is directly connected to the DIN rail. At approx.
25mA, the overload protection switches the measurement input to a high-resistance state. Under normal operating conditions it will automatically
switch back. This input module can supply the voltage for 2-wire transducers.

Up to 4 HART dynamic variables (PV, SV, TV, QV) per channel can be mapped in the cyclic process image of the coupler or controller (configurable).
For HART communication with connected intelligent HART field devices, the HART protocol can be mapped in the cyclic process image of the
coupler or controller (configurable).

FDT/DTM device drivers are available for select (programmable) couplers, allowing HART tool routing to the connected HART device.

Data

Technical Data

Number of analog inputs 2

Total number of channels (module) 2

Type of signal Current

Type of signal current DC4 … 20mA

Sensor connection 2 x (2-conductor)

750-482

01.05.2019Page /2 12

Data sheet | Item number:750-482

Input filter parametrizable

Input filter: parametrizable (channel by channel) yes

Input voltage (max.) 24V

Input voltage drop (I < 28 mA): not linear, as protected against overload U = 0.9 V +

meas

270 Ω x I

meas

Signal characteristic Single-ended

Diagnostics Wire break, measurement range overflow

Resolution [bit] 12 Bit

Bit width 2 x 2-byte data; 2 x 2-byte data + 2n x 4-byte data (n = number of

dynamic variables); 2 x 2-byte data + 6-byte mailbox

Overvoltage protection 30 V, reverse polarity protected

Conversion time (typ. ≤) 10 ms

Messfehler, Bezugstemperatur 25 °C

Messfehler, Abweichung max. vom Messbereichsendwert 0.1 %

Temperaturfehler max. vom Messbereichsendwert 0.01 %/K

Line break detection I < 3.10 mA

meas

Short circuit detection I > 22 mA

meas

System supply voltage DC5V;via data contacts

Current consumption, system supply (5 V) 65 mA

System and sensor supply voltage )

Field supply voltage DC24V(-25 … +30%);über Leistungskontakte (Einspeisung über

Messerkontakt; Weiterleitung über Federkontakt)

HART devices per channel 1 device (single-drop, no multi-drop)

HART modems per channel 1 modem (no multiplex)

Isolation 500 V system/supply

Number of incoming power jumper contacts 2

Number of outgoing power jumper contacts 2

Connection data

Connection technology: In-/Outputs

8 x CAGE CLAMP

®

Connection type (1) Inputs/Outputs

Solid conductor 0.08 … 2.5mm²/ 28 … 14AWG

Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 14AWG

Strip length 8 … 9mm/ 0.31 … 0.35inch

Geometrical Data

Width 12mm/ 0.472inch

Height 69.8mm/ 2.748inch

Height from upper-edge of DIN-35 rail 62.6mm/ 2.465inch

Depth 100mm/ 3.937inch

750-482

01.05.2019Page /3 12

Data sheet | Item number:750-482

Mechanical data

Type of mounting DIN-35 rail

Material Data

Color light gray

Housing material Polycarbonate, polyamide 6.6

Weight 52.103 g

Conformity marking 1

Environmental Requirements

Surrounding air (operating) temperature 0 … 55°C

Surrounding air (storage) temperature -40 … 85°C

Protection class IP20

Degree of pollution (5) 2 per IEC 61131-2

Operating altitude 0 … 2000 m

Mounting position horizontal (standing/lying) or vertical

Relative air humidity (no condensation) 95 %

Vibration resistance acc. to IEC 60068-2-6

Shock resistance 15g per IEC 60068-2-27

EMC immunity to interference acc. to EN 61000-6-2

EMC emission of interference acc. to EN 61000-6-3

Exposure to pollutants Per IEC 60068-2-42 and IEC 60068-2-43

Permissible H S contaminant concentration at a relative humidity 75

2

%

10 ppm

Permissible SO contaminant concentration at a relative humidity 75

2

%

25 ppm

Commercial data

Product Group 15 (Remote I/O)

Country of origin DE

GTIN 4017332319522

Customs Tariff No. 85389099990

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

ATEX

TUEV Nord Cert GmbH

EN 60079-0 TÜV 07

ATEX

750-482

01.05.2019Page /4 12

Data sheet | Item number:750-482

554086 X
en.

TUEV Nord

TUEV Nord Cert GmbH

IEC 60079-0 IECEx

TUN

09.0001 X

UL

Underwriters Laboratories Inc. (HAZARDOUS
LOCATIONS)

ANSI/ISA 12.12.01 E198726

Sec.1

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

KC

National Radio Research Agency

Article 58-2, Clause 3 MSIP-

REM-W43­AIM750

KC

National Radio Research Agency

Article 58-2, Clause 3 MSIP-

REM-W43­AIM750

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Netherlands B.V. (ORDINARY
LOCATIONS)

UL 508 E175199

Sec.1

Compatible products

shield connection

Item no.: 790-108

Shield clamping saddle; 11 mm wide; diameter of compatible conductor

790-108

Item no.: 790-116

Shield clamping saddle; 19 mm wide; diameter of compatible conductor; 7 ... 16 mm

790-116

750-482

01.05.2019Page /5 12

Data sheet | Item number:750-482

Item no.: 790-124

Shield clamping saddle; 27 mm wide; diameter of compatible conductor; 6 ... 24 mm

790-124

Item no.: 790-140

Shield clamping saddle; diameter of compatible conductor

790-140

Item no.: 790-208

Shield clamping saddle; 12.4 mm wide; 3 ... 8 mm

790-208

Item no.: 790-216

Shield clamping saddle; 21.8 mm wide; 6 ... 16 mm

790-216

Item no.: 790-220

Shield clamping saddle; 30 mm wide; 6 ... 20 mm

790-220

Supply module

Item no.: 750-601

Power Supply; 24 VDC

750-601

Item no.: 750-602

Power Supply; 24 VDC

750-602

Item no.: 750-610

Power Supply; 24 VDC; fuse holder; Diagnostics

750-610

Item no.: 750-612

Power Supply; 0 … 230 V AC/DC

750-612

system box

Item no.: 850-804

IP65 enclosure; Stainless steel; WxHxD (400x123x200 mm); 4 x M20, 16 x M16, 28 x M12 cable grip

850-804

Item no.: 850-804/000-001

IP65 enclosure; Stainless steel; WxHxD (400x123x200 mm); 2 x M20, 13 x M16, 32 x M12 cable grip

850-804

/000-001

Item no.: 850-805

IP65 enclosure; Stainless steel; WxHxD (600x123x200 mm); 4 x M20, 19 x M16, 67 x M12 cable grip

850-805

Item no.: 850-814/002-000

IP65 enclosure; Sheet steel (RAL 7035); WxHxD (200x120x200 mm); without flange plate

850-814

/002-000

Item no.: 850-815/002-000

IP65 enclosure; Sheet steel (RAL 7035); WxHxD (300x120x200 mm); without flange plate

850-815

/002-000

Item no.: 850-816/002-000

IP65 enclosure; Sheet steel (RAL 7035); WxHxD (400x120x200 mm); without flange plate

850-816

/002-000

Item no.: 850-817/002-000

IP65 enclosure; Sheet steel (RAL 7035); WxHxD (600x120x200 mm); without flange plate

850-817

/002-000

Item no.: 850-825

IP65 enclosure; Aluminium (RAL 7032); WxHxD (160x100x160 mm); 9 x M12, 4 x M20

850-825

Item no.: 850-826

750-482

01.05.2019Page /6 12

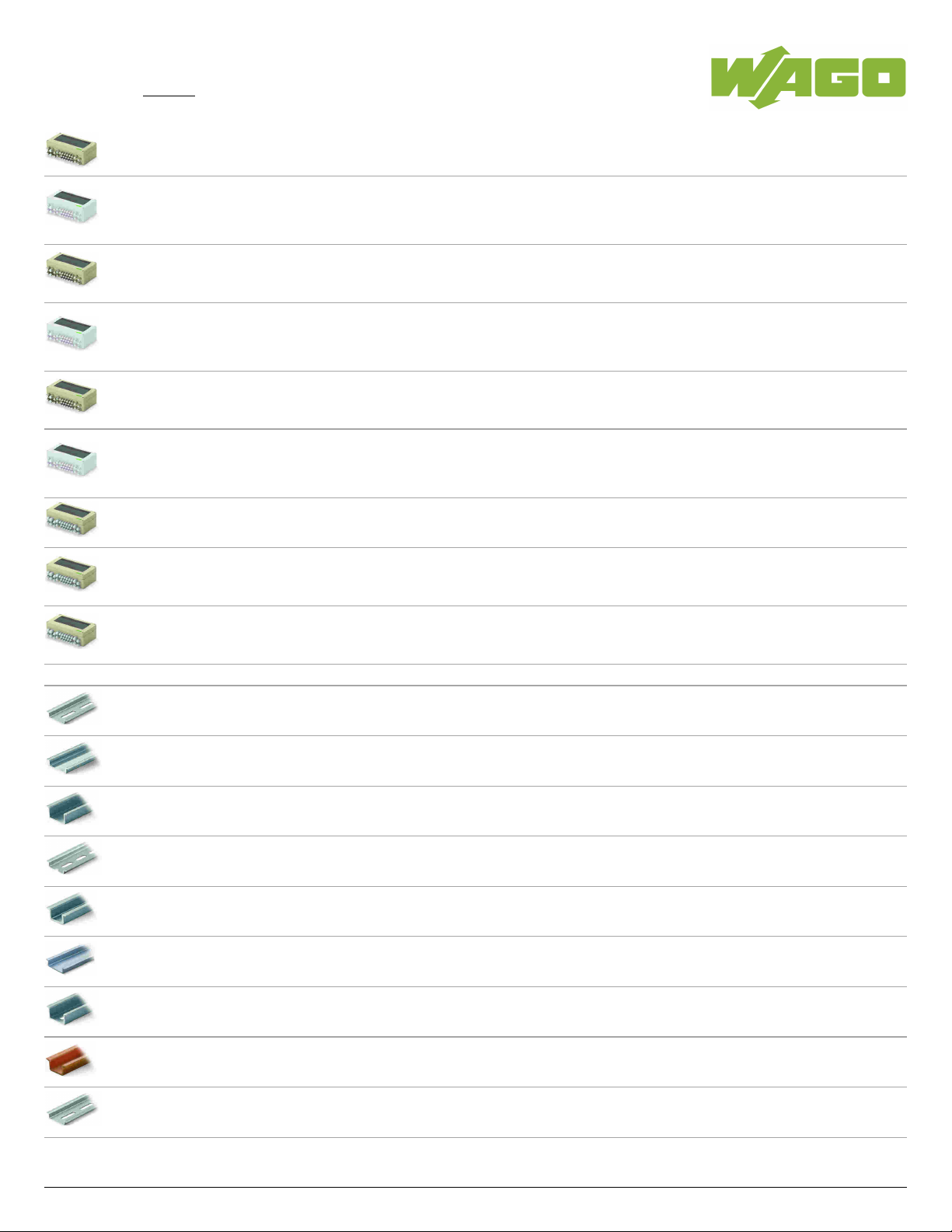

Data sheet | Item number:750-482

IP65 enclosure; Aluminium (RAL 7032); WxHxD (240x100x160 mm); 4 x M20, 4 x M16, 14 x M12 cable
grip

850-826

Item no.: 850-826/002-000
IP65 enclosure; Aluminium (RAL 7035); WxHxD (240x100x160 mm); 4 x M20, 4 x M16, 14 x M12 cable
grip

850-826

/002-000

Item no.: 850-827
IP65 enclosure; Aluminium (RAL 7032); WxHxD (320x100x160 mm); 4 x M20, 8 x M16, 17 x M12 cable
grip

850-827

Item no.: 850-827/002-000
IP65 enclosure; Aluminium (RAL 7035); WxHxD (320x100x160 mm); 4 x M20, 8 x M16, 17 x M12 cable
grip

850-827

/002-000

Item no.: 850-828
IP65 enclosure; Aluminium (RAL 7032); WxHxD (480x100x160 mm); 4 x M20, 10 x M16, 35 x M12 cable
grip

850-828

Item no.: 850-828/002-000
IP65 enclosure; Aluminium (RAL 7035); WxHxD (480x100x160 mm); 4 x M20, 10 x M16, 35 x M12 cable
grip

850-828

/002-000

Item no.: 850-834

IP65 enclosure; Polyester (RAL 7032); WxHxD (164x100x164 mm); 9 x M12, 4 x M20

850-834

Item no.: 850-835
IP65 enclosure; Polyester (RAL 7032); WxHxD (244x100x164 mm); 4 x M20, 4 x M16, 14 x M12 cable
grip

850-835

Item no.: 850-836
IP65 enclosure; Polyester (RAL 7032); WxHxD (324x100x164 mm); 4 x M20, 8 x M16, 17 x M12 cable
grip

850-836

Carrier rail

Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm

210-112

Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715

210-113

Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715

210-114

Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm

210-115

Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715

210-118

Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715

210-196

Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715

210-197

Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715

210-198

Item no.: 210-504
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715

210-504

750-482

01.05.2019Page /7 12

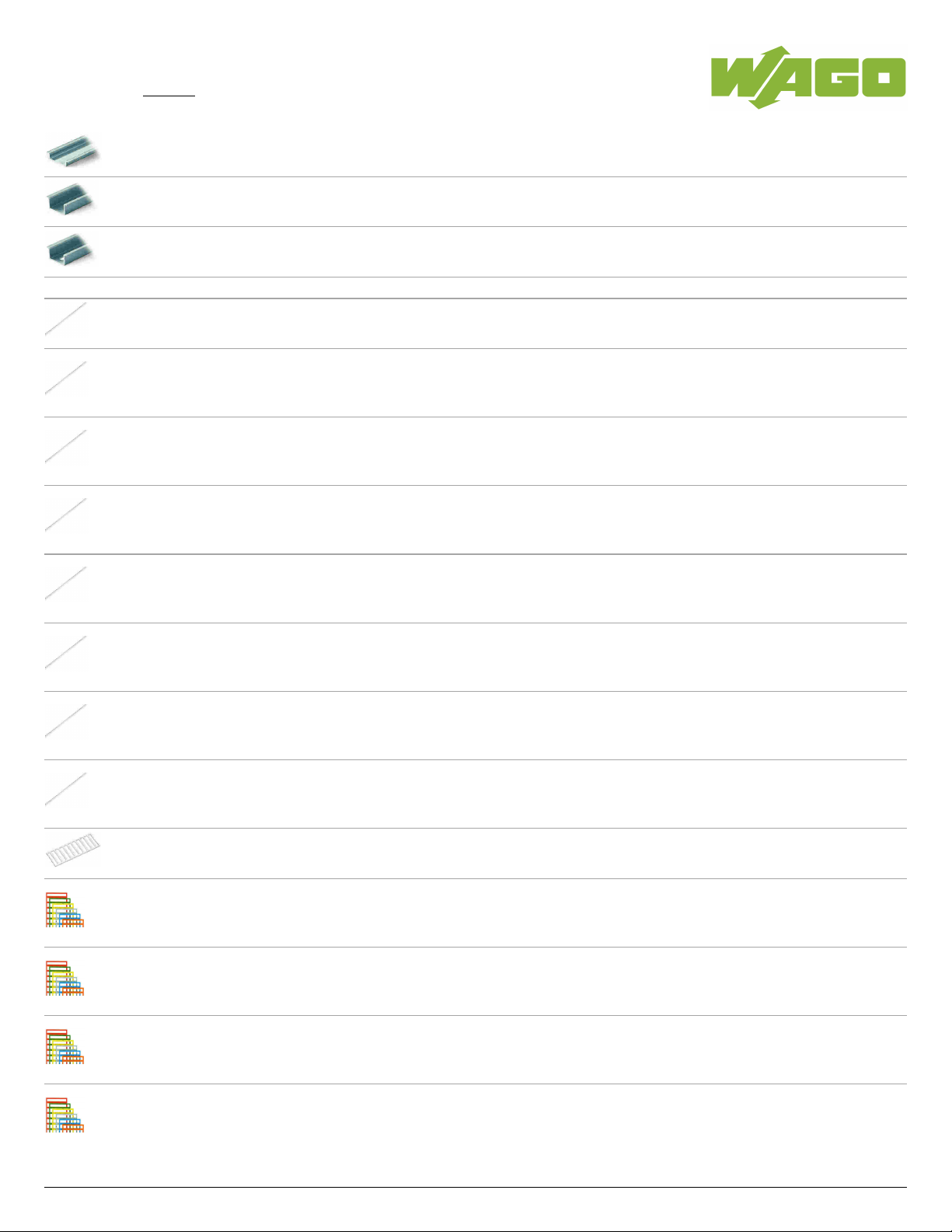

Data sheet | Item number:750-482

Item no.: 210-505
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715

210-505

Item no.: 210-506
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715

210-506

Item no.: 210-508
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715

210-508

Marking accessories

Item no.: 2009-145

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

Item no.: 2009-145/000-002

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

/000-002

Item no.: 2009-145/000-005

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

/000-005

Item no.: 2009-145/000-006

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

/000-006

Item no.: 2009-145/000-007

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

/000-007

Item no.: 2009-145/000-012

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

/000-012

Item no.: 2009-145/000-023

Mini-WSB Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

/000-023

Item no.: 2009-145/000-024

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

/000-024

Item no.: 248-501
Miniature WSB Quick marking system; plain; Marker width 5 mm; 10 strips with 10 markers per card

248-501

Item no.: 248-501/000-002

Mini-WSB marking card; as card; not stretchable; plain; snap-on type

248-501

/000-002

Item no.: 248-501/000-005

Mini-WSB marking card; as card; not stretchable; plain; snap-on type

248-501

/000-005

Item no.: 248-501/000-006

Mini-WSB marking card; as card; not stretchable; plain; snap-on type

248-501

/000-006

Item no.: 248-501/000-007

Mini-WSB marking card; as card; not stretchable; plain; snap-on type

248-501

/000-007

750-482

01.05.2019Page /8 12

Data sheet | Item number:750-482

Item no.: 248-501/000-012

Mini-WSB marking card; as card; not stretchable; plain; snap-on type

248-501

/000-012

Item no.: 248-501/000-017

Mini-WSB marking card; as card; not stretchable; plain; snap-on type

248-501

/000-017

Item no.: 248-501/000-023

Mini-WSB marking card; as card; not stretchable; plain; snap-on type

248-501

/000-023

Item no.: 248-501/000-024

Mini-WSB marking card; as card; not stretchable; plain; snap-on type

248-501

/000-024

Item no.: 750-100
Marker card; as a DIN A4 sheet; plain

750-100

Item no.: 750-103
Group marker carrier

750-103

Item no.: 750-106
Group marker carrier

750-106

Downloads

Documentation

Manual

2-Channel Analog Input, 4-20mA, HART, single ended V 1.1.0 pdf

1.6 MB

Download

Bid Text

750-482 Oct 2, 2014 doc

32.8 kB

Download

Additional Information

Disposal; Electrical and electronic equipment, Packaging V 1.0.0 pdf

265.8 kB

Download

System Description

Overview on WAGO-I/O-SYSTEM 750 approvals pdf

780.2 kB

Download

750/753 Series I/O-System ‒ General Product Information pdf

1.7 MB

Download

Design Notes
Basic conditions and recommendations for higher operational safety

V 2.0.0 pdf

1.5 MB

Download

750-482

01.05.2019Page /9 12

Data sheet | Item number:750-482

Use in Hazardous Environments
Term definition, marking and installation regulations

V 1.0.0 pdf

1.0 MB

Download

Application Notes

Application Note CoDeSys 2.3

HART-Tool-Routing über ETHERNET mit 750-820x/750-88x und CoDeSys 2.3
(a116120)

Der Anwendungshinweis beschreibt die Einrichtung von Asset-Management­Systemen, welche das einfache, effiziente und schnelle Konfigurieren von HART­Feldgeräten ermöglichen. Am Beispiel des Cerabar PMC51 (Endress+Hauser) erfolgt
die Anbindung an die WAGO-ETHERNET-Controller 750-820x/750-88x (CoDeSys

2.3). Hierbei wird das HART-Modul 750-482 und 750-484 genutzt. Zusätzlich wird die
Konfiguration der Asset-Management-Software WAGOframe, PACTware und
FieldCare beschrieben.

1.0.0
Mar 22, 2019

pdf

3.9 MB

Download

HART-Tool-Routing über PROFIBUS mit 750-833 und 750-333 (a116140)
Der Anwendungshinweis beschreibt die Einrichtung von Asset-Management-

Systemen, welche das einfache, effiziente und schnelle Konfigurieren von HART­Feldgeräten ermöglichen. Am Beispiel des Cerabar PMC51 (Endress+Hauser) erfolgt
die Anbindung des HART-Sensors an den WAGO-PROFIBUS-Controller (750-833)
bzw. WAGO-PROFIBUS-Koppler (750-333). Der zyklische PROFIBUS-Master (750-

8208) koordiniert den Profibus-Feldbus. Über den TH LINK PROFIBUS (azyklischer
Profibus Master) können die Asset-Management-Anwendungen (WAGOframe,
PACTware und FieldCare) azyklisch über das HART-Modul (750-482 bzw. 750-484)
auf die HART-Feldgeräte zugreifen.

1.0.0
Mar 22, 2019

pdf

5.3 MB

Download

Application Note e!COCKPIT

HART Toolrouting über Ethernet mit 750-820x und eRUNTIME (a116130)
Der Anwendungshinweis beschreibt die Einrichtung von Asset-Management-

Systemen, welche das einfache, effiziente und schnelle Konfigurieren von HART­Feldgeräten ermöglichen. Am Beispiel des Cerabar PMC51 (Endress+Hauser) erfolgt
die Anbindung an die WAGO-ETHERNET-Controller 750-820x (e!RUNTIME). Hierbei
wird das HART-Modul 750-482 und 750-484 genutzt. Zusätzlich wird die
Konfiguration der Asset-Management-Software WAGOframe, PACTware und
FieldCare beschrieben.

1.0.0
Mar 22, 2019

pdf

2.9 MB

Download

Libraries

Library

Utilize HART-Modules 750-482 and 750-484
The library WagoLibHART_05.lib offers a set of function blocks to execute HART-

commands (Revision 5) in a PLC program. The principal item of this library is program
HART_INFO, it identifies connected HART modules like 750-482 and coordinates the
Kbus access. In addition you find with HART_FDT program that act as counterpart to

V1.7 zip

21.9 MB

Download

750-482

01.05.2019Page /10 12

Data sheet | Item number:750-482

WAGO-ModbusTCP-HART-DTM, who enable configuration of HART devices with
every FDT-Frameapplication like WAGOframe. This library utilizes WagoLibKBUS.lib
for MailBox-communication.

Connecting HART-Modules 750-482 and 750-484
The library WagoLibHART_03.lib offers a set of function blocks to execute HART-

commands (Revision 5) in a PLC program. The principal item of this library is program
HART_INFO, it identifies connected HART modules like 750-482 and coordinates the
Kbus access. In addition you find with HART_FDT program that act as counterpart to
WAGO-ModbusTCP-HART-DTM, who enable configuration of HART devices with
every FDT-Frameapplication like WAGOframe.

V3.1.0 zip

331.0 kB

Download

CAD/CAE - Smart Data

CAD data

3D Download 750-482 URL Download

Device Files

Device Driver

759-360; Profibus/HART GatewayDTM for 75x-482/-484 2AI 4..20mA HART module
When using the 750-333 PROFIBUS DP/V1 Coupler or 750-833 PROFIBUS Controller

and the 759-360 PROFIBUS/HART Gateway DTM, FDT tool routing is possible to the
DTM of the connected HART device.

1.1.0.7
Aug 20, 2015

zip

4.6 MB

Download

WAGO USB Service Cable Driver / 750 and 857 Series
759-923

6.5.3.0
Sep 10, 2014

zip

4.8 MB

Download

ModbusTCP/HARTGatewayDTM for 75x-482/-484 2AI 4..20mA HART module 1.00.0000

Aug 20, 2015

zip

21.5 MB

Download

Device Description File

EDD file for SIMATIC PDM for 750-333, 750-833, 750-482, 750-484 1.0

Nov 22, 2010

zip

185.2 kB

Download

750-482

01.05.2019Page /11 12

Data sheet | Item number:750-482

Product family

750/753 Series I/O-System

Learn more about the product family.

Show all products from the family



750-482

Subject to changes.

01.05.2019Page /12 12
