Wago 750-464/040-000 Data Sheet

Data sheet | Item number:750-464/040-000

2/4-channel analog input; Resistance measurement; Adjustable; Extreme

750-464/040-000

01.05.2019Page /1 11

Data sheet | Item number:750-464/040-000

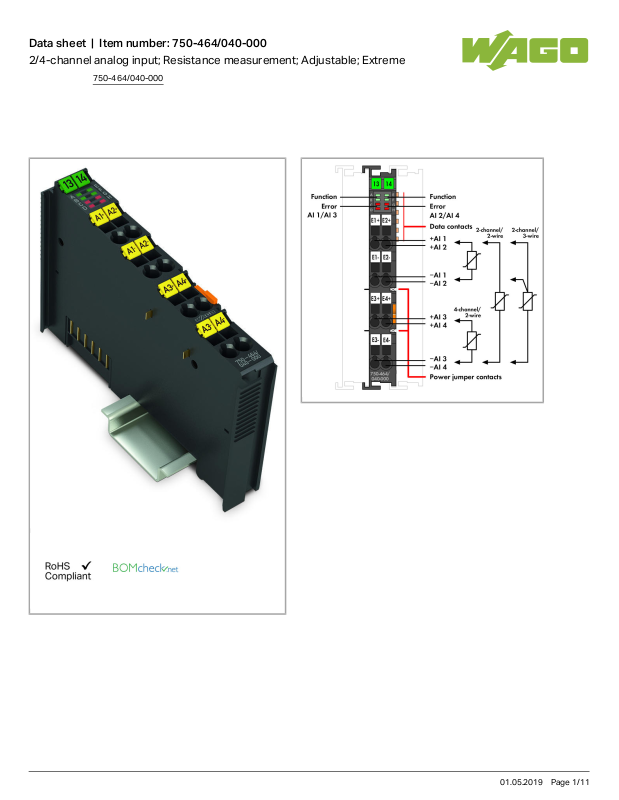

Item description

The input module directly connects to Pt or Ni resistance sensors and potentiometers.

It can be operated as a 2-channel (2- and 3-wire technology) or 4-channel (2-wire technology) module.

The bus module linearizes the entire temperature range. A sensor error (short circuit, line break or measuring range overflow) is indicated by a red
LED.

The module can be configured via WAGO‐I/O‐CHECK or GSD files.

The module features multiple setting options and high accuracy.

The module is ideally suited for operation in harsh environmental conditions:

- strongly extended temperature range

- higher dielectric strength and EMC resistance

- higher vibration and shock resistance

Data

Technical Data

Number of analog inputs 4

Total number of channels (module) 4

Type of signal Resistance measurement

750-464/040-000

01.05.2019Page /2 11

Data sheet | Item number:750-464/040-000

Potentiometer positions

Configurable type of signal yes

Sensor connection 4 x (2-conductor);2 x (3-conductor)

Bit width 4 (2) x 16-bit data; 4 (2) x 8-bit control/status (optional)

Resolution (over entire range) 0.1 °C

Conversion time (typ. ≤) 320 ms

Measuring error (25 °C) ≤ 1 K in the entire temp. range, ≤ 0.5 K in the restricted temp. range

(-30 °C ... +120 °C)

Temperature coefficient ≤ 20 ppm/K; typ. ≤ 15 ppm/K

Accuracy (+25 °C) ≤ ± 0.2% of full scale value; typ.: ≤ ± 0.1% of full scale value

Measuring current (typ.) ≤ 350 µA per measurement circuit

Measurement repetition rate (standard) 1.1 s

Measurement repetition rate (2-channel/2-conductor) 0.63 s

Response time (max.) 4 s

Sensor types Pt100 (default), Pt200, Pt500, Pt1000 (IEC 751), Ni100, Ni1000 (DIN

43760), Ni120 (Minco), Ni1000 (TK 5000), 2-channel operation:
potentiometer, resistance measurement 10 Ω ... 5000 Ω, 10 Ω ...
1200 Ω

Temperature range -200 … +850 °C (Pt), -60 … +300 °C (Ni100, Ni1000), -60 … +250 °C

(Ni1000 TK5000), -80 … +260 °C (Ni120)

System supply voltage DC5V;via data contacts

Current consumption, system supply (5 V) 50 mA

System and sensor supply voltage )

Field supply voltage DC24V(-25 … +30%);über Leistungskontakte (Einspeisung über

Messerkontakt; Weiterleitung über Federkontakt); angegebene
Werte für Umgebungstemperaturen: +15 … +35 °C; für −40 … +55 °
C: 24 V (−25 … +20 %); für +55 … +70 °C: 24 V (−25 … +10 %);
Untergrenze in allen Temperaturbereichen: −27,5 % (inklusive 15 %
Restwelligkeit)

Dielectric strength AC 510 V/DC 775 V; gemäß EN 60870-2-1

Rated surge voltage 1 kV

Number of incoming power jumper contacts 2

Number of outgoing power jumper contacts 2

Current carrying capacity of the power jumper contacts 10 A

Connection data

Connection technology: In-/Outputs

8 x CAGE CLAMP

®

Connection type (1) Inputs/Outputs

Solid conductor 0.25 … 2.5mm²/ 24 … 14AWG

Fine-stranded conductor 0.25 … 2.5mm²/ 24 … 14AWG

Strip length 8 … 9mm/ 0.31 … 0.35inch

750-464/040-000

01.05.2019Page /3 11

Data sheet | Item number:750-464/040-000

Geometrical Data

Width 12mm/ 0.472inch

Height 67.8mm/ 2.669inch

Height from upper-edge of DIN-35 rail 60.6mm/ 2.386inch

Depth 100mm/ 3.937inch

Mechanical data

Type of mounting DIN-35 rail

Material Data

Housing material Polycarbonate, polyamide 6.6

Fire load 0.144 MJ

Weight 49.205 g

Conformity marking 1

Environmental Requirements

Surrounding air (operating) temperature -40 … 70°C

Surrounding air (storage) temperature -40 … 85°C

Protection class IP20

Degree of pollution (5) 2 per IEC 61131-2

Operating altitude without temperature derating: 0 … 2000 m; with temperature

derating: 2000 … 5000 m (0.5 K/100 m); max.: 5000 m

Mounting position horizontal (standing/lying) or vertical

Relative air humidity (no condensation) 95 %

Relative humidity Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E

DIN 40046-721-3 (except wind-driven precipitation, water and ice
formation)

Vibration resistance acc. to IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-

3-1, -3, EN 50155, EN 61373

Shock resistance acc. to IEC 60068-2-27 (15g/11 ms/half-sine/1000 shocks; 25g/6 ms

/1000 shocks), EN 50155, EN 61373

EMC immunity to interference acc. to EN 61000-6-1, -2, EN 61131-2, marine applications, EN

50121-3-2, -4, -5, EN 60255-26, EN 60870-2-1, EN 61850-3, IEC
61000-6-5, IEEE 1613, VDEW: 1994

EMC emission of interference acc. to EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine

applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121­4, -5

Exposure to pollutants Per IEC 60068-2-42 and IEC 60068-2-43

Permissible H S contaminant concentration at a relative humidity 75

2

%

10 ppm

25 ppm

750-464/040-000

01.05.2019Page /4 11

Data sheet | Item number:750-464/040-000

Permissible SO contaminant concentration at a relative humidity 75

2

%

Commercial data

Product Group 15 (Remote I/O)

Country of origin DE

GTIN 4050821460329

Customs Tariff No. 85389099990

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

ATEX

TUEV Nord Cert GmbH

EN 60079-0 TUEV 17

ATEX
193969X

ATEX

TUEV Nord Cert GmbH

EN 60079-0 TUEV 17

ATEX
193969X

ATEX

TUEV Nord Cert GmbH

EN 60079-0 TUEV 17

ATEX
193969X

IECEx

TUEV Nord Cert GmbH

IEC 60079-0 IECEx

TUN

16.0046X

IECEx

TUEV Nord Cert GmbH

IEC 60079-0 IECEx

TUN

16.0046X

IECEx

TUEV Nord Cert GmbH

IEC 60079-0 IECEx

TUN

16.0046X

UL

Underwriters Laboratories Inc. (HAZARDOUS
LOCATIONS)

ANSI/ISA 12.12.01 E198726

Sec.1

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

750-464/040-000

01.05.2019Page /5 11

Data sheet | Item number:750-464/040-000

KC

National Radio Research Agency

Article 58-2, Clause 3 MSIP-

REM-W43­AIM750

KC

National Radio Research Agency

Article 58-2, Clause 3 MSIP-

REM-W43­AIM750

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

LR

Lloyds Register

- 17/20073
LR

PRS

Polski Rejestr Statków

- TE/2215
/880590
/18

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Netherlands B.V. (ORDINARY
LOCATIONS)

UL 508 E175199

Sec.1
