Wago 750-450 Data Sheet

Data sheet | Item number:750-450

4-channel analog input; Resistance measurement; Adjustable

750-450

01.05.2019Page /1 10

Data sheet | Item number:750-450

Item description

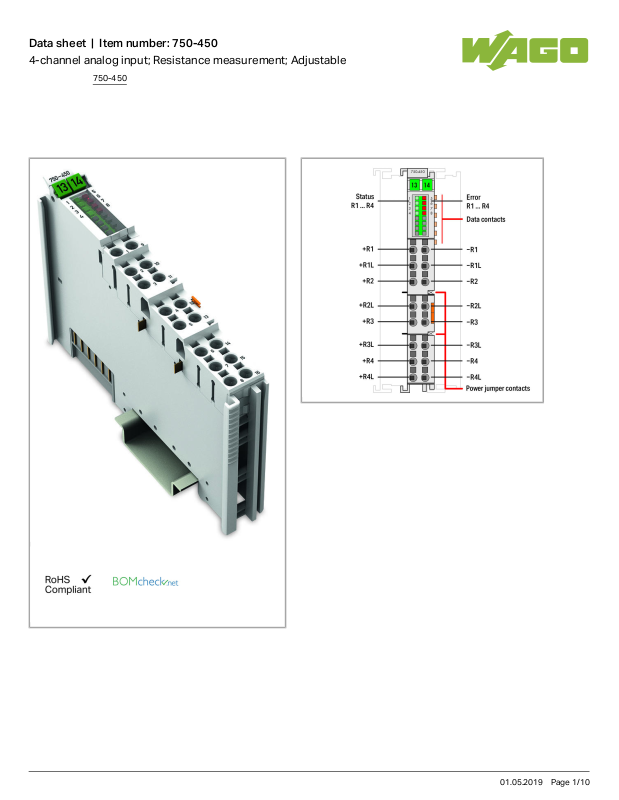

This input module directly connects to Pt or Ni resistance sensors and potentiometers.

The connection of 2-, 3- or 4-conductor resistance sensors is possible. Potentiometers are connected with 3-wire technology.The module
automatically linearizes the entire temperature range. A sensor error (short circuit, wire break or out-of-measurement range) is indicated by a red
LED. Unused channels can be deactivated.

The module can be configured via WAGO‐I/O‐CHECK or GSD files.

It features multiple setting options and high accuracy.

Data

Technical Data

Number of analog inputs 4

Total number of channels (module) 4

Type of signal Resistance measurement

Potentiometer positions

Configurable type of signal yes

Sensor connection 4 x (2-conductor,3-conductor,4-conductor)

Bit width 4 x 16-bit data; 4 x 8-bit control/status (optional)

Resolution (over entire range) 0.1 °C (over the entire range); 0.01 °C (-50 °C ... 150 °C; Pt1000,

750-450

01.05.2019Page /2 10

Data sheet | Item number:750-450

Resolution (over entire range) 0.1 °C (over the entire range); 0.01 °C (-50 °C ... 150 °C; Pt1000,

Ni1000)

Conversion time (typ. ≤) 100 ms

Conversion time Per channel: ≤ 100 ms (2-/4-wire connection), ≤ 200 ms (3-wire

connection)

Measuring error (25 °C) ≤ ±0.6 K (Pt100, Pt200, Pt500, Ni100, Ni120); ≤ ±0.2 K (Pt1000,

Ni1000); ≤ ±0.3 Ω ... 0.7 Ω at resistance measurement

Measuring current (typ.) ≤ 350 µA

Response time (max.) 3 s

Sensor types Pt100 (default setting), Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000

(TK6180 + TK5000), Potentiometer 0 Ohm ... 1.2 kOhm, 0 Ohm ... 5
kOhm

Temperature range -200 … +850 °C (Pt100, Pt200, Pt500, Pt1000), -60 … +250 °C

(Ni100, Ni1000), -80 … +260 °C (Ni120)

System supply voltage DC5V;via data contacts

Current consumption, system supply (5 V) 85 mA

System and sensor supply voltage )

Field supply voltage DC24V(-25 … +30%);über Leistungskontakte (Einspeisung über

Messerkontakt; Weiterleitung über Federkontakt)

Isolation 500 V system/supply

Number of incoming power jumper contacts 2

Number of outgoing power jumper contacts 2

Connection data

Connection technology: In-/Outputs

16 x Push-in CAGE CLAMP

®

Connection type (1) Inputs/Outputs

Solid conductor 0.08 … 1.5mm²/ 28 … 16AWG

Fine-stranded conductor 0.25 … 1.5mm²/ 22 … 16AWG

Strip length 8 … 9mm/ 0.31 … 0.35inch

Geometrical Data

Width 12mm/ 0.472inch

Height 69mm/ 2.717inch

Height from upper-edge of DIN-35 rail 61.8mm/ 2.433inch

Depth 100mm/ 3.937inch

Mechanical data

Type of mounting DIN-35 rail

Material Data

Housing material Polycarbonate, polyamide 6.6

Weight 49 g
