Data sheet | Item number:750-1500
16-channel digital output; 24 VDC; 0.5 A; Ribbon cable
750-1500
01.05.2019Page /1 12
Data sheet | Item number:750-1500

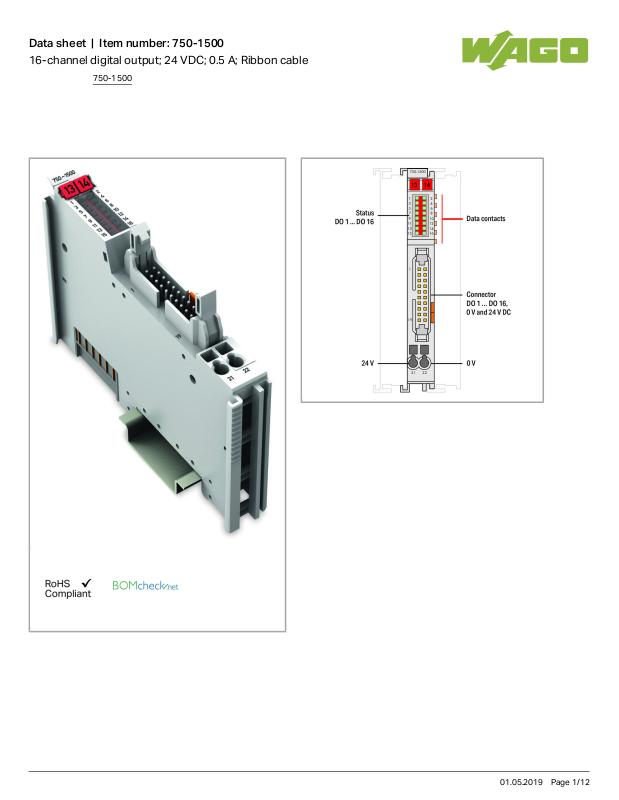

Item description
The digital output module provides sixteen channels in a width of just 12 mm (0.47 inch).
It transmits binary control signals from the automation device to connected actuators (e.g., magnetic valves, contactors, transmitters, relays or
other electrical loads).
The module connects electronic modules via a 20-pole flat cable.
The 24V power is fed to the electronic modules via two CAGE CLAMP terminals.
®
A green LED indicates the switched status of each channel.
Field and system levels are electrically isolated.
Data
Technical Data
Number of digital outputs 16
Total number of channels (module) 16
Type of signal Voltage
Actuator connection 16 x (1-conductor)
Output characteristic high-side switching
750-1500
01.05.2019Page /2 12
Data sheet | Item number:750-1500
Output current per channel 0.5 A
Output current short-circuit-protected
Switching frequency max. 1kHz
Type of load resistive, inductive, lamps
Switching frequency max. 1000 Hz
Max output data width (internal) 16 Bit
System supply voltage DC5V;via data contacts
Current consumption, system supply (5 V) 40 mA
System and sensor supply voltage )
Field supply voltage
DC24V(-25 … +30%);via wiring level (CAGE CLAMP connection)
®
Current consumption, field supply (module with no external load) 29 mA
Isolation field – system 500 VAC (1 min)
Indicators LED (1-16) green: Status DO 1 … DO 16
Connection data
Connection technology: In-/Outputs 20 x 20-pin male connector
Connection technology: field supply
2 x CAGE CLAMP
®
Connection type (1) Inputs/Outputs
Connection type (2) Feldversorgung
Solid conductor (2) 0.08 … 2.5mm²/ 28 … 14AWG
Strip length (2) 8 … 9mm/ 0.31 … 0.35inch
Geometrical Data
Width 12mm/ 0.472inch
Height 74.1mm/ 2.917inch
Height from upper-edge of DIN-35 rail 66.9mm/ 2.634inch
Depth 100mm/ 3.937inch
Mechanical data
Type of mounting DIN-35 rail
Material Data
Color light gray
Housing material Polycarbonate, polyamide 6.6
Fire load 1.013 MJ
Weight 46.529 g
Conformity marking 1
750-1500
01.05.2019Page /3 12
Data sheet | Item number:750-1500
Environmental Requirements
Surrounding air (operating) temperature 0 … 55°C
Surrounding air (storage) temperature -40 … 85°C
Protection class IP20
Degree of pollution (5) 2 per IEC 61131-2
Operating altitude 0 … 2000 m
Mounting position horizontal (standing/lying) or vertical
Relative air humidity (no condensation) 95 %
Vibration resistance 4g per IEC 60068-2-6
Shock resistance 15g per IEC 60068-2-27
EMC immunity to interference acc. to EN 61000-6-2, marine applications
EMC emission of interference acc. to EN 61000-6-3, marine applications
Exposure to pollutants Per IEC 60068-2-42 and IEC 60068-2-43
Permissible H S contaminant concentration at a relative humidity 75
2
%
10 ppm
Permissible SO contaminant concentration at a relative humidity 75
2
%
25 ppm
Commercial data
Product Group 15 (Remote I/O)
Country of origin DE
GTIN 4045454898267
Customs Tariff No. 85371098990
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate
name
ATEX
TUEV Nord Cert GmbH
EN 60079-0 TÜV 07
ATEX
554086 X
en.
TUEV Nord
TUEV Nord Cert GmbH
IEC 60079-0 IECEx
TUN
09.0001 X
UL
Underwriters Laboratories Inc. (HAZARDOUS
LOCATIONS)
ANSI/ISA 12.12.01 E198726
Sec.1
750-1500
01.05.2019Page /4 12
Data sheet | Item number:750-1500
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
KC
National Radio Research Agency
Article 58-2, Clause 3 MSIP-
REM-W43DOM750
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
- 19HG1821926
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAA0000194
GL
Germanischer Lloyd
- 11 631 - 10
HH
KR
Korean Register of Shipping
- HMB05880AC001
LR
Lloyds Register
- 02/20026 (E5)
NK
Nippon Kaiji Kyokai
- TA17255M
PRS
Polski Rejestr Statków
- TE/2236
/880590/19
RINA
RINA Germany GmbH
- ELE134212XG
UL-Approvals
Certificate
750-1500
01.05.2019Page /5 12
Data sheet | Item number:750-1500
Logo Approval Additional Approval Text name
UL
UL International Netherlands B.V. (ORDINARY
LOCATIONS)
UL 508 E175199
Sec.1
