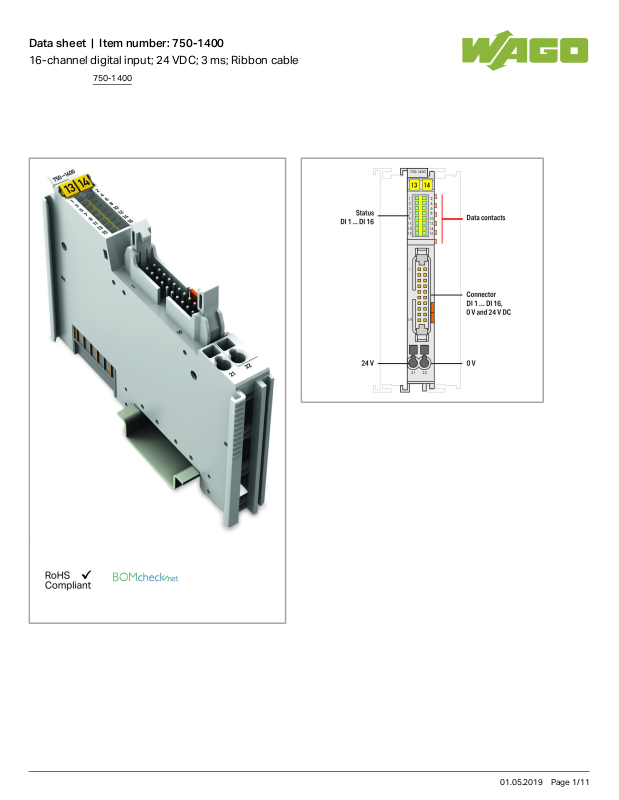

Wago 750-1400 Data Sheet

Data sheet | Item number:750-1400

16-channel digital input; 24 VDC; 3 ms; Ribbon cable

750-1400

01.05.2019Page /1 11

Data sheet | Item number:750-1400

Item description

The digital input module provides sixteen channels in a width of just 12 mm (0.47 inch).

It receives binary control signals from digital field devices (e.g., sensors, encoders, switches or proximity switches).

The module connects electronic modules via a 20-pole flat cable.

The 24V power is fed to the electronic modules via two CAGE CLAMP terminals.

®

Each input channel has a noise-rejection RC filter with 3.0 ms time constant.

A green LED indicates the switched status of each channel.

Field and system levels are electrically isolated.

Data

Technical Data

Number of digital inputs 16

Total number of channels (module) 16

Type of signal Voltage

Sensor supply voltage DC24V

Sensor connection 16 x (1-conductor)

750-1400

01.05.2019Page /2 11

Data sheet | Item number:750-1400

Sensor connection 16 x (1-conductor)

Input characteristic high-side switching

Input filter (digital) 3 ms

Input current per channel for signal (0) typ. 0.6 mA

Input current per channel for signal (1) min. 2.1 mA

Input current per channel for signal (1) max. 2.4 mA

Voltage range for signal (0) −3 … +5 VDC

Voltage range for signal (1) 15 … 30 VDC

Max input data width (internal) 16 Bit

System supply voltage DC5V;via data contacts

Current consumption, system supply (5 V) 25 mA

System and sensor supply voltage )

Field supply voltage

DC24V(-25 … +30%);via wiring level (CAGE CLAMP connection)

®

Isolation field – system 500 VAC (1 min)

Indicators LED (1-16) green: Status DI 1 … DI 16

Connection data

Connection technology: In-/Outputs 20 x 20-pin male connector

Connection technology: field supply

2 x CAGE CLAMP

®

Connection type (1) Inputs/Outputs

Connection type (2) Feldversorgung

Solid conductor (2) 0.08 … 2.5mm²/ 28 … 14AWG

Strip length (2) 8 … 9mm/ 0.31 … 0.35inch

Geometrical Data

Width 12mm/ 0.472inch

Height 74.1mm/ 2.917inch

Height from upper-edge of DIN-35 rail 66.9mm/ 2.634inch

Depth 100mm/ 3.937inch

Mechanical data

Type of mounting DIN-35 rail

Material Data

Color light gray

Housing material Polycarbonate, polyamide 6.6

Fire load 1.057 MJ

Weight 41.729 g

Conformity marking 1

750-1400

01.05.2019Page /3 11

Data sheet | Item number:750-1400

Environmental Requirements

Surrounding air (operating) temperature 0 … 55°C

Surrounding air (storage) temperature -40 … 85°C

Protection class IP20

Degree of pollution (5) 2 per IEC 61131-2

Operating altitude 0 … 2000 m

Mounting position horizontal (standing/lying) or vertical

Relative air humidity (no condensation) 95 %

Vibration resistance 4g per IEC 60068-2-6

Shock resistance 15g per IEC 60068-2-27

EMC immunity to interference acc. to EN 61000-6-2, marine applications

EMC emission of interference acc. to EN 61000-6-3, marine applications

Exposure to pollutants Per IEC 60068-2-42 and IEC 60068-2-43

Permissible H S contaminant concentration at a relative humidity 75

2

%

10 ppm

Permissible SO contaminant concentration at a relative humidity 75

2

%

25 ppm

Commercial data

Product Group 15 (Remote I/O)

Country of origin DE

GTIN 4045454880590

Customs Tariff No. 85389099990

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

ATEX

TUEV Nord Cert GmbH

EN 60079-0 TÜV 07

ATEX
554086 X
en.

TUEV Nord

TUEV Nord Cert GmbH

IEC 60079-0 IECEx

TUN

09.0001 X

UL

Underwriters Laboratories Inc. (HAZARDOUS
LOCATIONS)

ANSI/ISA 12.12.01 E198726

Sec.1

Country specific Approvals

Certificate

750-1400

01.05.2019Page /4 11

Data sheet | Item number:750-1400

Logo Approval Additional Approval Text

Certificate
name

KC

National Radio Research Agency

Article 58-2, Clause 3 MSIP-

REM-W43­DIM750

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 19­HG1821926

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAA0000194

GL

Germanischer Lloyd

- 11 631 - 10
HH

KR

Korean Register of Shipping

- HMB05880­AC001

LR

Lloyds Register

- 02/20026 (E5)

NK

Nippon Kaiji Kyokai

- TA17255M

PRS

Polski Rejestr Statków

- TE/2236
/880590/19

RINA

RINA Germany GmbH

- ELE134212XG

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Netherlands B.V. (ORDINARY

UL 508 E175199

Sec.1

750-1400

01.05.2019Page /5 11

Data sheet | Item number:750-1400

LOCATIONS)

Compatible products

shield connection

Item no.: 790-108

Shield clamping saddle; 11 mm wide; diameter of compatible conductor

790-108

Item no.: 790-116

Shield clamping saddle; 19 mm wide; diameter of compatible conductor; 7 ... 16 mm

790-116

Item no.: 790-124

Shield clamping saddle; 27 mm wide; diameter of compatible conductor; 6 ... 24 mm

790-124

Item no.: 790-140

Shield clamping saddle; diameter of compatible conductor

790-140

Item no.: 790-208

Shield clamping saddle; 12.4 mm wide; 3 ... 8 mm

790-208

Item no.: 790-216

Shield clamping saddle; 21.8 mm wide; 6 ... 16 mm

790-216

Item no.: 790-220

Shield clamping saddle; 30 mm wide; 6 ... 20 mm

790-220

Carrier rail

Item no.: 210-112

Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm

210-112

Item no.: 210-113

Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715

210-113

Item no.: 210-114

Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715

210-114

Item no.: 210-115

Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm

210-115

Item no.: 210-118

Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715

210-118

Item no.: 210-196

Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715

210-196

Item no.: 210-197

Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715

210-197

750-1400

01.05.2019Page /6 11

Data sheet | Item number:750-1400

Item no.: 210-198

Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715

210-198

Item no.: 210-504

Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715

210-504

Item no.: 210-505

Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715

210-505

Item no.: 210-506

Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715

210-506

Item no.: 210-508

Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715

210-508

wiring and connectors

Item no.: 706-3057/300-100
System cable; for Schneider TSX; 16 digital inputs or outputs; Length: 1 m (1 MOhm); Conductor cross­section: 0.14mm²

706-3057

/300-100

Item no.: 706-3057/300-200
System cable; for Schneider TSX; 16 digital inputs or outputs; Length: 2 m; Conductor cross-section:

0.14mm²

706-3057

/300-200

Item no.: 706-3057/300-300
System cable; for Schneider TSX; 16 digital inputs or outputs; Length: 3 m; Conductor cross-section:

0.14mm²

706-3057

/300-300

Item no.: 706-7753/302-100
System cable; for WAGO-I/O-SYSTEM, 753 Series; 8 digital inputs and 8 digital outputs; Length: 1 m (1
MOhm); Conductor cross-section: 0.14mm²

706-7753

/302-100

Item no.: 706-7753/302-200
System cable; for WAGO-I/O-SYSTEM, 753 Series; 8 digital inputs and 8 digital outputs; Length: 2 m;
Conductor cross-section: 0.14mm²

706-7753

/302-200

transfer module

Item no.: 289-611

Interface module; for flat cable connectors per DIN 41651; 10-pole

289-611

Item no.: 289-614

Interface Module; for flat cable connectors per DIN 41651; 20-pole

289-614

Item no.: 704-2003
Interface module for system wiring; Pluggable connector per DIN 41651; Male connector; 10-pole; 8­channel digital input or output; 3-wire connection; Triple-deck PCB terminal blocks; in mounting carrier

704-2003

Item no.: 704-2004
Interface module for system wiring; Pluggable connector per DIN 41651; Male connector; 20-pole; 16­channel digital input or output; 1-wire connection; Double-deck PCB terminal blocks; in mounting
carrier

704-2004

Item no.: 704-2024
Interface module for system wiring; Pluggable connector per DIN 41651; Male connector; 20-pole; 16­channel digital input or output; 2-wire connection; Double-deck PCB terminal blocks; in mounting
carrier

704-2024

Item no.: 704-2044
Interface module for system wiring; Pluggable connector per DIN 41651; Male connector; 20-pole; 16­channel digital input or output; 2-wire connection; PCB disconnect terminal blocks; in mounting carrier

704-2044

750-1400

01.05.2019Page /7 11

Data sheet | Item number:750-1400

Item no.: 704-2054
Interface module for system wiring; Pluggable connector per DIN 41651; Male connector; 20-pole; 16­channel digital input or output; 3-wire connection; Triple-deck PCB terminal blocks; in mounting carrier

704-2054

Item no.: 857-982

Interface adapter; 14-pole; High-side switching output

857-982

Marking accessories

Item no.: 2009-145
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

Item no.: 2009-145/000-002

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

/000-002

Item no.: 2009-145/000-005

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

/000-005

Item no.: 2009-145/000-006

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

/000-006

Item no.: 2009-145/000-007

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

/000-007

Item no.: 2009-145/000-012

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

/000-012

Item no.: 2009-145/000-023

Mini-WSB Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

/000-023

Item no.: 2009-145/000-024

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

/000-024

Item no.: 248-501

Miniature WSB Quick marking system; plain; Marker width 5 mm; 10 strips with 10 markers per card

248-501

Item no.: 248-501/000-002

Mini-WSB marking card; as card; not stretchable; plain; snap-on type

248-501

/000-002

Item no.: 248-501/000-005

Mini-WSB marking card; as card; not stretchable; plain; snap-on type

248-501

/000-005

Item no.: 248-501/000-006

Mini-WSB marking card; as card; not stretchable; plain; snap-on type

248-501

/000-006

Item no.: 248-501/000-007

Mini-WSB marking card; as card; not stretchable; plain; snap-on type

248-501

/000-007

750-1400

01.05.2019Page /8 11

Data sheet | Item number:750-1400

Item no.: 248-501/000-012

Mini-WSB marking card; as card; not stretchable; plain; snap-on type

248-501

/000-012

Item no.: 248-501/000-017

Mini-WSB marking card; as card; not stretchable; plain; snap-on type

248-501

/000-017

Item no.: 248-501/000-023

Mini-WSB marking card; as card; not stretchable; plain; snap-on type

248-501

/000-023

Item no.: 248-501/000-024

Mini-WSB marking card; as card; not stretchable; plain; snap-on type

248-501

/000-024

Item no.: 750-103

Group marker carrier

750-103

Item no.: 750-107

Group marker carrier

750-107

system box

Item no.: 850-804

IP65 enclosure; Stainless steel; WxHxD (400x123x200 mm); 4 x M20, 16 x M16, 28 x M12 cable grip

850-804

Item no.: 850-804/000-001

IP65 enclosure; Stainless steel; WxHxD (400x123x200 mm); 2 x M20, 13 x M16, 32 x M12 cable grip

850-804

/000-001

Item no.: 850-805

IP65 enclosure; Stainless steel; WxHxD (600x123x200 mm); 4 x M20, 19 x M16, 67 x M12 cable grip

850-805

Item no.: 850-814/002-000

IP65 enclosure; Sheet steel (RAL 7035); WxHxD (200x120x200 mm); without flange plate

850-814

/002-000

Item no.: 850-815/002-000

IP65 enclosure; Sheet steel (RAL 7035); WxHxD (300x120x200 mm); without flange plate

850-815

/002-000

Item no.: 850-816/002-000

IP65 enclosure; Sheet steel (RAL 7035); WxHxD (400x120x200 mm); without flange plate

850-816

/002-000

Item no.: 850-817/002-000

IP65 enclosure; Sheet steel (RAL 7035); WxHxD (600x120x200 mm); without flange plate

850-817

/002-000

Item no.: 850-825

IP65 enclosure; Aluminium (RAL 7032); WxHxD (160x100x160 mm); 9 x M12, 4 x M20

850-825

Item no.: 850-826
IP65 enclosure; Aluminium (RAL 7032); WxHxD (240x100x160 mm); 4 x M20, 4 x M16, 14 x M12 cable
grip

850-826

Item no.: 850-826/002-000
IP65 enclosure; Aluminium (RAL 7035); WxHxD (240x100x160 mm); 4 x M20, 4 x M16, 14 x M12 cable
grip

850-826

/002-000

750-1400

01.05.2019Page /9 11

Data sheet | Item number:750-1400

Item no.: 850-827
IP65 enclosure; Aluminium (RAL 7032); WxHxD (320x100x160 mm); 4 x M20, 8 x M16, 17 x M12 cable
grip

850-827

Item no.: 850-827/002-000
IP65 enclosure; Aluminium (RAL 7035); WxHxD (320x100x160 mm); 4 x M20, 8 x M16, 17 x M12 cable
grip

850-827

/002-000

Item no.: 850-828
IP65 enclosure; Aluminium (RAL 7032); WxHxD (480x100x160 mm); 4 x M20, 10 x M16, 35 x M12 cable
grip

850-828

Item no.: 850-828/002-000
IP65 enclosure; Aluminium (RAL 7035); WxHxD (480x100x160 mm); 4 x M20, 10 x M16, 35 x M12 cable
grip

850-828

/002-000

Item no.: 850-834

IP65 enclosure; Polyester (RAL 7032); WxHxD (164x100x164 mm); 9 x M12, 4 x M20

850-834

Item no.: 850-835
IP65 enclosure; Polyester (RAL 7032); WxHxD (244x100x164 mm); 4 x M20, 4 x M16, 14 x M12 cable
grip

850-835

Item no.: 850-836
IP65 enclosure; Polyester (RAL 7032); WxHxD (324x100x164 mm); 4 x M20, 8 x M16, 17 x M12 cable
grip

850-836

Downloads

Documentation

Manual

16-channel, 24VDC
Flat cable, high-side switching

V 1.2.0 pdf

2.3 MB

Download

Bid Text

750-1400
IO-Klemmen

Apr 4, 2012 doc

27.6 kB

Download

Additional Information

Disposal; Electrical and electronic equipment, Packaging V 1.0.0 pdf

265.8 kB

Download

System Description

Design Notes
Basic conditions and recommendations for higher operational safety

V 2.0.0 pdf

1.5 MB

Download

Use in Hazardous Environments
Term definition, marking and installation regulations

V 1.0.0 pdf

1.0 MB

Download

750/753 Series I/O-System ‒ General Product Information pdf

1.7 MB

Download

750-1400

01.05.2019Page /10 11

Data sheet | Item number:750-1400

Overview on WAGO-I/O-SYSTEM 750 approvals

pdf

780.2 kB

Download

CAD/CAE - Smart Data

CAD data

3D Download 750-1400 URL Download

Device Files

Device Driver

WAGO USB Service Cable Driver / 750 and 857 Series
759-923

6.5.3.0
Sep 10, 2014

zip

4.8 MB

Download

Product family

750/753 Series I/O-System

Learn more about the product family.

Show all products from the family



750-1400

Subject to changes.

01.05.2019Page /11 11
