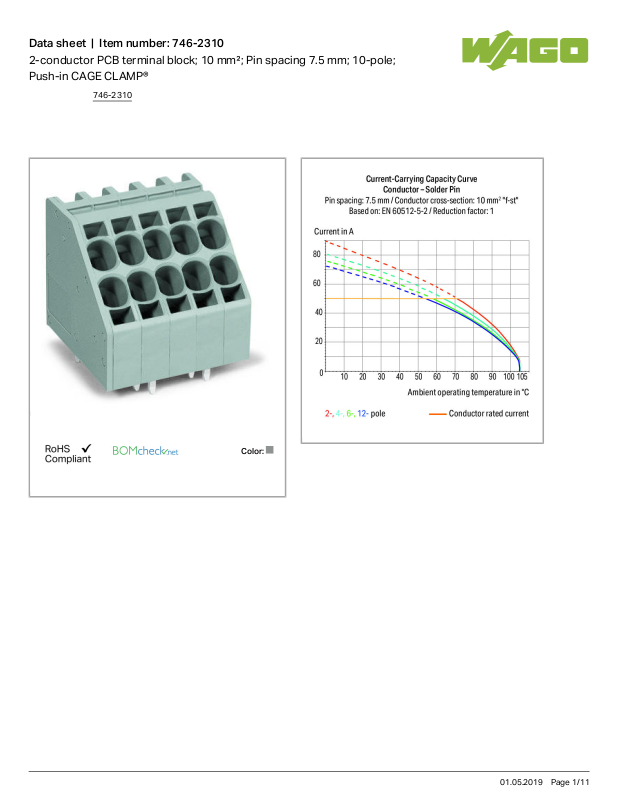

Wago 746-2310 Data Sheet

Data sheet | Item number:746-2310

2-conductor PCB terminal block; 10 mm²; Pin spacing 7.5 mm; 10-pole;
Push-in CAGE CLAMP®

Color:

746-2310

01.05.2019Page /1 11

Data sheet | Item number:746-2310

First solder pins, right rear (red circle)

L = (pole no. x pin spacing) + 2.7mm

Item description

Two-conductor terminal strips with screwdriver actuation and Push-in CAGE CLAMP connection

®

Double entries for supply and power distribution

Simple, reliable connection via clamping units featuring individual operating slots

746-2310

01.05.2019Page /2 11

Data sheet | Item number:746-2310

600 V UL per UL 1059

Simple, push-in termination of solid and ferruled conductors

Marker slot for miniature WSB and WMB markers

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

Rated voltage (III / 2) 1000 V

Rated impulse voltage (III / 2) 8 kV

Rated voltage (II / 2) 1000 V

Rated impulse voltage (II / 2) 8 kV

Rated current 50 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 600 V

Rated current UL (Use Group B) 50 A

Rated voltage UL (Use Group C) 600V

Rated current UL (Use Group C) 50 A

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V

Rated current CSA (Use Group B) 44 A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 44 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Operating tool

Solid conductor 0.5 … 10mm²/ 20 … 8AWG

Fine-stranded conductor 0.5 … 10mm²/ 20 … 8AWG

Fine-stranded conductor with ferrule with plastic collar 0.5 … 6mm²

Fine-stranded conductor with ferrule without plastic collar 0.5 … 6mm²

Strip length 13 … 15mm/ 0.51 … 0.59inch

Conductor entry angle to the PCB 45 °

No. of poles 10

Total number of connection points 20

Total number of potentials 10

746-2310

01.05.2019Page /3 11

Data sheet | Item number:746-2310

Total number of potentials 10

Number of connection types 1

Number of levels 2

Geometrical Data

Pin spacing 7.5mm/ 0.295inch

Width 77.7mm/ 3.059inch

Height 41.3mm/ 1.623inch

Height from the surface 36.9mm/ 1.453inch

Depth 37mm/ 1.457inch

Solder pin length 4.4mm

Solder pin dimensions 1.6 x 1.2mm

Drilled hole diameter (tolerance)

2.2 mm

(- … +0.1)

PCB contact

PCB contact THT

Solder pin arrangement over the entire terminal strip, staggered

Number of solder pins per potential 2

Material Data

Color gray

Material group I

Insulating material Polyamide 66 (PA 66)

Flammability class per UL94 V0

Clamping spring material Chrome nickel spring steel (CrNi)

Contact material Electrolytic copper (E )

Cu

Contact plating tin-plated

Fire load 1.277 MJ

Weight 77.442 g

Environmental Requirements

Limit temperature range -60 … +105°C

Commercial data

Product Group 4 (Printed Circuit)

Country of origin PL

GTIN 4045454156626

Customs Tariff No. 85369010000
