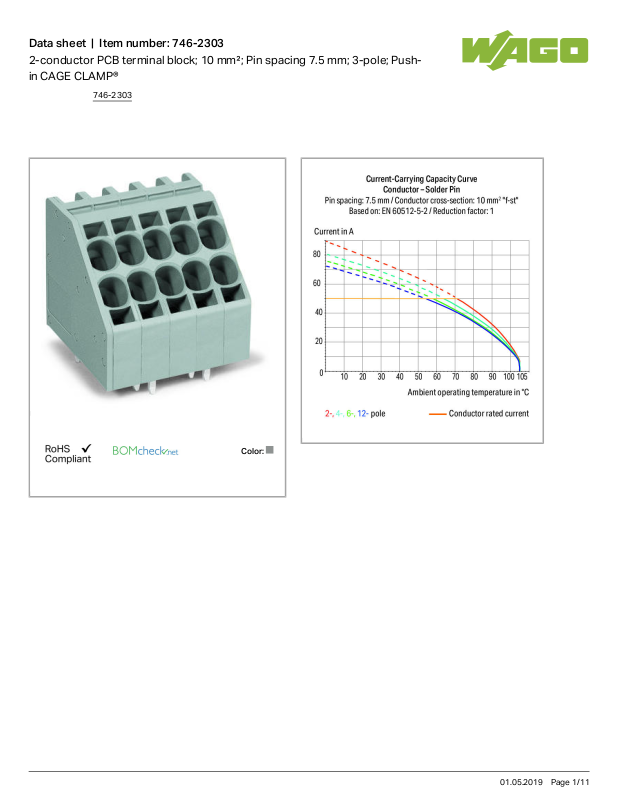

Data sheet | Item number:746-2303
2-conductor PCB terminal block; 10 mm²; Pin spacing 7.5 mm; 3-pole; Pushin CAGE CLAMP®
Color:
746-2303
01.05.2019Page /1 11
Data sheet | Item number:746-2303
First solder pins, right rear (red circle)
L = (pole no. x pin spacing) + 2.7mm
Item description
Two-conductor terminal strips with screwdriver actuation and Push-in CAGE CLAMP connection
®
Double entries for supply and power distribution
Simple, reliable connection via clamping units featuring individual operating slots
746-2303
01.05.2019Page /2 11
Data sheet | Item number:746-2303
600 V UL per UL 1059
Simple, push-in termination of solid and ferruled conductors
Marker slot for miniature WSB and WMB markers
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated voltage (III / 2) 1000 V
Rated impulse voltage (III / 2) 8 kV
Rated voltage (II / 2) 1000 V
Rated impulse voltage (II / 2) 8 kV
Rated current 50 A
Approvals per UL 1059
Rated voltage UL (Use Group B) 600 V
Rated current UL (Use Group B) 50 A
Rated voltage UL (Use Group C) 600V
Rated current UL (Use Group C) 50 A
Approvals per CSA
Rated voltage CSA (Use Group B) 600 V
Rated current CSA (Use Group B) 44 A
Rated voltage CSA (Use Group C) 600V
Rated current CSA (Use Group C) 44 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Operating tool
Solid conductor 0.5 … 10mm²/ 20 … 8AWG
Fine-stranded conductor 0.5 … 10mm²/ 20 … 8AWG
Fine-stranded conductor with ferrule with plastic collar 0.5 … 6mm²
Fine-stranded conductor with ferrule without plastic collar 0.5 … 6mm²
Strip length 13 … 15mm/ 0.51 … 0.59inch
Conductor entry angle to the PCB 45 °
No. of poles 3
Total number of connection points 6
Total number of potentials 3
746-2303
01.05.2019Page /3 11
Data sheet | Item number:746-2303
Total number of potentials 3
Number of connection types 1
Number of levels 2
Geometrical Data
Pin spacing 7.5mm/ 0.295inch
Width 25.2mm/ 0.992inch
Height 41.3mm/ 1.623inch
Height from the surface 36.9mm/ 1.453inch
Depth 37mm/ 1.457inch
Solder pin length 4.4mm
Solder pin dimensions 1.6 x 1.2mm
Drilled hole diameter (tolerance)
2.2 mm
(- … +0.1)
PCB contact
PCB contact THT
Solder pin arrangement over the entire terminal strip, staggered
Number of solder pins per potential 2
Material Data
Color gray
Material group I
Insulating material Polyamide 66 (PA 66)
Flammability class per UL94 V0
Clamping spring material Chrome nickel spring steel (CrNi)
Contact material Electrolytic copper (E )
Cu
Contact plating tin-plated
Fire load 0.423 MJ
Weight 24.698 g
Environmental Requirements
Limit temperature range -60 … +105°C
Commercial data
Product Group 4 (Printed Circuit)
Country of origin PL
GTIN 4045454156558
Customs Tariff No. 85369010000
746-2303
01.05.2019Page /4 11
Data sheet | Item number:746-2303
Approvals / Certificates
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7099
CCA
DEKRA Certification B.V.
EN 60947-7-4 2169331.09
ENEC
DEKRA Certification B.V.
EN 60947 2160584.17
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UL
UL International Germany GmbH
UL 1059 E45172
Sec. 49
Compatible products
check
Item no.: 210-136
Test plug; 2 mm Ø; with 500 mm cable
210-136
Item no.: 210-137
Test plug; 2.3 mm Ø; with 500 mm cable
210-137
tools
Item no.: 210-721
Operating tool with partially insulated shaft; Type 3, blade (5.5 x 0.8) mm
210-721
ferrule
Item no.: 216-101
Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-101
Item no.: 216-102
Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
216-102
746-2303
01.05.2019Page /5 11
Data sheet | Item number:746-2303
Item no.: 216-103
Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated
216-103
Item no.: 216-104
Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated
216-104
Item no.: 216-106
Ferrule; Sleeve for 2.5 mm² / AWG 14; uninsulated; electro-tin plated
216-106
Item no.: 216-107
Ferrule; Sleeve for 4 mm² / AWG 12; uninsulated; electro-tin plated
216-107
Item no.: 216-108
Ferrule; Sleeve for 6 mm² / AWG 10; uninsulated; electro-tin plated
216-108
Item no.: 216-121
Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-121
Item no.: 216-122
Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
216-122
Item no.: 216-123
Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated
216-123
Item no.: 216-124
Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated
216-124
Item no.: 216-131
Ferrule; Sleeve for 0.25 mm² / AWG 24; uninsulated; electro-tin plated
216-131
Item no.: 216-132
Ferrule; Sleeve for 0.34 mm² / AWG 24; uninsulated; electro-tin plated
216-132
Item no.: 216-141
Ferrule; Sleeve for 0.5 mm² / 20 AWG; uninsulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 1/08.92
216-141
Item no.: 216-142
Ferrule; Sleeve for 0.75 mm² / 18 AWG; uninsulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 1/08.92
216-142
Item no.: 216-143
Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 1/08.92
216-143
Item no.: 216-144
Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 1/08.92
216-144
Item no.: 216-151
Ferrule; Sleeve for 0.25 mm² / AWG 24; uninsulated; electro-tin plated
216-151
Item no.: 216-152
Ferrule; Sleeve for 0.34 mm² / AWG 24; uninsulated; electro-tin plated
216-152
Item no.: 216-201
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated
216-201
Item no.: 216-202
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated
216-202
Item no.: 216-203
746-2303
01.05.2019Page /6 11
Data sheet | Item number:746-2303
Item no.: 216-203
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated 216-203
Item no.: 216-204
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated
216-204
Item no.: 216-205
Ferrule; Sleeve for 2.08 mm² / AWG 14; insulated; electro-tin plated
216-205
Item no.: 216-206
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated
216-206
Item no.: 216-207
Ferrule; Sleeve for 4 mm² / AWG 12; insulated; electro-tin plated
216-207
Item no.: 216-208
Ferrule; Sleeve for 6 mm² / AWG 10; insulated; electro-tin plated; electrolytic copper; gastight crimped;
acc. to DIN 46228, Part 4/09.90
216-208
Item no.: 216-221
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated
216-221
Item no.: 216-222
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated
216-222
Item no.: 216-223
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated
216-223
Item no.: 216-224
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated
216-224
Item no.: 216-241
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-241
Item no.: 216-242
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-242
Item no.: 216-243
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped;
acc. to DIN 46228, Part 4/09.90
216-243
Item no.: 216-244
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-244
Item no.: 216-246
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-246
Item no.: 216-262
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-262
Item no.: 216-263
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped;
acc. to DIN 46228, Part 4/09.90
216-263
Item no.: 216-264
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-264
Item no.: 216-266
746-2303
01.05.2019Page /7 11
Data sheet | Item number:746-2303
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-266
Item no.: 216-267
Ferrule; Sleeve for 4 mm² / AWG 12; insulated; electro-tin plated; electrolytic copper; gastight crimped;
acc. to DIN 46228, Part 4/09.90
216-267
Item no.: 216-284
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-284
Item no.: 216-286
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-286
Item no.: 216-287
Ferrule; Sleeve for 4 mm² / AWG 12; insulated; electro-tin plated; electrolytic copper; gastight crimped;
acc. to DIN 46228, Part 4/09.90
216-287
Item no.: 216-288
Ferrule; Sleeve for 6 mm² / AWG 10; insulated; electro-tin plated; electrolytic copper; gastight crimped;
acc. to DIN 46228, Part 4/09.90
216-288
Marking accessories
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-002
Item no.: 2009-115/000-006
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-007
Item no.: 2009-115/000-012
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-012
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-017
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-023
Item no.: 2009-115/000-024
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-024
Item no.: 2009-135
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-135
Item no.: 2009-145
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
746-2303
01.05.2019Page /8 11
Data sheet | Item number:746-2303
Item no.: 2009-145/000-002
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-002
Item no.: 2009-145/000-005
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-005
Item no.: 2009-145/000-006
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-006
Item no.: 2009-145/000-007
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-007
Item no.: 2009-145/000-012
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-012
Item no.: 2009-145/000-023
Mini-WSB Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-023
Item no.: 2009-145/000-024
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-024
Item no.: 210-332/750-020
Marking strips; as a DIN A4 sheet; MARKED; 1-20 (80x); Height of marker strip: 3 mm; Strip length 182
mm; Horizontal marking; Self-adhesive
210-332
/750-020
Item no.: 210-833
Marking strips; on reel; 6 mm wide; plain; Self-adhesive
210-833
Item no.: 248-501
Miniature WSB Quick marking system; plain; Marker width 5 mm; 10 strips with 10 markers per card
248-501
Item no.: 248-501/000-002
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-002
Item no.: 248-501/000-005
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-005
Item no.: 248-501/000-006
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-006
Item no.: 248-501/000-007
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-007
Item no.: 248-501/000-012
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-012
746-2303
01.05.2019Page /9 11
Data sheet | Item number:746-2303
Item no.: 248-501/000-017
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-017
Item no.: 248-501/000-023
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-023
Item no.: 248-501/000-024
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-024
Item no.: 793-501
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
Item no.: 793-501/000-002
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-002
Item no.: 793-501/000-005
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-005
Item no.: 793-501/000-006
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-006
Item no.: 793-501/000-007
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-007
Item no.: 793-501/000-012
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-012
Item no.: 793-501/000-017
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-017
Item no.: 793-501/000-023
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-023
Item no.: 793-501/000-024
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-024
Item no.: 793-5501
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snap-on
type
793-5501
Item no.: 793-5501/000-002
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snap-on
type
793-5501
/000-002
Item no.: 793-5501/000-005
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-005
746-2303
01.05.2019Page /10 11
Data sheet | Item number:746-2303
Item no.: 793-5501/000-006
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-006
Item no.: 793-5501/000-007
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-007
Item no.: 793-5501/000-012
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-012
Item no.: 793-5501/000-017
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-017
Item no.: 793-5501/000-023
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-023
Item no.: 793-5501/000-024
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-024
Downloads
CAD/CAE - Smart Data
CAD data
3D Download 746-2303 URL Download
PCB libraries
DesignSpark Library for WAGO PCB Terminal Blocks
Compatible with DesignSpark PCB Version 4.x or higher
2.1
Oct 6, 2014
zip
22.5 MB
Download
TARGET Library for WAGO PCB Terminal Blocks
Compatible with TARGET PCB Design Software Version 17.x
1.1.0
Oct 6, 2014
zip
27.1 MB
Download
EAGLE Library for WAGO PCB Terminal Blocks
Compatible with EAGLE PCB Design Software Version 6.x or higher
2.1
Oct 6, 2014
zip
23.9 MB
Download
746-2303
Subject to changes.
01.05.2019Page /11 11
Loading...
