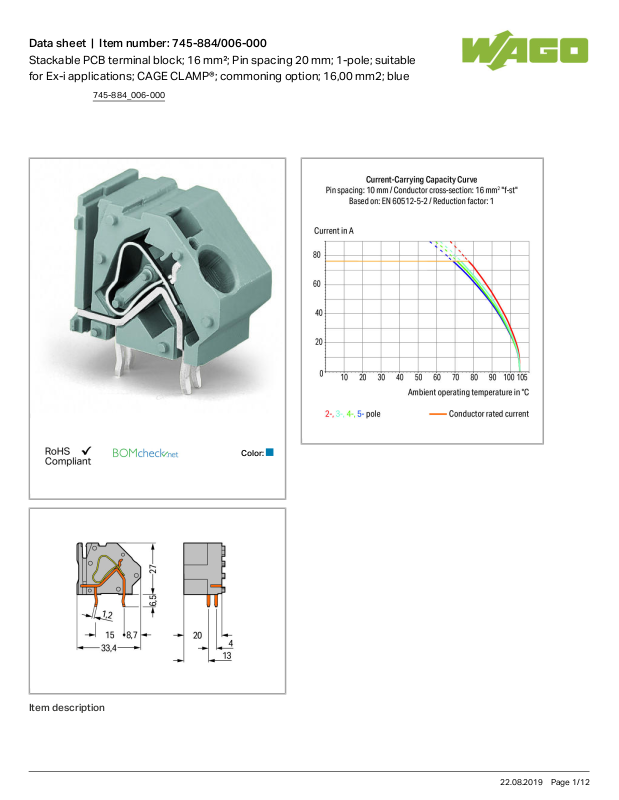

Wago 745-884/006-000 Data Sheet

Data sheet | Item number:745-884/006-000

Stackable PCB terminal block; 16 mm²; Pin spacing 20 mm; 1-pole; suitable
for Ex-i applications; CAGE CLAMP®; commoning option; 16,00 mm2; blue

Color:

Item description

745-884_006-000

22.08.2019Page /1 12

Data sheet | Item number:745-884/006-000

Modular PCB terminal blocks with screwdriver-actuated CAGE CLAMP for custom PCB terminal strip assemblies

®

Versions with Ex approval

Unrestricted UL approval up to 600 V with 20 mm pin spacing

Common and distribute potentials via comb-style jumper bars

Four solder pins for high mechanical stability

Integrated testing tap

Marker slot for Mini-WSB markers

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 1000 V

Rated impulse voltage (III / 3) 12 kV

Rated voltage (III / 2) 1000 V

Rated impulse voltage (III / 2) 12 kV

Rated voltage (II / 2) 1000 V

Rated impulse voltage (II / 2) 12 kV

Rated current 76 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 600 V

Rated current UL (Use Group B) 65 A

Rated voltage UL (Use Group C) 600V

Rated current UL (Use Group C) 65 A

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V

Rated current CSA (Use Group B) 65 A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 65 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Solid conductor 0.2 16mm²/ 24 6AWG

Fine-stranded conductor 0.2 16mm²/ 24 6AWG

Fine-stranded conductor with ferrule with plastic collar 0.25 10mm²

Fine-stranded conductor with ferrule without plastic collar 0.25 10mm²

745-884_006-000

22.08.2019Page /2 12

Data sheet | Item number:745-884/006-000

Strip length 12 13mm/ 0.47 0.51inch

Conductor entry angle to the PCB 45 °

Total number of connection points 1

Total number of potentials 1

Number of connection types 1

Number of levels 1

Number of jumper slots 1

No. of poles 1

Geometrical Data

Pin spacing 20mm/ 0.787inch

Width 21.5mm/ 0.846inch

Height 33.5mm/ 1.319inch

Height from the surface 27mm/ 1.063inch

Depth 33.4mm/ 1.315inch

Solder pin length 6.5mm

Solder pin dimensions 1.2 x 1.6mm

Drilled hole diameter (tolerance)

2.2 mm

(- … +0.1)

PCB contact

PCB contact THT

Solder pin arrangement over the entire terminal strip, in line

Number of solder pins per potential 4

Material Data

Color blue

Material group I

Insulating material Polyamide 66 (PA 66)

Flammability class per UL94 V0

Clamping spring material Chrome nickel spring steel (CrNi)

Contact material Electrolytic copper (E )

Cu

Contact plating tin-plated

Fire load 0.236 MJ

Weight 12.524 g

Environmental Requirements

Limit temperature range -60 +105°C

745-884_006-000

22.08.2019Page /3 12

Data sheet | Item number:745-884/006-000

Commercial data

Product Group 4 (Printed Circuit)

Country of origin PL

GTIN 4044918303224

Customs Tariff No. 85369010000

Approvals / Certificates

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2160584.14

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7094

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2160584.14

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7094

CSA

DEKRA Certification B.V.

C22.2 No. 158 1604421

Other Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

sec6

UL-Approvals

Certificate

745-884_006-000

22.08.2019Page /4 12

Data sheet | Item number:745-884/006-000

Logo Approval Additional Approval Text name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

sec6
